| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_250T02_9000000638_05041cztM0_level2.evt | modeM0/AS1G05_250T02_9000000638_05041cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,254,720 | 83,010,240 |
| Size | 547.7 MB | 79.2 MB |
| Events in quadrant A | 4,870,899 | 473,489 |
| Events in quadrant B | 3,957,893 | 498,471 |
| Events in quadrant C | 3,795,582 | 502,158 |
| Events in quadrant D | 4,223,916 | 483,670 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20235 | 5 |
| B | 0 | 17276 | 4 |
| C | 0 | 16739 | 4 |
| D | 0 | 18225 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7985 | 751 | 9.405135% |
| B | 7985 | 287 | 3.594239% |
| C | 7985 | 207 | 2.592361% |
| D | 7985 | 271 | 3.393863% |

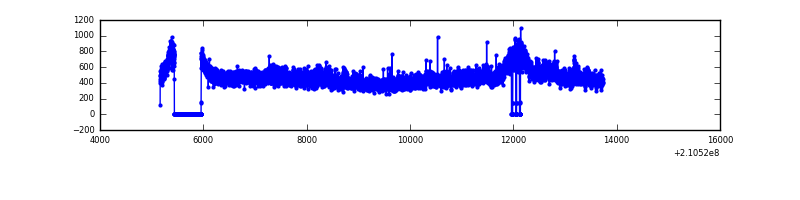

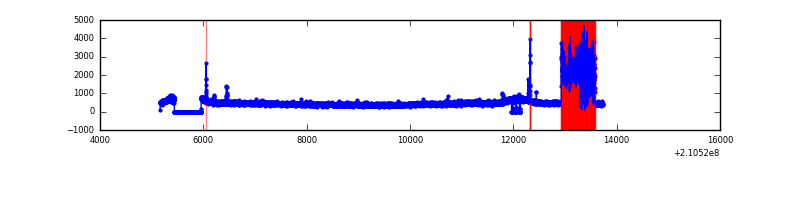

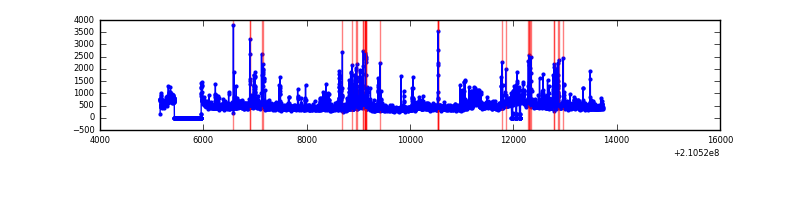

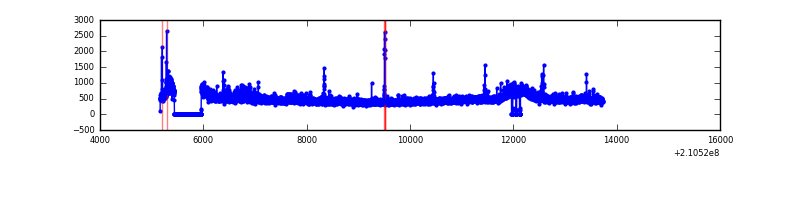

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8565 | 7989 | 468 | 468 | 5.46% | 5.86% |  |
| B | 8565 | 7989 | 6 | 6 | 0.07% | 0.08% |  |
| C | 8565 | 7989 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8565 | 7989 | 35 | 35 | 0.41% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 1346694 | 7277.81 | 909 | 889 | 184.9 |
| A | 15 | 234 | 13361 | 67.45 | 909 | 889 | 184.9 |
| A | 0 | 226 | 9514 | 46.64 | 909 | 889 | 184.9 |
| B | 15 | 204 | 148297 | 803.67 | 953 | 927 | 183.4 |
| B | 0 | 219 | 60462 | 324.67 | 953 | 927 | 183.4 |
| B | 4 | 80 | 27565 | 145.27 | 953 | 927 | 183.4 |
| C | 14 | 67 | 199818 | 936.56 | 919 | 919 | 212.4 |
| C | 13 | 61 | 7585 | 31.39 | 919 | 919 | 212.4 |
| C | 7 | 159 | 4972 | 19.08 | 919 | 919 | 212.4 |
| D | 2 | 136 | 210126 | 927.95 | 919 | 888 | 225.5 |
| D | 2 | 14 | 88246 | 387.42 | 919 | 888 | 225.5 |
| D | 6 | 17 | 81767 | 358.69 | 919 | 888 | 225.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

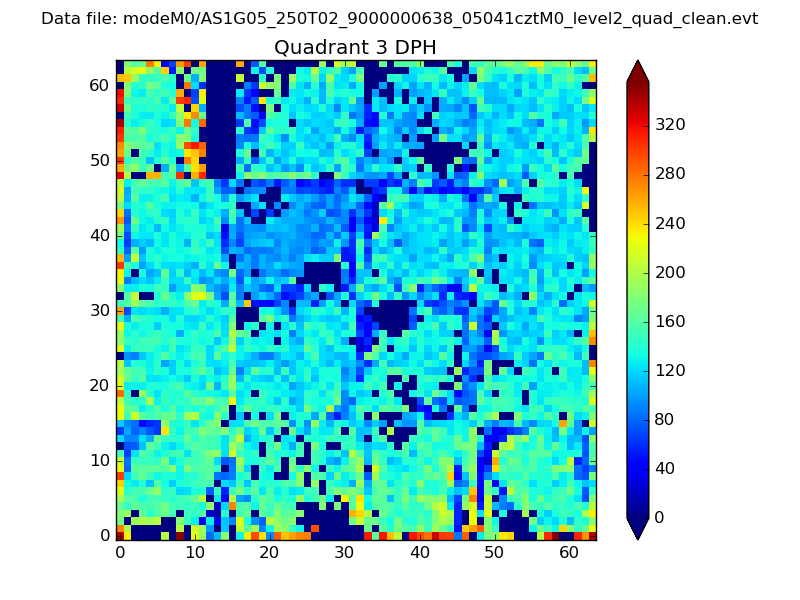

|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

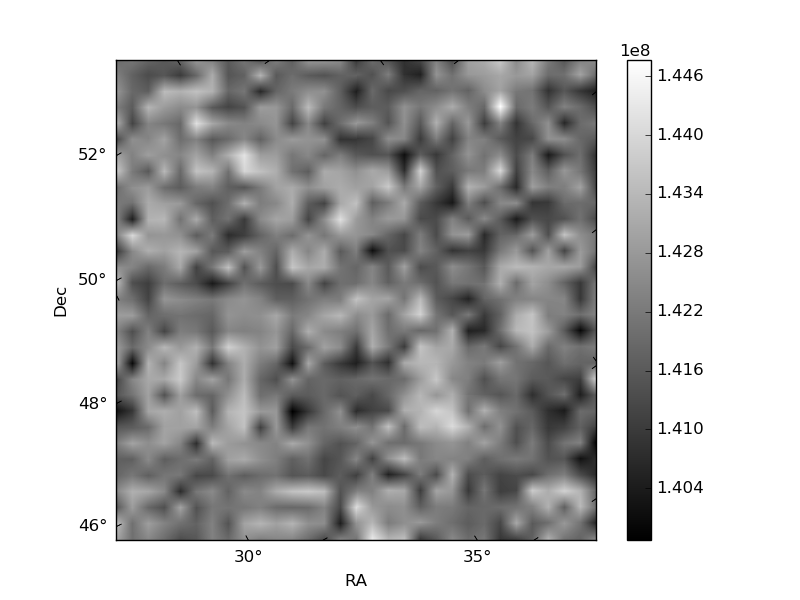

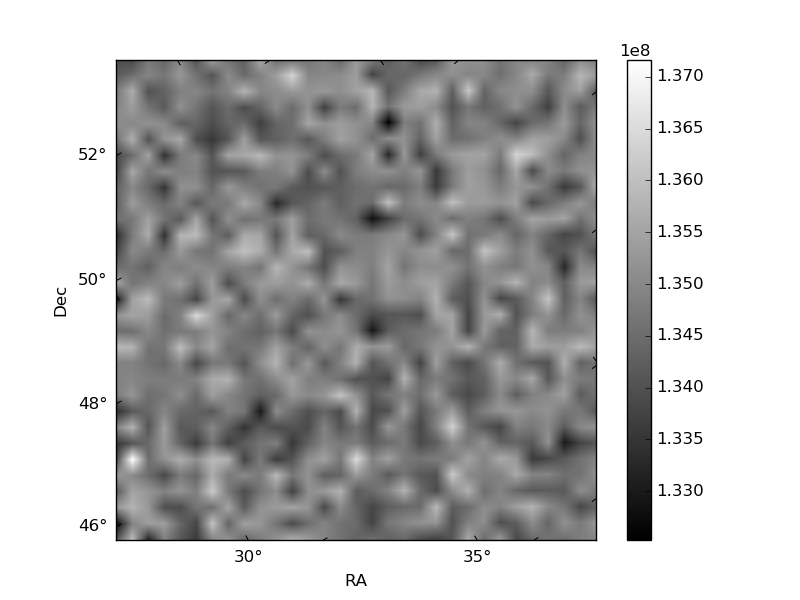

| Plot type | Count rate plots | Images |
|---|---|---|

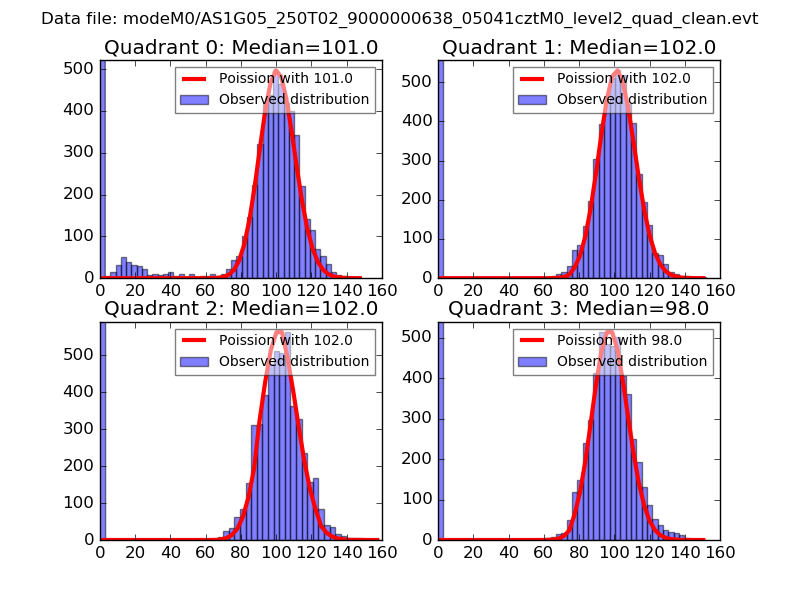

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

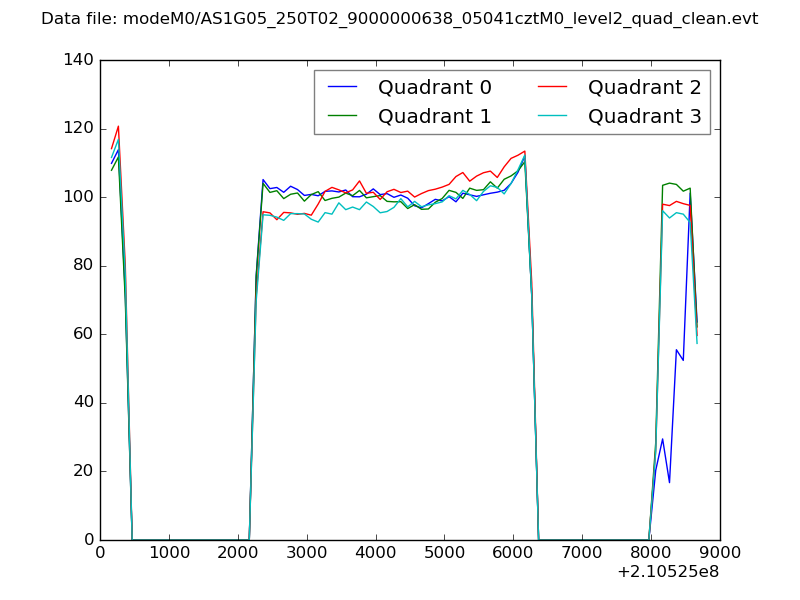

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

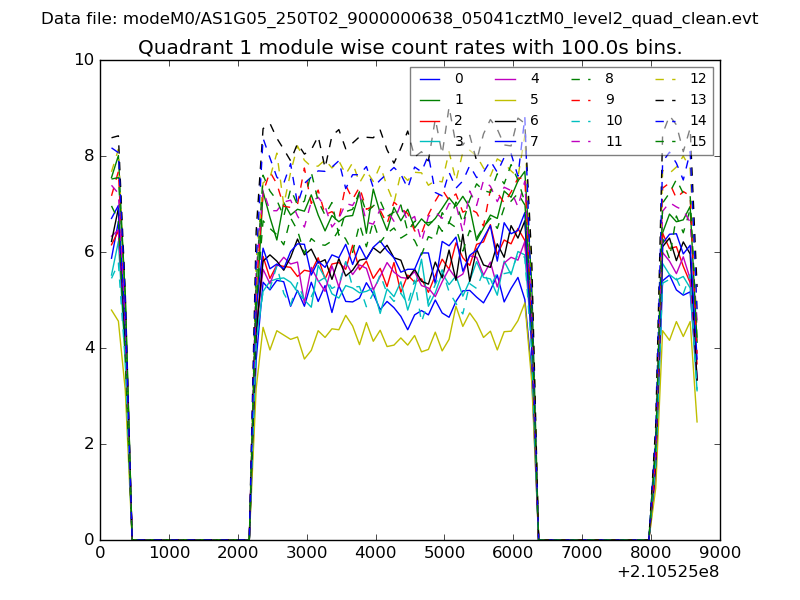

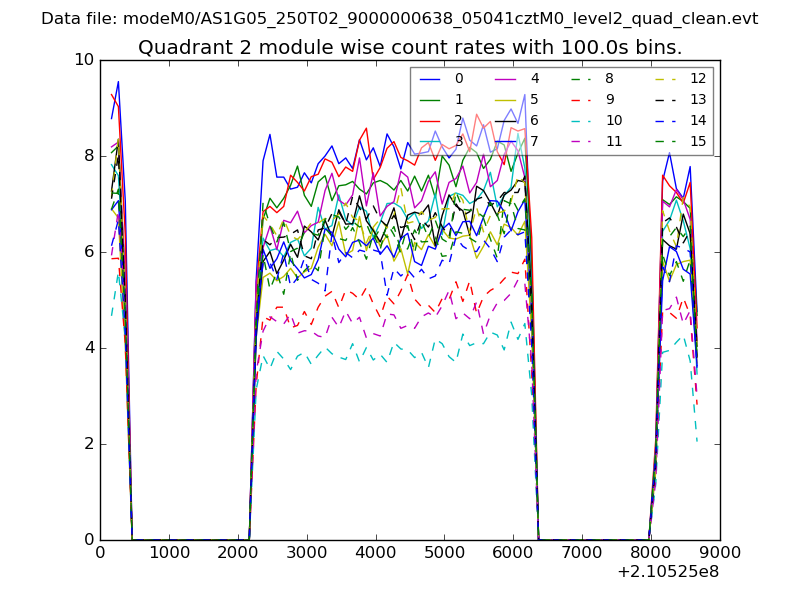

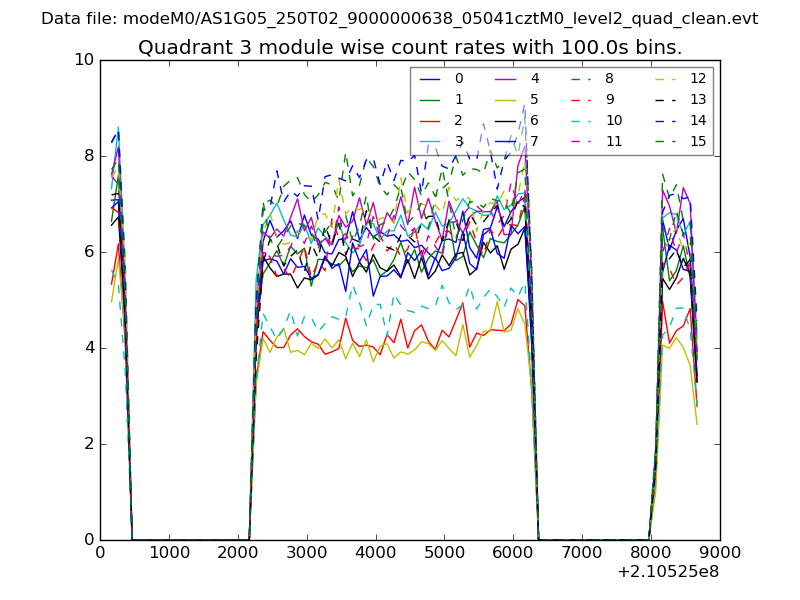

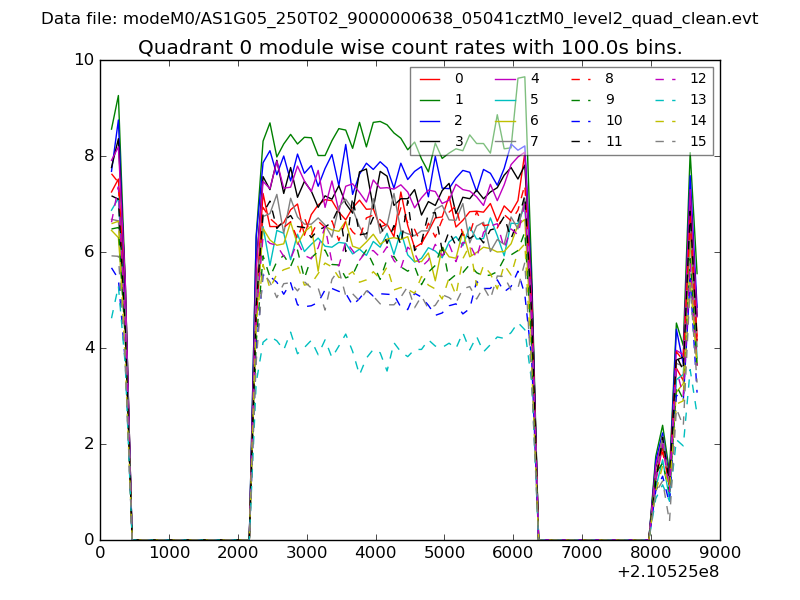

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

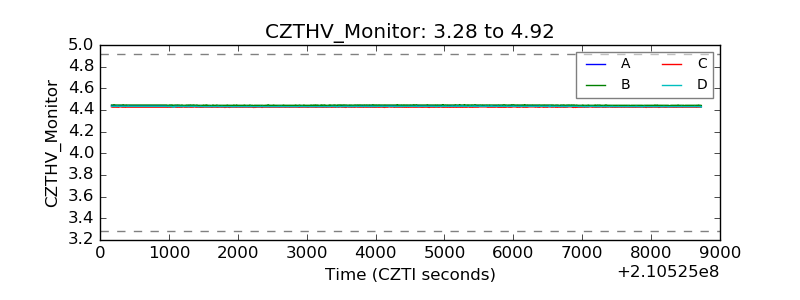

| CZT HV Monitor |  |
| D_VDD |  |

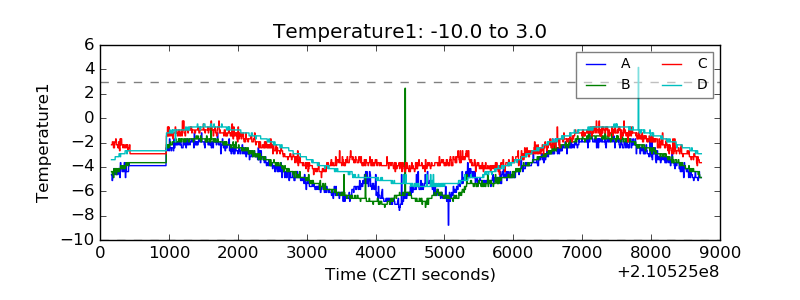

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

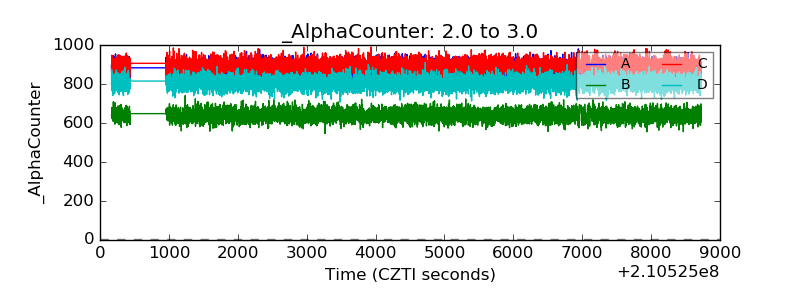

| Alpha Counter |  |

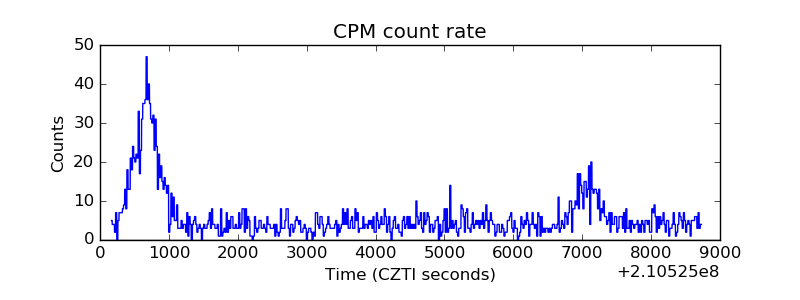

| _CPM_Rate |  |

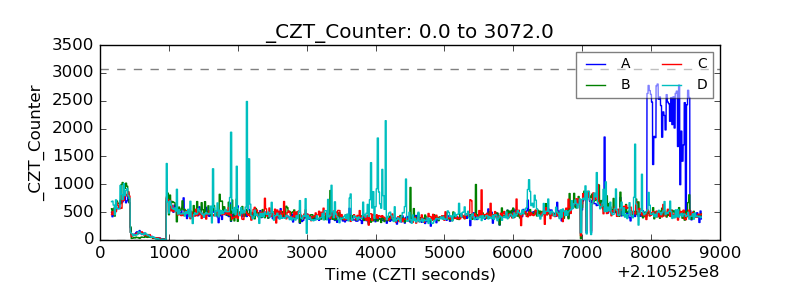

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

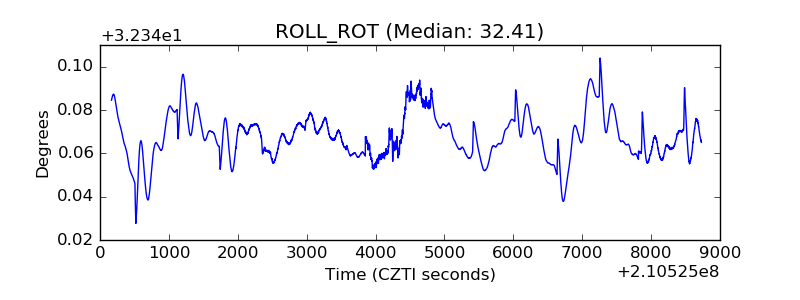

| _ROLL_ROT |  |

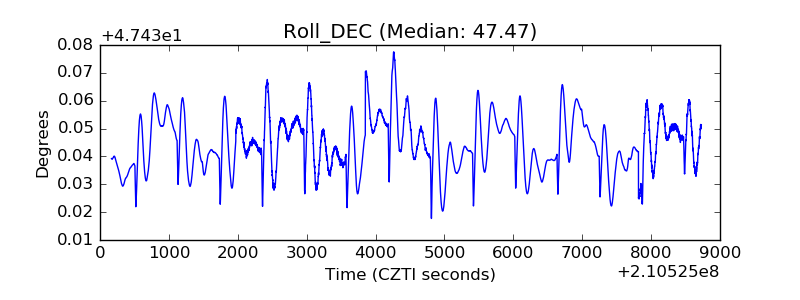

| _Roll_DEC |  |

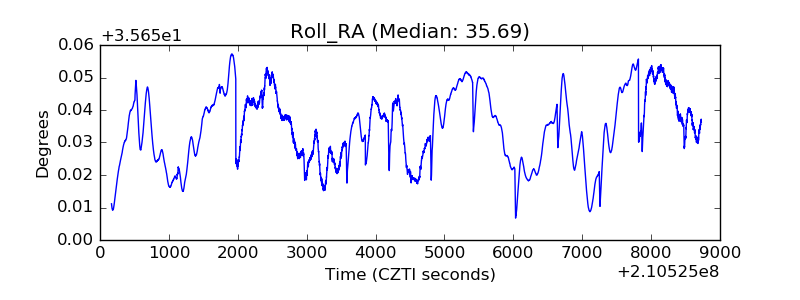

| _Roll_RA |  |

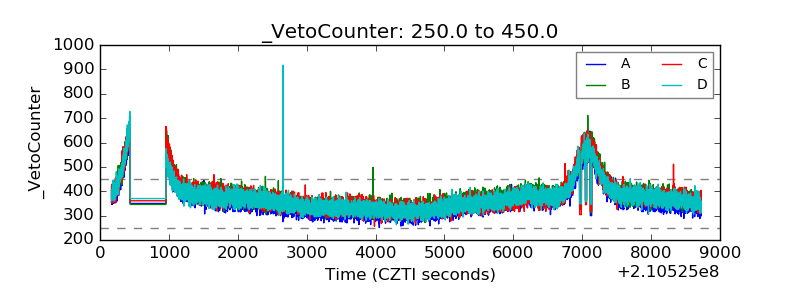

| Veto Counter |  |
