| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T04_9000000640_05051cztM0_level2.evt | modeM0/AS1G05_218T04_9000000640_05051cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,988,800 | 56,741,760 |
| Size | 433.0 MB | 54.1 MB |
| Events in quadrant A | 2,807,581 | 350,642 |
| Events in quadrant B | 2,807,345 | 354,705 |
| Events in quadrant C | 3,600,930 | 339,808 |
| Events in quadrant D | 4,151,759 | 279,633 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11811 | 2 |
| B | 0 | 11691 | 1 |
| C | 0 | 14356 | 1 |
| D | 0 | 15925 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5615 | 85 | 1.513802% |
| B | 5615 | 64 | 1.139804% |
| C | 5615 | 61 | 1.086376% |
| D | 5615 | 653 | 11.629564% |

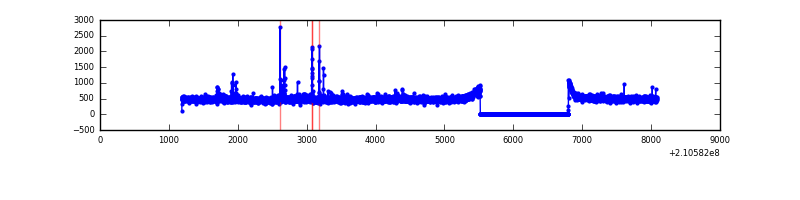

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6895 | 5616 | 15 | 15 | 0.22% | 0.27% |  |
| B | 6895 | 5616 | 4 | 4 | 0.06% | 0.07% |  |
| C | 6895 | 5616 | 11 | 11 | 0.16% | 0.20% |  |
| D | 6895 | 5615 | 378 | 378 | 5.48% | 6.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 76511 | 528.77 | 702 | 689 | 143.4 |
| A | 15 | 234 | 21363 | 144.18 | 702 | 689 | 143.4 |
| A | 12 | 194 | 7093 | 44.66 | 702 | 689 | 143.4 |
| B | 4 | 48 | 44827 | 330.95 | 699 | 683 | 133.4 |
| B | 15 | 204 | 22409 | 162.88 | 699 | 683 | 133.4 |
| B | 0 | 219 | 18712 | 135.16 | 699 | 683 | 133.4 |
| C | 1 | 16 | 991320 | 6432.29 | 665 | 669 | 154.0 |
| C | 14 | 67 | 13021 | 80.2 | 665 | 669 | 154.0 |
| C | 13 | 61 | 5410 | 30.78 | 665 | 669 | 154.0 |
| D | 13 | 235 | 1319473 | 8689.24 | 620 | 603 | 151.8 |
| D | 2 | 136 | 198344 | 1302.8 | 620 | 603 | 151.8 |
| D | 7 | 237 | 101496 | 664.72 | 620 | 603 | 151.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

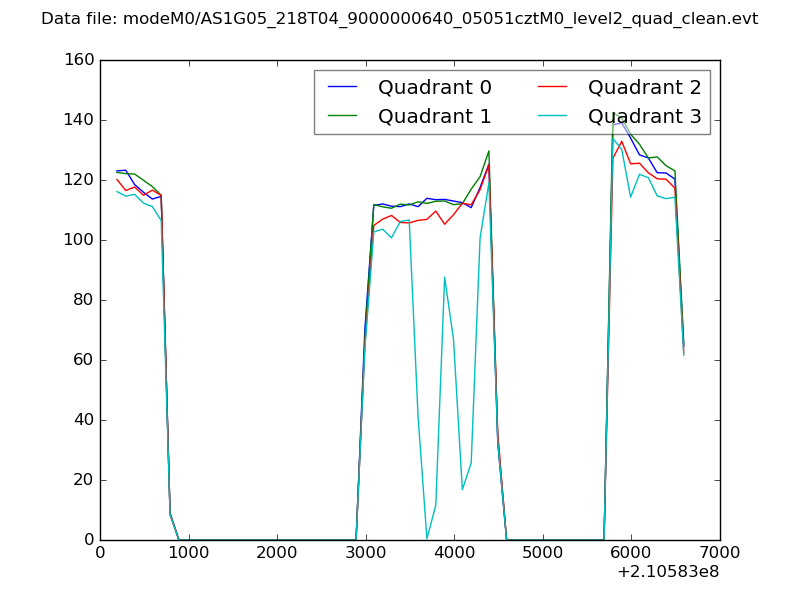

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

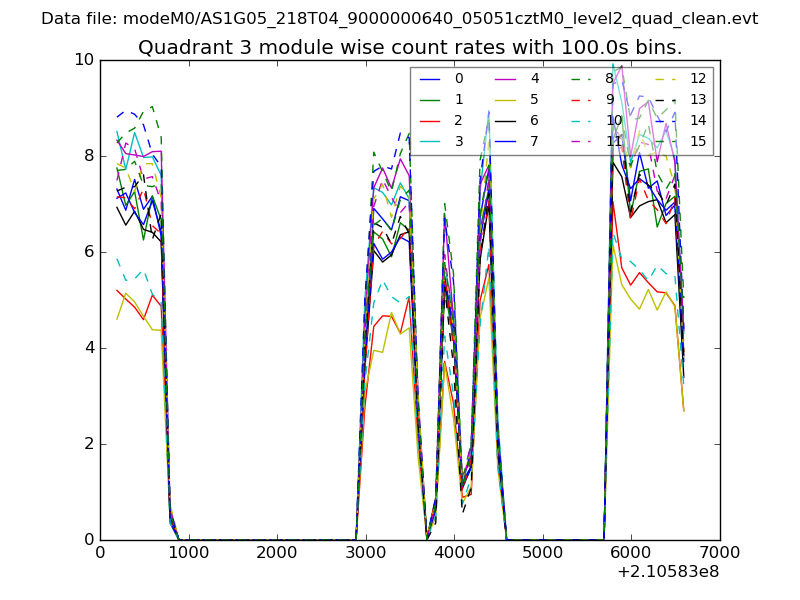

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

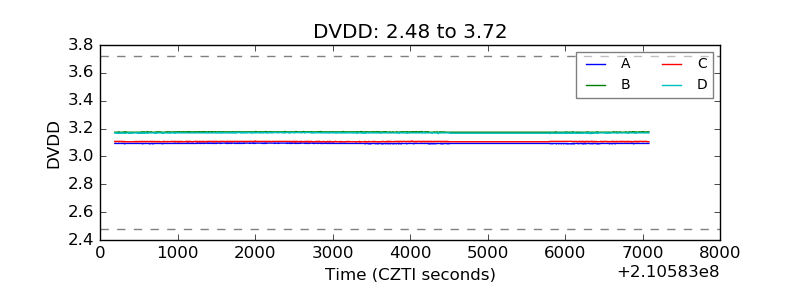

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

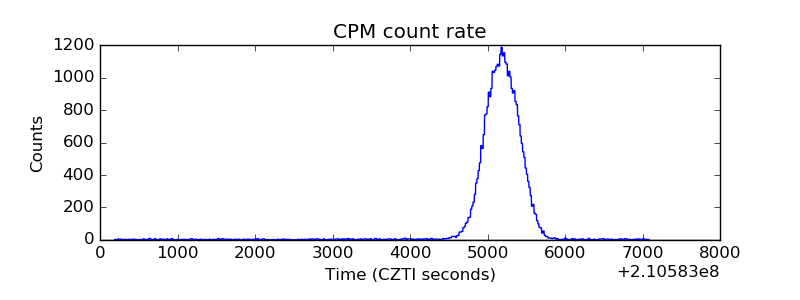

| _CPM_Rate |  |

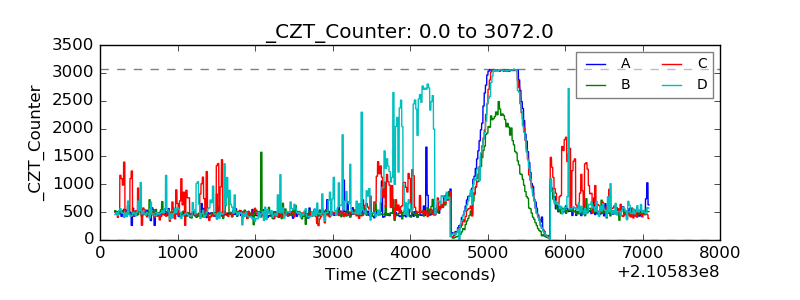

| CZT Counter |  |

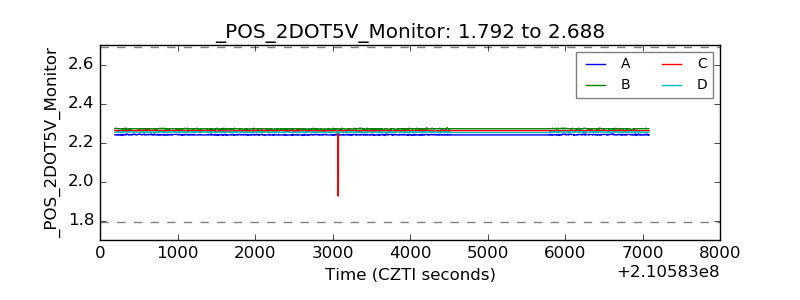

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

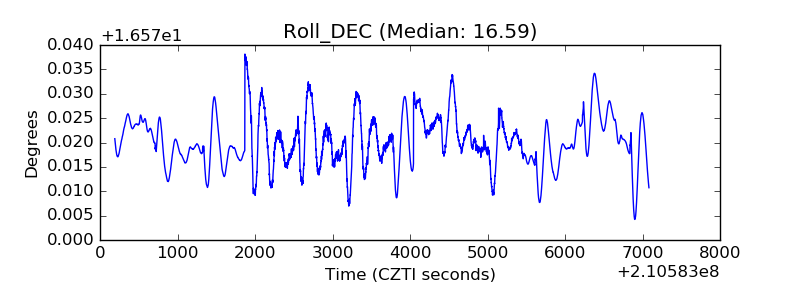

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
