| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T04_9000000640_05054cztM0_level2.evt | modeM0/AS1G05_218T04_9000000640_05054cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,485,120 | 61,649,280 |
| Size | 539.3 MB | 58.8 MB |
| Events in quadrant A | 3,966,108 | 357,474 |
| Events in quadrant B | 3,568,321 | 352,437 |
| Events in quadrant C | 3,662,873 | 345,873 |
| Events in quadrant D | 5,451,031 | 320,176 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16604 | 3 |
| B | 0 | 15200 | 2 |
| C | 0 | 15674 | 2 |
| D | 0 | 20871 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7039 | 448 | 6.364540% |
| B | 7039 | 128 | 1.818440% |
| C | 7039 | 108 | 1.534309% |
| D | 7039 | 712 | 10.115073% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 7040 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7769 | 7040 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7769 | 7040 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7769 | 7040 | 482 | 482 | 6.20% | 6.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 680678 | 3914.24 | 842 | 821 | 173.7 |
| A | 15 | 174 | 23174 | 128.7 | 842 | 821 | 173.7 |
| A | 13 | 251 | 12000 | 64.36 | 842 | 821 | 173.7 |
| B | 15 | 204 | 88810 | 527.69 | 854 | 834 | 166.7 |
| B | 0 | 219 | 60457 | 357.62 | 854 | 834 | 166.7 |
| B | 15 | 54 | 44945 | 264.58 | 854 | 834 | 166.7 |
| C | 1 | 16 | 442509 | 2305.16 | 819 | 824 | 191.6 |
| C | 5 | 207 | 14371 | 70.7 | 819 | 824 | 191.6 |
| C | 14 | 67 | 11898 | 57.8 | 819 | 824 | 191.6 |
| D | 13 | 235 | 1699312 | 8582.83 | 796 | 772 | 197.9 |
| D | 7 | 237 | 352931 | 1779.48 | 796 | 772 | 197.9 |
| D | 13 | 239 | 170689 | 858.6 | 796 | 772 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

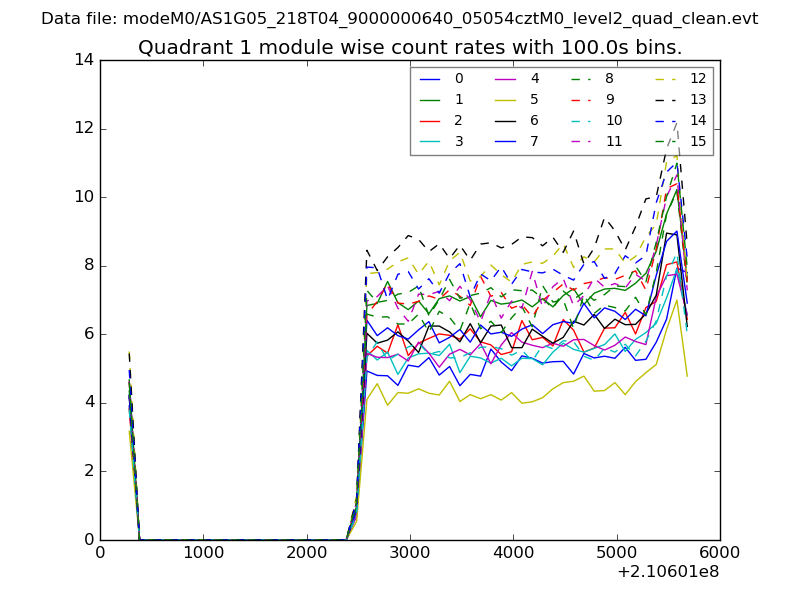

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

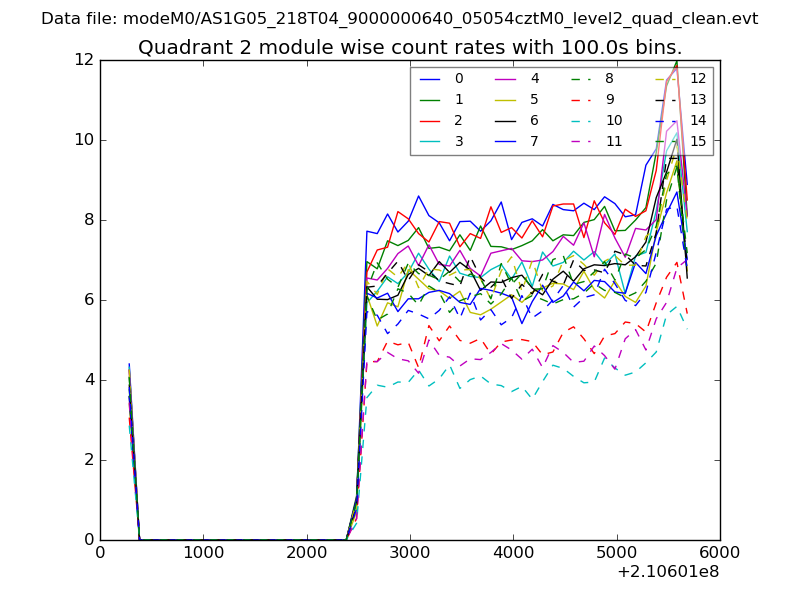

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

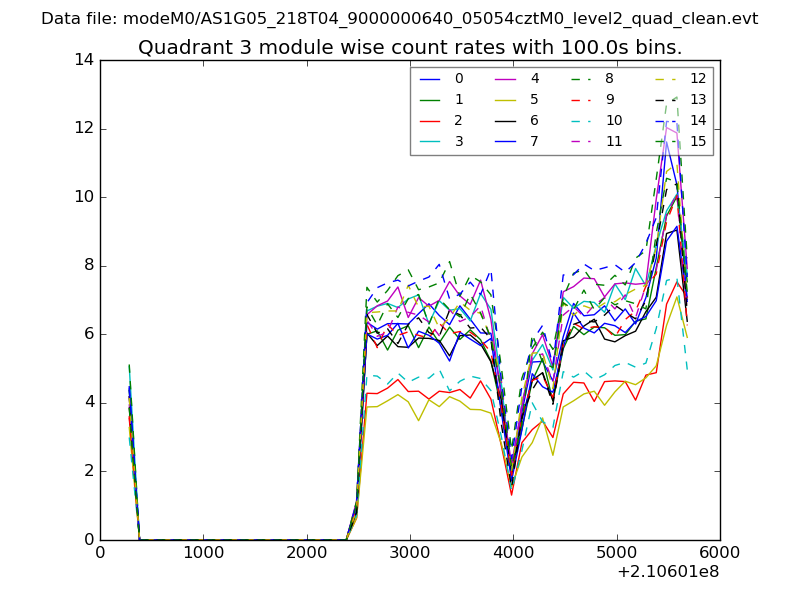

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

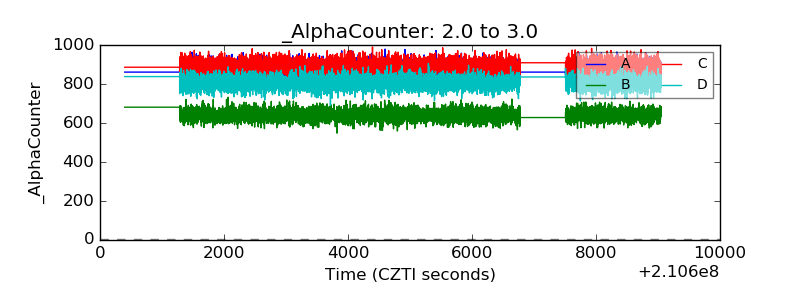

| Alpha Counter |  |
| _CPM_Rate |  |

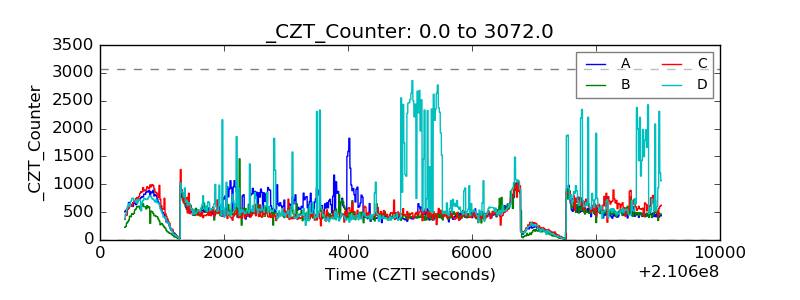

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

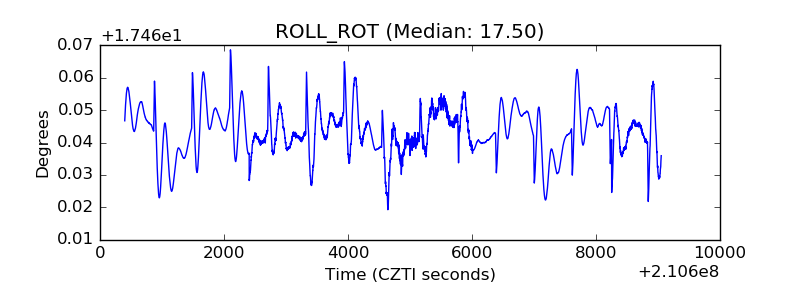

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
