| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T04_9000000640_05057cztM0_level2.evt | modeM0/AS1G05_218T04_9000000640_05057cztM0_level2_quad_clean.evt |
| Size (bytes) | 724,314,240 | 75,847,680 |
| Size | 690.8 MB | 72.3 MB |
| Events in quadrant A | 7,026,278 | 432,787 |
| Events in quadrant B | 3,910,196 | 450,678 |
| Events in quadrant C | 4,246,927 | 439,848 |
| Events in quadrant D | 6,207,542 | 412,886 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26438 | 6 |
| B | 0 | 17116 | 5 |
| C | 0 | 17677 | 7 |
| D | 0 | 24118 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8070 | 610 | 7.558860% |
| B | 8070 | 111 | 1.375465% |
| C | 8069 | 80 | 0.991449% |
| D | 8068 | 775 | 9.605850% |

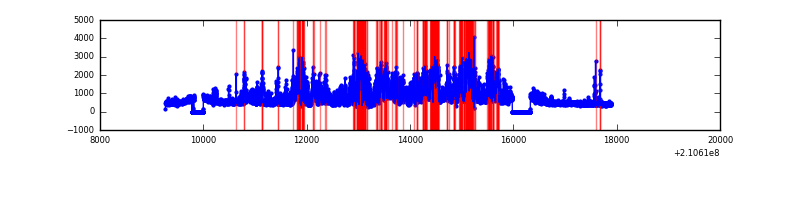

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8626 | 8074 | 445 | 445 | 5.16% | 5.51% |  |
| B | 8626 | 8074 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8626 | 8074 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8626 | 8074 | 553 | 553 | 6.41% | 6.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 3131648 | 16339.51 | 930 | 909 | 191.6 |
| A | 15 | 174 | 253954 | 1320.66 | 930 | 909 | 191.6 |
| A | 0 | 50 | 56074 | 287.91 | 930 | 909 | 191.6 |
| B | 0 | 219 | 79439 | 419.28 | 958 | 934 | 187.2 |
| B | 15 | 204 | 61899 | 325.6 | 958 | 934 | 187.2 |
| B | 4 | 48 | 35458 | 184.38 | 958 | 934 | 187.2 |
| C | 1 | 16 | 644125 | 2996.07 | 916 | 917 | 214.7 |
| C | 14 | 67 | 18741 | 83.02 | 916 | 917 | 214.7 |
| C | 13 | 61 | 7441 | 30.39 | 916 | 917 | 214.7 |
| D | 13 | 235 | 2178644 | 9855.52 | 884 | 856 | 221.0 |
| D | 2 | 33 | 200273 | 902.46 | 884 | 856 | 221.0 |
| D | 1 | 7 | 148290 | 667.21 | 884 | 856 | 221.0 |

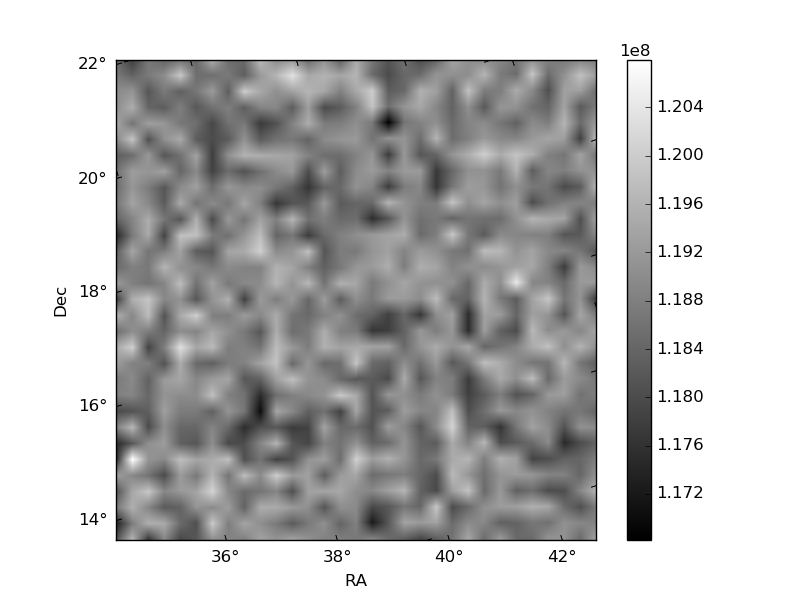

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

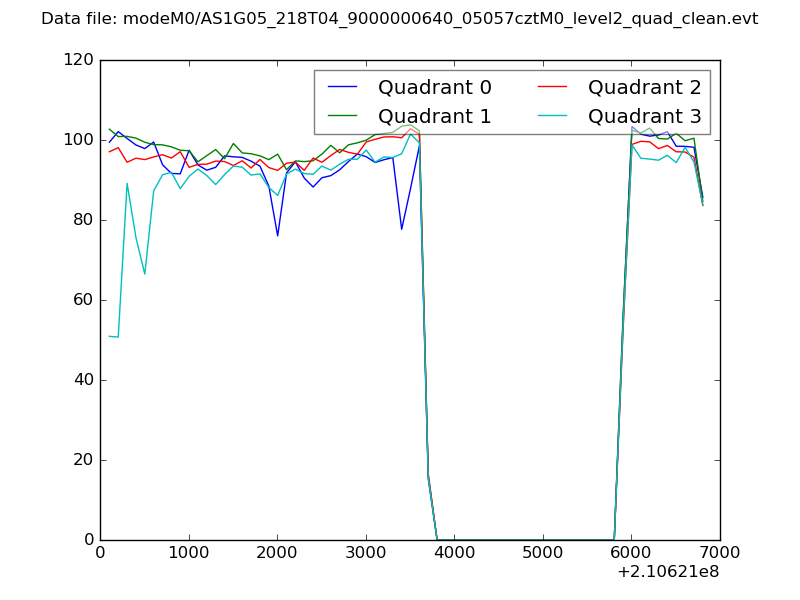

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

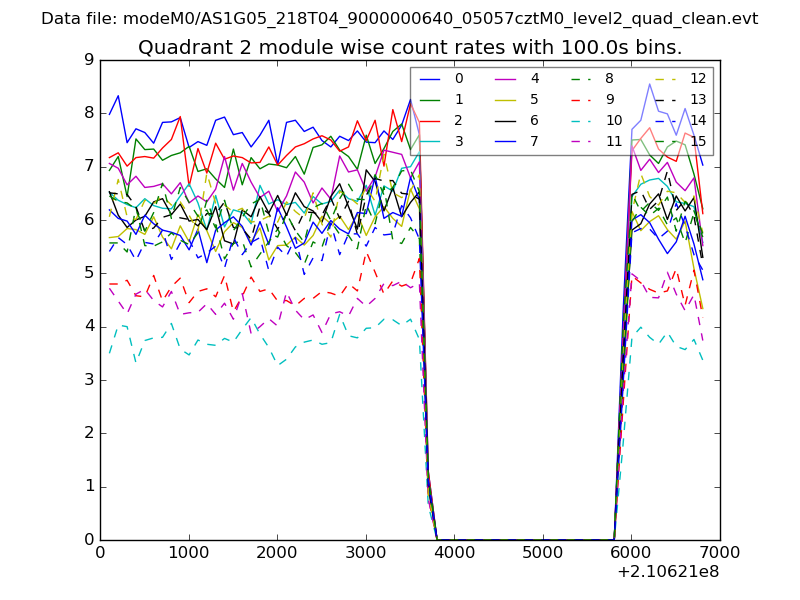

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

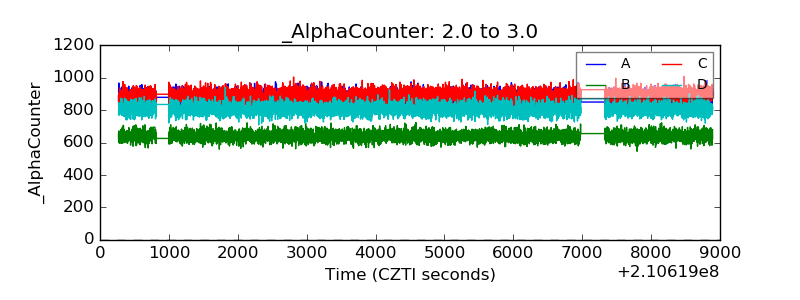

| Alpha Counter |  |
| _CPM_Rate |  |

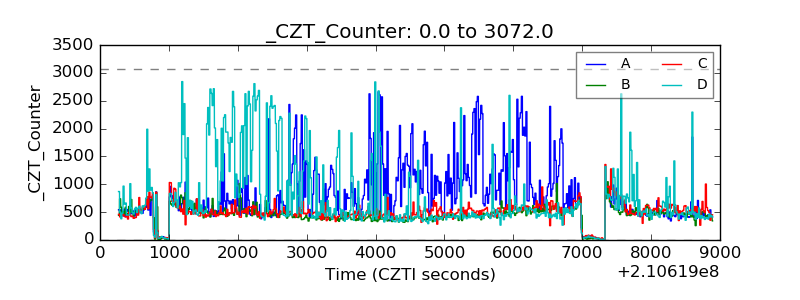

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

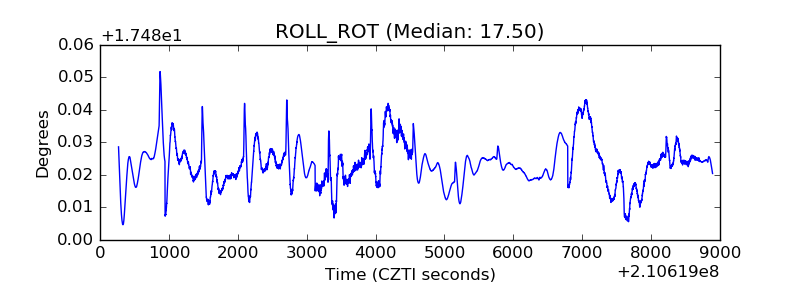

| _ROLL_ROT |  |
| _Roll_DEC |  |

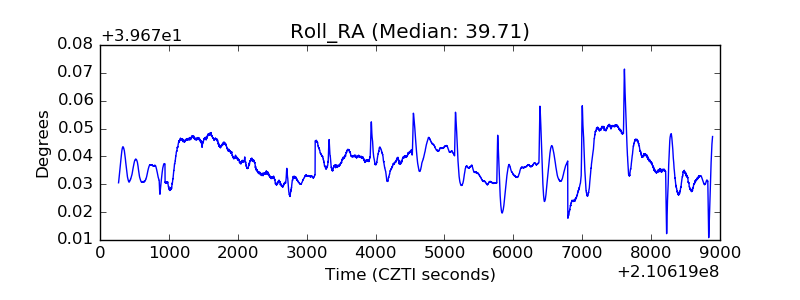

| _Roll_RA |  |
