| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T04_9000000640_05065cztM0_level2.evt | modeM0/AS1G05_218T04_9000000640_05065cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,323,840 | 62,697,600 |
| Size | 410.4 MB | 59.8 MB |
| Events in quadrant A | 2,878,076 | 384,481 |
| Events in quadrant B | 3,002,616 | 384,870 |
| Events in quadrant C | 2,900,052 | 375,868 |
| Events in quadrant D | 3,847,712 | 337,791 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12230 | 2 |
| B | 0 | 12502 | 1 |
| C | 0 | 12474 | 1 |
| D | 0 | 15418 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5945 | 60 | 1.009251% |
| B | 5945 | 51 | 0.857864% |
| C | 5945 | 20 | 0.336417% |
| D | 5945 | 457 | 7.687132% |

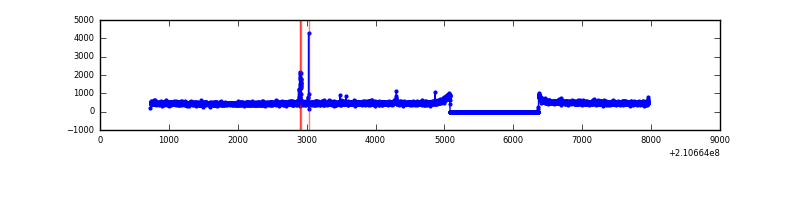

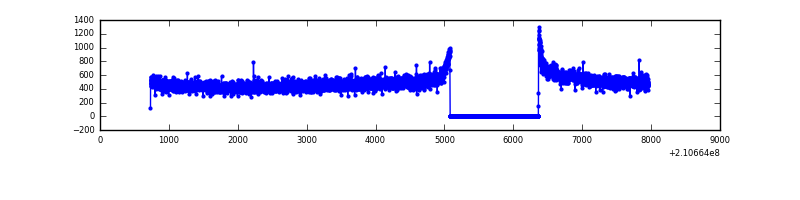

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 5946 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7230 | 5946 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7230 | 5946 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7230 | 5945 | 320 | 320 | 4.43% | 5.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 39876 | 261.3 | 734 | 720 | 149.9 |
| A | 13 | 251 | 13468 | 85.07 | 734 | 720 | 149.9 |
| A | 12 | 194 | 7374 | 44.4 | 734 | 720 | 149.9 |
| B | 15 | 204 | 129887 | 916.54 | 729 | 712 | 140.9 |
| B | 0 | 219 | 21149 | 145.0 | 729 | 712 | 140.9 |
| B | 15 | 54 | 15218 | 102.92 | 729 | 712 | 140.9 |
| C | 1 | 16 | 180910 | 1122.06 | 695 | 697 | 160.6 |
| C | 13 | 61 | 5609 | 30.58 | 695 | 697 | 160.6 |
| C | 8 | 222 | 4062 | 20.95 | 695 | 697 | 160.6 |
| D | 13 | 235 | 996190 | 5976.5 | 672 | 651 | 166.6 |
| D | 10 | 15 | 128329 | 766.49 | 672 | 651 | 166.6 |
| D | 2 | 14 | 52194 | 309.43 | 672 | 651 | 166.6 |

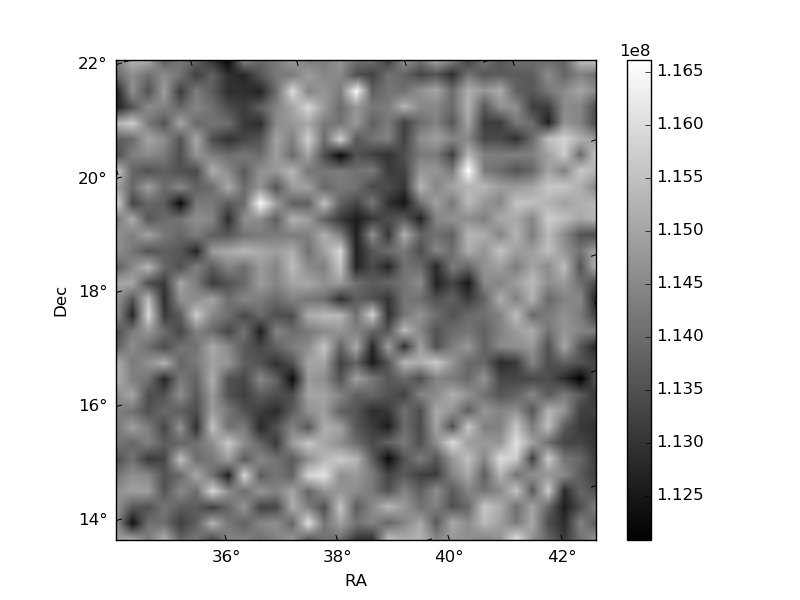

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

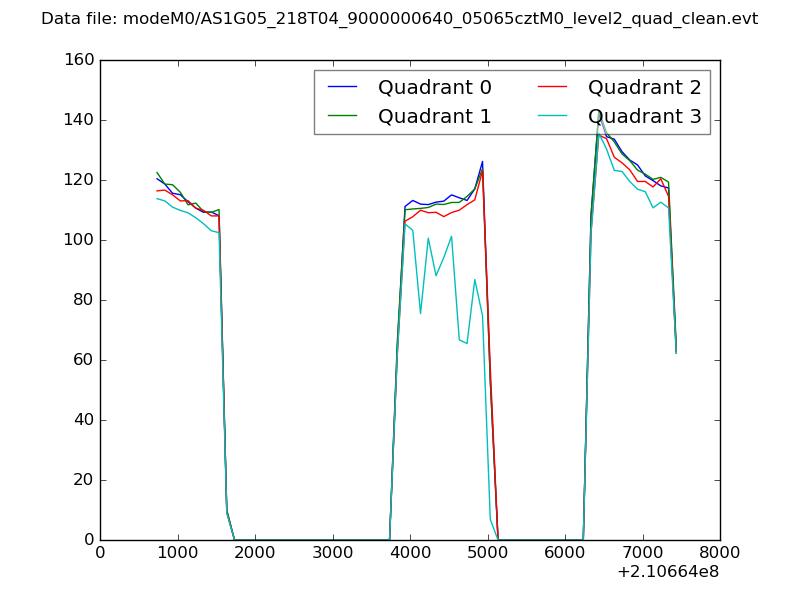

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

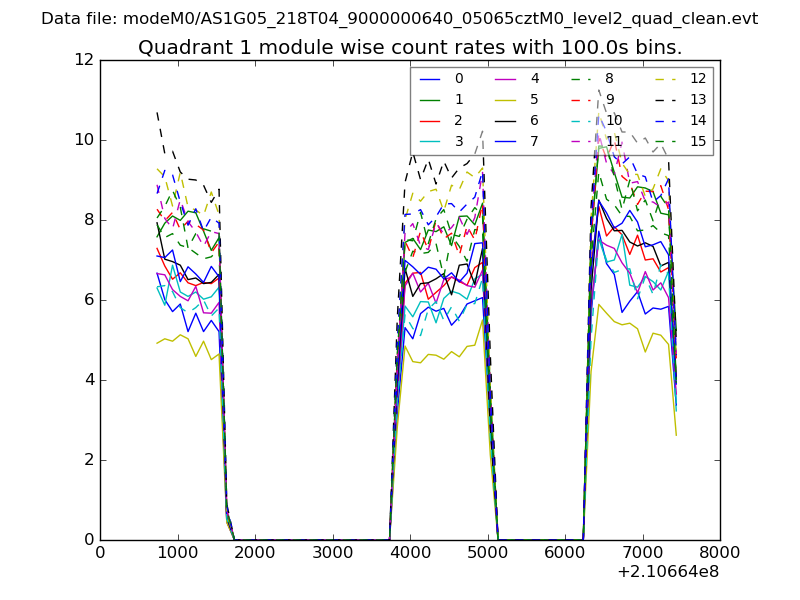

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

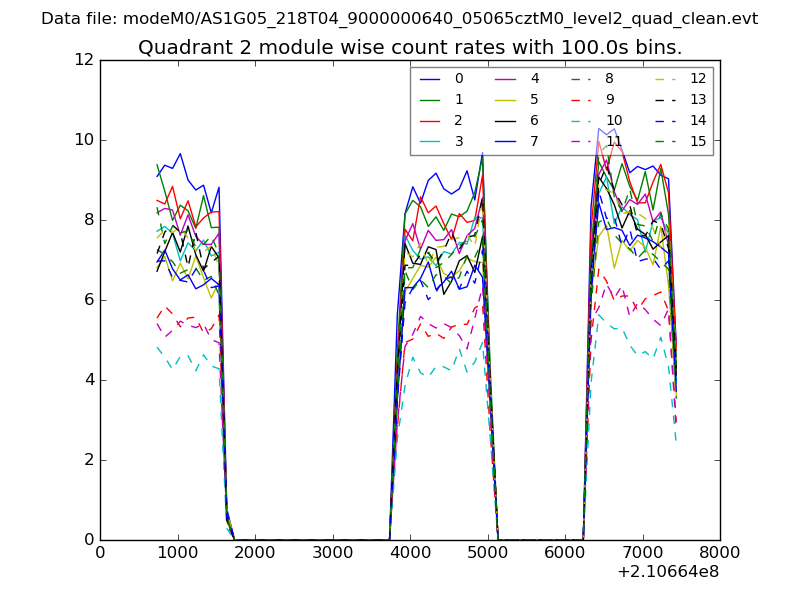

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

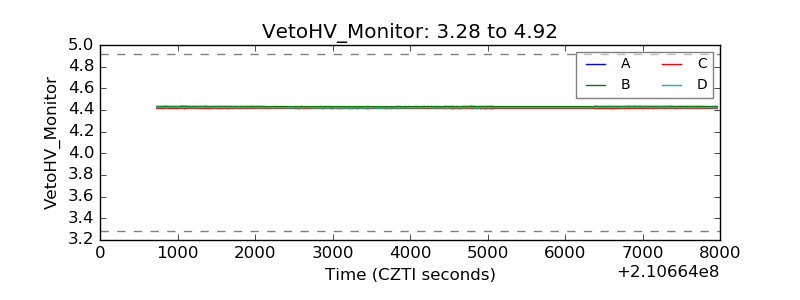

| Veto HV Monitor |  |
| Veto LLD |  |

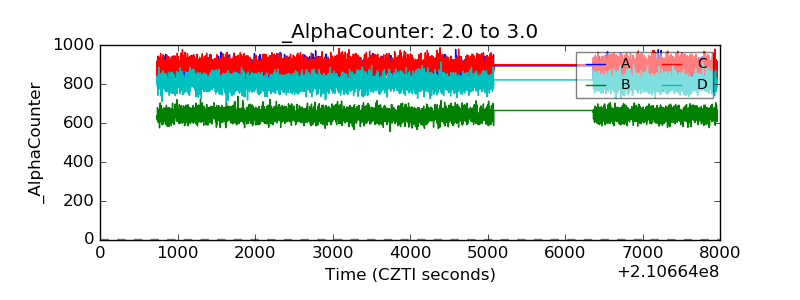

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
