| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T04_9000000640_05068cztM0_level2.evt | modeM0/AS1G05_218T04_9000000640_05068cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,020,800 | 61,174,080 |
| Size | 548.4 MB | 58.3 MB |
| Events in quadrant A | 3,369,498 | 350,708 |
| Events in quadrant B | 3,361,350 | 343,553 |
| Events in quadrant C | 3,650,443 | 336,795 |
| Events in quadrant D | 6,559,878 | 335,242 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14598 | 3 |
| B | 0 | 14528 | 2 |
| C | 0 | 15554 | 2 |
| D | 0 | 24346 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6969 | 132 | 1.894102% |
| B | 6969 | 124 | 1.779308% |
| C | 6969 | 89 | 1.277084% |
| D | 6969 | 1572 | 22.557038% |

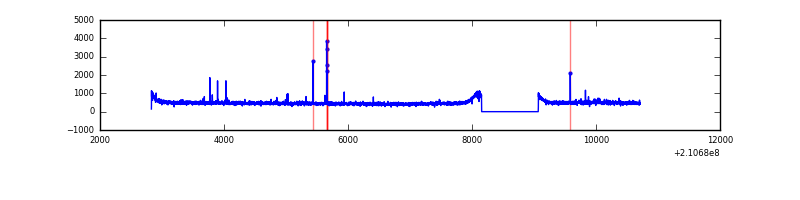

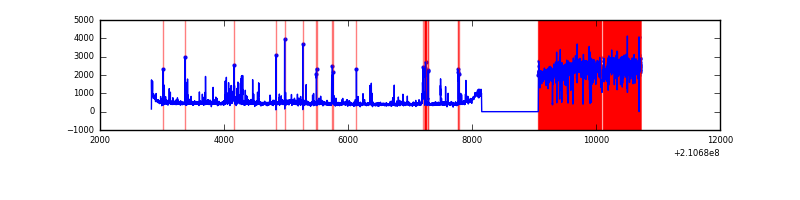

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7884 | 6970 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7884 | 6970 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7884 | 6970 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7884 | 6969 | 1387 | 1387 | 17.59% | 19.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 43911 | 246.49 | 851 | 834 | 174.8 |
| A | 0 | 50 | 34945 | 195.19 | 851 | 834 | 174.8 |
| A | 0 | 226 | 8980 | 46.61 | 851 | 834 | 174.8 |
| B | 15 | 54 | 26958 | 157.46 | 850 | 830 | 165.9 |
| B | 0 | 219 | 26669 | 155.72 | 850 | 830 | 165.9 |
| B | 12 | 111 | 14732 | 83.78 | 850 | 830 | 165.9 |
| C | 1 | 16 | 434191 | 2278.88 | 814 | 817 | 190.2 |
| C | 8 | 128 | 17173 | 86.01 | 814 | 817 | 190.2 |
| C | 8 | 112 | 8156 | 38.59 | 814 | 817 | 190.2 |
| D | 7 | 237 | 3080072 | 16365.29 | 765 | 741 | 188.2 |
| D | 2 | 136 | 188277 | 996.67 | 765 | 741 | 188.2 |
| D | 13 | 239 | 108893 | 574.78 | 765 | 741 | 188.2 |

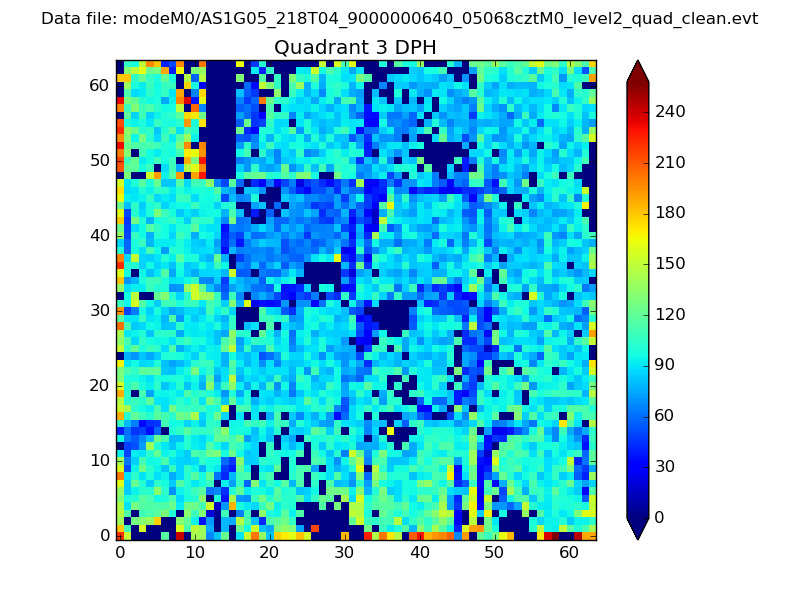

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

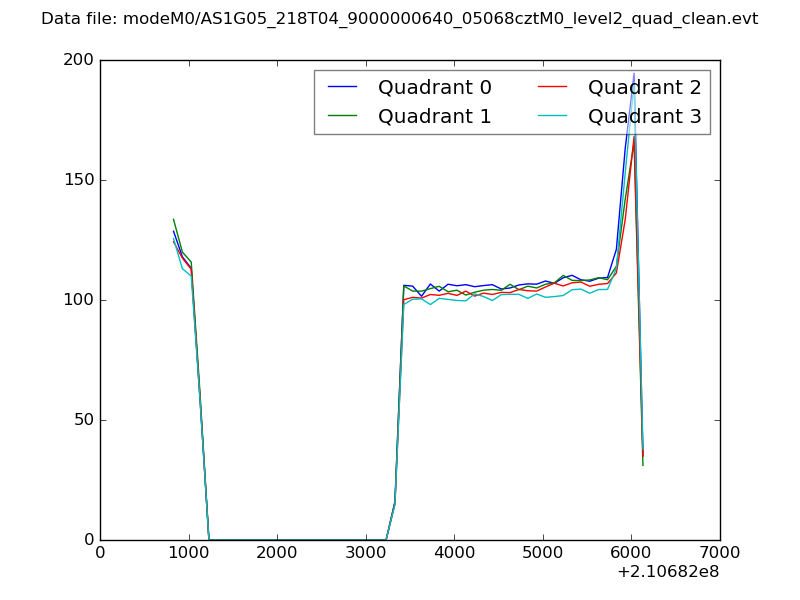

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

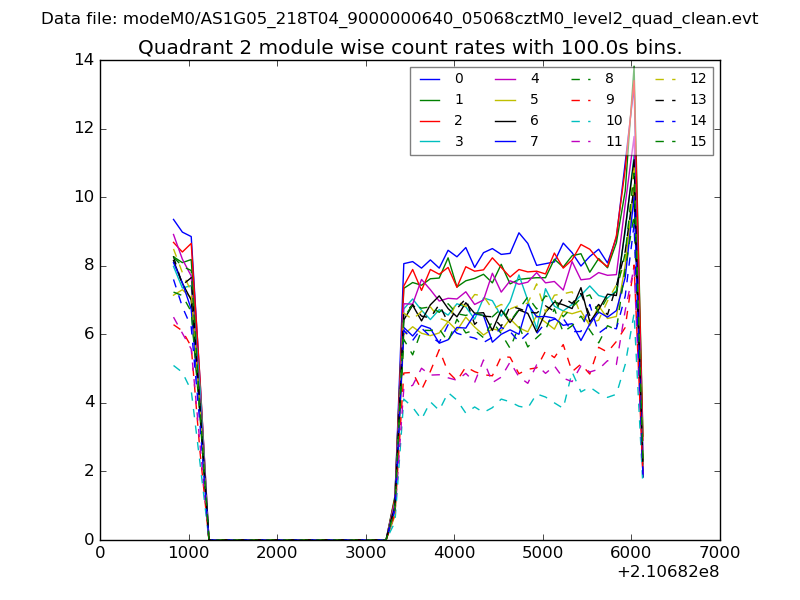

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

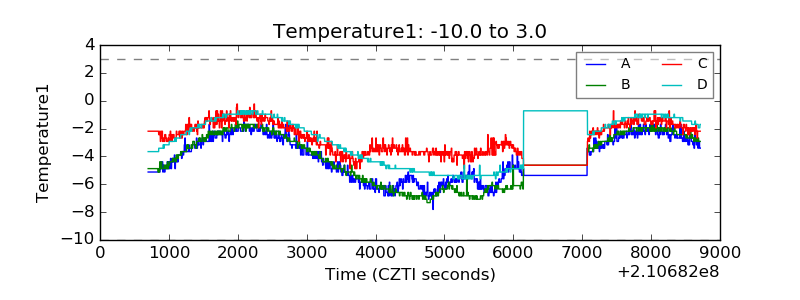

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

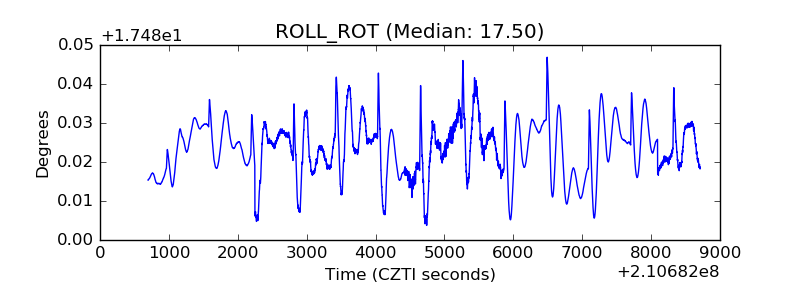

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
