| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_103T01_9000000642_05074cztM0_level2.evt | modeM0/AS1G05_103T01_9000000642_05074cztM0_level2_quad_clean.evt |
| Size (bytes) | 389,260,800 | 65,306,880 |
| Size | 371.2 MB | 62.3 MB |
| Events in quadrant A | 2,796,132 | 400,027 |
| Events in quadrant B | 2,702,002 | 404,359 |
| Events in quadrant C | 2,506,825 | 398,414 |
| Events in quadrant D | 3,389,456 | 369,572 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12504 | 4 |
| B | 0 | 12071 | 1 |
| C | 0 | 11704 | 5 |
| D | 0 | 14313 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5790 | 81 | 1.398964% |
| B | 5791 | 34 | 0.587118% |
| C | 5789 | 20 | 0.345483% |
| D | 5791 | 220 | 3.798998% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

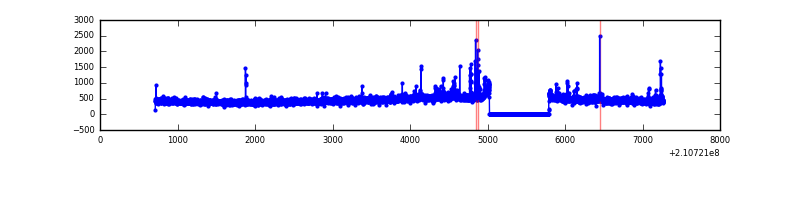

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6556 | 5792 | 47 | 47 | 0.72% | 0.81% |  |
| B | 6556 | 5792 | 3 | 3 | 0.05% | 0.05% |  |
| C | 6556 | 5792 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6556 | 5792 | 166 | 166 | 2.53% | 2.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 117082 | 871.56 | 652 | 637 | 133.6 |
| A | 0 | 247 | 109946 | 818.15 | 652 | 637 | 133.6 |
| A | 0 | 50 | 40724 | 300.04 | 652 | 637 | 133.6 |
| B | 4 | 48 | 42555 | 321.84 | 662 | 646 | 130.2 |
| B | 15 | 204 | 32424 | 244.04 | 662 | 646 | 130.2 |
| B | 0 | 219 | 24267 | 181.4 | 662 | 646 | 130.2 |
| C | 1 | 16 | 10690 | 67.11 | 639 | 645 | 149.7 |
| C | 13 | 61 | 5161 | 30.17 | 639 | 645 | 149.7 |
| C | 9 | 54 | 3564 | 19.5 | 639 | 645 | 149.7 |
| D | 13 | 235 | 370425 | 2404.65 | 623 | 605 | 153.8 |
| D | 13 | 239 | 216557 | 1404.17 | 623 | 605 | 153.8 |
| D | 12 | 233 | 115148 | 744.78 | 623 | 605 | 153.8 |

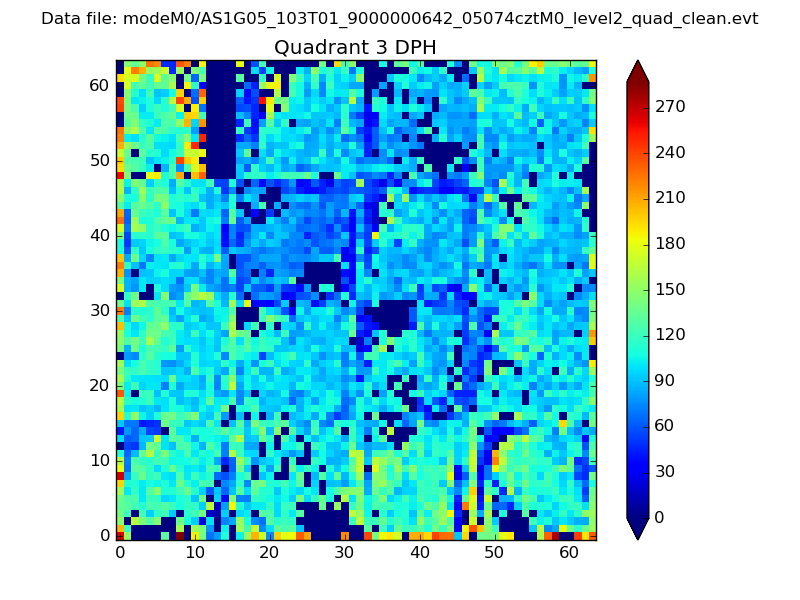

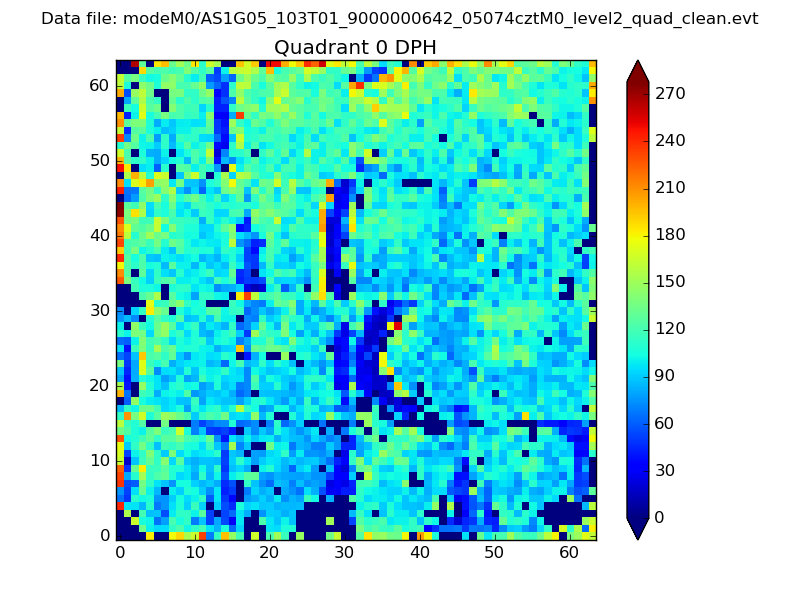

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

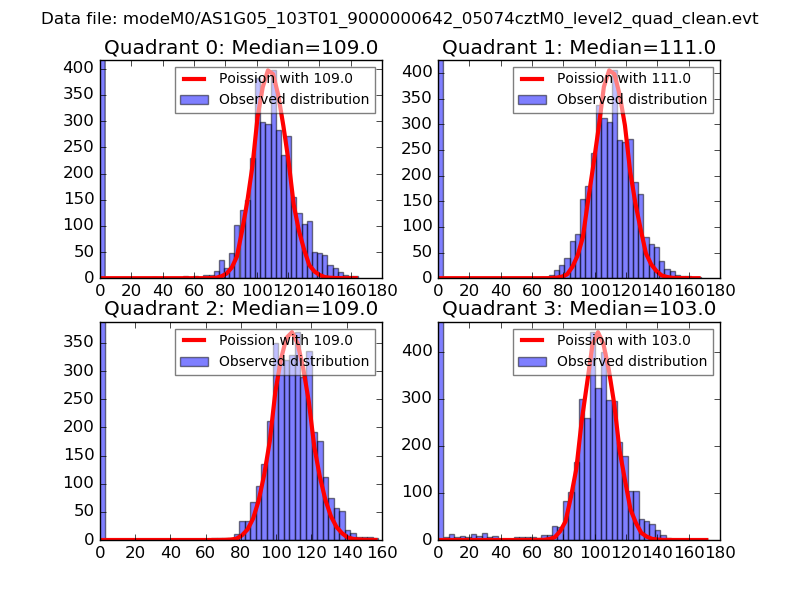

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

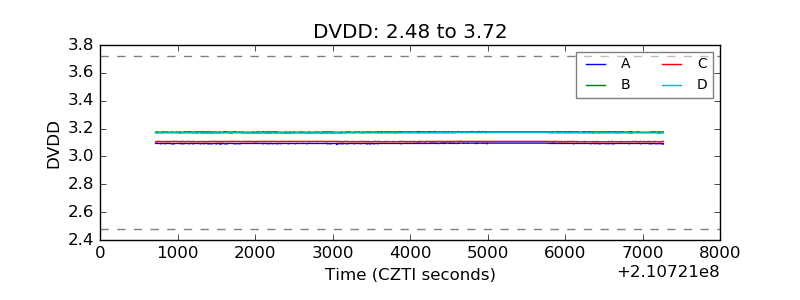

| D_VDD |  |

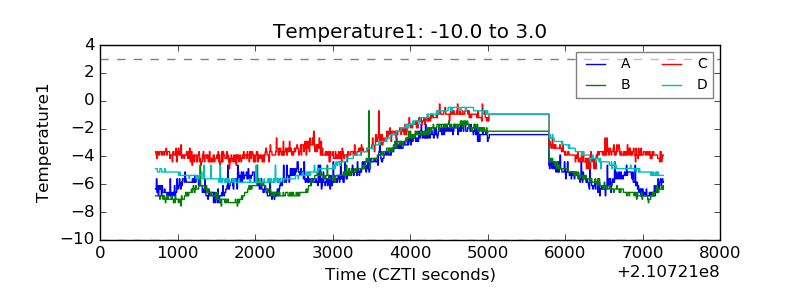

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

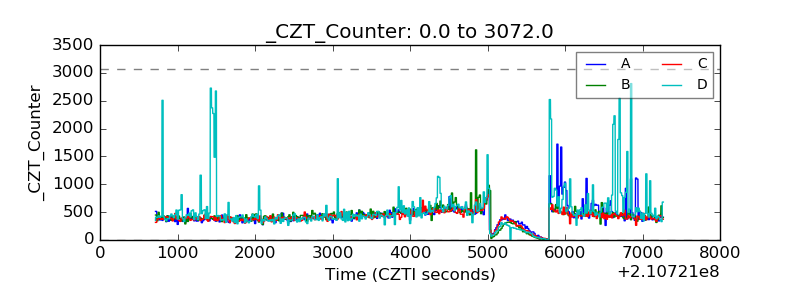

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

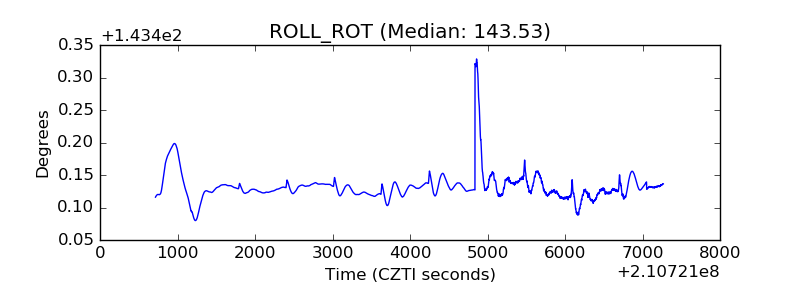

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
