| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_103T01_9000000642_05078cztM0_level2.evt | modeM0/AS1G05_103T01_9000000642_05078cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,880,960 | 62,784,000 |
| Size | 503.4 MB | 59.9 MB |
| Events in quadrant A | 3,049,827 | 373,001 |
| Events in quadrant B | 3,469,049 | 377,458 |
| Events in quadrant C | 2,951,626 | 368,862 |
| Events in quadrant D | 6,080,388 | 332,792 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13337 | 3 |
| B | 0 | 14533 | 2 |
| C | 0 | 13148 | 2 |
| D | 0 | 22538 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6431 | 58 | 0.901882% |
| B | 6431 | 60 | 0.932981% |
| C | 6431 | 28 | 0.435391% |
| D | 6431 | 709 | 11.024724% |

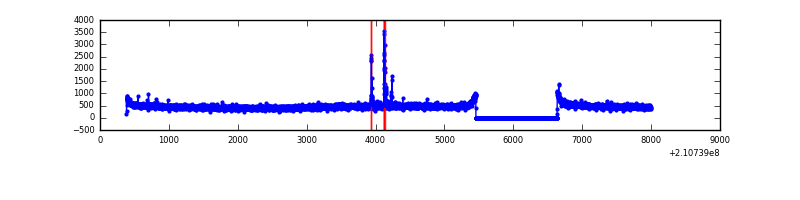

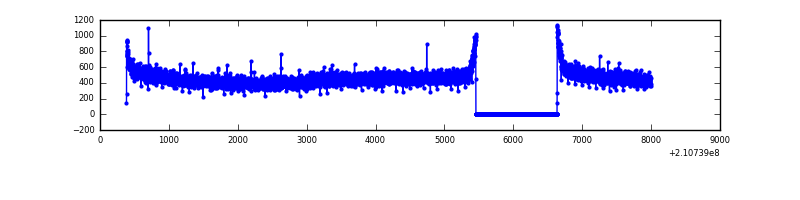

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7611 | 6432 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7611 | 6432 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7611 | 6432 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7611 | 6431 | 689 | 689 | 9.05% | 10.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 62052 | 394.8 | 772 | 757 | 155.3 |
| A | 13 | 251 | 16629 | 102.23 | 772 | 757 | 155.3 |
| A | 12 | 194 | 7720 | 44.85 | 772 | 757 | 155.3 |
| B | 8 | 3 | 324661 | 2171.91 | 784 | 770 | 149.1 |
| B | 0 | 219 | 28243 | 184.22 | 784 | 770 | 149.1 |
| B | 5 | 200 | 21265 | 137.43 | 784 | 770 | 149.1 |
| C | 1 | 16 | 11574 | 62.24 | 751 | 756 | 173.8 |
| C | 14 | 67 | 8581 | 45.02 | 751 | 756 | 173.8 |
| C | 13 | 61 | 6246 | 31.59 | 751 | 756 | 173.8 |
| D | 7 | 237 | 1882115 | 10687.11 | 717 | 693 | 176.0 |
| D | 13 | 235 | 926092 | 5256.58 | 717 | 693 | 176.0 |
| D | 12 | 233 | 175791 | 994.62 | 717 | 693 | 176.0 |

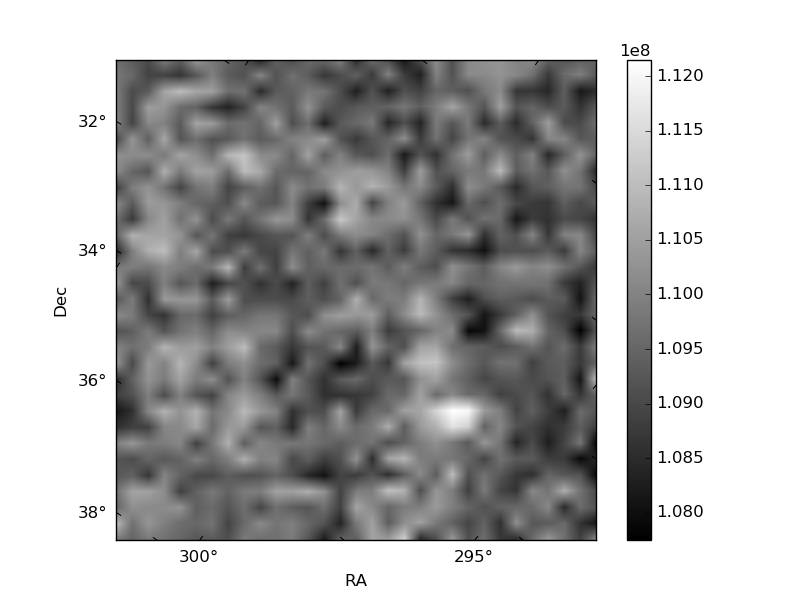

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

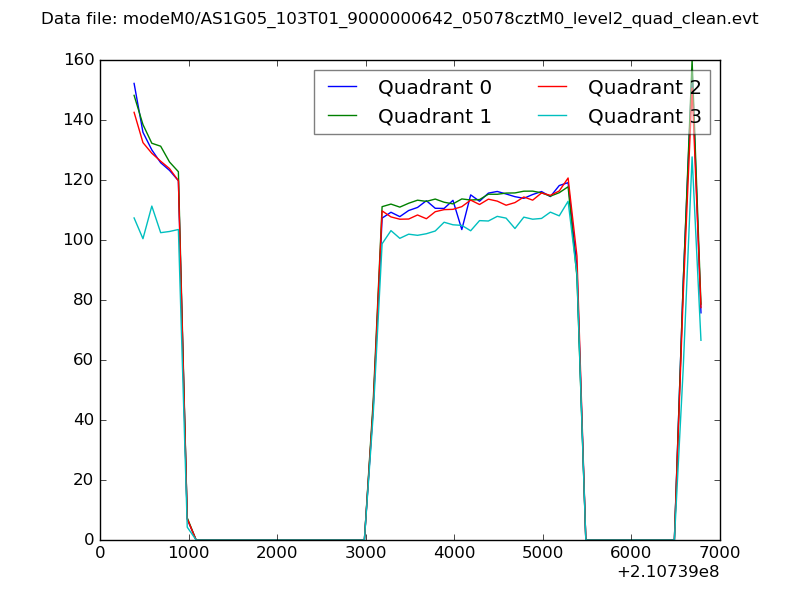

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

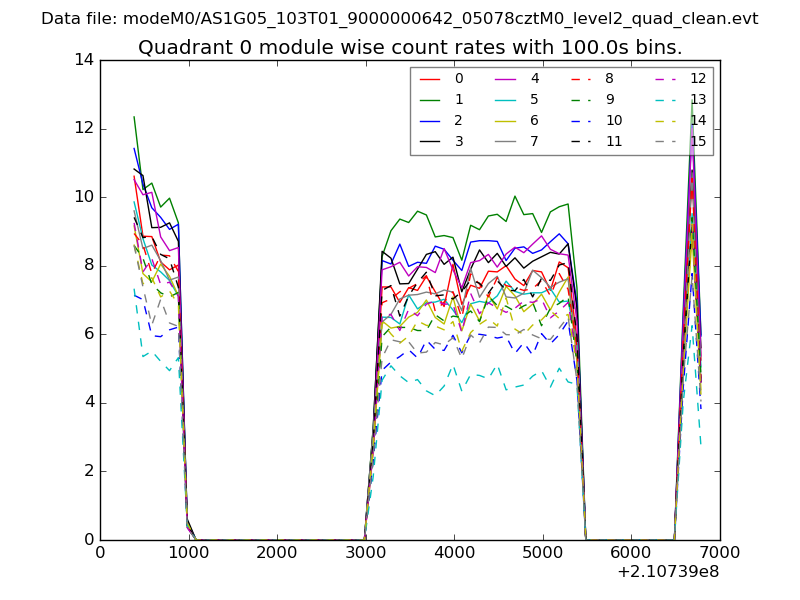

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

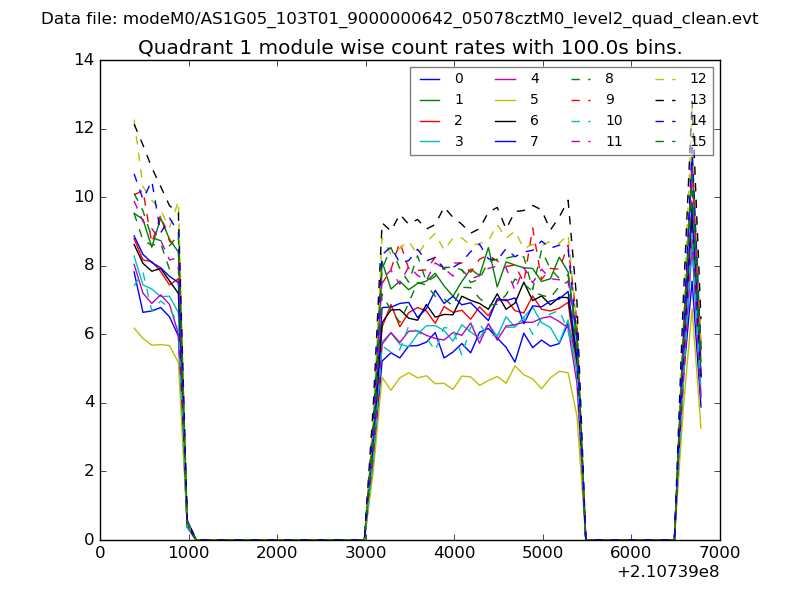

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

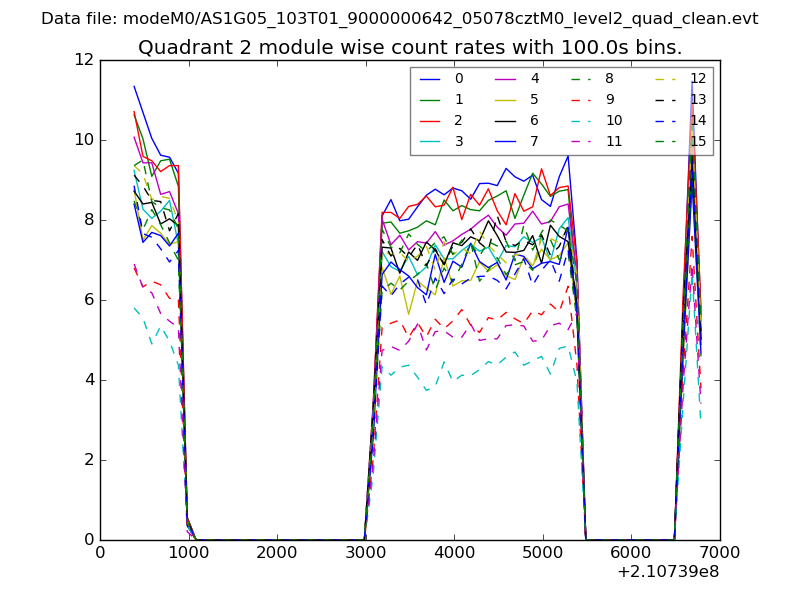

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

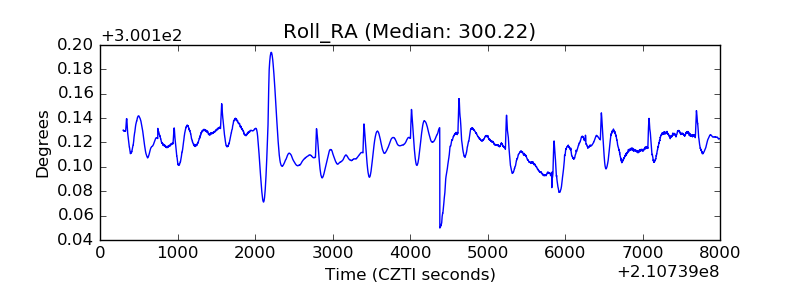

| _Roll_RA |  |
| Veto Counter |  |
