| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_105T01_9000000644_05093cztM0_level2.evt | modeM0/AS1G05_105T01_9000000644_05093cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,493,760 | 78,837,120 |
| Size | 479.2 MB | 75.2 MB |
| Events in quadrant A | 3,014,391 | 502,834 |
| Events in quadrant B | 3,220,196 | 508,146 |
| Events in quadrant C | 2,911,998 | 482,211 |
| Events in quadrant D | 5,620,585 | 431,052 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13510 | 3 |
| B | 0 | 13998 | 2 |
| C | 0 | 13450 | 2 |
| D | 0 | 21324 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6632 | 29 | 0.437274% |
| B | 6632 | 38 | 0.572979% |
| C | 6632 | 24 | 0.361882% |
| D | 6632 | 918 | 13.841978% |

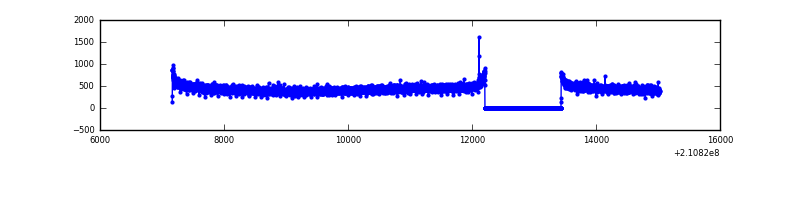

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7862 | 6633 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7862 | 6633 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7862 | 6633 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7862 | 6633 | 861 | 861 | 10.95% | 12.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 17907 | 108.17 | 777 | 761 | 158.5 |
| A | 0 | 226 | 7527 | 42.69 | 777 | 761 | 158.5 |
| A | 12 | 194 | 7514 | 42.6 | 777 | 761 | 158.5 |
| B | 15 | 204 | 113890 | 763.0 | 785 | 766 | 148.3 |
| B | 4 | 80 | 50115 | 332.85 | 785 | 766 | 148.3 |
| B | 12 | 111 | 13470 | 85.69 | 785 | 766 | 148.3 |
| C | 1 | 16 | 7127 | 37.29 | 743 | 746 | 171.1 |
| C | 13 | 61 | 6181 | 31.77 | 743 | 746 | 171.1 |
| C | 12 | 4 | 5449 | 27.49 | 743 | 746 | 171.1 |
| D | 10 | 15 | 1300237 | 7629.05 | 696 | 673 | 170.3 |
| D | 13 | 235 | 979494 | 5746.14 | 696 | 673 | 170.3 |
| D | 13 | 239 | 411484 | 2411.65 | 696 | 673 | 170.3 |

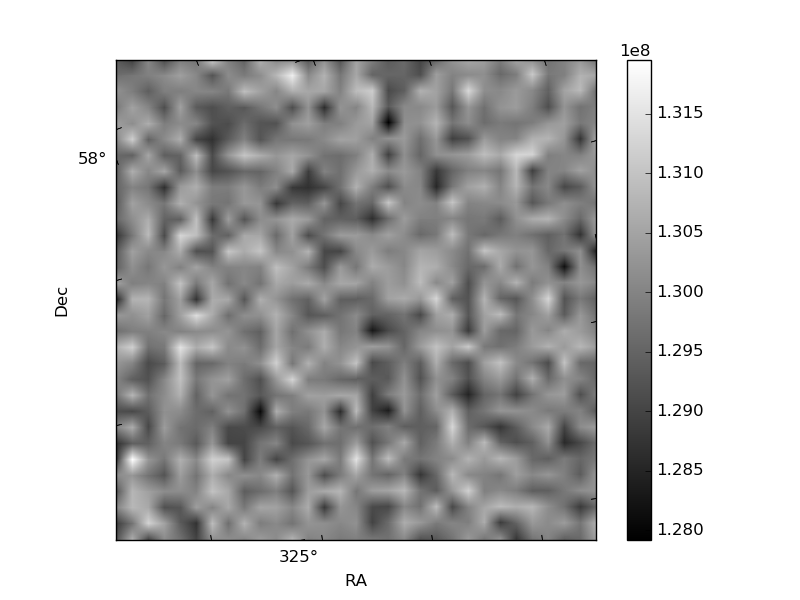

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

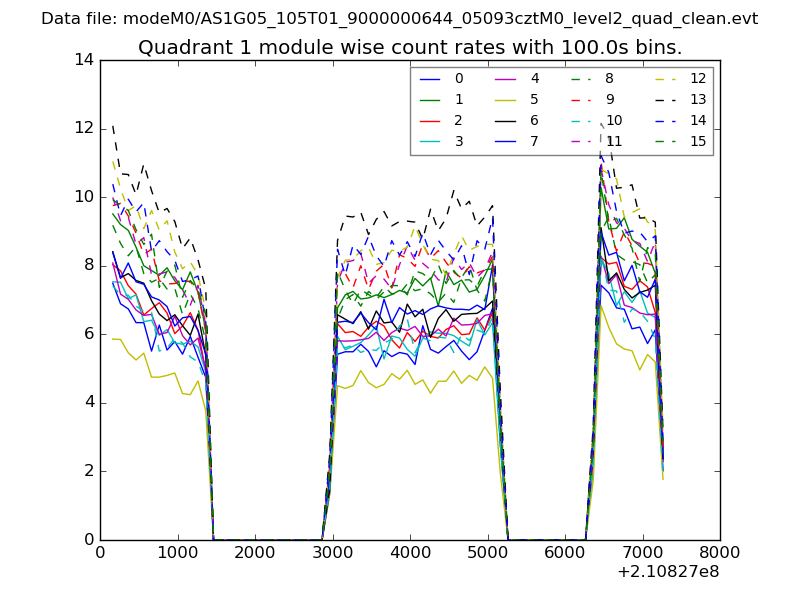

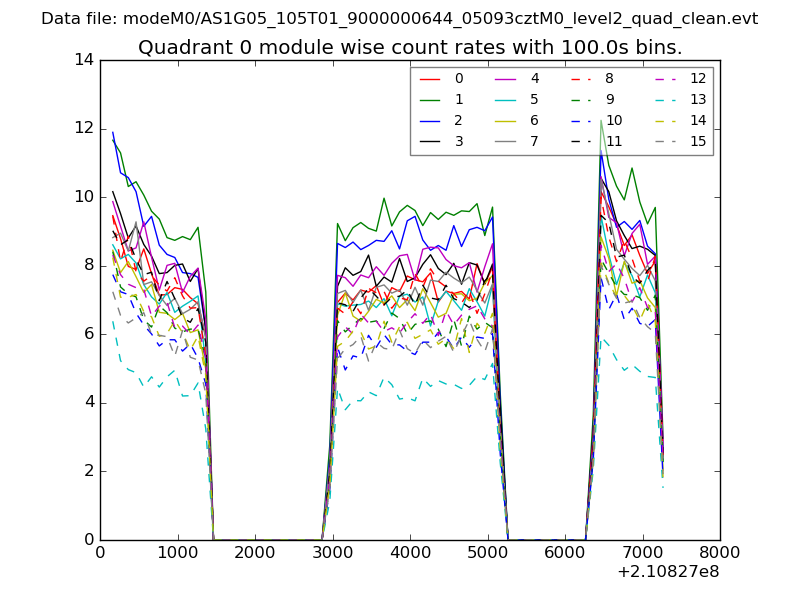

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

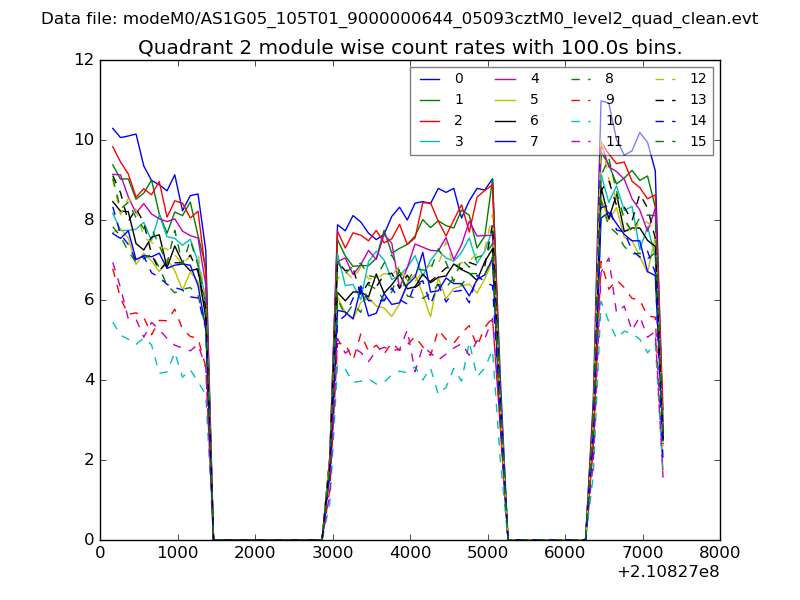

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

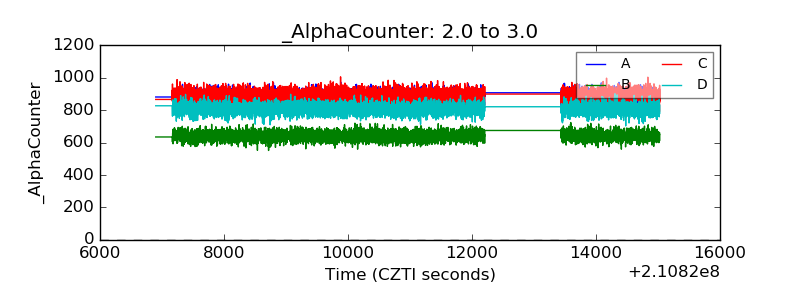

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

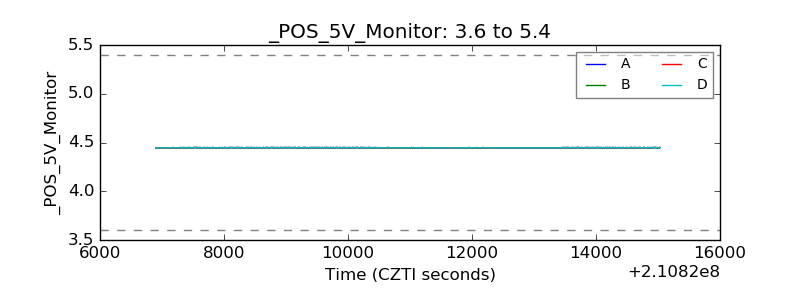

| +5 Volts monitor |  |

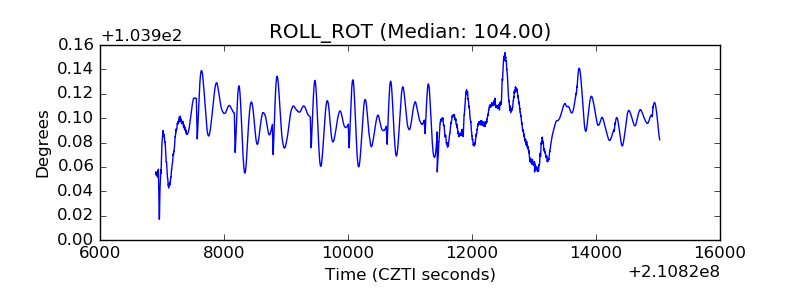

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
