| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_105T01_9000000644_05096cztM0_level2.evt | modeM0/AS1G05_105T01_9000000644_05096cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,707,520 | 70,657,920 |
| Size | 487.0 MB | 67.4 MB |
| Events in quadrant A | 3,214,095 | 440,432 |
| Events in quadrant B | 3,754,920 | 440,756 |
| Events in quadrant C | 3,073,206 | 414,866 |
| Events in quadrant D | 4,966,737 | 373,331 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14020 | 3 |
| B | 0 | 15424 | 2 |
| C | 0 | 13873 | 2 |
| D | 0 | 19521 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6742 | 146 | 2.165530% |
| B | 6742 | 175 | 2.595669% |
| C | 6742 | 110 | 1.631563% |
| D | 6742 | 724 | 10.738653% |

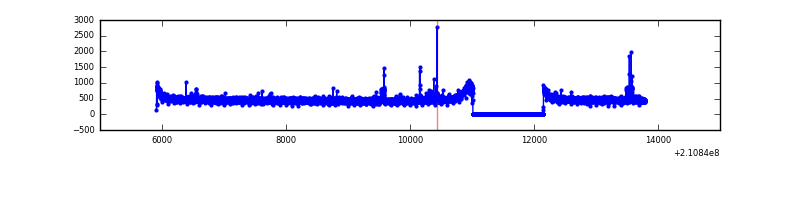

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7882 | 6743 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7882 | 6743 | 12 | 12 | 0.15% | 0.18% |  |
| C | 7882 | 6743 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7882 | 6743 | 474 | 474 | 6.01% | 7.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 34397 | 202.04 | 820 | 802 | 166.3 |
| A | 4 | 2 | 12912 | 72.83 | 820 | 802 | 166.3 |
| A | 0 | 226 | 8065 | 43.68 | 820 | 802 | 166.3 |
| B | 4 | 80 | 263184 | 1691.93 | 821 | 804 | 155.1 |
| B | 15 | 204 | 220815 | 1418.71 | 821 | 804 | 155.1 |
| B | 0 | 219 | 26982 | 168.81 | 821 | 804 | 155.1 |
| C | 1 | 16 | 10973 | 56.74 | 782 | 782 | 179.6 |
| C | 12 | 4 | 8714 | 44.16 | 782 | 782 | 179.6 |
| C | 13 | 61 | 6424 | 31.41 | 782 | 782 | 179.6 |
| D | 13 | 235 | 1258550 | 6925.42 | 747 | 724 | 181.6 |
| D | 13 | 239 | 492942 | 2710.08 | 747 | 724 | 181.6 |
| D | 12 | 22 | 197551 | 1083.7 | 747 | 724 | 181.6 |

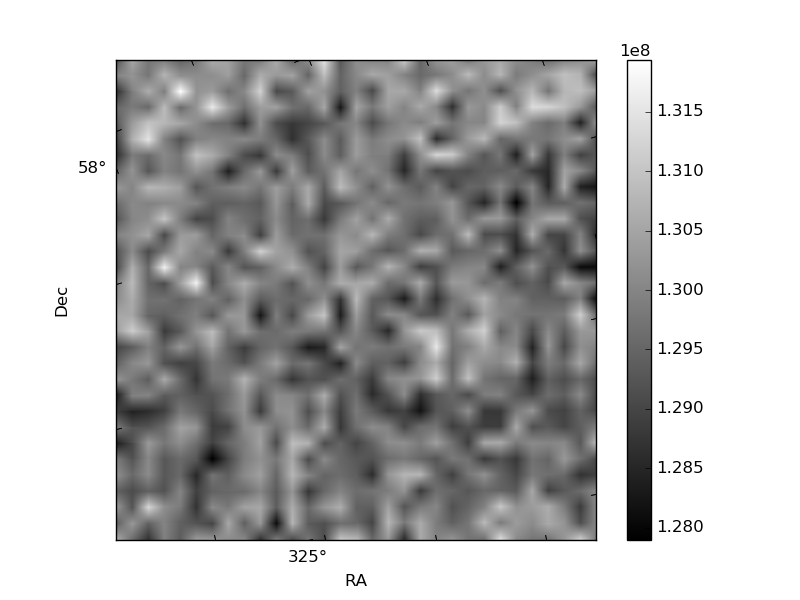

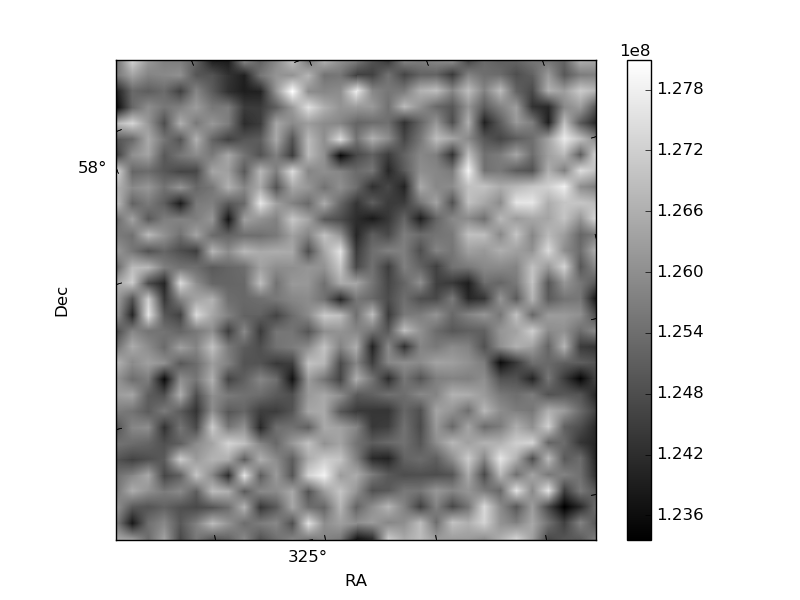

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

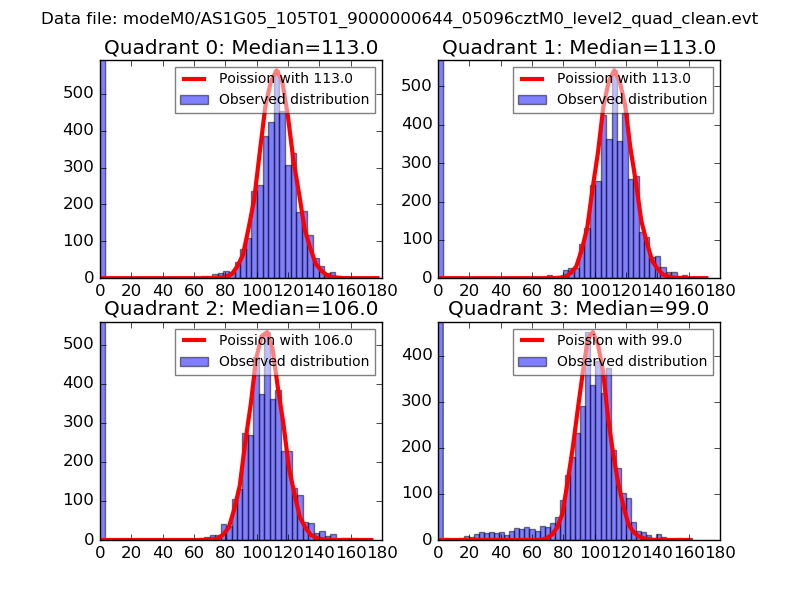

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

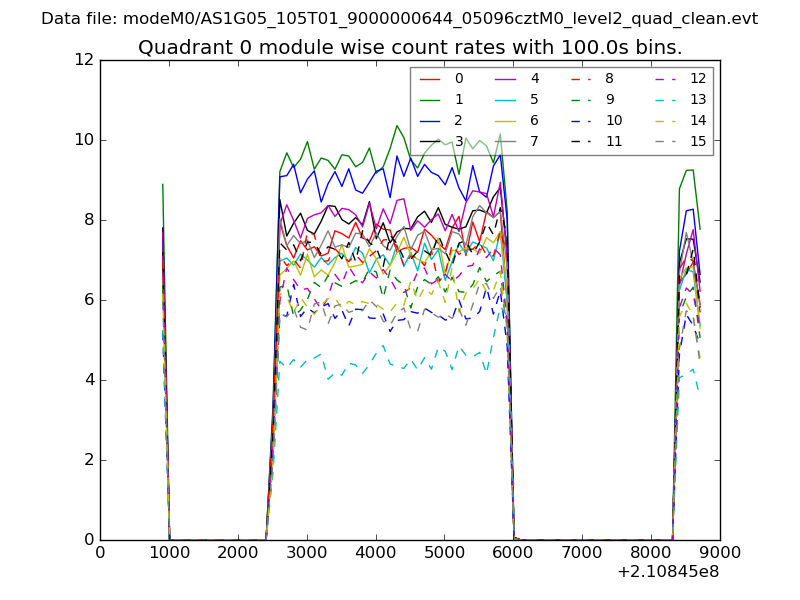

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

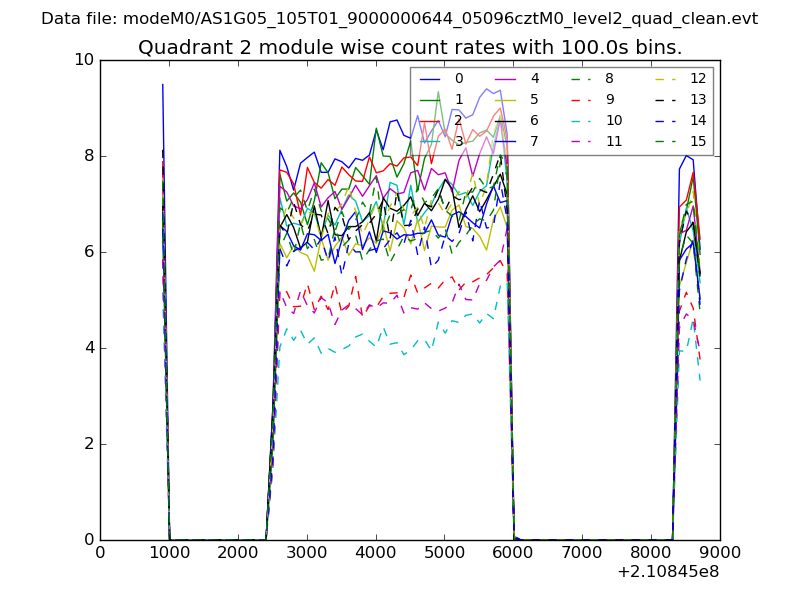

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

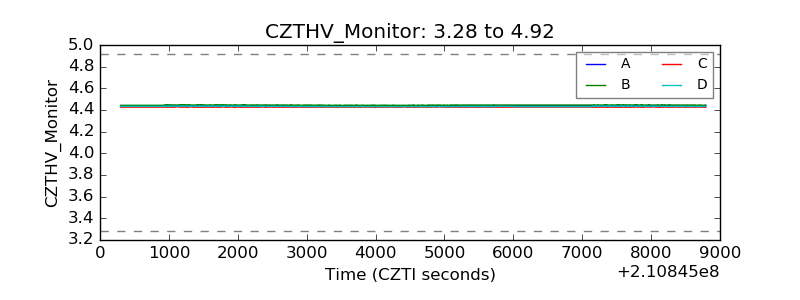

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

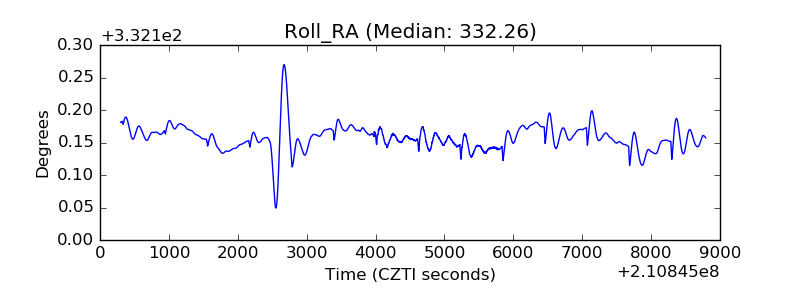

| _Roll_RA |  |
| Veto Counter |  |
