| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_137T01_9000000646_05110cztM0_level2.evt | modeM0/AS1G05_137T01_9000000646_05110cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,256,000 | 82,226,880 |
| Size | 623.0 MB | 78.4 MB |
| Events in quadrant A | 7,458,604 | 469,255 |
| Events in quadrant B | 3,781,198 | 543,415 |
| Events in quadrant C | 2,906,418 | 535,190 |
| Events in quadrant D | 5,209,102 | 499,656 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26307 | 2 |
| B | 0 | 15304 | 1 |
| C | 0 | 13024 | 1 |
| D | 0 | 19637 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6331 | 1601 | 25.288264% |
| B | 6331 | 273 | 4.312115% |
| C | 6331 | 95 | 1.500553% |
| D | 6331 | 677 | 10.693413% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

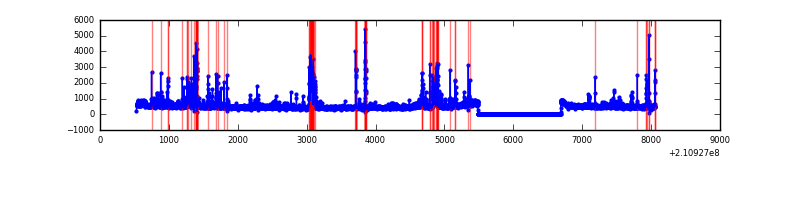

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6332 | 1240 | 1240 | 16.47% | 19.58% |  |
| B | 7531 | 6332 | 115 | 115 | 1.53% | 1.82% |  |
| C | 7531 | 6332 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7531 | 6332 | 459 | 459 | 6.09% | 7.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 4791169 | 34326.65 | 688 | 673 | 139.6 |
| A | 0 | 50 | 19318 | 133.6 | 688 | 673 | 139.6 |
| A | 12 | 194 | 6828 | 44.1 | 688 | 673 | 139.6 |
| B | 10 | 16 | 630948 | 4274.03 | 772 | 755 | 147.4 |
| B | 4 | 80 | 65188 | 436.99 | 772 | 755 | 147.4 |
| B | 15 | 204 | 33870 | 224.59 | 772 | 755 | 147.4 |
| C | 13 | 61 | 6014 | 30.73 | 741 | 746 | 171.4 |
| C | 12 | 4 | 5645 | 28.58 | 741 | 746 | 171.4 |
| C | 1 | 16 | 5520 | 27.85 | 741 | 746 | 171.4 |
| D | 13 | 239 | 737196 | 4233.57 | 718 | 697 | 174.0 |
| D | 12 | 227 | 606327 | 3481.31 | 718 | 697 | 174.0 |
| D | 12 | 22 | 591433 | 3395.69 | 718 | 697 | 174.0 |

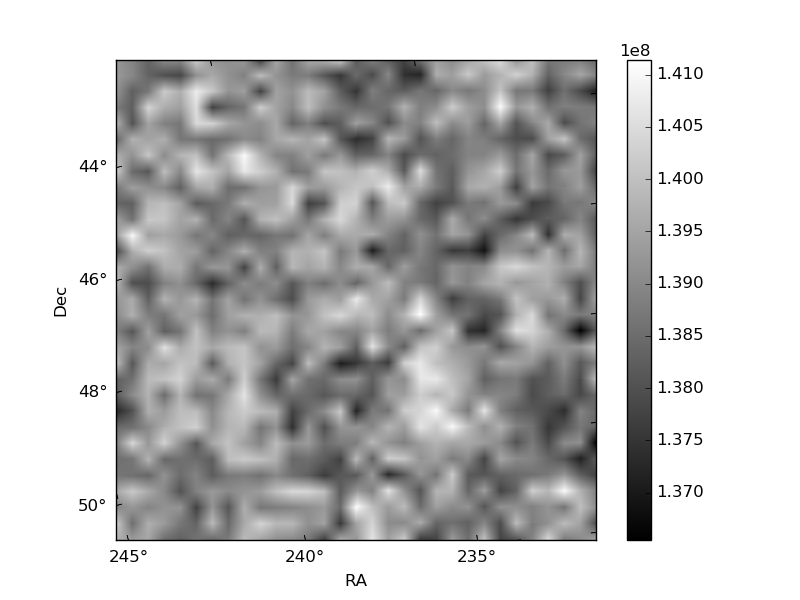

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

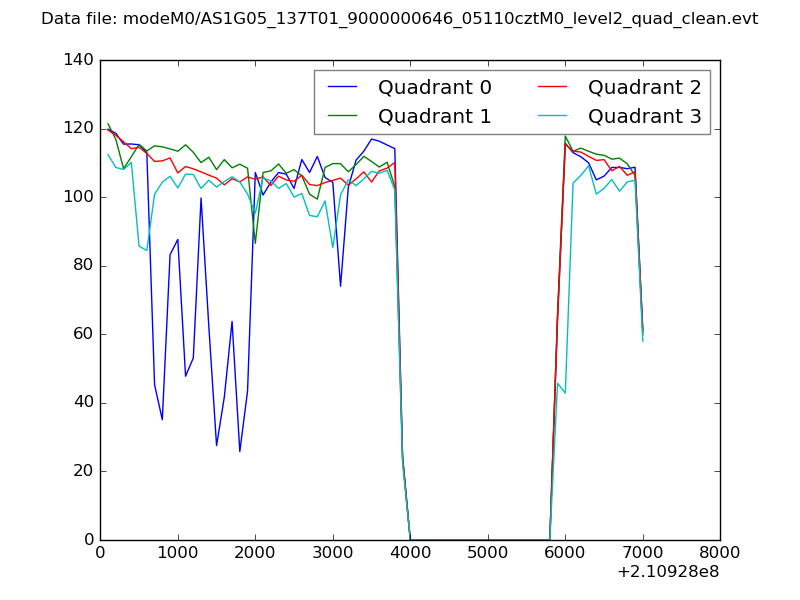

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

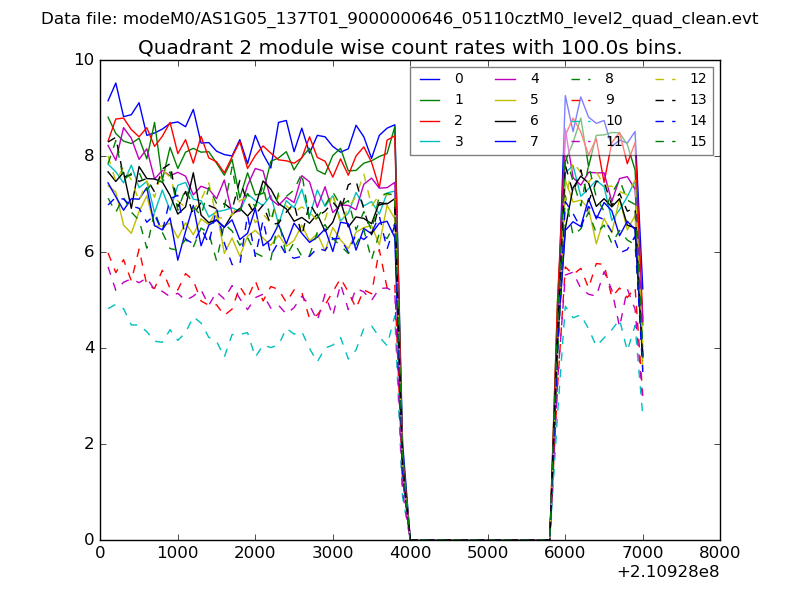

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

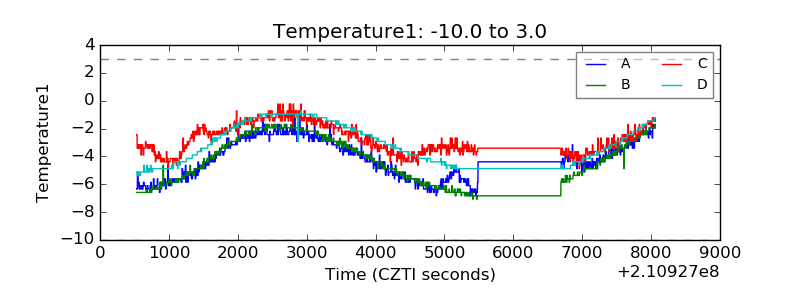

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

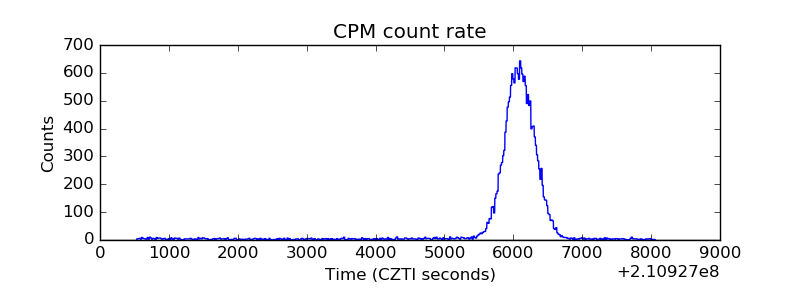

| _CPM_Rate |  |

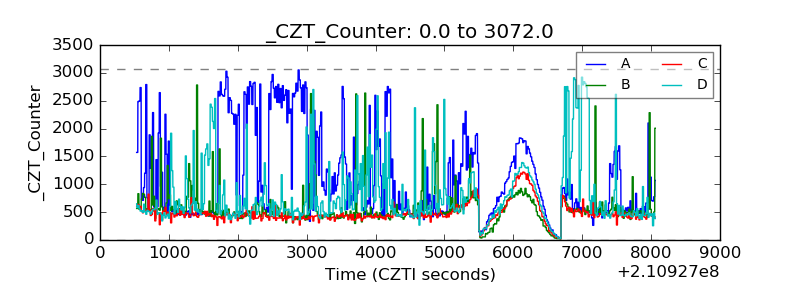

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

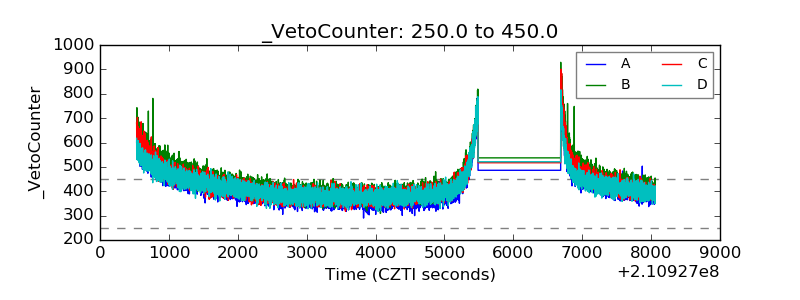

| Veto Counter |  |
