| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_137T01_9000000646_05111cztM0_level2.evt | modeM0/AS1G05_137T01_9000000646_05111cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,302,720 | 86,765,760 |
| Size | 536.3 MB | 82.7 MB |
| Events in quadrant A | 4,054,838 | 564,161 |
| Events in quadrant B | 3,692,377 | 564,877 |
| Events in quadrant C | 3,002,138 | 555,472 |
| Events in quadrant D | 5,825,909 | 476,239 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16595 | 3 |
| B | 0 | 15232 | 2 |
| C | 0 | 13719 | 2 |
| D | 0 | 21809 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6687 | 440 | 6.579931% |
| B | 6687 | 196 | 2.931060% |
| C | 6687 | 94 | 1.405713% |
| D | 6687 | 1203 | 17.990130% |

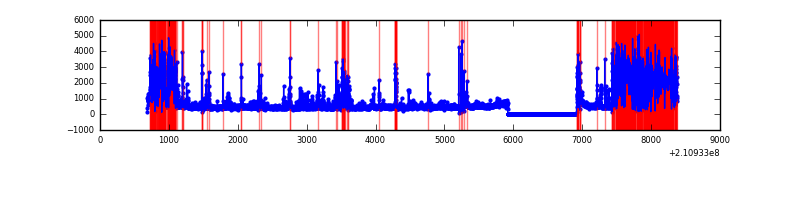

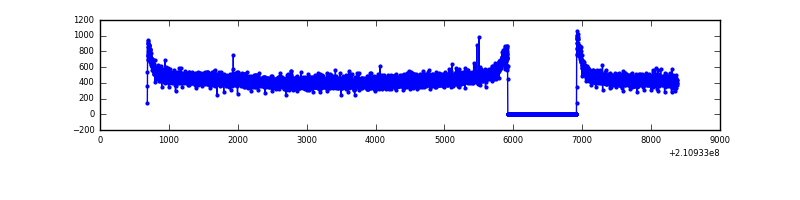

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 6688 | 232 | 232 | 3.02% | 3.47% |  |
| B | 7687 | 6688 | 59 | 59 | 0.77% | 0.88% |  |
| C | 7687 | 6688 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7687 | 6688 | 849 | 849 | 11.04% | 12.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 988019 | 6070.28 | 792 | 773 | 162.6 |
| A | 0 | 50 | 19605 | 115.79 | 792 | 773 | 162.6 |
| A | 12 | 194 | 8100 | 45.05 | 792 | 773 | 162.6 |
| B | 10 | 16 | 249782 | 1625.16 | 798 | 781 | 153.2 |
| B | 8 | 3 | 140631 | 912.76 | 798 | 781 | 153.2 |
| B | 15 | 204 | 74699 | 482.44 | 798 | 781 | 153.2 |
| C | 13 | 61 | 6211 | 30.7 | 767 | 767 | 177.3 |
| C | 1 | 16 | 4230 | 19.53 | 767 | 767 | 177.3 |
| C | 8 | 222 | 3833 | 17.29 | 767 | 767 | 177.3 |
| D | 12 | 22 | 1843970 | 10907.5 | 693 | 673 | 169.0 |
| D | 13 | 239 | 768360 | 4542.7 | 693 | 673 | 169.0 |
| D | 2 | 33 | 118461 | 697.0 | 693 | 673 | 169.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

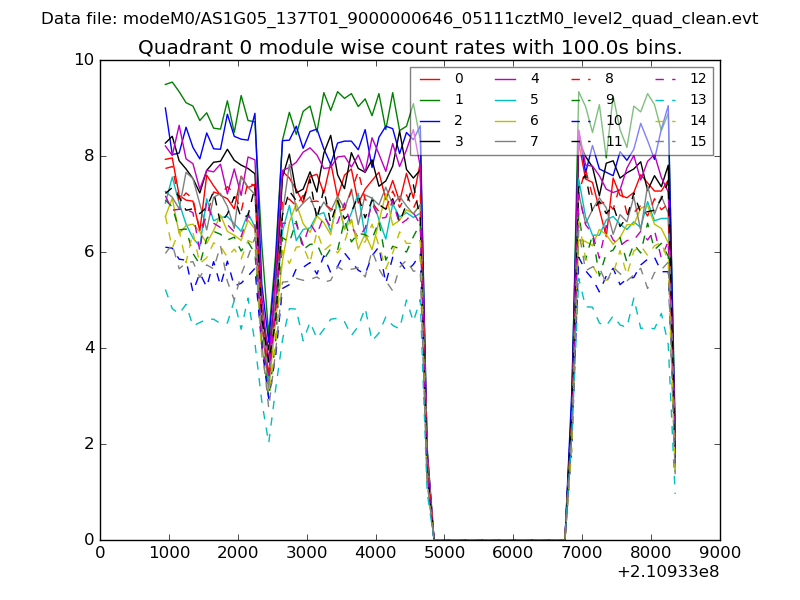

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

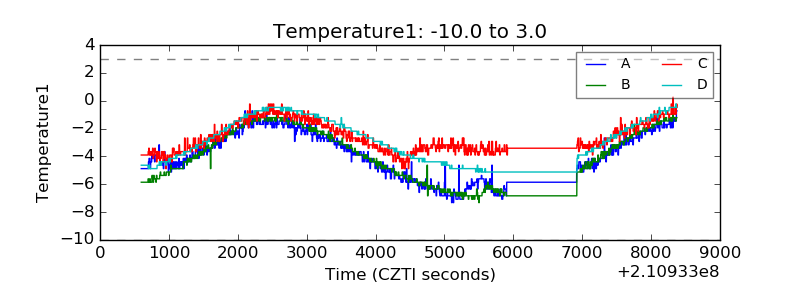

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

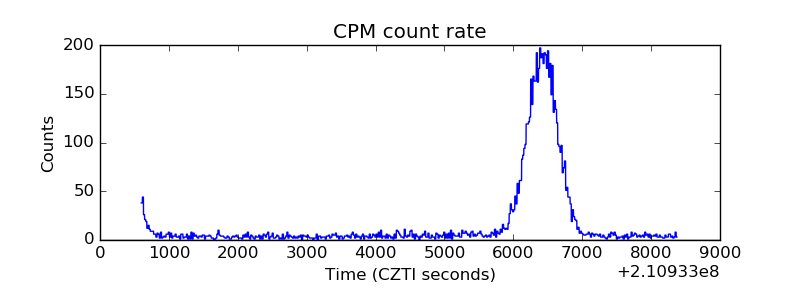

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

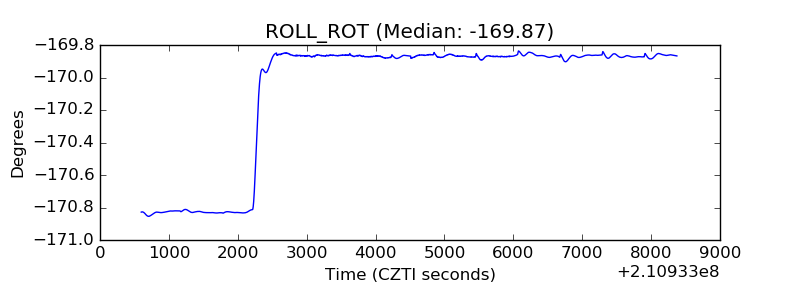

| _ROLL_ROT |  |

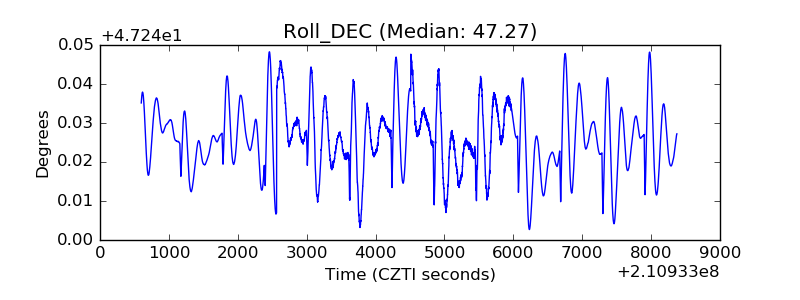

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
