| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T05_9000000648_05132cztM0_level2.evt | modeM0/AS1G05_230T05_9000000648_05132cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,218,499,200 | 200,646,720 |
| Size | 1.1 GB | 191.4 MB |
| Events in quadrant A | 8,341,209 | 1,204,084 |
| Events in quadrant B | 10,252,928 | 1,224,887 |
| Events in quadrant C | 8,168,295 | 1,217,637 |
| Events in quadrant D | 8,890,799 | 1,158,428 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 2 |
| B | 0 | 376 | 6 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38481 | 195 |
| B | 0 | 43296 | 274 |
| C | 0 | 38008 | 241 |
| D | 0 | 40500 | 276 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18470 | 267 | 1.445587% |
| B | 18460 | 568 | 3.076923% |
| C | 18448 | 148 | 0.802255% |
| D | 18445 | 307 | 1.664408% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

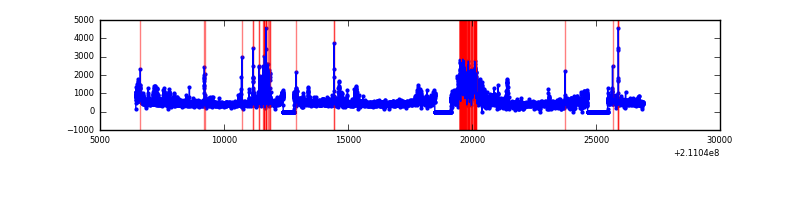

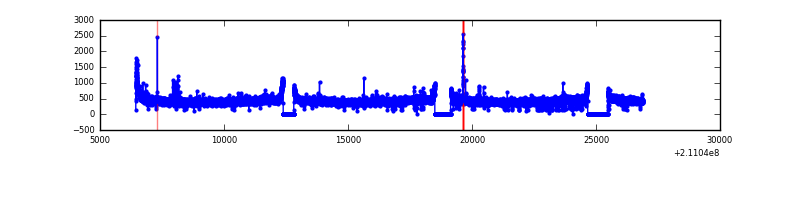

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20441 | 18559 | 49 | 49 | 0.24% | 0.26% |  |
| B | 20441 | 18559 | 190 | 190 | 0.93% | 1.02% |  |
| C | 20441 | 18562 | 7 | 7 | 0.03% | 0.04% |  |
| D | 20441 | 18564 | 140 | 140 | 0.68% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 265918 | 610.98 | 2095 | 2047 | 431.9 |
| A | 0 | 226 | 21288 | 44.55 | 2095 | 2047 | 431.9 |
| A | 12 | 194 | 20836 | 43.51 | 2095 | 2047 | 431.9 |
| B | 8 | 3 | 1168902 | 2872.52 | 2116 | 2066 | 406.2 |
| B | 15 | 204 | 496986 | 1218.39 | 2116 | 2066 | 406.2 |
| B | 10 | 16 | 147468 | 357.95 | 2116 | 2066 | 406.2 |
| C | 12 | 4 | 83299 | 171.24 | 2050 | 2054 | 474.5 |
| C | 1 | 16 | 60125 | 122.4 | 2050 | 2054 | 474.5 |
| C | 13 | 61 | 16866 | 31.22 | 2050 | 2054 | 474.5 |
| D | 2 | 33 | 1009555 | 2010.73 | 2042 | 1978 | 501.1 |
| D | 2 | 14 | 83663 | 163.01 | 2042 | 1978 | 501.1 |
| D | 2 | 234 | 61260 | 118.3 | 2042 | 1978 | 501.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

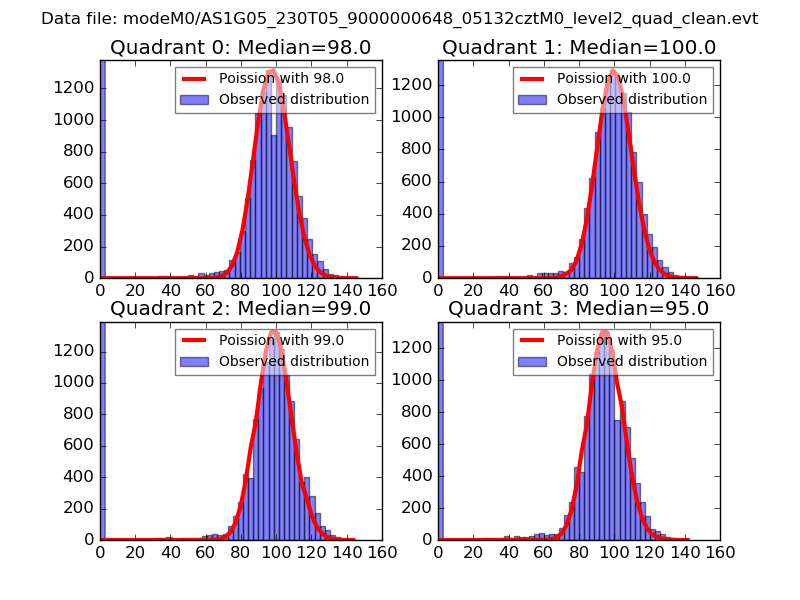

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

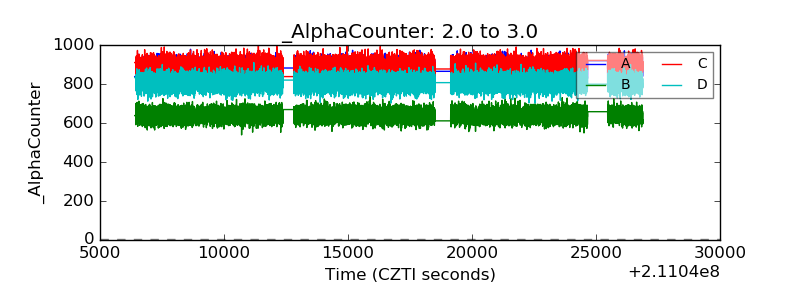

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

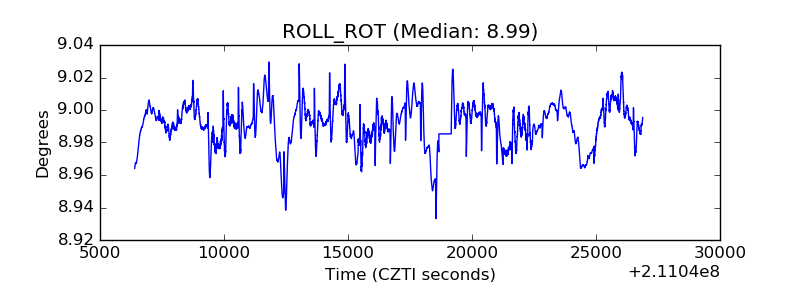

| _ROLL_ROT |  |

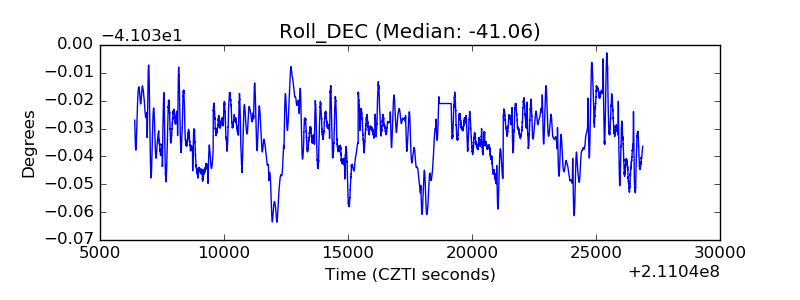

| _Roll_DEC |  |

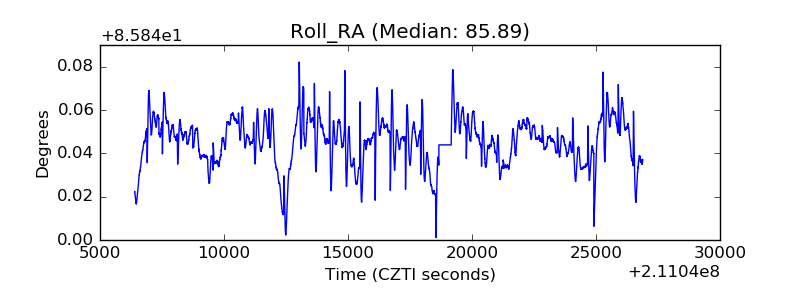

| _Roll_RA |  |

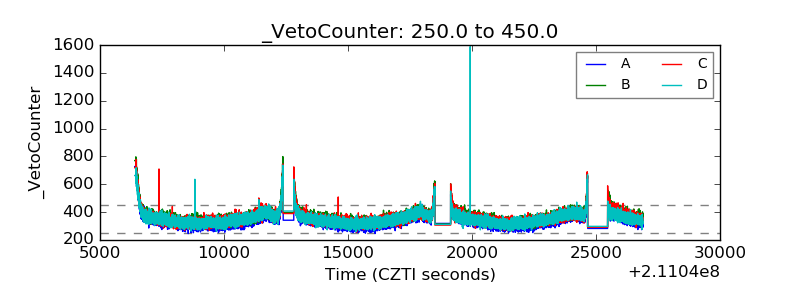

| Veto Counter |  |
