| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T05_9000000648_05135cztM0_level2.evt | modeM0/AS1G05_230T05_9000000648_05135cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,775,680 | 72,313,920 |
| Size | 389.8 MB | 69.0 MB |
| Events in quadrant A | 2,687,664 | 439,200 |
| Events in quadrant B | 3,291,382 | 451,610 |
| Events in quadrant C | 2,713,394 | 452,814 |
| Events in quadrant D | 3,280,734 | 428,365 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12228 | 2 |
| B | 0 | 13798 | 2 |
| C | 0 | 12248 | 2 |
| D | 0 | 14017 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5977 | 32 | 0.535386% |
| B | 5977 | 94 | 1.572695% |
| C | 5977 | 31 | 0.518655% |
| D | 5977 | 90 | 1.505772% |

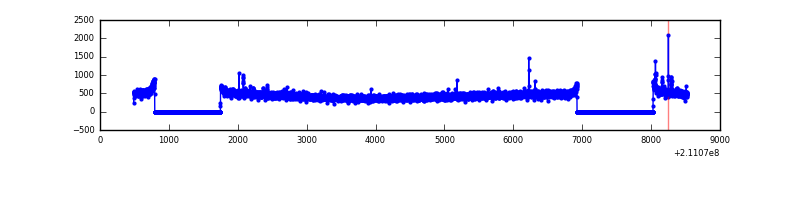

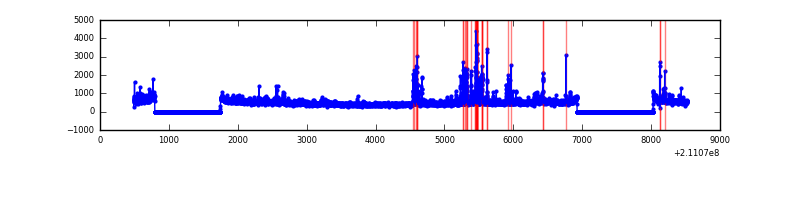

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

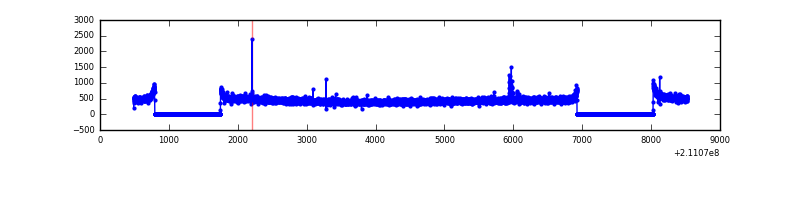

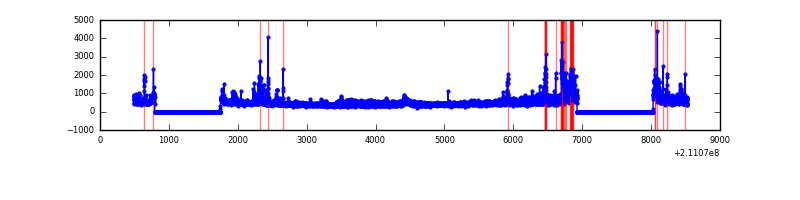

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8037 | 5979 | 1 | 1 | 0.01% | 0.02% |  |
| B | 8037 | 5979 | 40 | 40 | 0.50% | 0.67% |  |
| C | 8037 | 5979 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8037 | 5979 | 46 | 46 | 0.57% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 20625 | 138.81 | 691 | 676 | 143.7 |
| A | 0 | 226 | 7271 | 45.89 | 691 | 676 | 143.7 |
| A | 12 | 194 | 7015 | 44.11 | 691 | 676 | 143.7 |
| B | 10 | 16 | 280987 | 2081.45 | 703 | 686 | 134.7 |
| B | 15 | 204 | 134656 | 994.83 | 703 | 686 | 134.7 |
| B | 4 | 80 | 59635 | 437.74 | 703 | 686 | 134.7 |
| C | 1 | 16 | 20731 | 125.28 | 685 | 689 | 160.0 |
| C | 12 | 4 | 12734 | 75.29 | 685 | 689 | 160.0 |
| C | 13 | 61 | 5625 | 30.85 | 685 | 689 | 160.0 |
| D | 8 | 195 | 357904 | 2155.14 | 677 | 657 | 165.8 |
| D | 2 | 33 | 307796 | 1852.86 | 677 | 657 | 165.8 |
| D | 2 | 14 | 32774 | 193.75 | 677 | 657 | 165.8 |

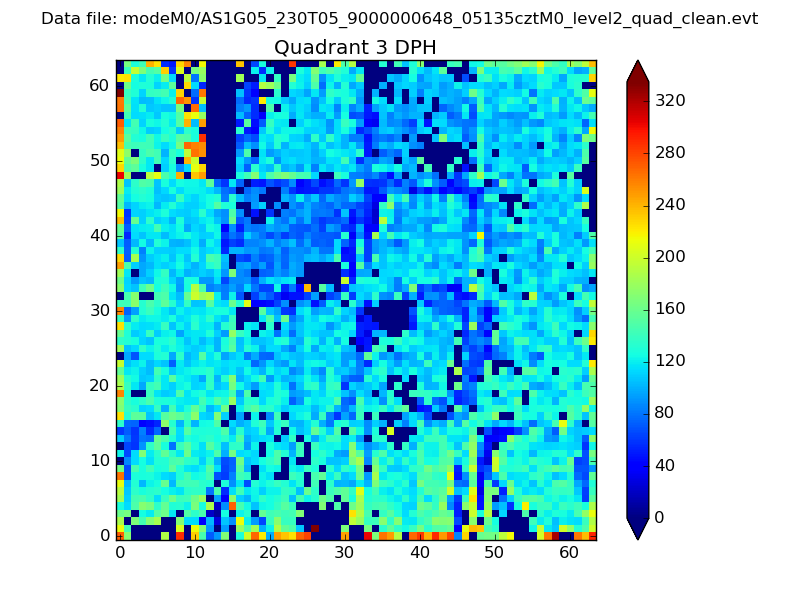

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

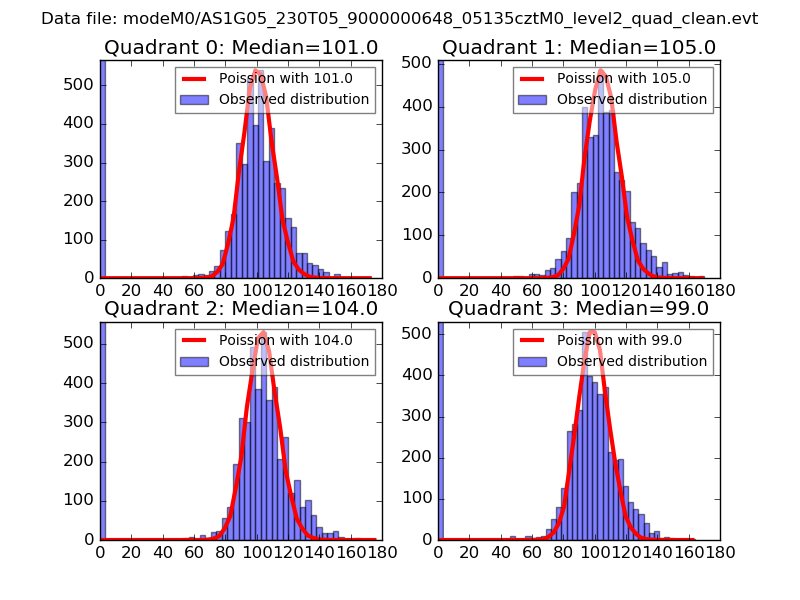

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

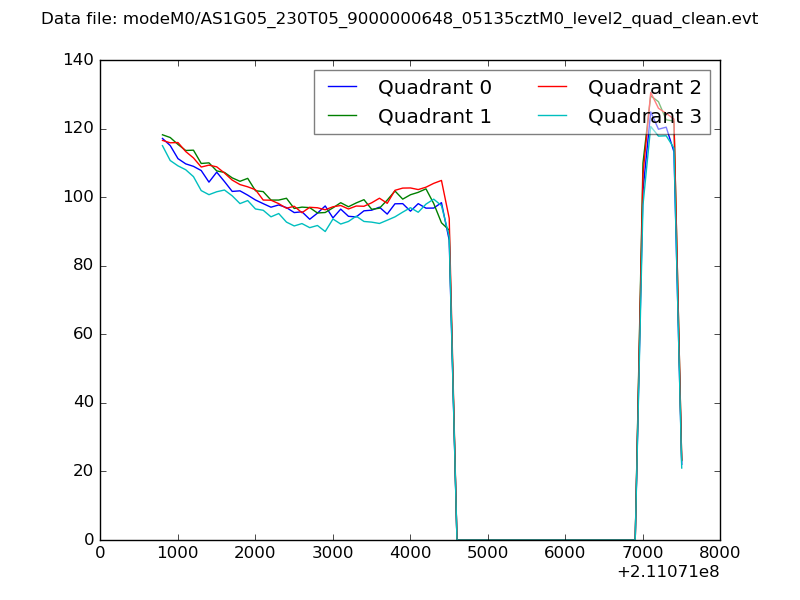

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

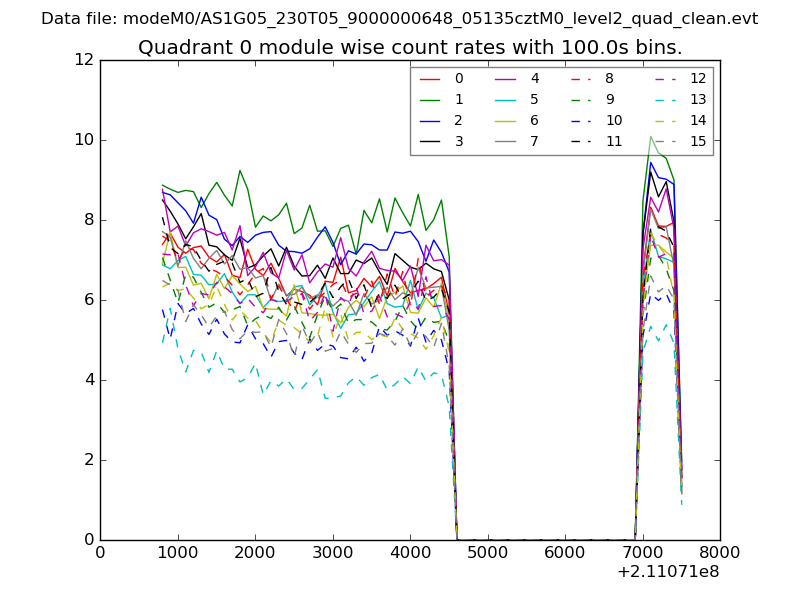

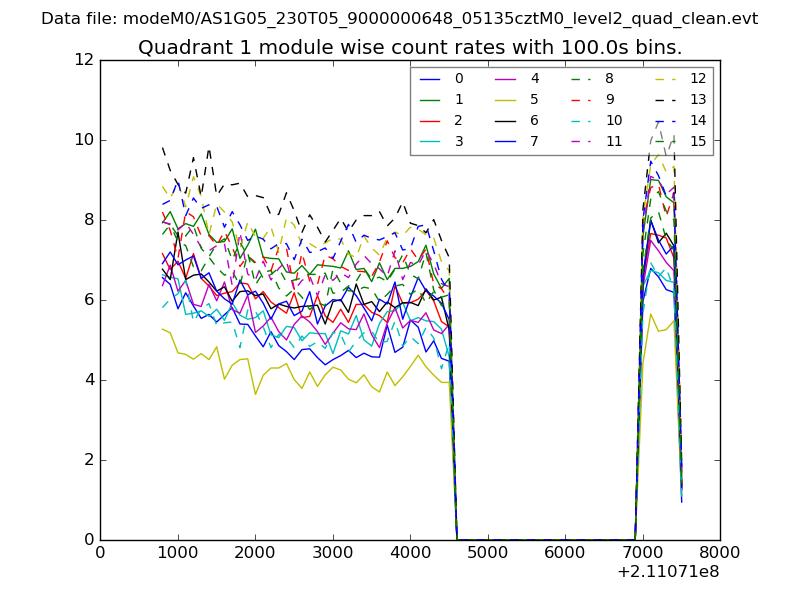

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

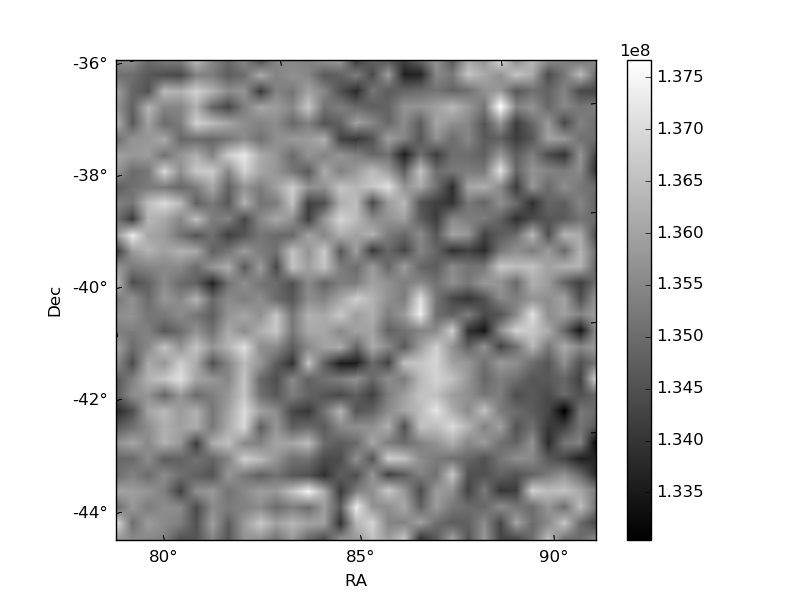

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

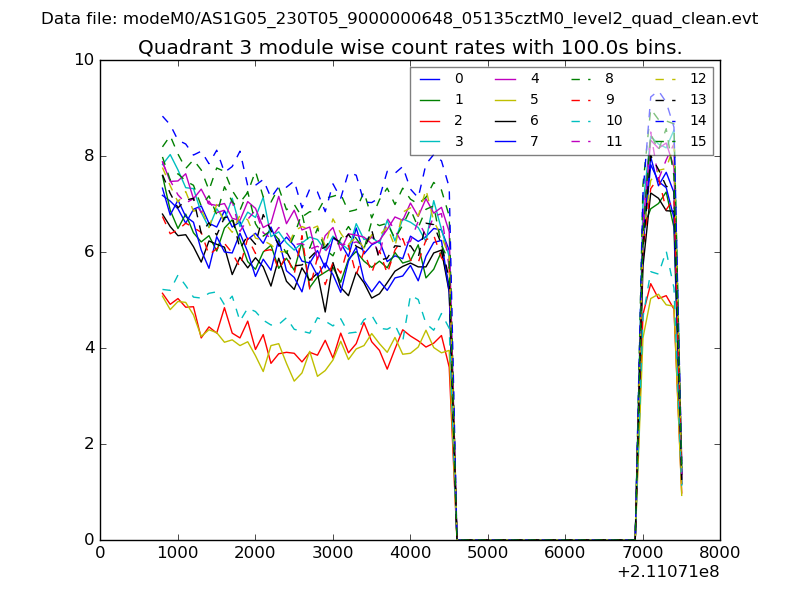

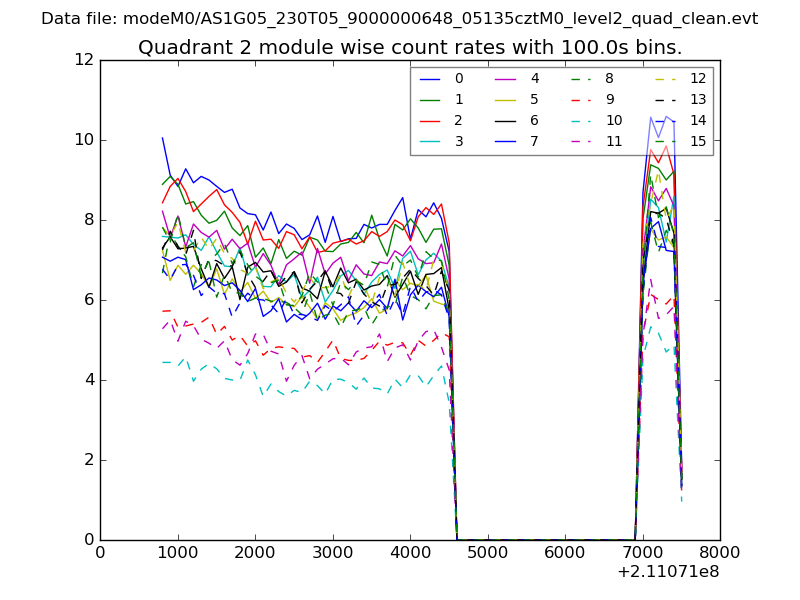

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

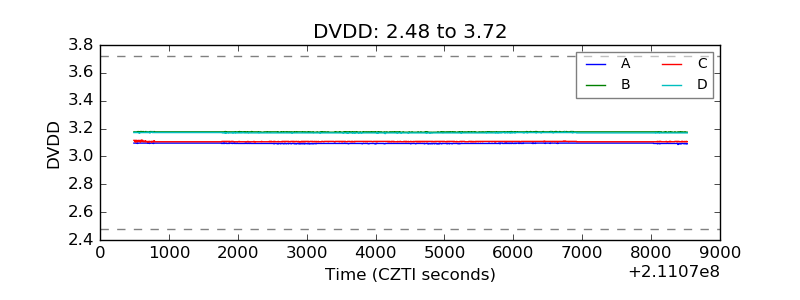

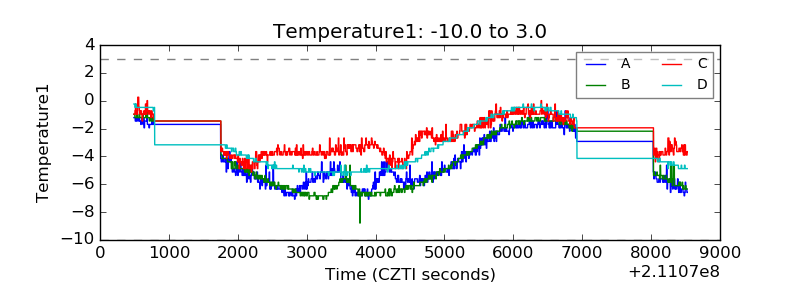

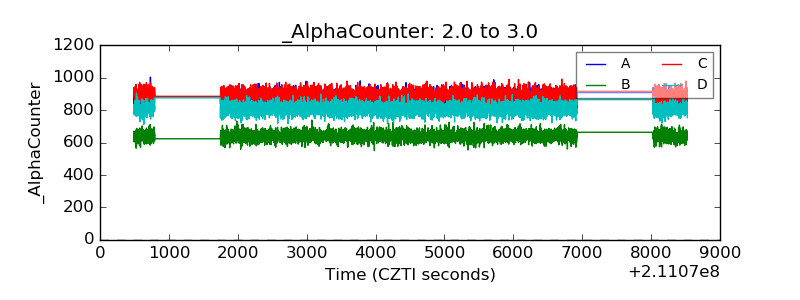

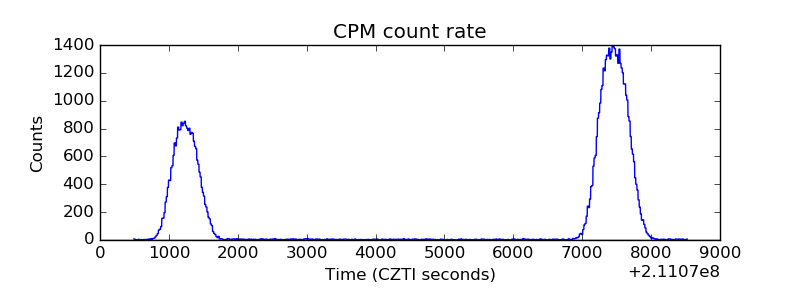

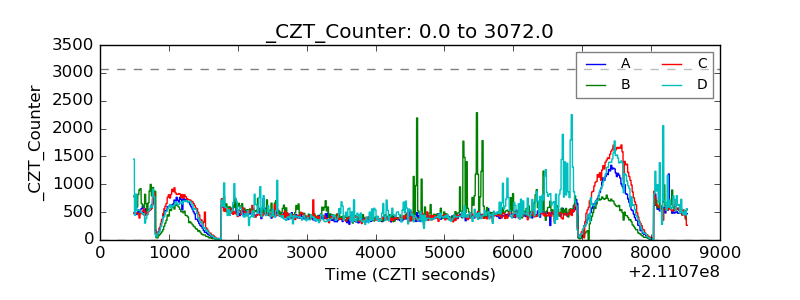

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

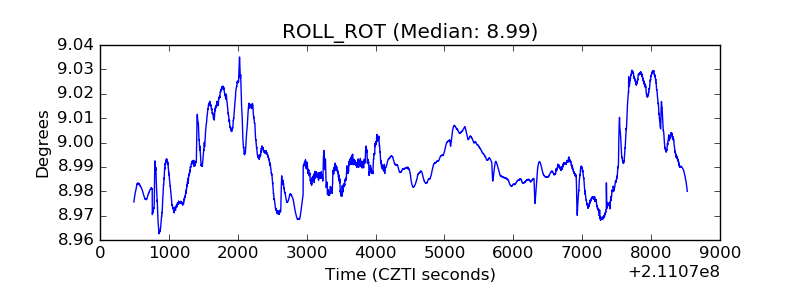

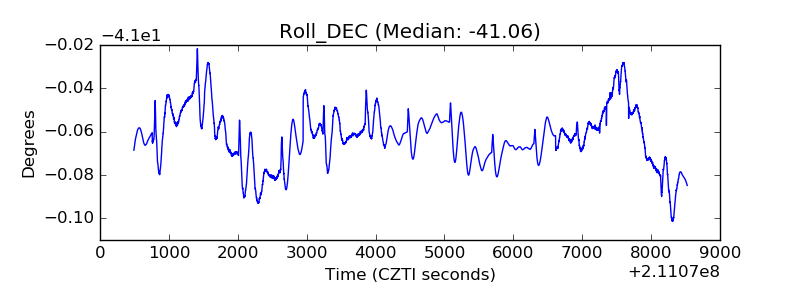

| _ROLL_ROT |  |
| _Roll_DEC |  |

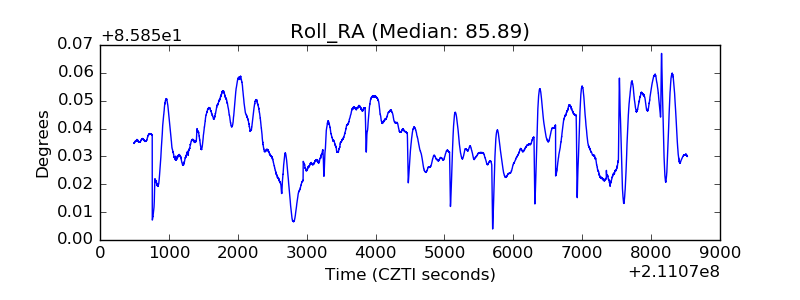

| _Roll_RA |  |
| Veto Counter |  |
