| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_102T01_9000000650_05141cztM0_level2.evt | modeM0/AS1G05_102T01_9000000650_05141cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,776,640 | 82,581,120 |
| Size | 487.1 MB | 78.8 MB |
| Events in quadrant A | 3,210,886 | 507,590 |
| Events in quadrant B | 3,541,054 | 510,293 |
| Events in quadrant C | 3,171,776 | 513,369 |
| Events in quadrant D | 5,072,613 | 484,460 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14320 | 2 |
| B | 0 | 14910 | 1 |
| C | 0 | 14274 | 1 |
| D | 0 | 19984 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6963 | 110 | 1.579779% |
| B | 6963 | 118 | 1.694672% |
| C | 6963 | 67 | 0.962229% |
| D | 6963 | 553 | 7.941979% |

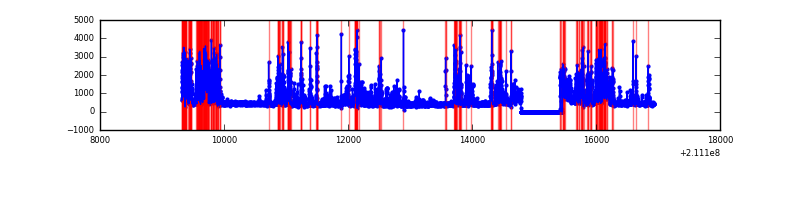

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6965 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7618 | 6965 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7618 | 6965 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7618 | 6965 | 338 | 338 | 4.44% | 4.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 11368 | 61.65 | 831 | 812 | 171.2 |
| A | 12 | 194 | 8236 | 43.36 | 831 | 812 | 171.2 |
| A | 0 | 226 | 8234 | 43.35 | 831 | 812 | 171.2 |
| B | 15 | 204 | 105310 | 645.53 | 834 | 813 | 161.9 |
| B | 8 | 3 | 66489 | 405.71 | 834 | 813 | 161.9 |
| B | 4 | 80 | 53486 | 325.39 | 834 | 813 | 161.9 |
| C | 1 | 16 | 30557 | 159.09 | 804 | 806 | 187.0 |
| C | 13 | 61 | 6536 | 30.64 | 804 | 806 | 187.0 |
| C | 14 | 67 | 2585 | 9.51 | 804 | 806 | 187.0 |
| D | 12 | 233 | 1896880 | 9819.16 | 785 | 763 | 193.1 |
| D | 2 | 33 | 121875 | 627.19 | 785 | 763 | 193.1 |
| D | 2 | 14 | 31166 | 157.44 | 785 | 763 | 193.1 |

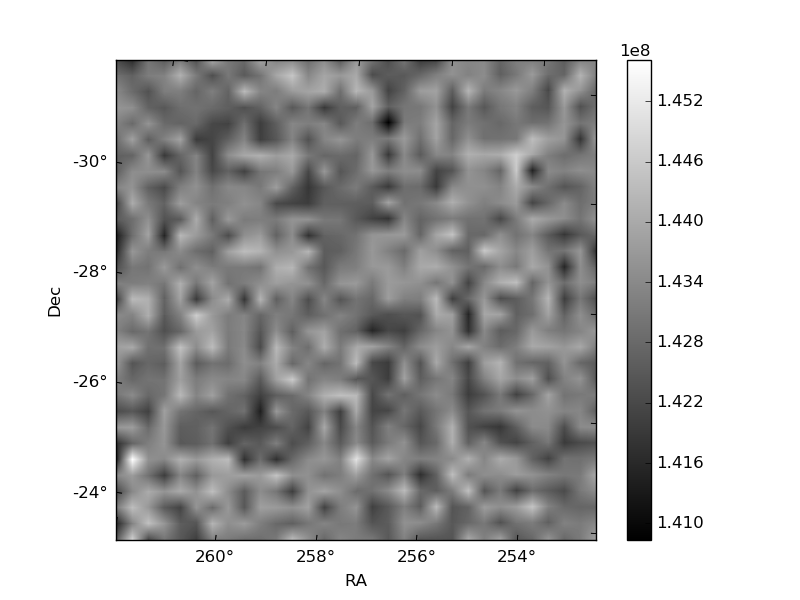

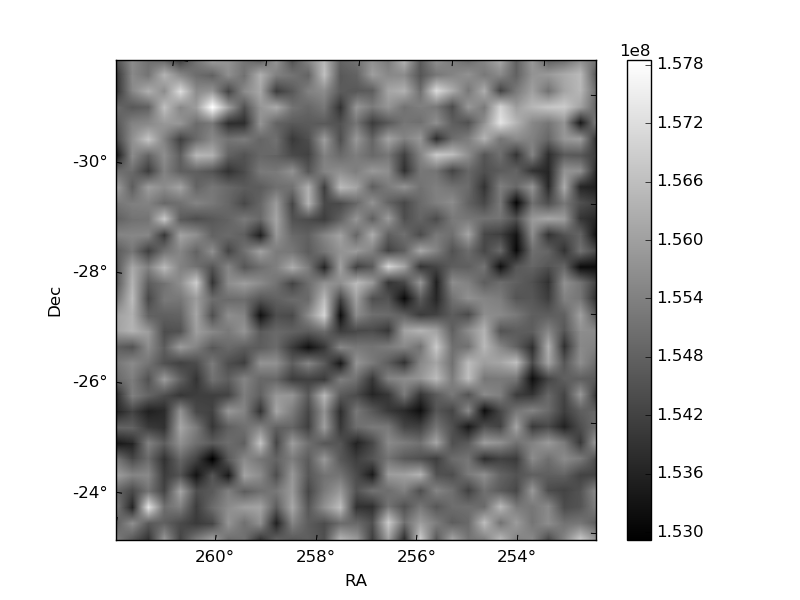

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

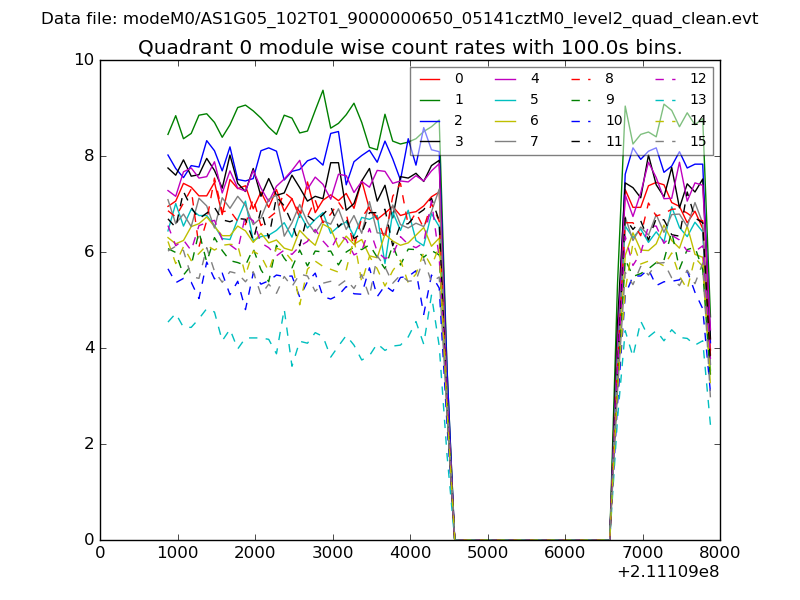

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

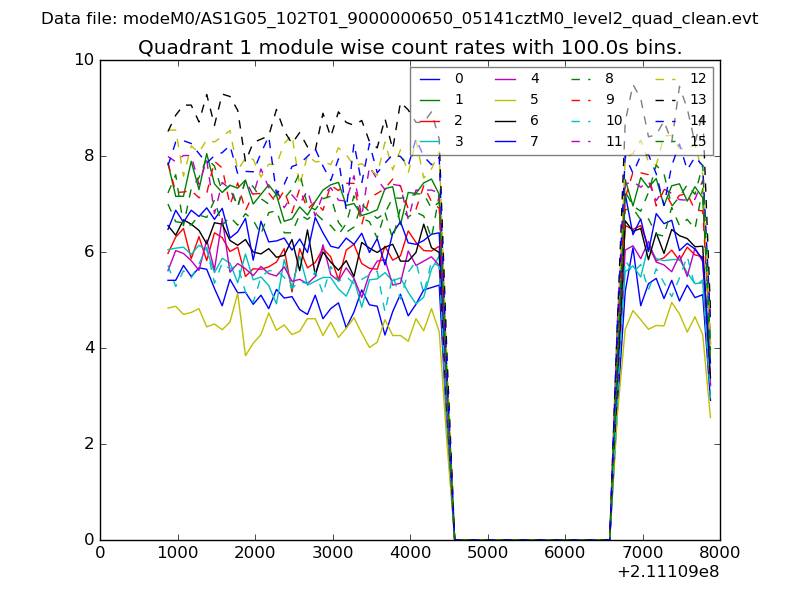

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

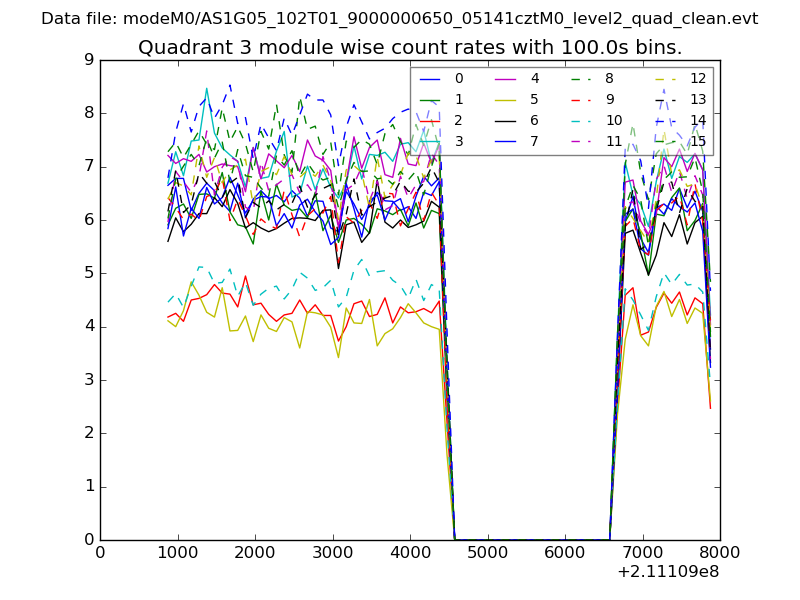

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

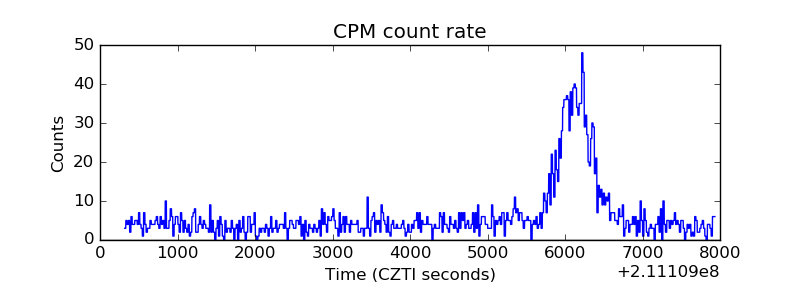

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

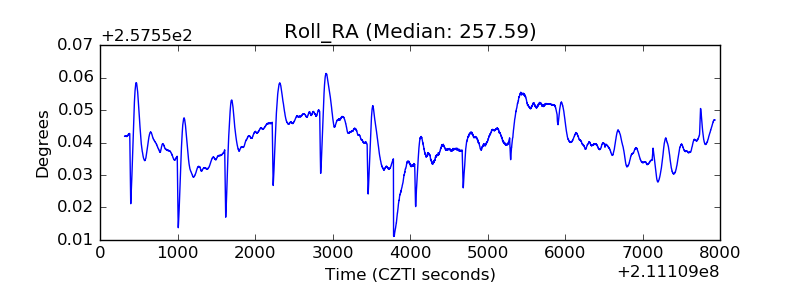

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
