| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000652_05161cztM0_level2.evt | modeM0/AS1G05_214T01_9000000652_05161cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,192,472,640 | 190,969,920 |
| Size | 1.1 GB | 182.1 MB |
| Events in quadrant A | 8,310,053 | 1,139,243 |
| Events in quadrant B | 8,758,353 | 1,146,387 |
| Events in quadrant C | 8,014,636 | 1,165,790 |
| Events in quadrant D | 9,820,301 | 1,098,607 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 366 | 0 |
| B | 0 | 366 | 0 |
| C | 0 | 366 | 0 |
| D | 0 | 366 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37504 | 7 |
| B | 0 | 38172 | 3 |
| C | 0 | 36460 | 6 |
| D | 0 | 41869 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17885 | 221 | 1.235672% |
| B | 17886 | 186 | 1.039919% |
| C | 17885 | 90 | 0.503215% |
| D | 17886 | 372 | 2.079839% |

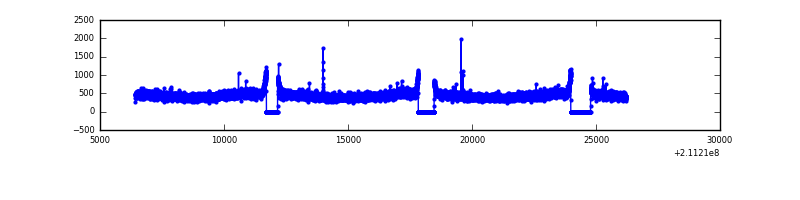

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19781 | 17889 | 63 | 63 | 0.32% | 0.35% |  |
| B | 19781 | 17889 | 17 | 17 | 0.09% | 0.10% |  |
| C | 19781 | 17889 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19781 | 17889 | 275 | 275 | 1.39% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 261946 | 618.04 | 2056 | 2010 | 420.6 |
| A | 4 | 2 | 100973 | 235.3 | 2056 | 2010 | 420.6 |
| A | 8 | 4 | 32456 | 72.39 | 2056 | 2010 | 420.6 |
| B | 4 | 80 | 410997 | 1017.52 | 2089 | 2043 | 401.9 |
| B | 4 | 48 | 72076 | 174.25 | 2089 | 2043 | 401.9 |
| B | 15 | 204 | 65803 | 158.64 | 2089 | 2043 | 401.9 |
| C | 1 | 16 | 114298 | 239.36 | 2023 | 2036 | 469.0 |
| C | 13 | 61 | 16477 | 30.79 | 2023 | 2036 | 469.0 |
| C | 12 | 4 | 12878 | 23.12 | 2023 | 2036 | 469.0 |
| D | 2 | 33 | 1262982 | 2575.18 | 2008 | 1950 | 489.7 |
| D | 13 | 105 | 326358 | 662.48 | 2008 | 1950 | 489.7 |
| D | 2 | 136 | 194758 | 393.74 | 2008 | 1950 | 489.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

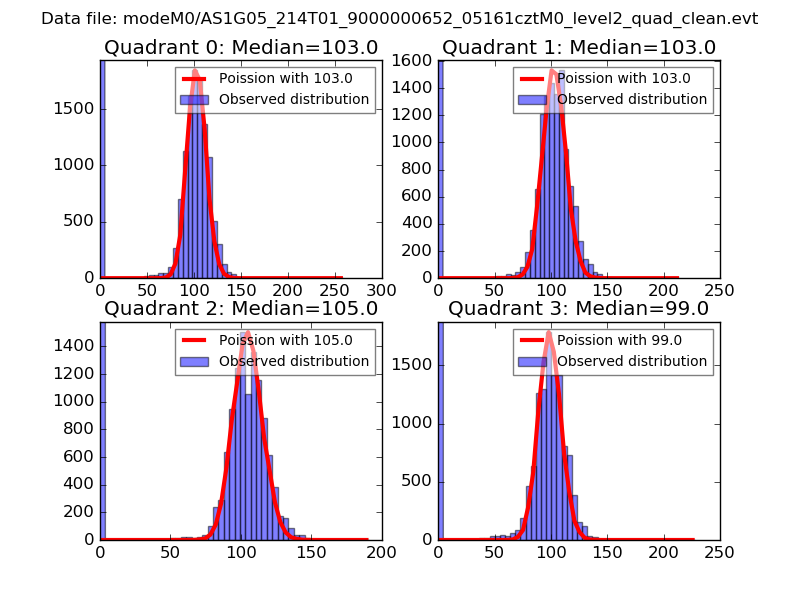

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

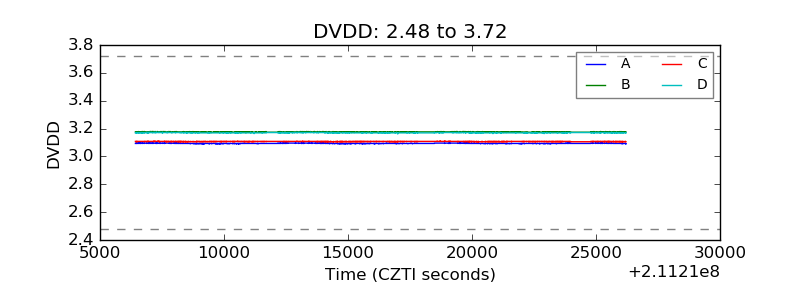

| D_VDD |  |
| Temperature 1 |  |

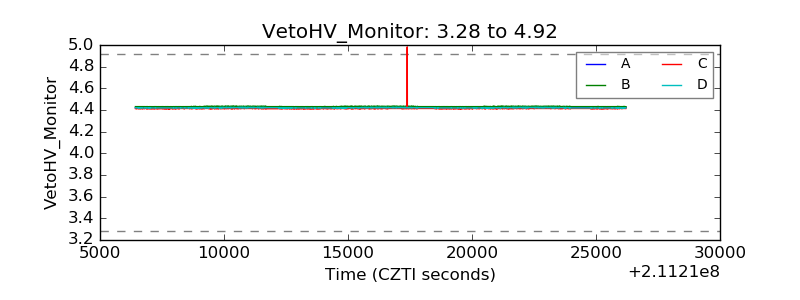

| Veto HV Monitor |  |
| Veto LLD |  |

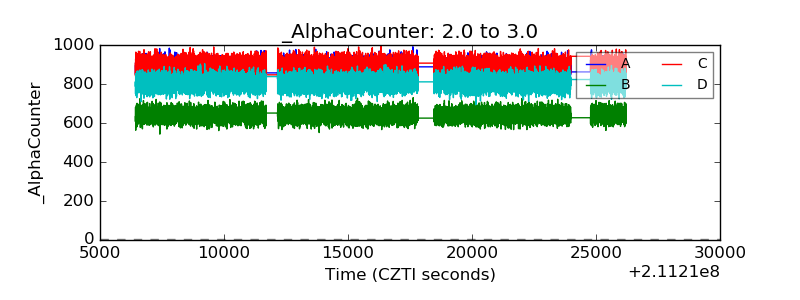

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

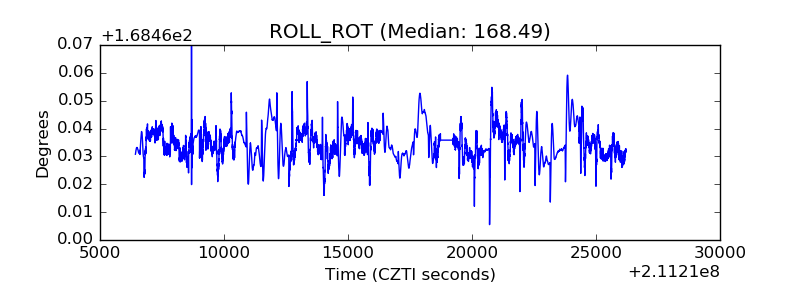

| _ROLL_ROT |  |
| _Roll_DEC |  |

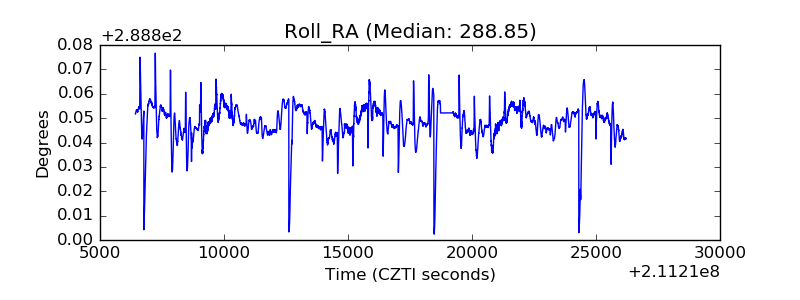

| _Roll_RA |  |
| Veto Counter |  |
