| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000652_05165cztM0_level2.evt | modeM0/AS1G05_214T01_9000000652_05165cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,221,760 | 68,109,120 |
| Size | 437.9 MB | 65.0 MB |
| Events in quadrant A | 3,674,574 | 402,271 |
| Events in quadrant B | 3,163,180 | 415,415 |
| Events in quadrant C | 3,019,481 | 412,617 |
| Events in quadrant D | 3,613,396 | 383,280 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15211 | 3 |
| B | 0 | 13504 | 2 |
| C | 0 | 13295 | 2 |
| D | 0 | 15331 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6433 | 150 | 2.331727% |
| B | 6433 | 38 | 0.590704% |
| C | 6433 | 23 | 0.357531% |
| D | 6433 | 96 | 1.492305% |

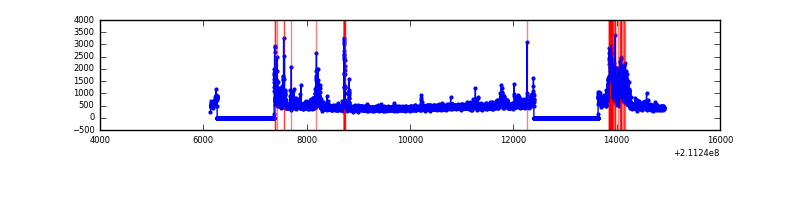

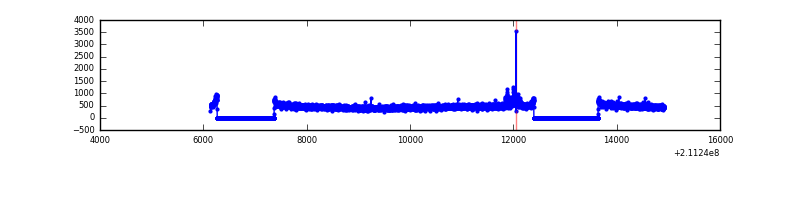

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8783 | 6435 | 85 | 85 | 0.97% | 1.32% |  |
| B | 8783 | 6435 | 4 | 4 | 0.05% | 0.06% |  |
| C | 8783 | 6435 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8783 | 6435 | 80 | 80 | 0.91% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 557437 | 3547.88 | 769 | 753 | 156.9 |
| A | 0 | 247 | 93777 | 592.86 | 769 | 753 | 156.9 |
| A | 0 | 50 | 46836 | 293.7 | 769 | 753 | 156.9 |
| B | 4 | 80 | 35001 | 226.35 | 790 | 774 | 151.2 |
| B | 15 | 54 | 21715 | 138.48 | 790 | 774 | 151.2 |
| B | 0 | 219 | 14180 | 88.65 | 790 | 774 | 151.2 |
| C | 15 | 1 | 57368 | 319.61 | 757 | 763 | 177.1 |
| C | 1 | 16 | 7543 | 38.28 | 757 | 763 | 177.1 |
| C | 13 | 61 | 6206 | 30.73 | 757 | 763 | 177.1 |
| D | 13 | 53 | 580643 | 3140.75 | 746 | 724 | 184.6 |
| D | 2 | 33 | 101323 | 544.83 | 746 | 724 | 184.6 |
| D | 2 | 136 | 65719 | 352.0 | 746 | 724 | 184.6 |

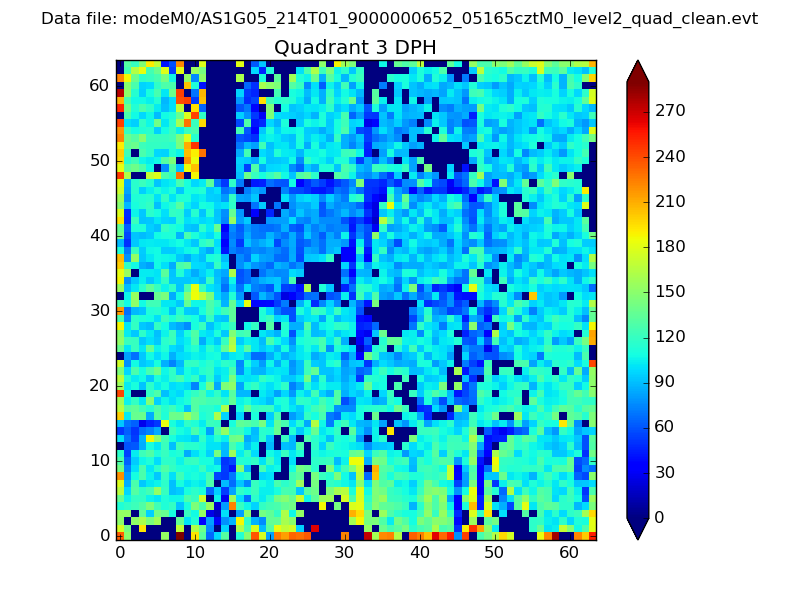

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

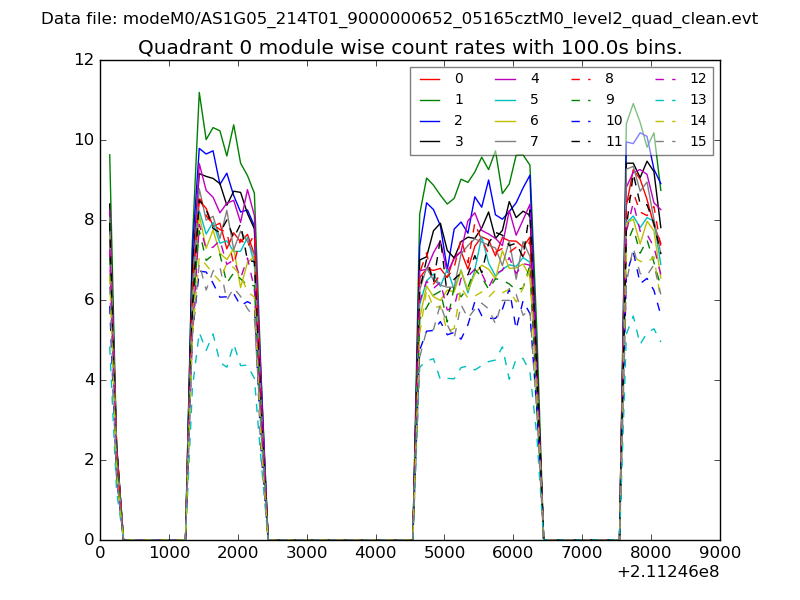

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

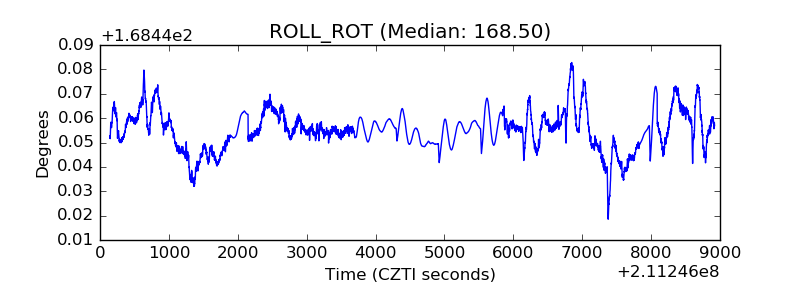

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

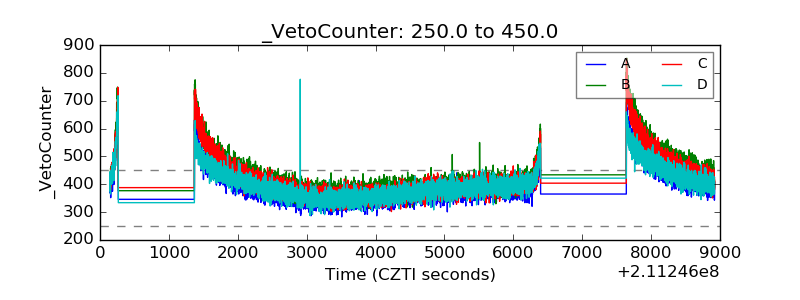

| Veto Counter |  |
