| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000652_05171cztM0_level2.evt | modeM0/AS1G05_214T01_9000000652_05171cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,019,840 | 79,663,680 |
| Size | 502.6 MB | 76.0 MB |
| Events in quadrant A | 3,968,914 | 468,334 |
| Events in quadrant B | 3,863,839 | 474,492 |
| Events in quadrant C | 3,670,658 | 479,065 |
| Events in quadrant D | 3,931,409 | 452,161 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16992 | 3 |
| B | 0 | 16513 | 2 |
| C | 0 | 16190 | 2 |
| D | 0 | 17091 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7740 | 410 | 5.297158% |
| B | 7740 | 363 | 4.689922% |
| C | 7740 | 230 | 2.971576% |
| D | 7740 | 326 | 4.211886% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

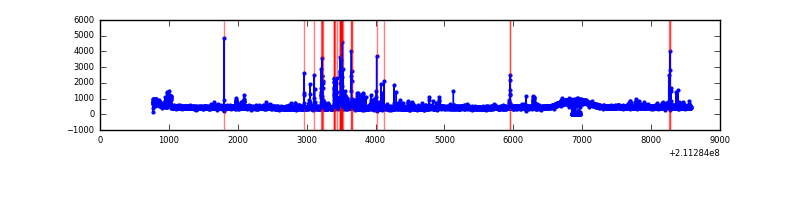

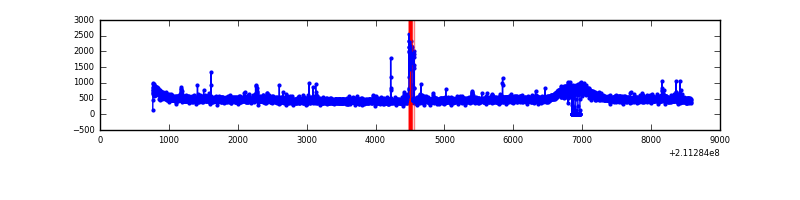

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7810 | 7743 | 18 | 18 | 0.23% | 0.23% |  |
| B | 7810 | 7743 | 22 | 22 | 0.28% | 0.28% |  |
| C | 7810 | 7743 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7810 | 7743 | 45 | 45 | 0.58% | 0.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 247 | 159058 | 804.84 | 942 | 918 | 196.5 |
| A | 4 | 2 | 141251 | 714.21 | 942 | 918 | 196.5 |
| A | 0 | 50 | 31870 | 157.53 | 942 | 918 | 196.5 |
| B | 0 | 187 | 80610 | 427.92 | 955 | 932 | 186.2 |
| B | 0 | 219 | 21661 | 111.33 | 955 | 932 | 186.2 |
| B | 4 | 48 | 19613 | 100.33 | 955 | 932 | 186.2 |
| C | 1 | 16 | 29496 | 133.1 | 925 | 928 | 214.6 |
| C | 8 | 208 | 13297 | 57.63 | 925 | 928 | 214.6 |
| C | 13 | 61 | 7684 | 31.48 | 925 | 928 | 214.6 |
| D | 2 | 33 | 247863 | 1072.68 | 926 | 894 | 230.2 |
| D | 2 | 136 | 86794 | 373.1 | 926 | 894 | 230.2 |
| D | 2 | 221 | 49694 | 211.96 | 926 | 894 | 230.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

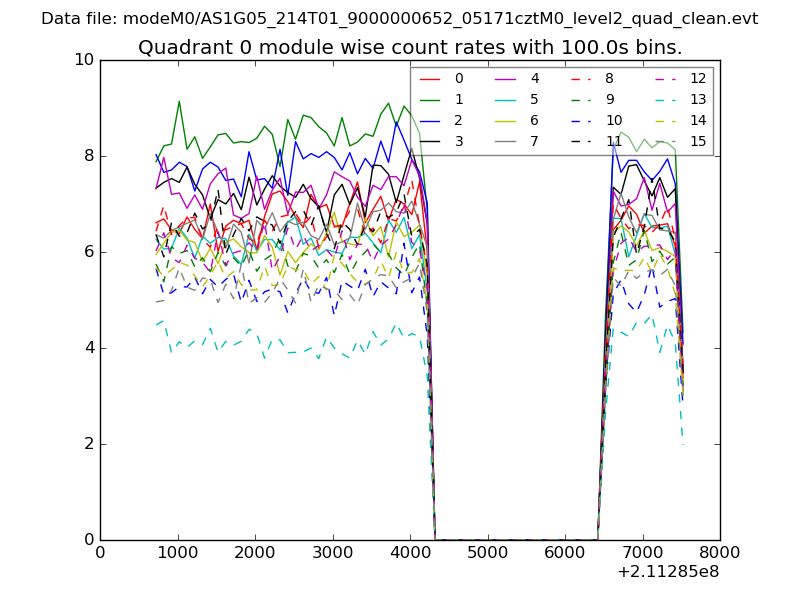

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

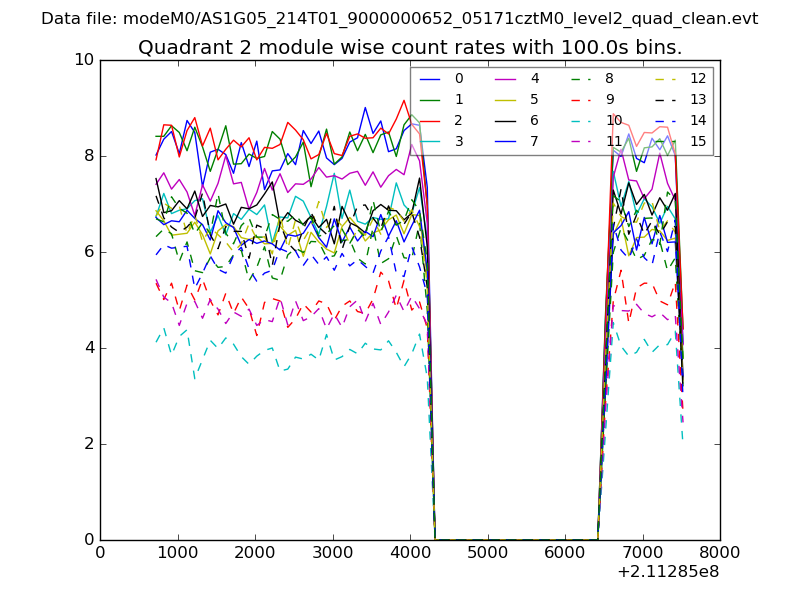

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

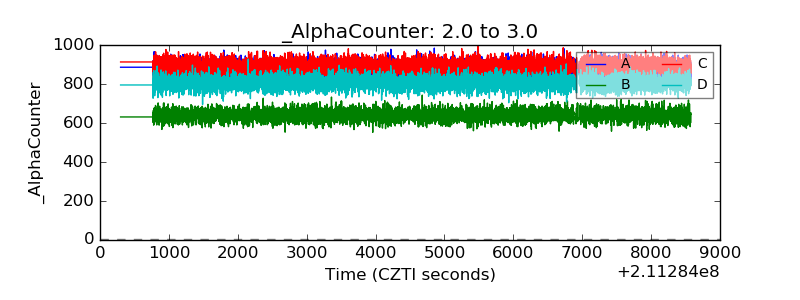

| Alpha Counter |  |

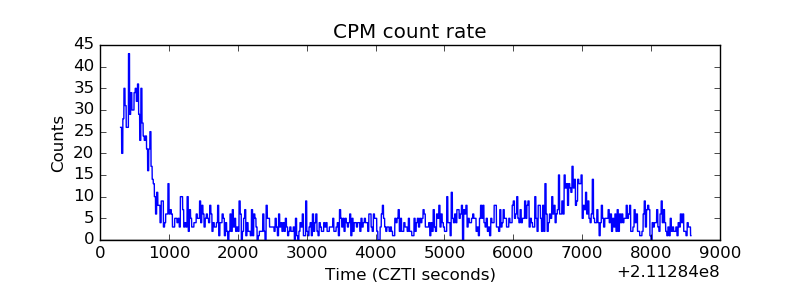

| _CPM_Rate |  |

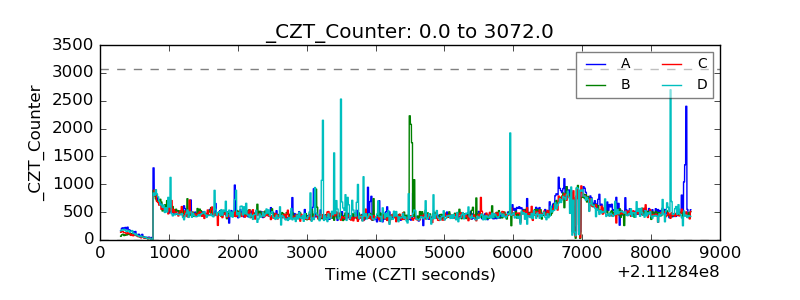

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

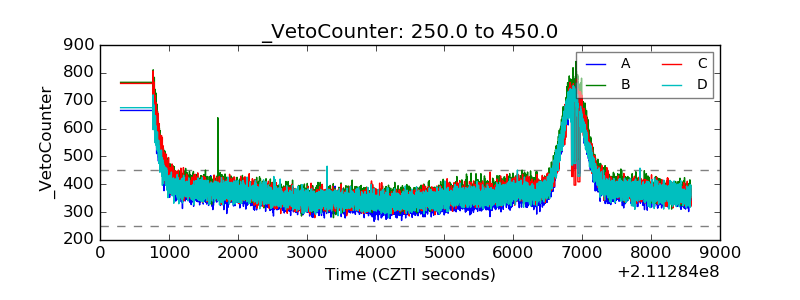

| Veto Counter |  |
