| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000652_05177cztM0_level2.evt | modeM0/AS1G05_214T01_9000000652_05177cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,105,920 | 77,204,160 |
| Size | 413.0 MB | 73.6 MB |
| Events in quadrant A | 3,007,460 | 473,029 |
| Events in quadrant B | 3,211,649 | 475,912 |
| Events in quadrant C | 3,030,718 | 478,636 |
| Events in quadrant D | 3,420,149 | 452,138 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13482 | 3 |
| B | 0 | 13905 | 2 |
| C | 0 | 13535 | 2 |
| D | 0 | 14821 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6565 | 26 | 0.396040% |
| B | 6565 | 36 | 0.548363% |
| C | 6565 | 15 | 0.228484% |
| D | 6565 | 83 | 1.264280% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7605 | 6566 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7605 | 6566 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7605 | 6566 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7605 | 6566 | 54 | 54 | 0.71% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 40599 | 253.14 | 761 | 743 | 157.4 |
| A | 0 | 247 | 34722 | 215.81 | 761 | 743 | 157.4 |
| A | 0 | 226 | 10543 | 62.24 | 761 | 743 | 157.4 |
| B | 15 | 204 | 136181 | 912.49 | 773 | 757 | 148.4 |
| B | 4 | 80 | 27107 | 177.55 | 773 | 757 | 148.4 |
| B | 4 | 48 | 20472 | 132.84 | 773 | 757 | 148.4 |
| C | 1 | 16 | 107460 | 611.37 | 745 | 750 | 174.5 |
| C | 12 | 4 | 12227 | 65.75 | 745 | 750 | 174.5 |
| C | 13 | 61 | 6024 | 30.21 | 745 | 750 | 174.5 |
| D | 2 | 33 | 309977 | 1705.38 | 736 | 713 | 181.3 |
| D | 7 | 237 | 114565 | 627.82 | 736 | 713 | 181.3 |
| D | 12 | 233 | 81654 | 446.33 | 736 | 713 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

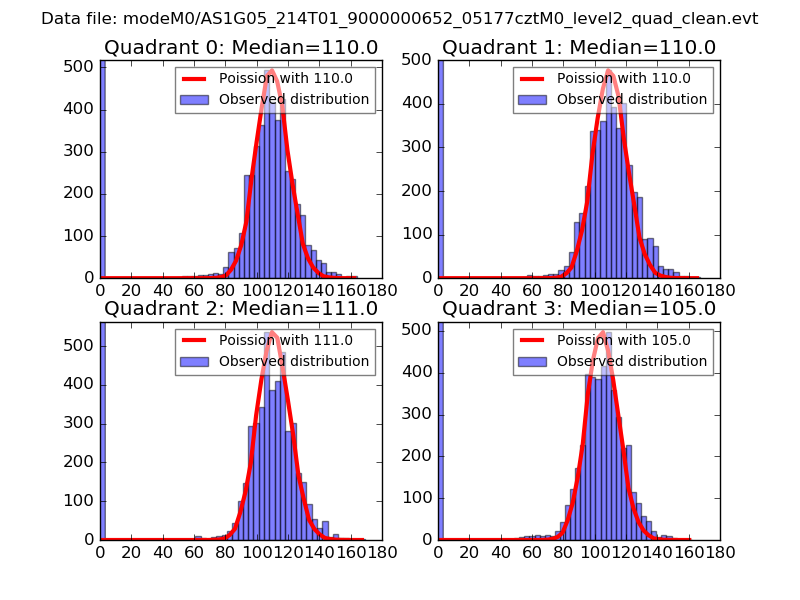

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

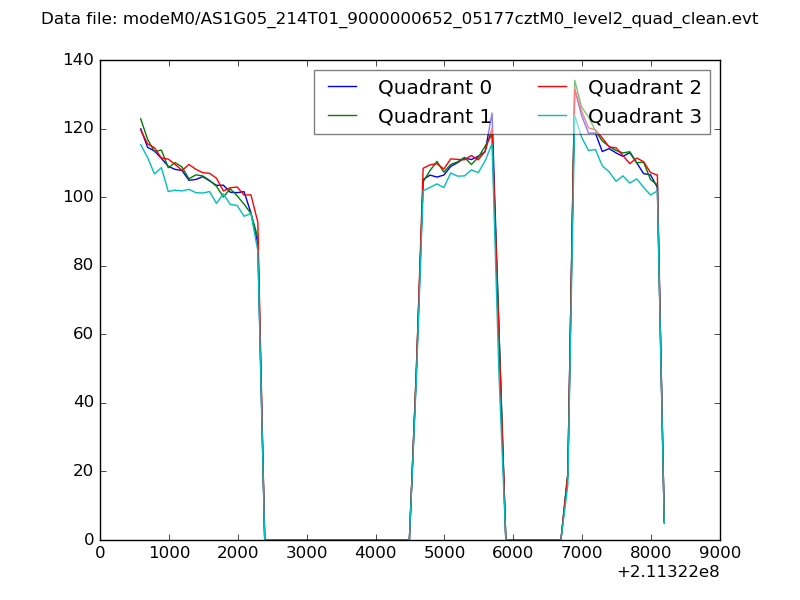

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

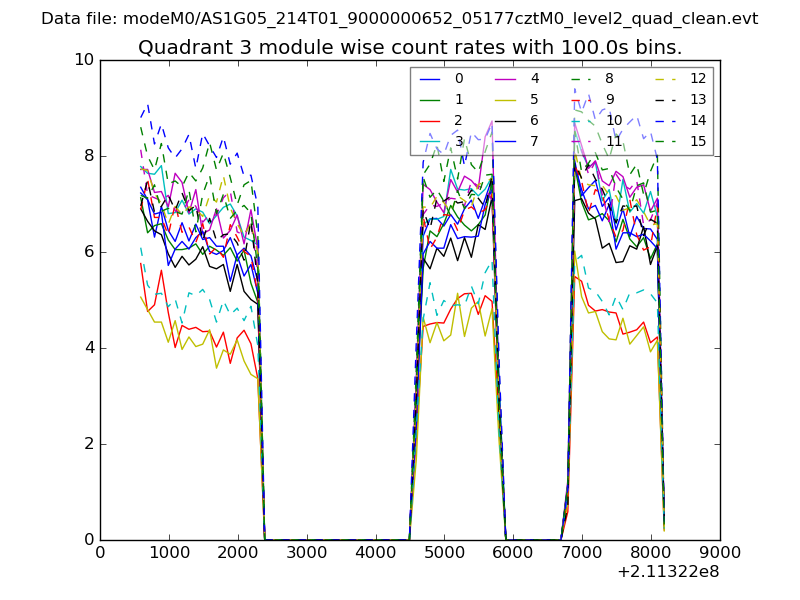

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

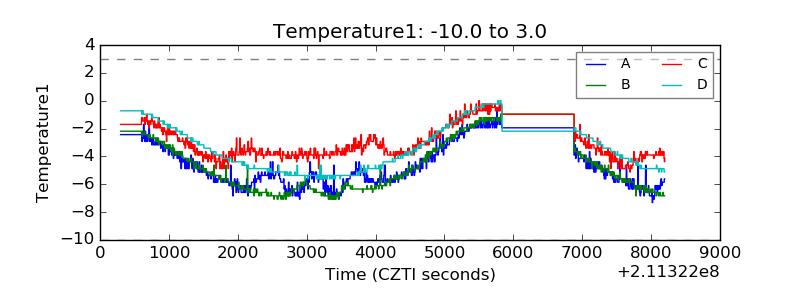

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

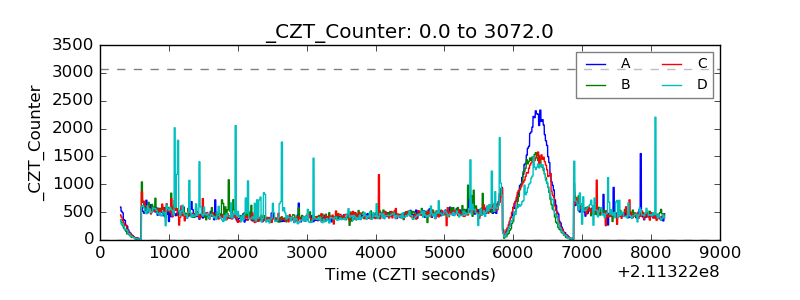

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

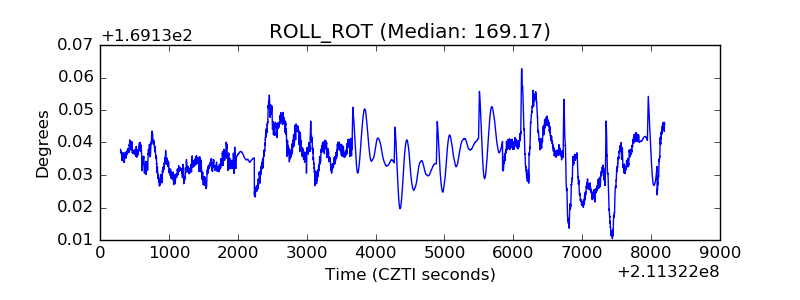

| _ROLL_ROT |  |
| _Roll_DEC |  |

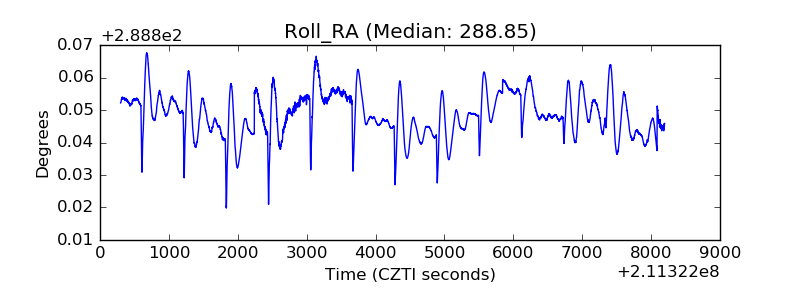

| _Roll_RA |  |
| Veto Counter |  |
