| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_243T01_9000000654_05185cztM0_level2.evt | modeM0/AS1G05_243T01_9000000654_05185cztM0_level2_quad_clean.evt |
| Size (bytes) | 287,930,880 | 39,844,800 |
| Size | 274.6 MB | 38.0 MB |
| Events in quadrant A | 1,987,532 | 230,141 |
| Events in quadrant B | 2,120,586 | 232,308 |
| Events in quadrant C | 1,938,588 | 234,239 |
| Events in quadrant D | 2,392,940 | 220,123 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8672 | 2 |
| B | 0 | 8999 | 1 |
| C | 0 | 8546 | 1 |
| D | 0 | 9869 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86 | 0 |
| B | 0 | 86 | 0 |
| C | 0 | 86 | 0 |
| D | 0 | 86 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4102 | 182 | 4.436860% |
| B | 4102 | 208 | 5.070697% |
| C | 4102 | 108 | 2.632862% |
| D | 4102 | 185 | 4.509995% |

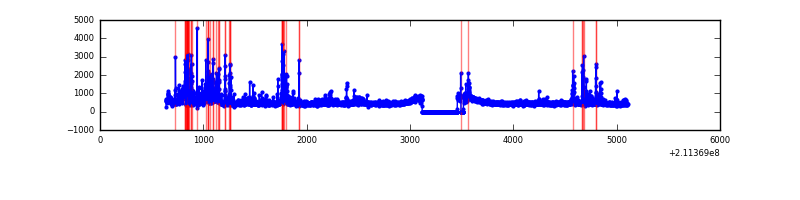

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4467 | 4104 | 1 | 1 | 0.02% | 0.02% |  |
| B | 4467 | 4104 | 17 | 17 | 0.38% | 0.41% |  |
| C | 4467 | 4104 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4467 | 4103 | 56 | 56 | 1.25% | 1.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 247 | 44668 | 420.43 | 499 | 486 | 105.1 |
| A | 0 | 50 | 15547 | 143.32 | 499 | 486 | 105.1 |
| A | 0 | 226 | 8771 | 78.84 | 499 | 486 | 105.1 |
| B | 4 | 80 | 123935 | 1240.47 | 506 | 493 | 99.5 |
| B | 4 | 48 | 21434 | 210.44 | 506 | 493 | 99.5 |
| B | 15 | 204 | 13296 | 128.66 | 506 | 493 | 99.5 |
| C | 1 | 16 | 7624 | 61.22 | 492 | 495 | 116.4 |
| C | 8 | 128 | 7283 | 58.29 | 492 | 495 | 116.4 |
| C | 13 | 61 | 3913 | 29.35 | 492 | 495 | 116.4 |
| D | 2 | 136 | 242488 | 2007.93 | 486 | 470 | 120.5 |
| D | 14 | 34 | 177856 | 1471.7 | 486 | 470 | 120.5 |
| D | 7 | 237 | 49533 | 407.06 | 486 | 470 | 120.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

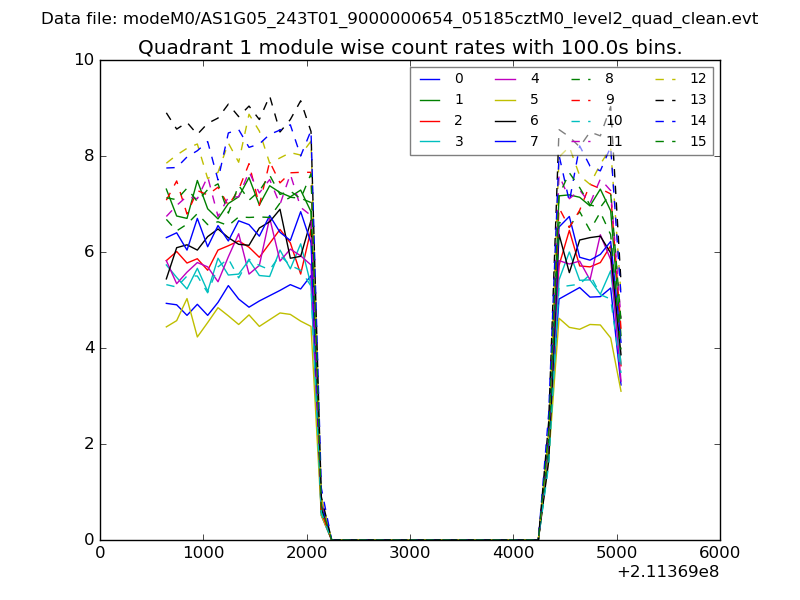

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

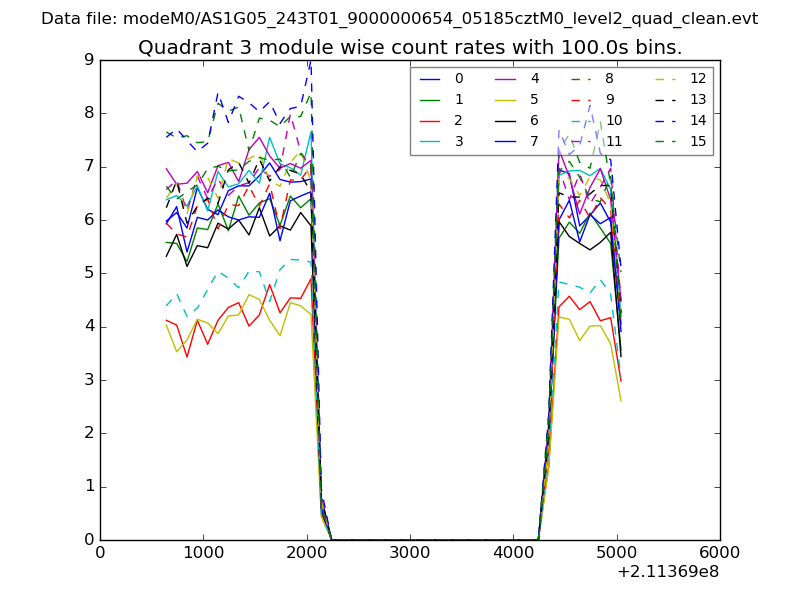

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

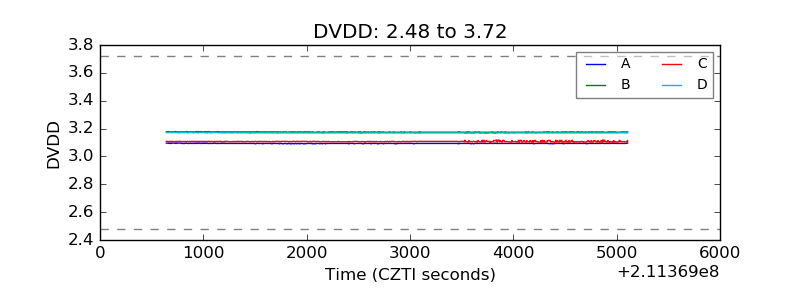

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

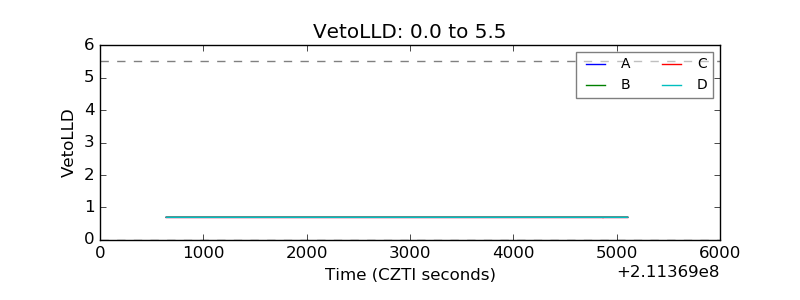

| Veto LLD |  |

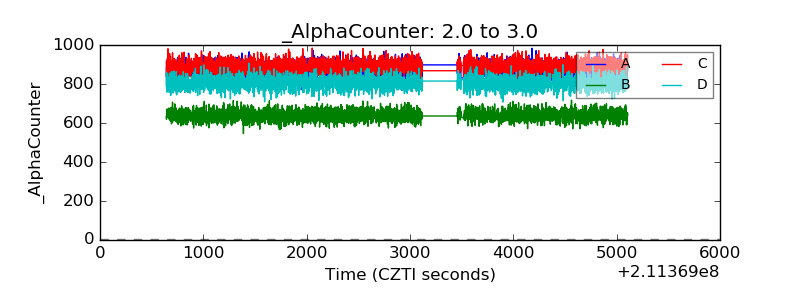

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

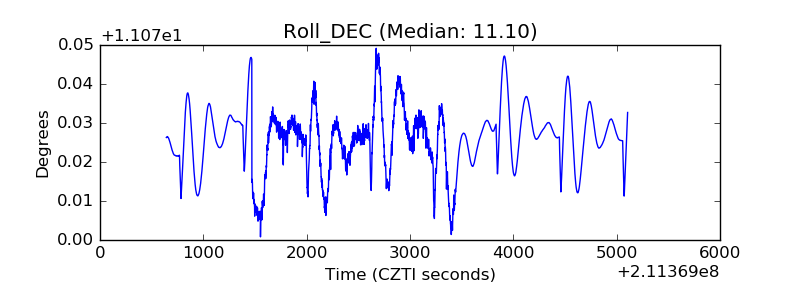

| _Roll_DEC |  |

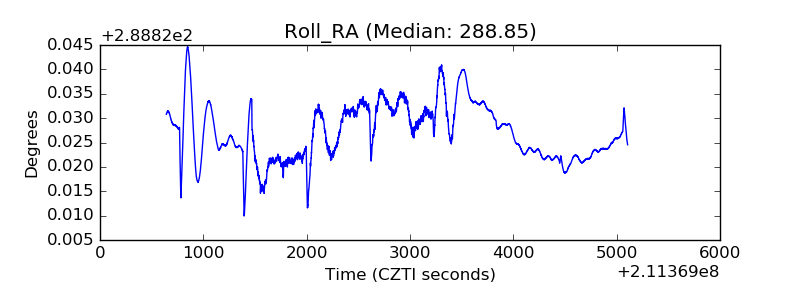

| _Roll_RA |  |
| Veto Counter |  |
