| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_152T02_9000000658_05205cztM0_level2.evt | modeM0/AS1G05_152T02_9000000658_05205cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,256,506,560 | 214,557,120 |
| Size | 1.2 GB | 204.6 MB |
| Events in quadrant A | 9,282,821 | 1,289,688 |
| Events in quadrant B | 9,352,458 | 1,294,786 |
| Events in quadrant C | 8,939,230 | 1,290,439 |
| Events in quadrant D | 9,131,026 | 1,252,167 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41641 | 9 |
| B | 0 | 41267 | 5 |
| C | 0 | 40883 | 10 |
| D | 0 | 42212 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 408 | 0 |
| B | 0 | 408 | 0 |
| C | 0 | 408 | 0 |
| D | 0 | 408 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19898 | 387 | 1.944919% |
| B | 19900 | 351 | 1.763819% |
| C | 19897 | 245 | 1.231341% |
| D | 19900 | 374 | 1.879397% |

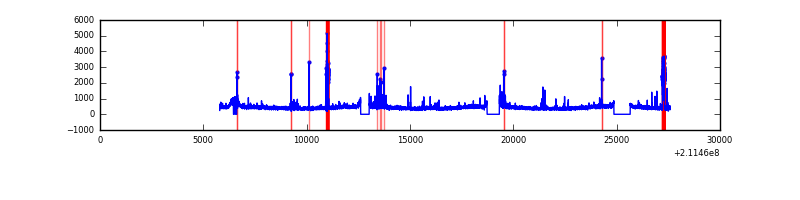

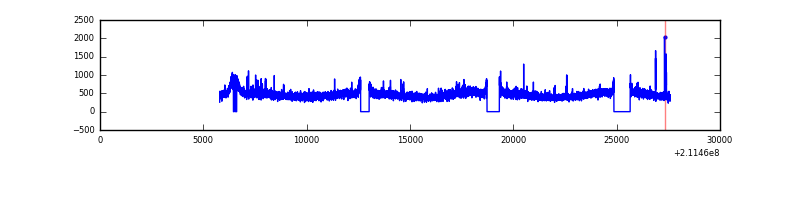

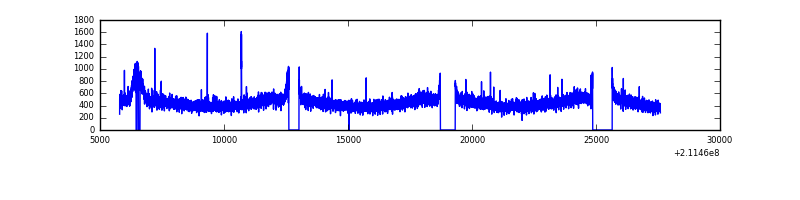

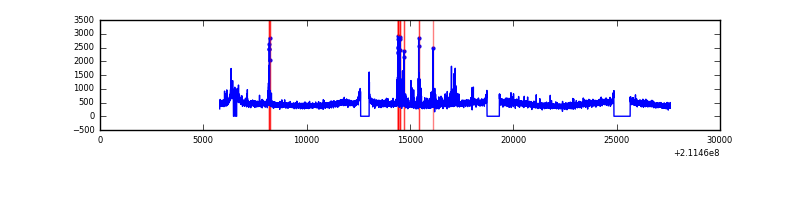

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21805 | 19905 | 19 | 19 | 0.09% | 0.10% |  |
| B | 21805 | 19905 | 1 | 1 | 0.00% | 0.01% |  |
| C | 21805 | 19904 | 0 | 0 | 0.00% | 0.00% |  |
| D | 21805 | 19905 | 131 | 131 | 0.60% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 357119 | 755.82 | 2295 | 2244 | 469.5 |
| A | 0 | 50 | 56255 | 115.03 | 2295 | 2244 | 469.5 |
| A | 13 | 14 | 41689 | 84.01 | 2295 | 2244 | 469.5 |
| B | 15 | 204 | 238923 | 530.06 | 2323 | 2265 | 446.5 |
| B | 4 | 48 | 76882 | 167.13 | 2323 | 2265 | 446.5 |
| B | 12 | 111 | 43252 | 91.8 | 2323 | 2265 | 446.5 |
| C | 1 | 16 | 106249 | 200.98 | 2242 | 2254 | 517.4 |
| C | 8 | 128 | 25023 | 44.0 | 2242 | 2254 | 517.4 |
| C | 5 | 250 | 24342 | 42.69 | 2242 | 2254 | 517.4 |
| D | 2 | 136 | 285406 | 518.73 | 2232 | 2162 | 546.0 |
| D | 2 | 63 | 227267 | 412.26 | 2232 | 2162 | 546.0 |
| D | 2 | 33 | 127056 | 228.73 | 2232 | 2162 | 546.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

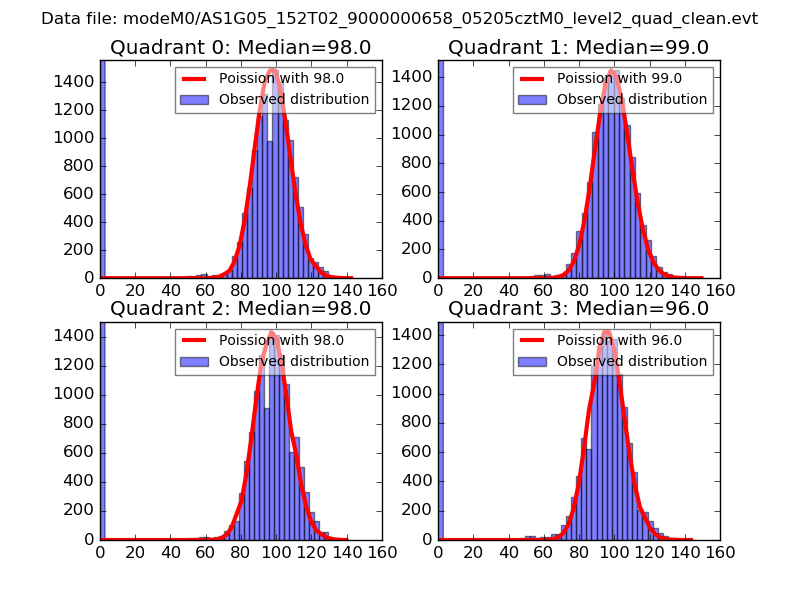

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

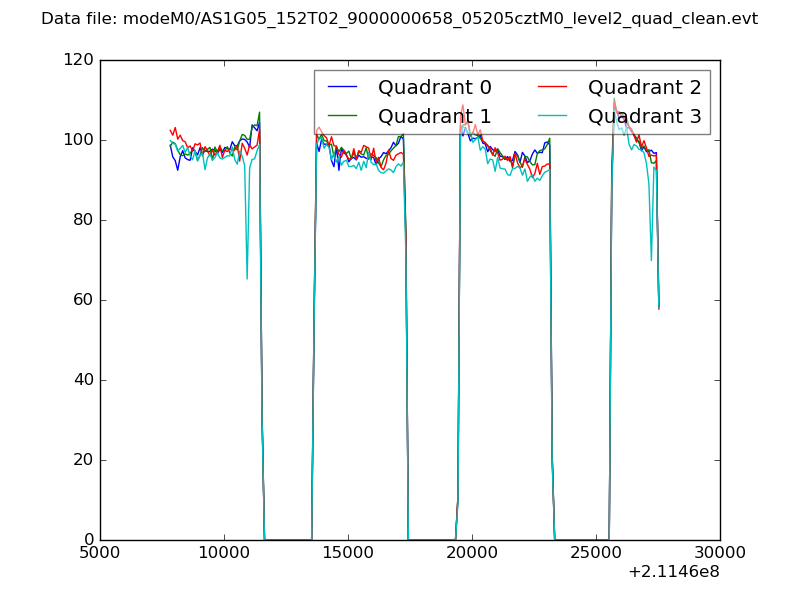

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

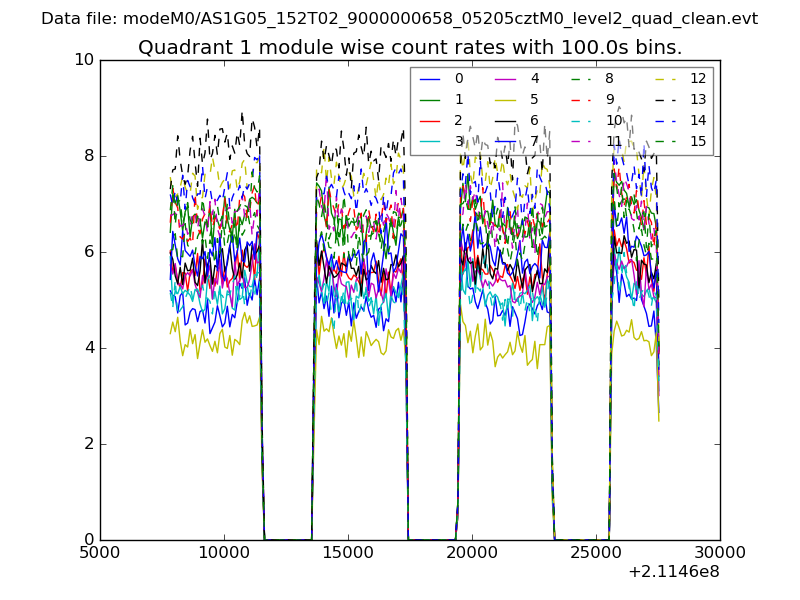

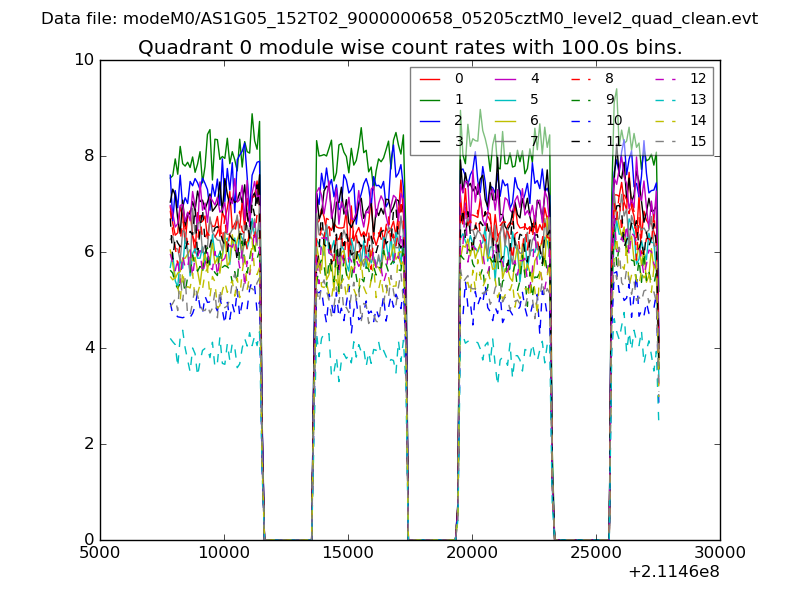

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

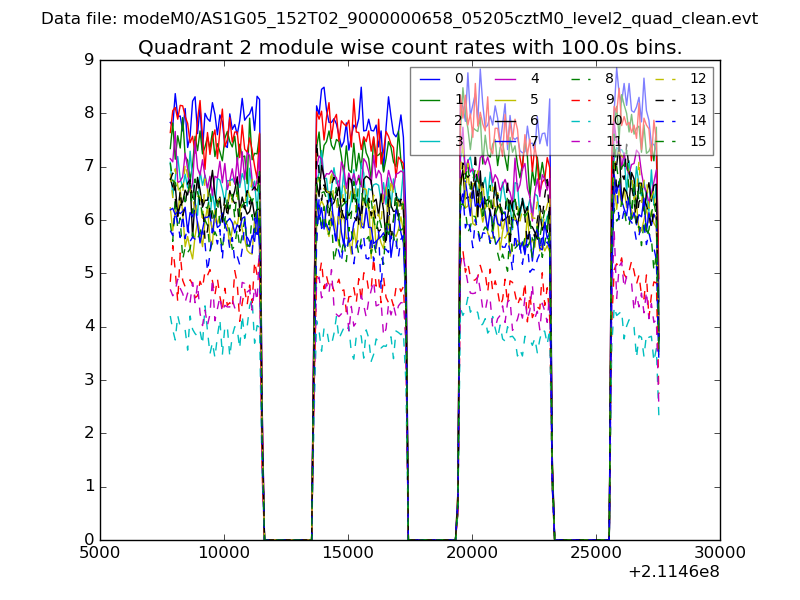

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

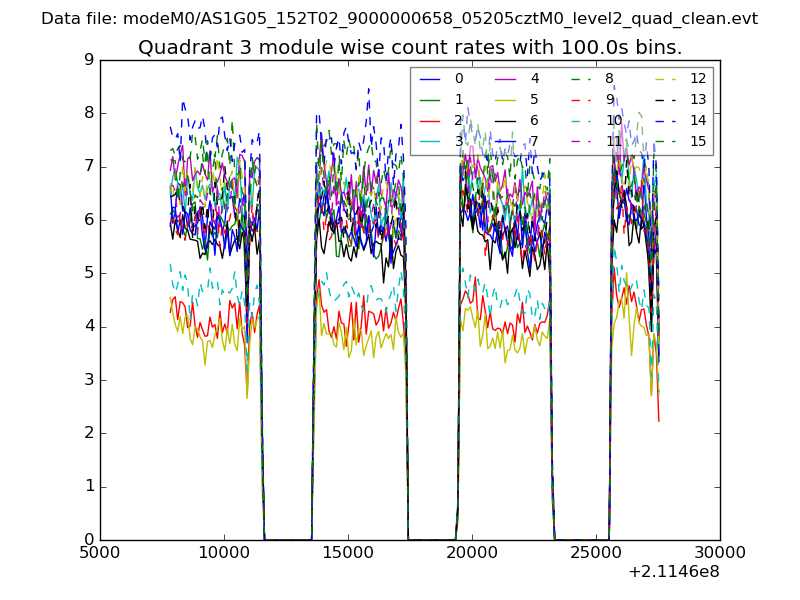

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

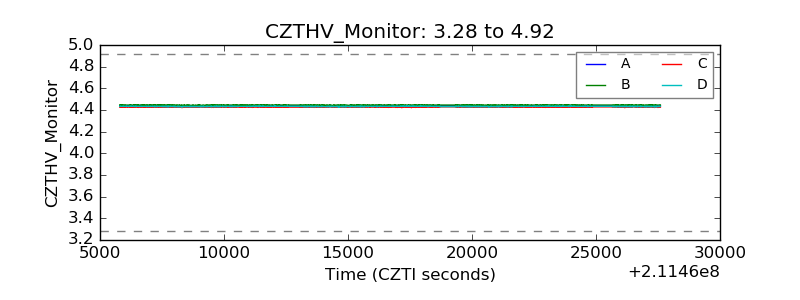

| CZT HV Monitor |  |
| D_VDD |  |

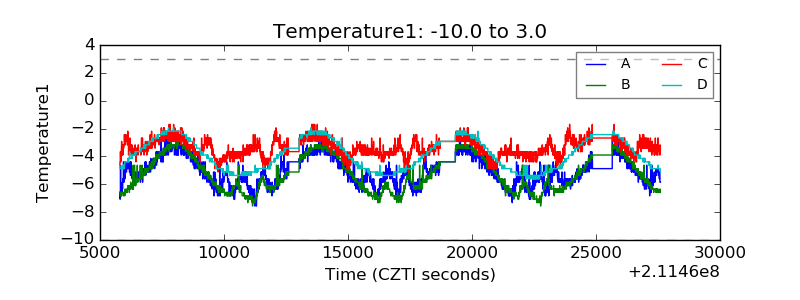

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

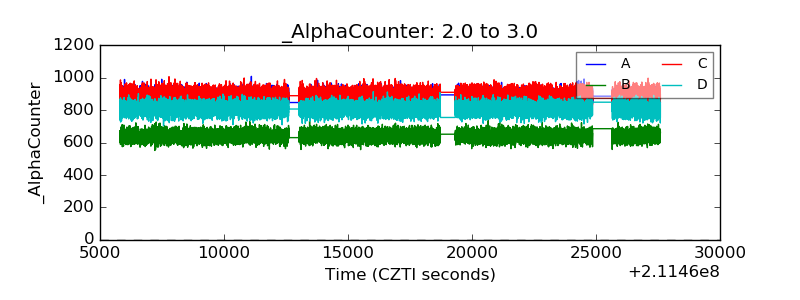

| Alpha Counter |  |

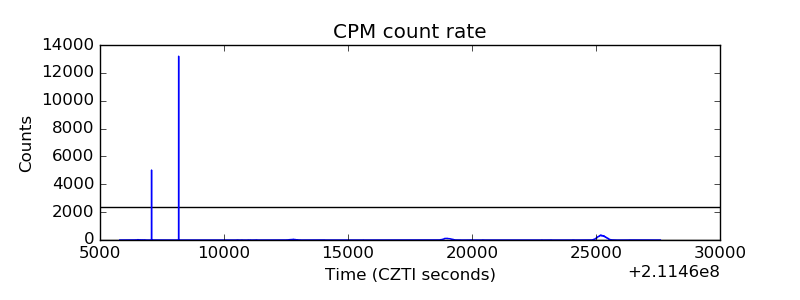

| _CPM_Rate |  |

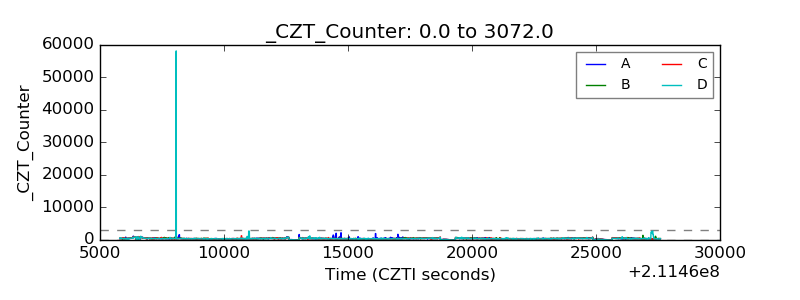

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

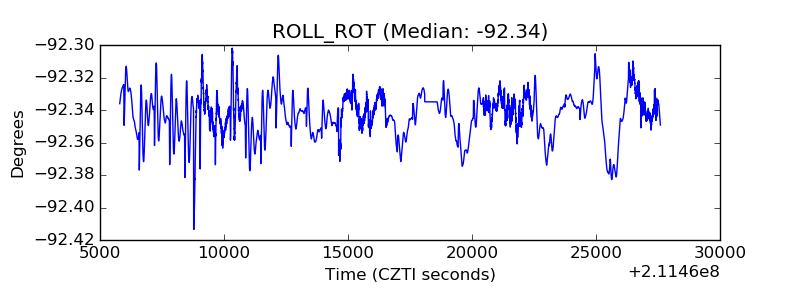

| _ROLL_ROT |  |

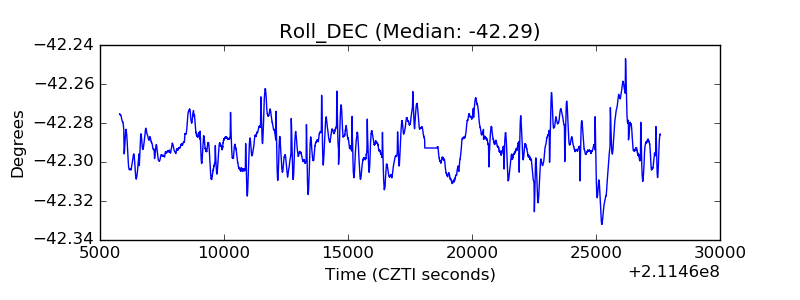

| _Roll_DEC |  |

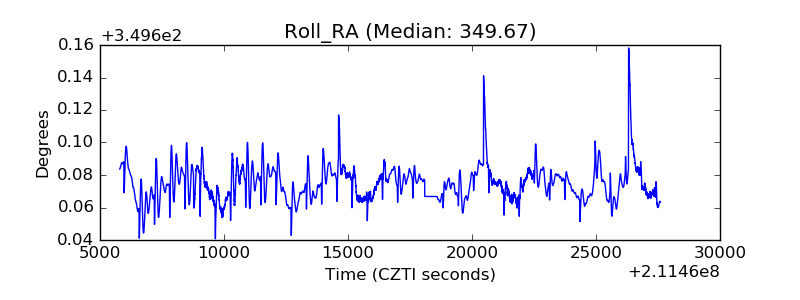

| _Roll_RA |  |

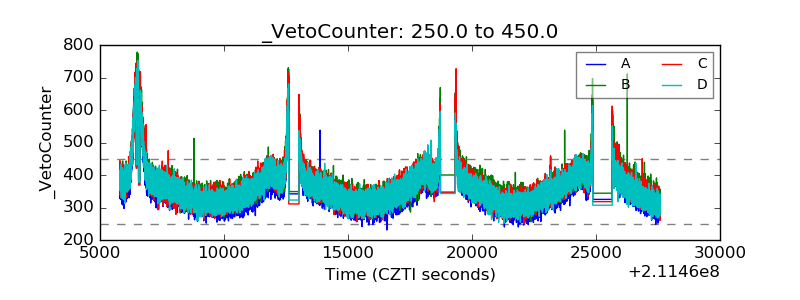

| Veto Counter |  |
