| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_141T01_9000000664_05223cztM0_level2.evt | modeM0/AS1G05_141T01_9000000664_05223cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,370,240 | 69,353,280 |
| Size | 534.4 MB | 66.1 MB |
| Events in quadrant A | 3,075,835 | 424,588 |
| Events in quadrant B | 3,162,066 | 434,952 |
| Events in quadrant C | 2,960,996 | 431,986 |
| Events in quadrant D | 7,340,565 | 364,303 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13463 | 3 |
| B | 0 | 13598 | 2 |
| C | 0 | 12982 | 2 |
| D | 0 | 26184 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6356 | 61 | 0.959723% |
| B | 6356 | 44 | 0.692259% |
| C | 6356 | 30 | 0.471995% |
| D | 6356 | 1493 | 23.489616% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

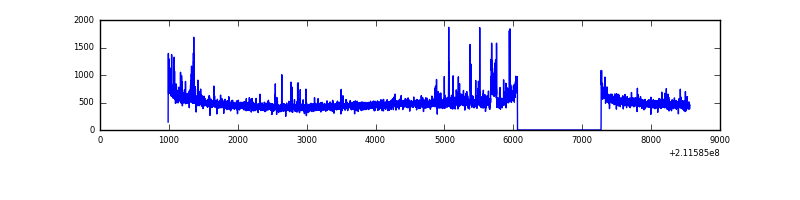

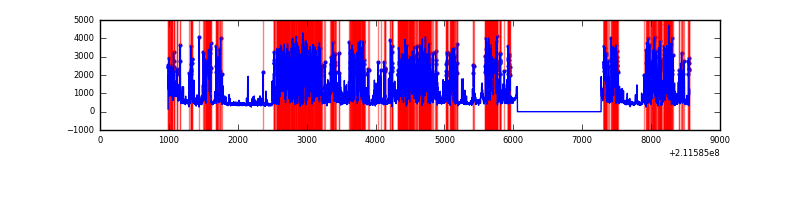

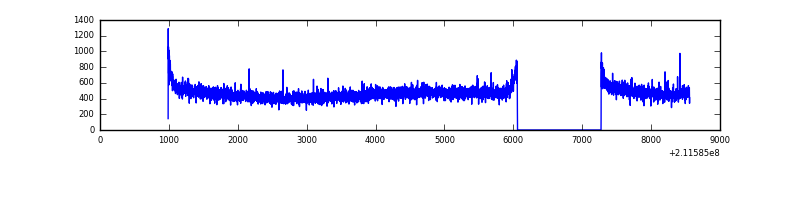

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7571 | 6357 | 31 | 31 | 0.41% | 0.49% |  |
| B | 7571 | 6357 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7571 | 6357 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7571 | 6357 | 1226 | 1226 | 16.19% | 19.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 168655 | 1087.83 | 754 | 738 | 154.4 |
| A | 0 | 226 | 7495 | 43.77 | 754 | 738 | 154.4 |
| A | 12 | 194 | 7352 | 42.85 | 754 | 738 | 154.4 |
| B | 4 | 172 | 54443 | 367.09 | 772 | 754 | 146.3 |
| B | 4 | 80 | 35428 | 237.08 | 772 | 754 | 146.3 |
| B | 15 | 54 | 26565 | 176.48 | 772 | 754 | 146.3 |
| C | 1 | 16 | 42623 | 245.73 | 740 | 745 | 170.4 |
| C | 8 | 128 | 15433 | 86.19 | 740 | 745 | 170.4 |
| C | 8 | 112 | 7311 | 38.53 | 740 | 745 | 170.4 |
| D | 11 | 145 | 4597785 | 28799.2 | 653 | 631 | 159.6 |
| D | 12 | 233 | 76848 | 477.46 | 653 | 631 | 159.6 |
| D | 2 | 33 | 74595 | 463.35 | 653 | 631 | 159.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

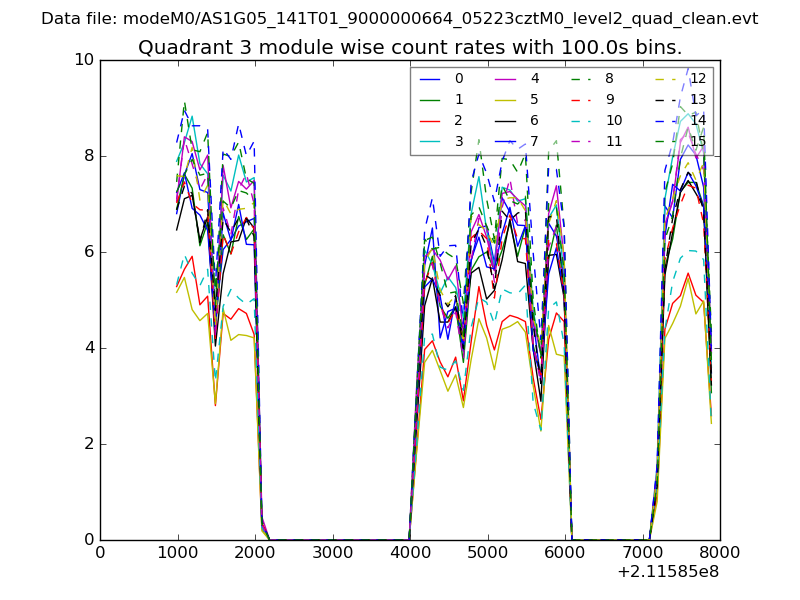

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

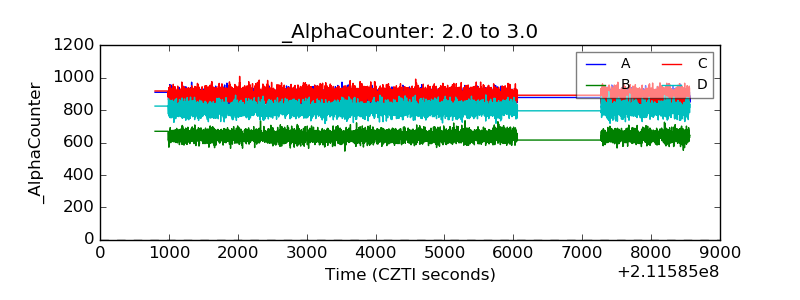

| Alpha Counter |  |

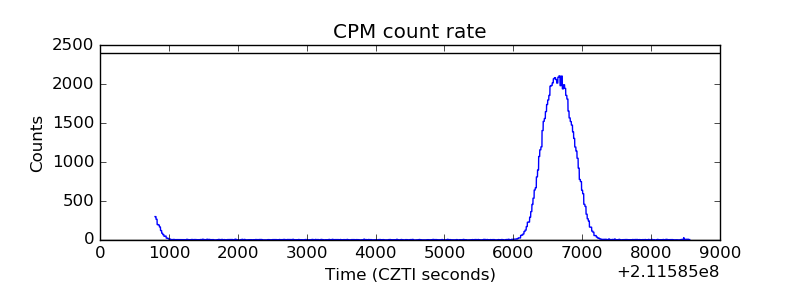

| _CPM_Rate |  |

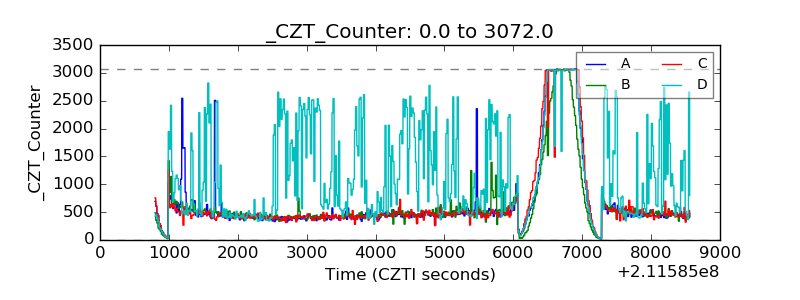

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

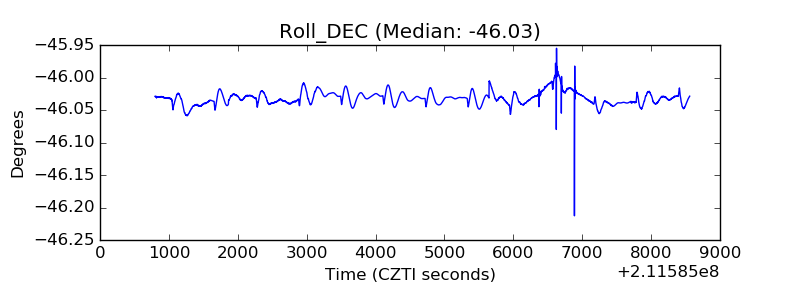

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
