| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_136T01_9000000662_05210cztM0_level2.evt | modeM0/AS1T01_136T01_9000000662_05210cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,961,920 | 82,134,720 |
| Size | 412.9 MB | 78.3 MB |
| Events in quadrant A | 3,013,718 | 509,460 |
| Events in quadrant B | 3,126,915 | 522,584 |
| Events in quadrant C | 3,396,093 | 516,793 |
| Events in quadrant D | 3,135,719 | 487,260 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13283 | 3 |
| B | 0 | 13410 | 2 |
| C | 0 | 14108 | 2 |
| D | 0 | 13741 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6464 | 53 | 0.819926% |
| B | 6464 | 64 | 0.990099% |
| C | 6464 | 68 | 1.051980% |
| D | 6464 | 64 | 0.990099% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7699 | 6465 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7699 | 6465 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7699 | 6465 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7699 | 6465 | 21 | 21 | 0.27% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7629 | 42.99 | 782 | 766 | 159.6 |
| A | 0 | 226 | 7438 | 41.8 | 782 | 766 | 159.6 |
| A | 0 | 50 | 4638 | 24.26 | 782 | 766 | 159.6 |
| B | 4 | 48 | 16632 | 105.7 | 798 | 780 | 150.0 |
| B | 15 | 204 | 16167 | 102.6 | 798 | 780 | 150.0 |
| B | 12 | 111 | 13671 | 85.95 | 798 | 780 | 150.0 |
| C | 1 | 16 | 334105 | 1843.32 | 783 | 789 | 180.8 |
| C | 13 | 61 | 6270 | 30.31 | 783 | 789 | 180.8 |
| C | 12 | 4 | 3841 | 16.88 | 783 | 789 | 180.8 |
| D | 2 | 136 | 54334 | 286.24 | 770 | 750 | 187.2 |
| D | 2 | 206 | 39904 | 209.16 | 770 | 750 | 187.2 |
| D | 2 | 33 | 36704 | 192.06 | 770 | 750 | 187.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

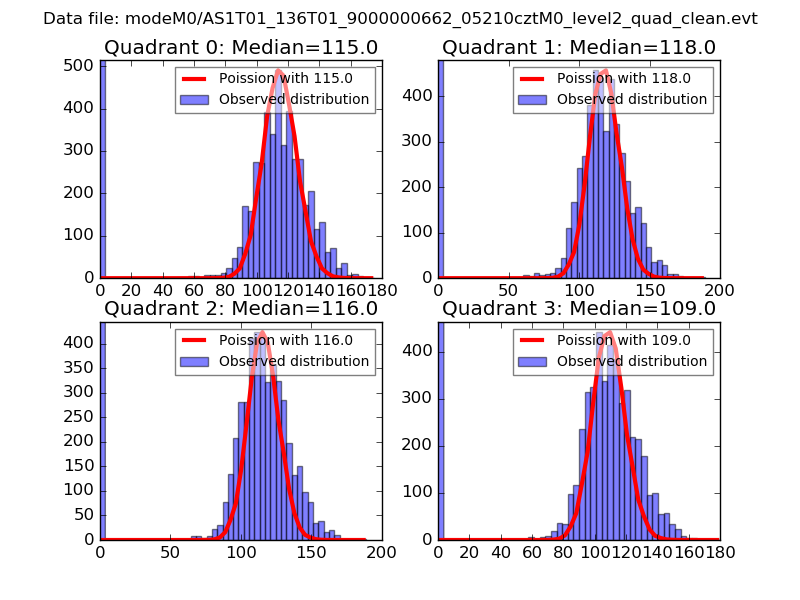

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

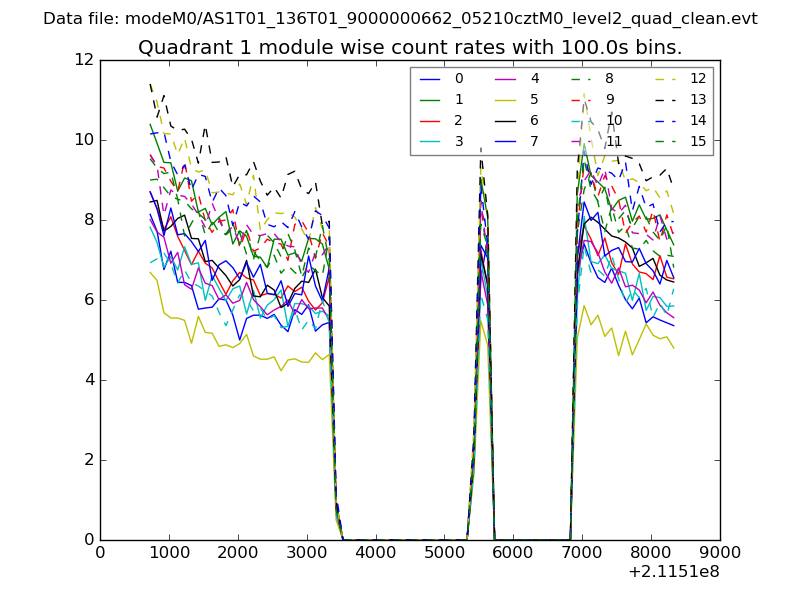

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

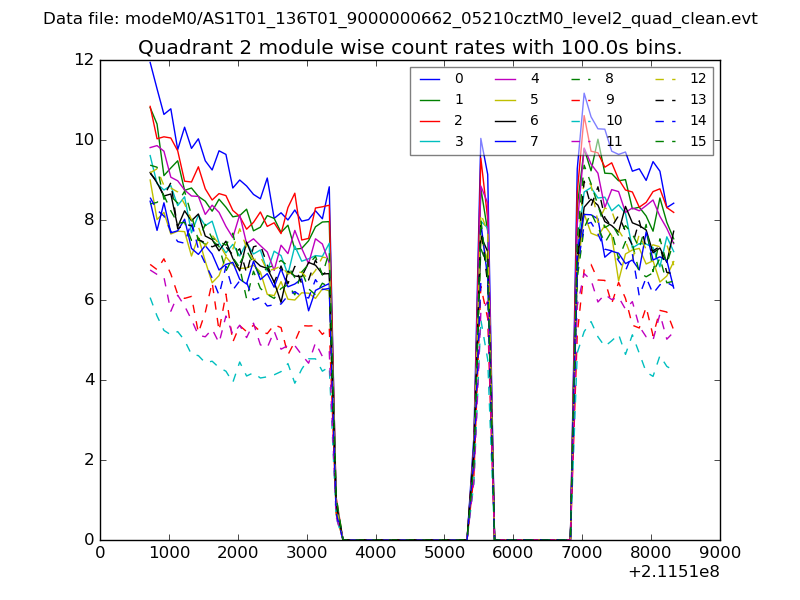

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

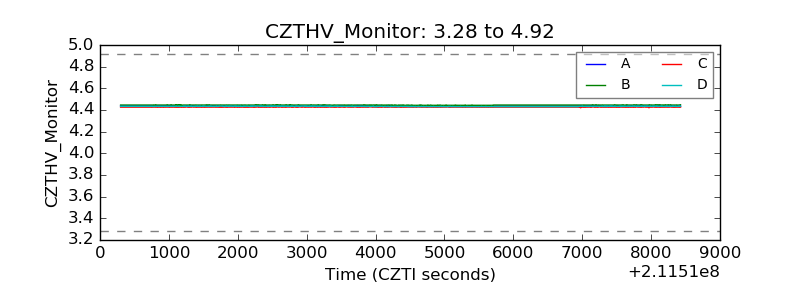

| CZT HV Monitor |  |
| D_VDD |  |

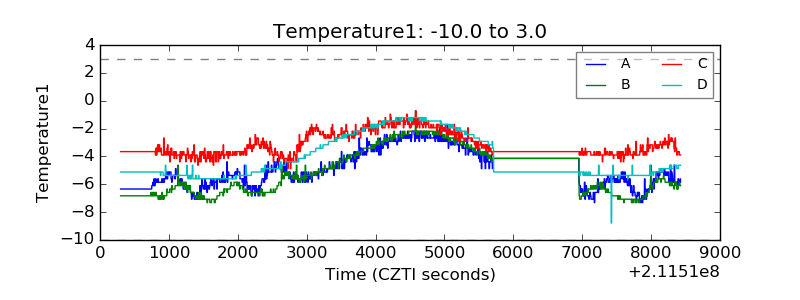

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

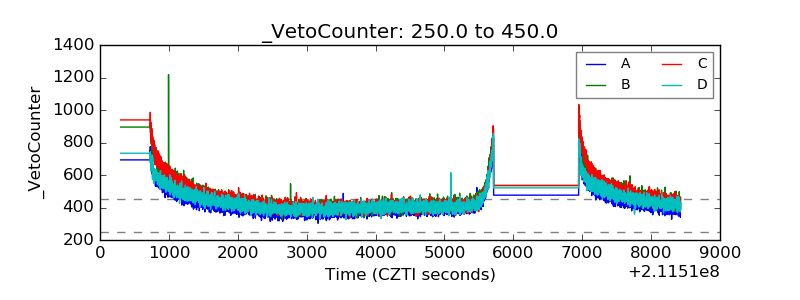

| Veto Counter |  |
