| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_136T01_9000000662_05212cztM0_level2.evt | modeM0/AS1T01_136T01_9000000662_05212cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,652,480 | 79,649,280 |
| Size | 457.4 MB | 76.0 MB |
| Events in quadrant A | 3,011,768 | 494,891 |
| Events in quadrant B | 3,186,541 | 502,246 |
| Events in quadrant C | 3,271,835 | 498,208 |
| Events in quadrant D | 4,609,256 | 457,862 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13484 | 3 |
| B | 0 | 13787 | 2 |
| C | 0 | 13873 | 2 |
| D | 0 | 18319 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6580 | 56 | 0.851064% |
| B | 6580 | 65 | 0.987842% |
| C | 6580 | 44 | 0.668693% |
| D | 6580 | 662 | 10.060790% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6581 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7665 | 6581 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7665 | 6581 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 6581 | 273 | 273 | 3.56% | 4.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7773 | 43.74 | 779 | 760 | 160.3 |
| A | 0 | 226 | 7648 | 42.96 | 779 | 760 | 160.3 |
| A | 13 | 251 | 5755 | 31.15 | 779 | 760 | 160.3 |
| B | 4 | 48 | 82712 | 544.3 | 786 | 767 | 150.6 |
| B | 15 | 204 | 25583 | 164.83 | 786 | 767 | 150.6 |
| B | 4 | 172 | 20773 | 132.88 | 786 | 767 | 150.6 |
| C | 1 | 16 | 244130 | 1351.75 | 774 | 777 | 180.0 |
| C | 12 | 4 | 8926 | 45.27 | 774 | 777 | 180.0 |
| C | 13 | 61 | 6230 | 30.29 | 774 | 777 | 180.0 |
| D | 1 | 239 | 1625103 | 8953.5 | 740 | 718 | 181.4 |
| D | 1 | 31 | 106903 | 585.28 | 740 | 718 | 181.4 |
| D | 2 | 136 | 34940 | 188.63 | 740 | 718 | 181.4 |

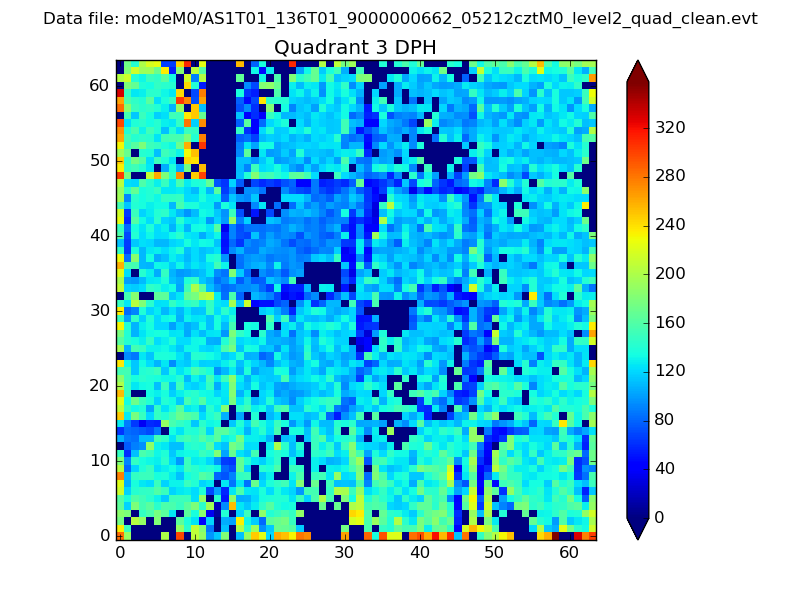

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

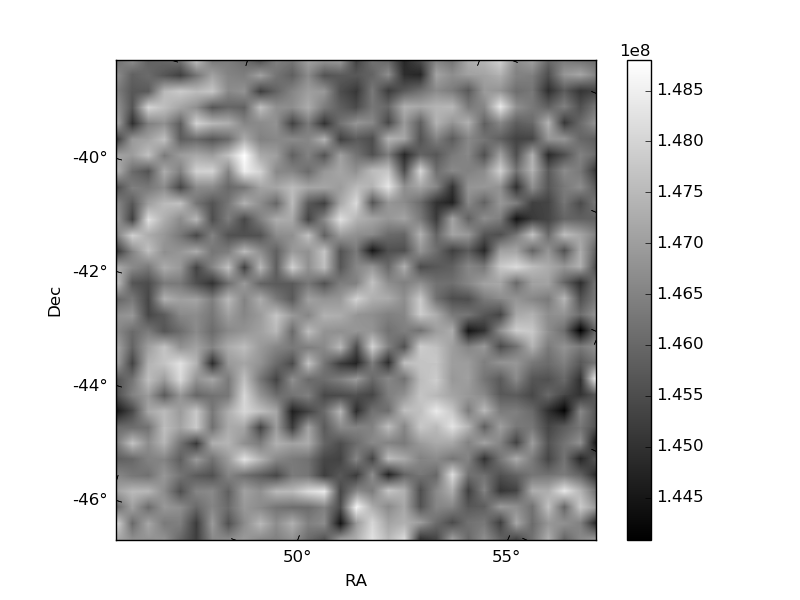

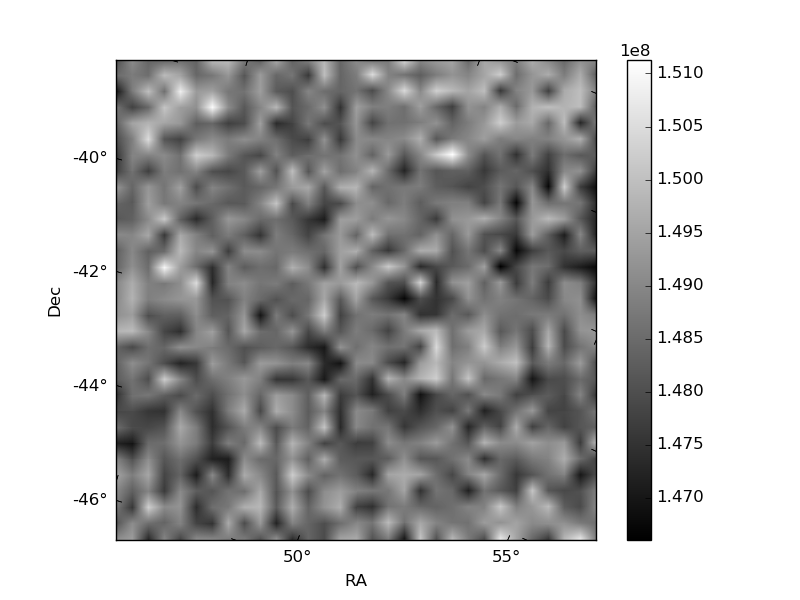

| Plot type | Count rate plots | Images |
|---|---|---|

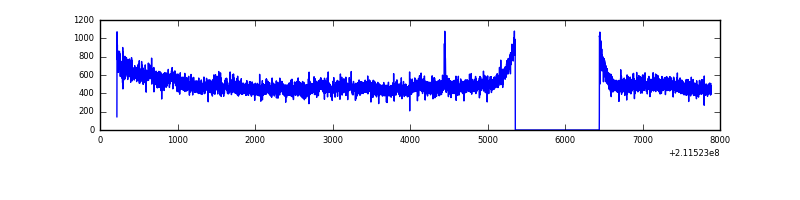

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

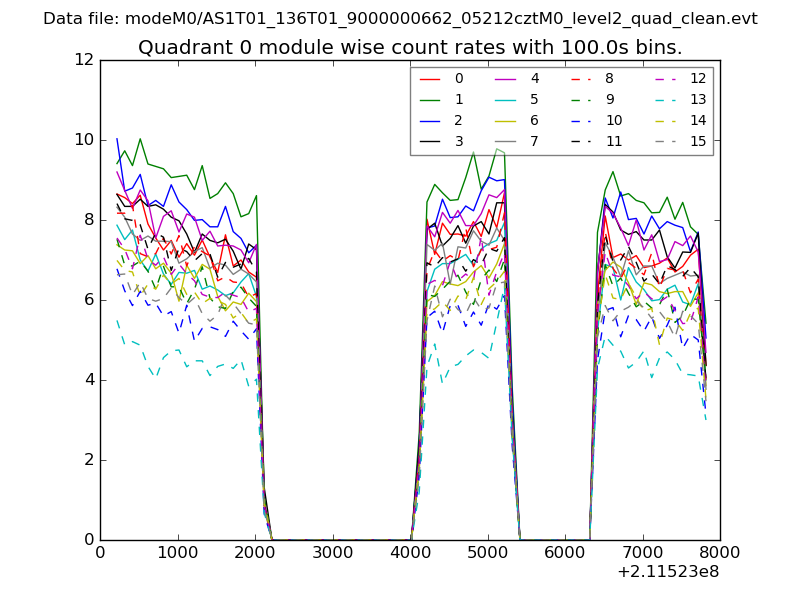

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

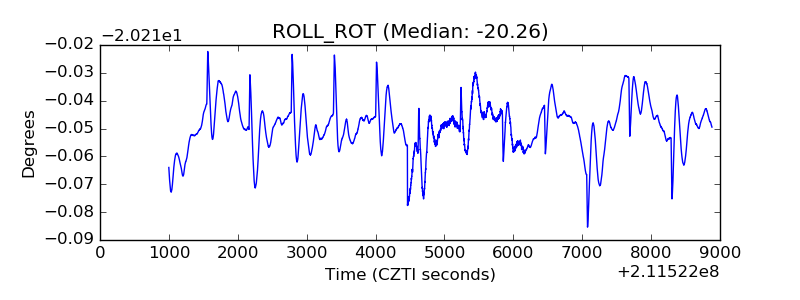

| _ROLL_ROT |  |

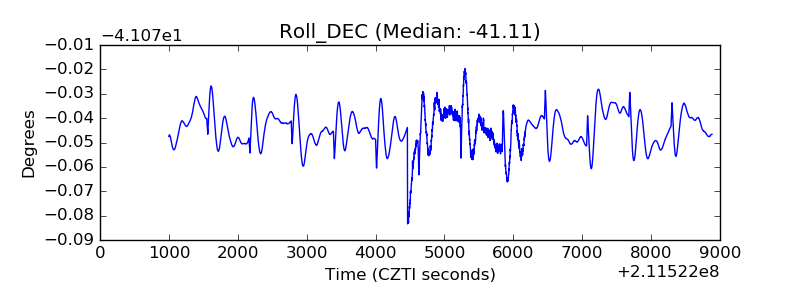

| _Roll_DEC |  |

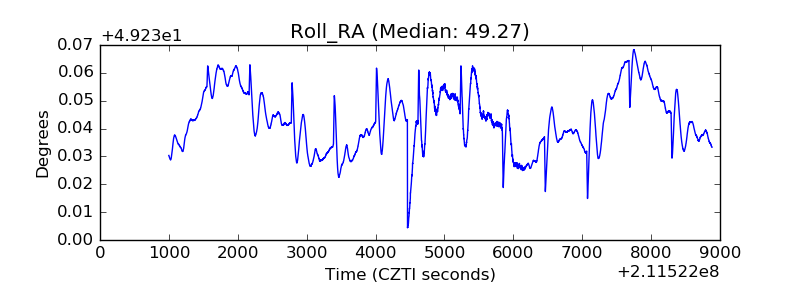

| _Roll_RA |  |
| Veto Counter |  |
