| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_136T01_9000000662_05213cztM0_level2.evt | modeM0/AS1T01_136T01_9000000662_05213cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,250,880 | 73,716,480 |
| Size | 467.5 MB | 70.3 MB |
| Events in quadrant A | 3,003,038 | 450,436 |
| Events in quadrant B | 3,098,766 | 458,853 |
| Events in quadrant C | 3,050,069 | 454,139 |
| Events in quadrant D | 5,239,440 | 401,267 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13698 | 2 |
| B | 0 | 13746 | 1 |
| C | 0 | 13671 | 1 |
| D | 0 | 20293 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6700 | 124 | 1.850746% |
| B | 6700 | 121 | 1.805970% |
| C | 6700 | 102 | 1.522388% |
| D | 6700 | 1270 | 18.955224% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7435 | 6701 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7435 | 6701 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7435 | 6701 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7435 | 6701 | 389 | 389 | 5.23% | 5.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 17982 | 108.93 | 772 | 753 | 158.2 |
| A | 12 | 194 | 7723 | 44.07 | 772 | 753 | 158.2 |
| A | 0 | 226 | 7681 | 43.8 | 772 | 753 | 158.2 |
| B | 0 | 219 | 26481 | 170.63 | 781 | 759 | 150.7 |
| B | 4 | 48 | 22322 | 143.04 | 781 | 759 | 150.7 |
| B | 0 | 229 | 14728 | 92.66 | 781 | 759 | 150.7 |
| C | 1 | 16 | 71792 | 400.96 | 762 | 766 | 177.1 |
| C | 13 | 61 | 6039 | 29.77 | 762 | 766 | 177.1 |
| C | 12 | 4 | 2380 | 9.11 | 762 | 766 | 177.1 |
| D | 1 | 239 | 2391365 | 13785.61 | 704 | 683 | 173.4 |
| D | 2 | 136 | 54809 | 312.11 | 704 | 683 | 173.4 |
| D | 8 | 195 | 36355 | 205.7 | 704 | 683 | 173.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

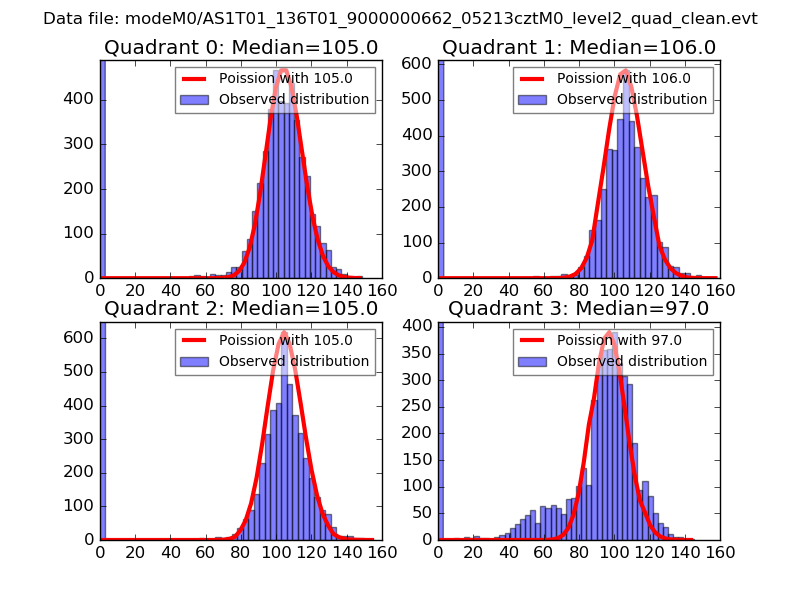

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

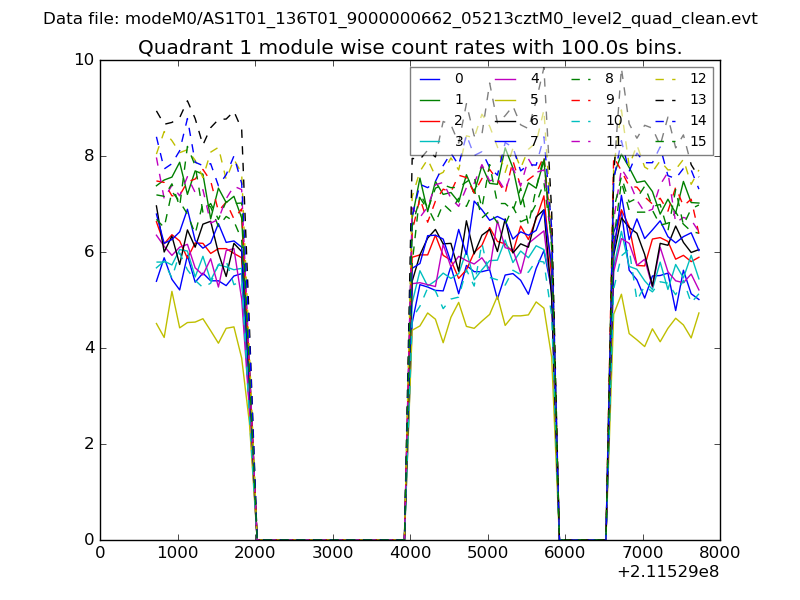

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
