| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C01_015T01_9000000668_05235cztM0_level2.evt | modeM0/AS1C01_015T01_9000000668_05235cztM0_level2_quad_clean.evt |
| Size (bytes) | 672,353,280 | 77,840,640 |
| Size | 641.2 MB | 74.2 MB |
| Events in quadrant A | 3,177,090 | 512,762 |
| Events in quadrant B | 3,270,279 | 515,444 |
| Events in quadrant C | 3,219,477 | 507,417 |
| Events in quadrant D | 10,227,982 | 339,763 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14203 | 3 |
| B | 0 | 14286 | 2 |
| C | 0 | 14309 | 2 |
| D | 0 | 35183 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6895 | 43 | 0.623640% |
| B | 6895 | 49 | 0.710660% |
| C | 6895 | 39 | 0.565627% |
| D | 6895 | 2841 | 41.203771% |

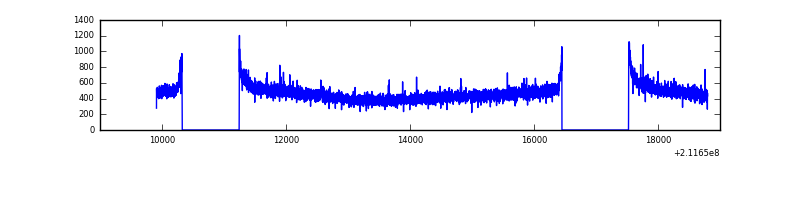

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8890 | 6897 | 4 | 4 | 0.04% | 0.06% |  |
| B | 8890 | 6897 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8890 | 6897 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8889 | 6896 | 2357 | 2357 | 26.52% | 34.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 13592 | 76.07 | 821 | 802 | 168.1 |
| A | 13 | 251 | 9161 | 49.72 | 821 | 802 | 168.1 |
| A | 12 | 194 | 8069 | 43.22 | 821 | 802 | 168.1 |
| B | 0 | 245 | 28227 | 169.88 | 832 | 809 | 161.4 |
| B | 12 | 111 | 15355 | 90.12 | 832 | 809 | 161.4 |
| B | 11 | 111 | 12388 | 71.74 | 832 | 809 | 161.4 |
| C | 1 | 16 | 68201 | 357.53 | 805 | 811 | 188.5 |
| C | 14 | 67 | 8621 | 41.43 | 805 | 811 | 188.5 |
| C | 13 | 61 | 6515 | 30.26 | 805 | 811 | 188.5 |
| D | 11 | 145 | 7070795 | 45473.15 | 631 | 612 | 155.5 |
| D | 12 | 212 | 348665 | 2238.57 | 631 | 612 | 155.5 |
| D | 12 | 227 | 299399 | 1921.7 | 631 | 612 | 155.5 |

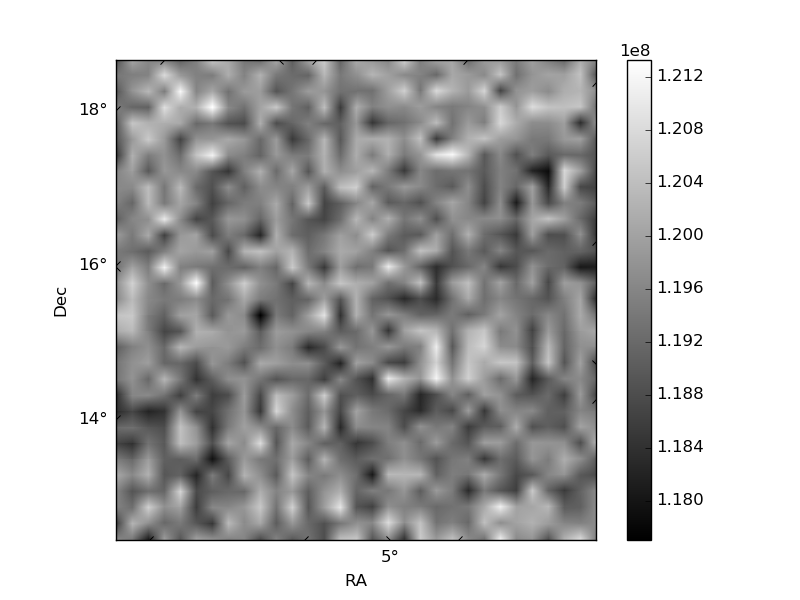

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

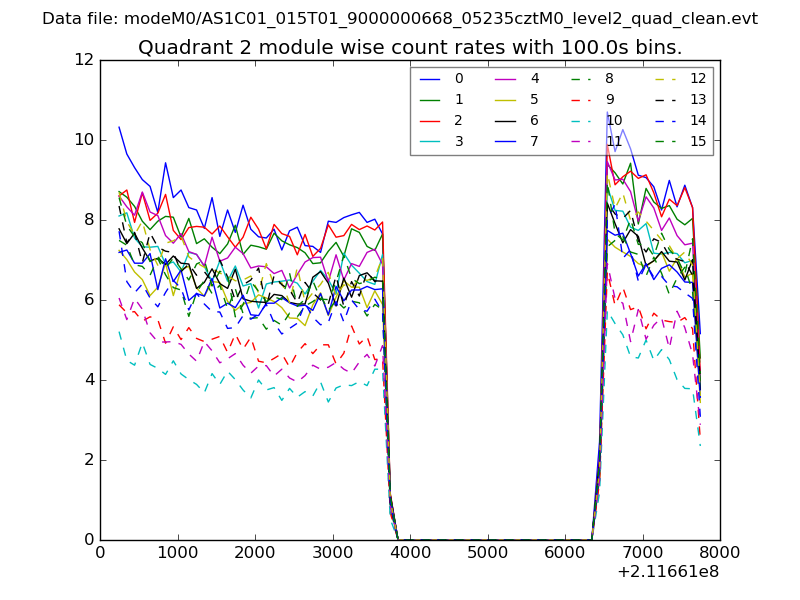

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

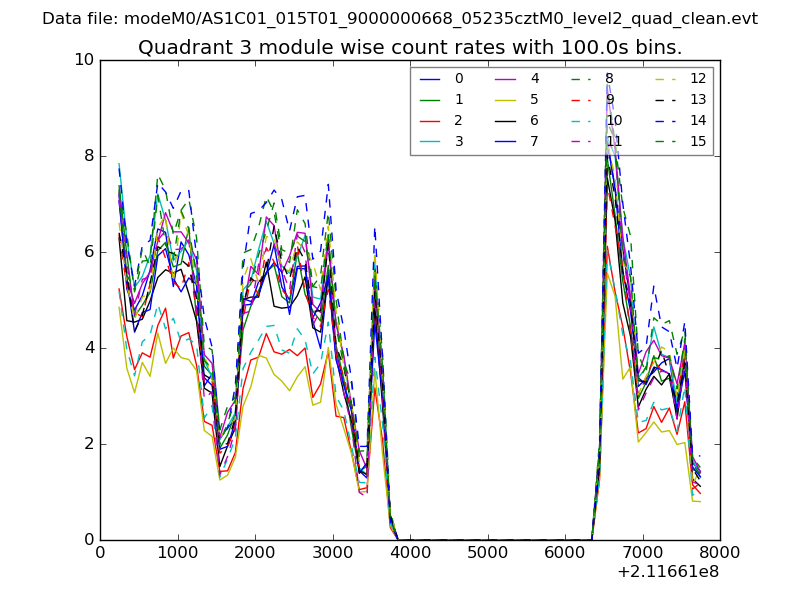

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

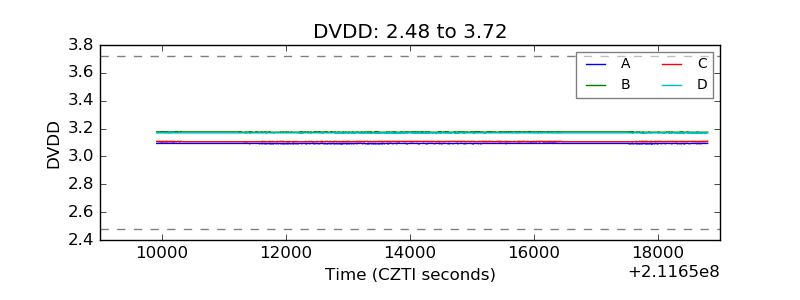

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

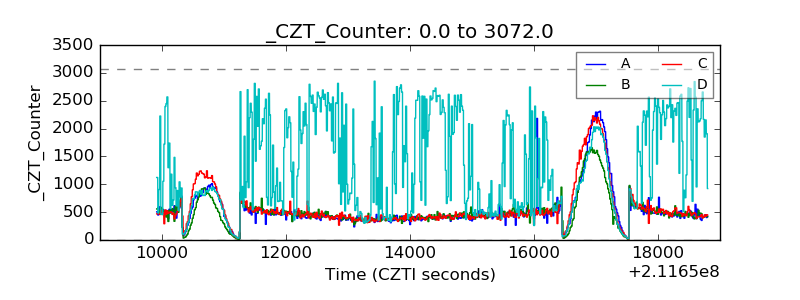

| CZT Counter |  |

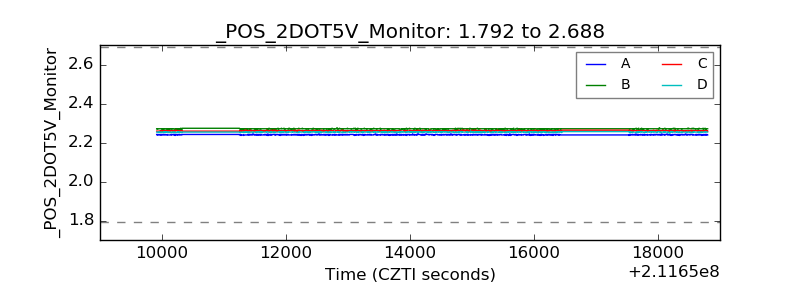

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

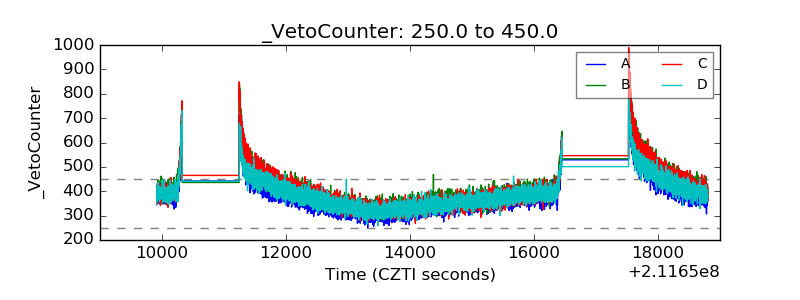

| Veto Counter |  |
