| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C01_015T01_9000000668_05248cztM0_level2.evt | modeM0/AS1C01_015T01_9000000668_05248cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,372,887,360 | 201,496,320 |
| Size | 1.3 GB | 192.2 MB |
| Events in quadrant A | 8,471,407 | 1,234,819 |
| Events in quadrant B | 8,636,961 | 1,221,357 |
| Events in quadrant C | 8,501,778 | 1,204,917 |
| Events in quadrant D | 14,692,976 | 1,141,844 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38416 | 5 |
| B | 0 | 38563 | 4 |
| C | 0 | 38475 | 4 |
| D | 0 | 56203 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18856 | 178 | 0.943997% |
| B | 18856 | 210 | 1.113704% |
| C | 18856 | 175 | 0.928087% |
| D | 18856 | 1484 | 7.870174% |

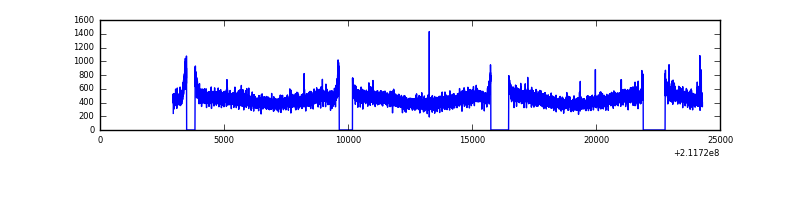

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21336 | 18860 | 0 | 0 | 0.00% | 0.00% |  |
| B | 21336 | 18859 | 2 | 2 | 0.01% | 0.01% |  |
| C | 21336 | 18860 | 0 | 0 | 0.00% | 0.00% |  |
| D | 21336 | 18858 | 981 | 981 | 4.60% | 5.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 22107 | 44.22 | 2192 | 2143 | 451.5 |
| A | 0 | 226 | 21816 | 43.57 | 2192 | 2143 | 451.5 |
| A | 12 | 194 | 21461 | 42.79 | 2192 | 2143 | 451.5 |
| B | 12 | 111 | 41970 | 93.42 | 2207 | 2154 | 426.2 |
| B | 11 | 111 | 33446 | 73.42 | 2207 | 2154 | 426.2 |
| B | 15 | 204 | 25128 | 53.9 | 2207 | 2154 | 426.2 |
| C | 14 | 67 | 94743 | 188.09 | 2124 | 2133 | 492.4 |
| C | 1 | 16 | 89789 | 178.03 | 2124 | 2133 | 492.4 |
| C | 13 | 61 | 16730 | 29.65 | 2124 | 2133 | 492.4 |
| D | 11 | 145 | 4671983 | 9161.03 | 2081 | 2017 | 509.8 |
| D | 8 | 195 | 879674 | 1721.69 | 2081 | 2017 | 509.8 |
| D | 13 | 105 | 356440 | 695.27 | 2081 | 2017 | 509.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

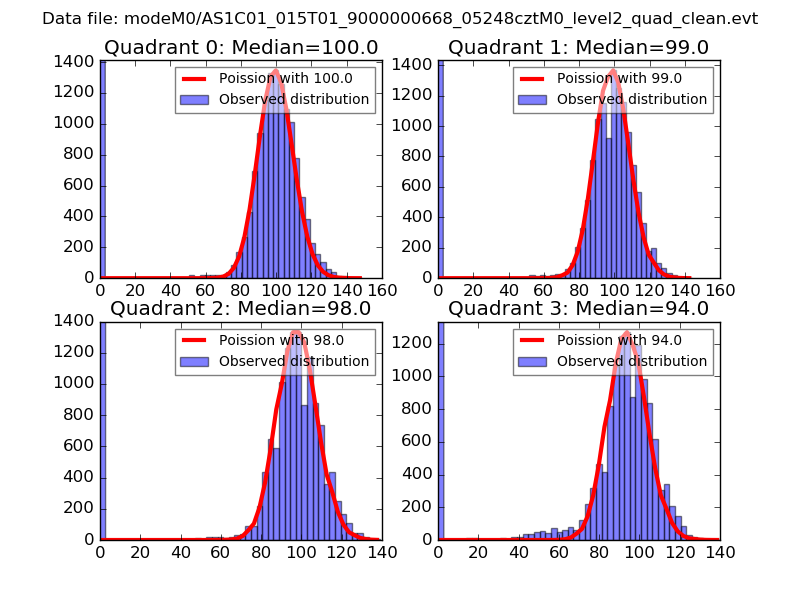

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

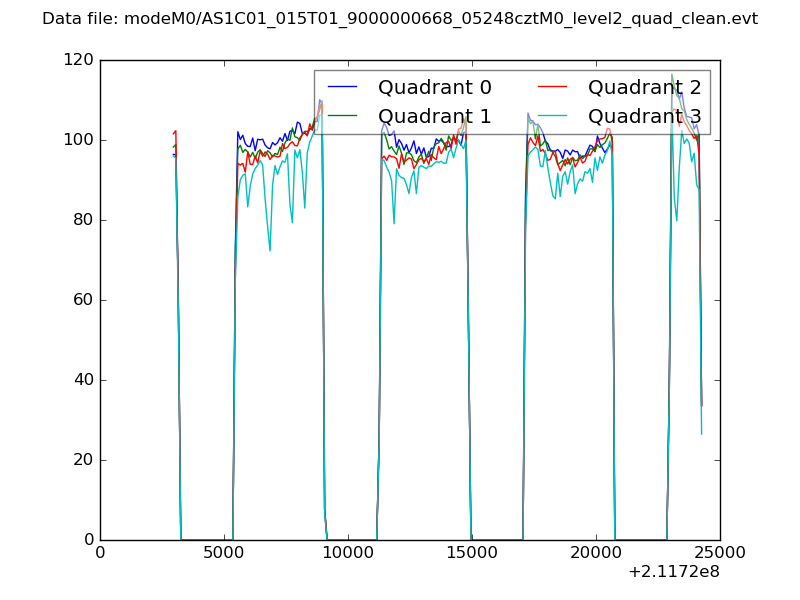

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

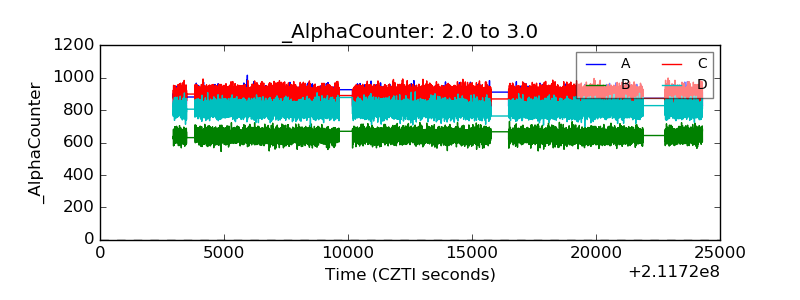

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

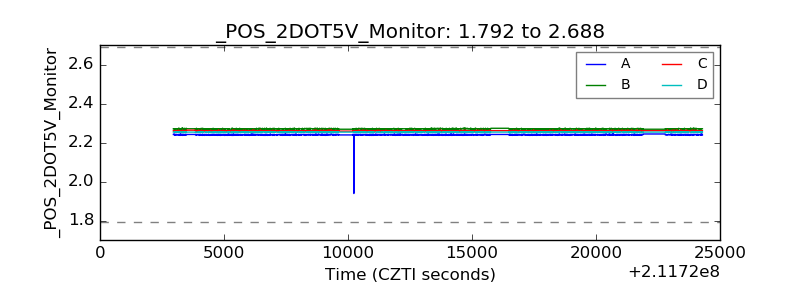

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

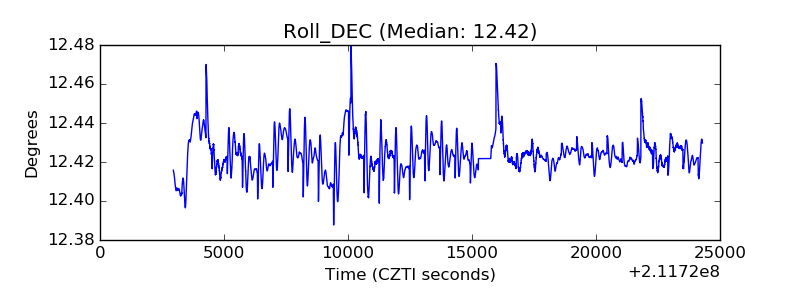

| _Roll_DEC |  |
| _Roll_RA |  |

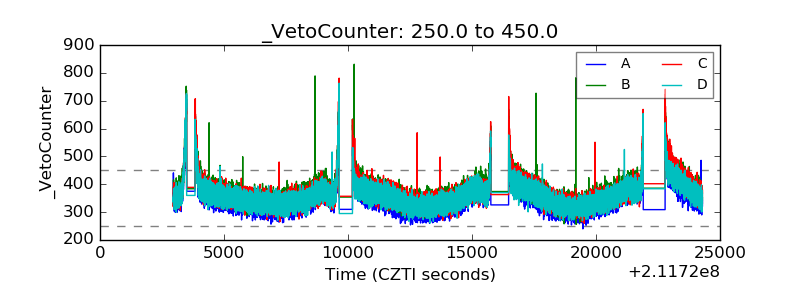

| Veto Counter |  |
