| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_258T01_9000000666_05225cztM0_level2.evt | modeM0/AS1G05_258T01_9000000666_05225cztM0_level2_quad_clean.evt |
| Size (bytes) | 270,256,320 | 50,604,480 |
| Size | 257.7 MB | 48.3 MB |
| Events in quadrant A | 1,408,734 | 344,727 |
| Events in quadrant B | 1,533,637 | 350,029 |
| Events in quadrant C | 1,451,390 | 337,541 |
| Events in quadrant D | 3,585,467 | 285,789 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6205 | 2 |
| B | 0 | 6441 | 1 |
| C | 0 | 6311 | 1 |
| D | 0 | 12694 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3001 | 14 | 0.466511% |
| B | 3001 | 23 | 0.766411% |
| C | 3001 | 14 | 0.466511% |
| D | 3001 | 728 | 24.258580% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4266 | 3002 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4266 | 3002 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4266 | 3002 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4266 | 3001 | 580 | 580 | 13.60% | 19.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 15298 | 202.75 | 361 | 354 | 73.7 |
| A | 0 | 226 | 3537 | 43.19 | 361 | 354 | 73.7 |
| A | 12 | 194 | 3512 | 42.85 | 361 | 354 | 73.7 |
| B | 4 | 80 | 39838 | 559.59 | 368 | 359 | 70.5 |
| B | 15 | 204 | 24411 | 340.92 | 368 | 359 | 70.5 |
| B | 10 | 16 | 14803 | 204.74 | 368 | 359 | 70.5 |
| C | 1 | 16 | 70876 | 864.21 | 353 | 354 | 81.6 |
| C | 13 | 61 | 2866 | 30.78 | 353 | 354 | 81.6 |
| C | 12 | 4 | 2764 | 29.53 | 353 | 354 | 81.6 |
| D | 11 | 145 | 2253187 | 29271.02 | 314 | 304 | 77.0 |
| D | 2 | 136 | 55314 | 714.73 | 314 | 304 | 77.0 |
| D | 2 | 16 | 27537 | 353.83 | 314 | 304 | 77.0 |

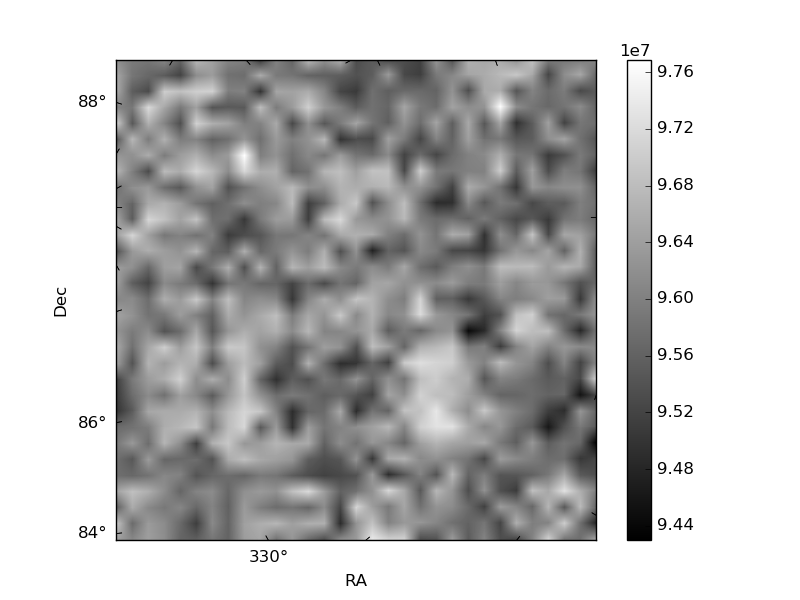

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

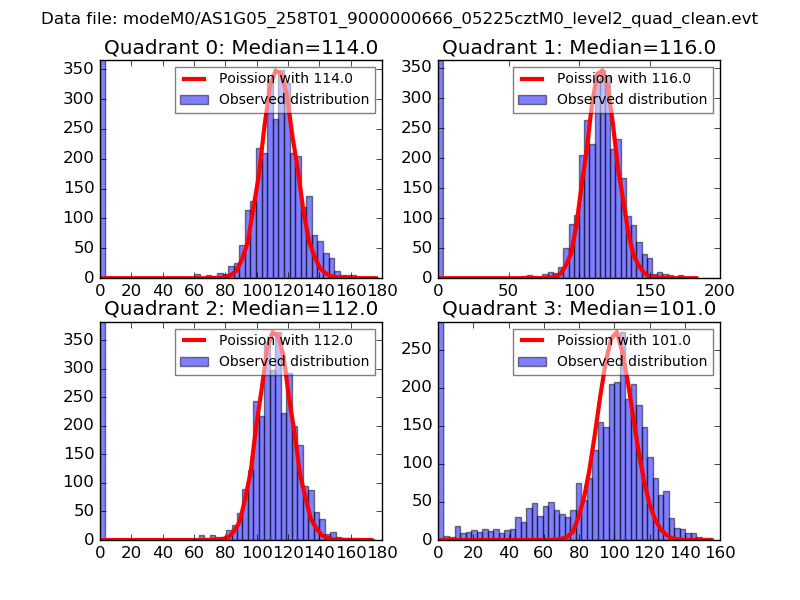

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

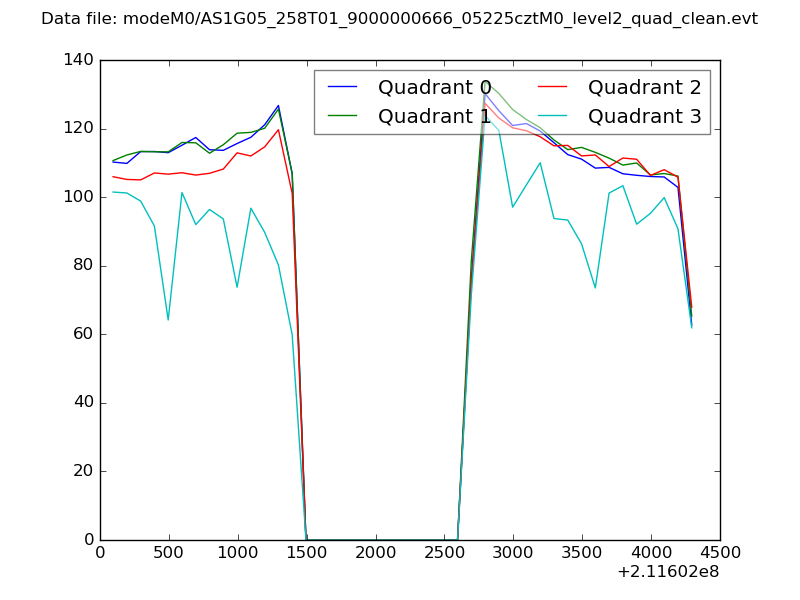

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

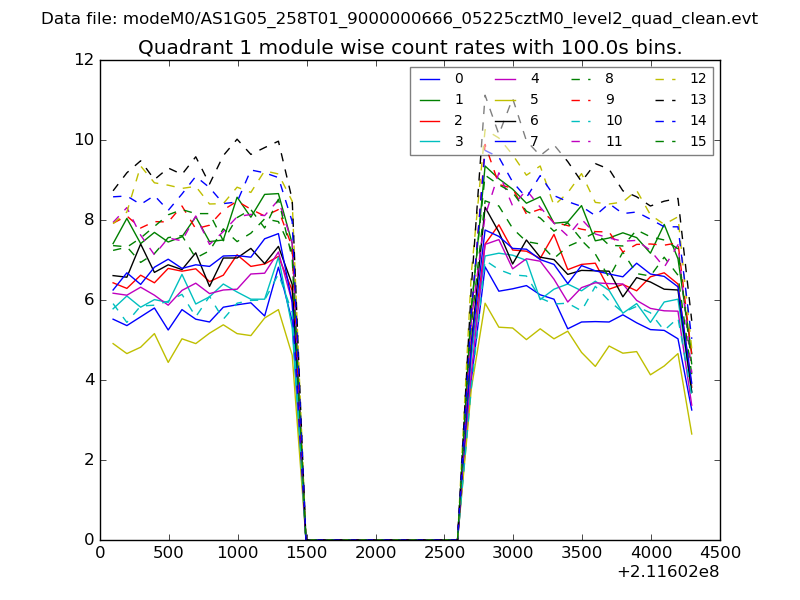

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

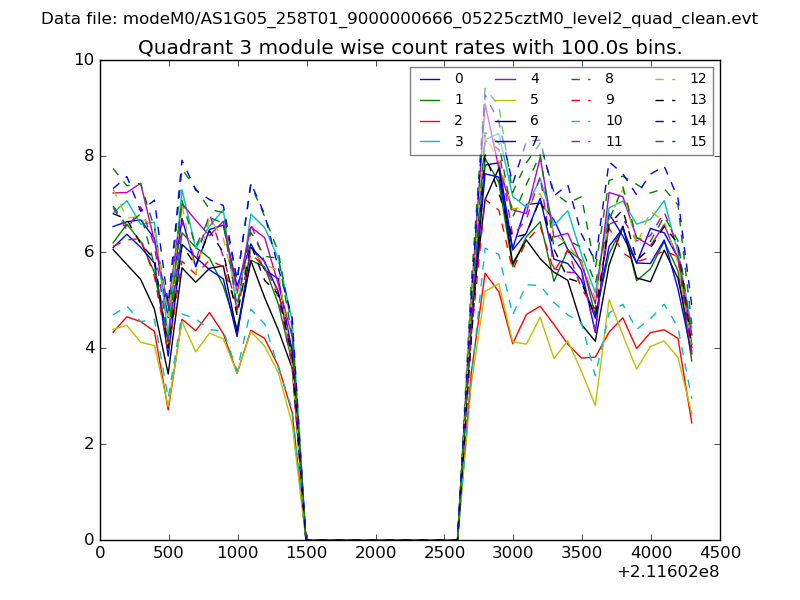

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

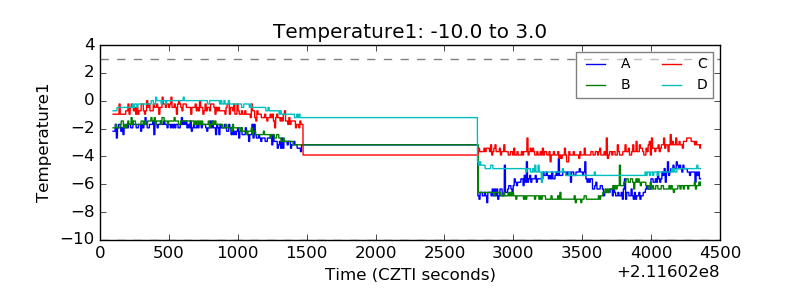

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

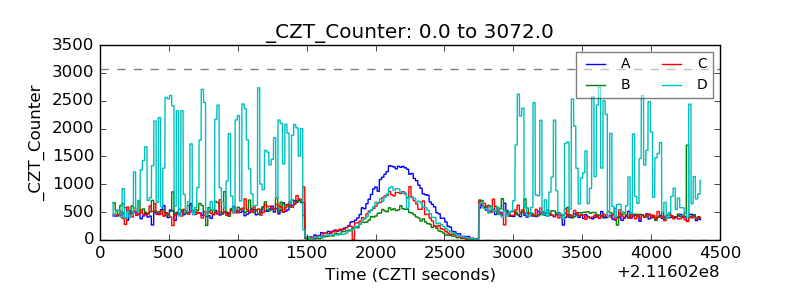

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

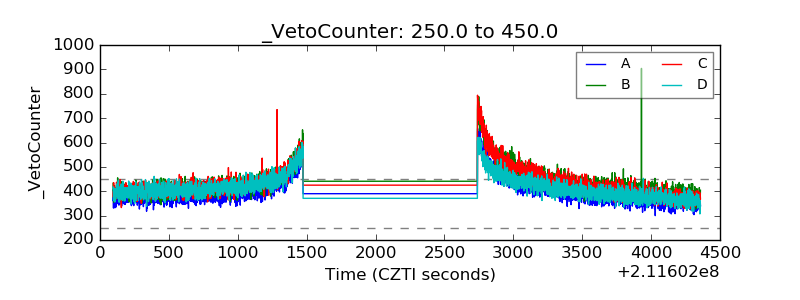

| Veto Counter |  |
