| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_258T01_9000000666_05229cztM0_level2.evt | modeM0/AS1G05_258T01_9000000666_05229cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,552,000 | 109,238,400 |
| Size | 572.7 MB | 104.2 MB |
| Events in quadrant A | 3,210,450 | 733,303 |
| Events in quadrant B | 3,352,697 | 747,842 |
| Events in quadrant C | 3,183,774 | 723,022 |
| Events in quadrant D | 7,953,978 | 603,887 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14877 | 2 |
| B | 0 | 15009 | 1 |
| C | 0 | 14699 | 1 |
| D | 0 | 28780 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7168 | 214 | 2.985491% |
| B | 7168 | 129 | 1.799665% |
| C | 7168 | 67 | 0.934710% |
| D | 7168 | 1749 | 24.400112% |

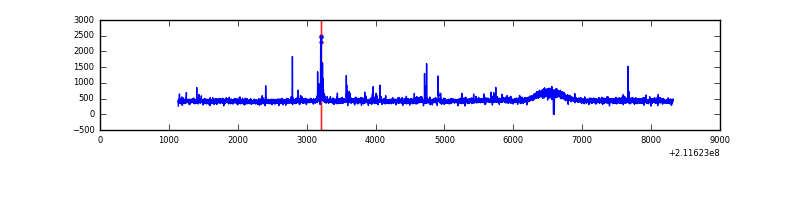

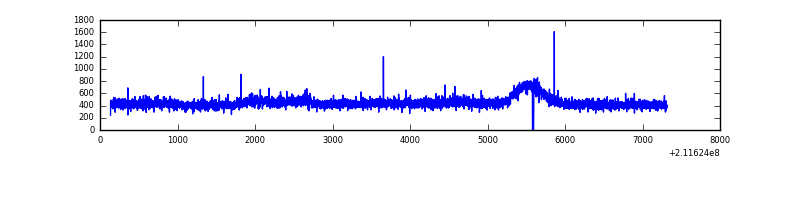

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7183 | 7169 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7183 | 7169 | 9 | 9 | 0.13% | 0.13% |  |
| C | 7183 | 7169 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7183 | 7169 | 1311 | 1311 | 18.25% | 18.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 62978 | 372.59 | 815 | 795 | 166.9 |
| A | 14 | 111 | 10081 | 55.64 | 815 | 795 | 166.9 |
| A | 12 | 194 | 8347 | 45.25 | 815 | 795 | 166.9 |
| B | 0 | 219 | 79559 | 500.07 | 824 | 803 | 157.5 |
| B | 4 | 80 | 28052 | 173.02 | 824 | 803 | 157.5 |
| B | 4 | 48 | 20307 | 123.84 | 824 | 803 | 157.5 |
| C | 1 | 16 | 98251 | 535.28 | 787 | 786 | 182.1 |
| C | 13 | 61 | 6530 | 31.55 | 787 | 786 | 182.1 |
| C | 8 | 128 | 5696 | 26.97 | 787 | 786 | 182.1 |
| D | 11 | 145 | 5143967 | 30150.37 | 698 | 673 | 170.6 |
| D | 10 | 172 | 44964 | 259.64 | 698 | 673 | 170.6 |
| D | 2 | 136 | 43276 | 249.74 | 698 | 673 | 170.6 |

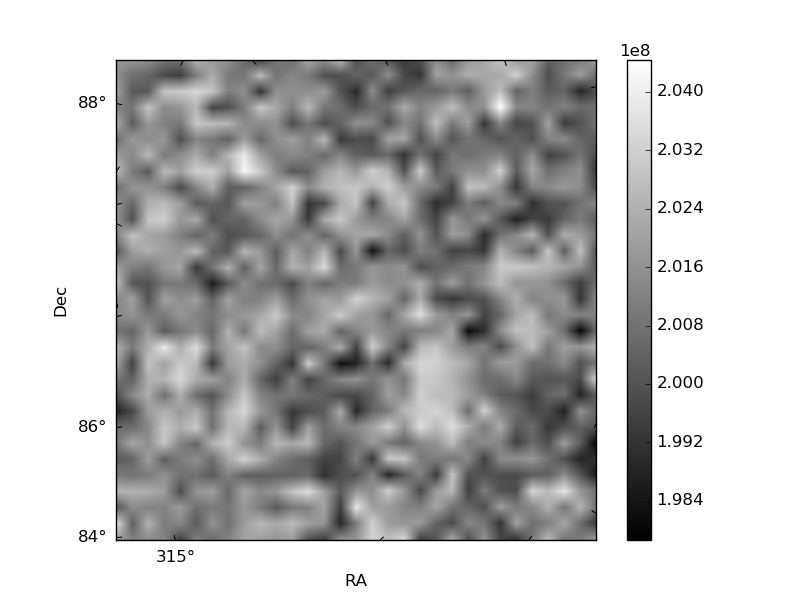

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

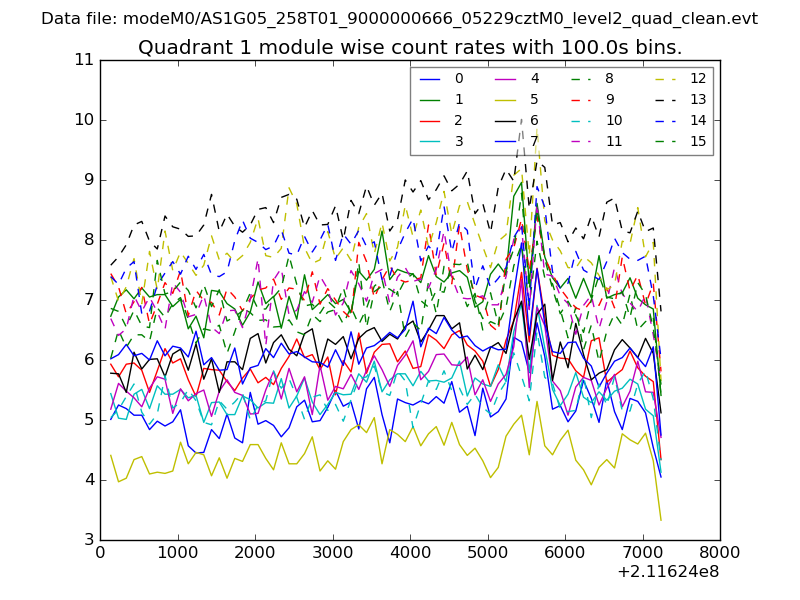

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

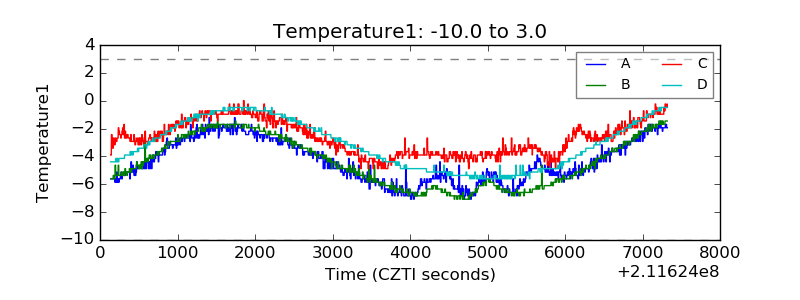

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

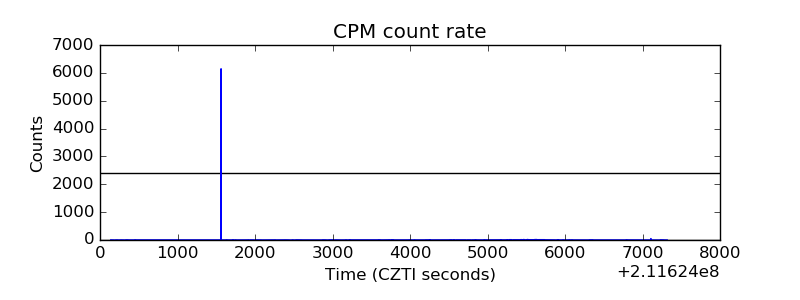

| _CPM_Rate |  |

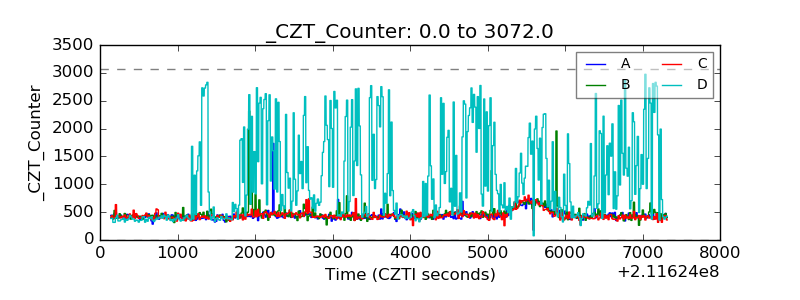

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
