| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05252cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05252cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,096,000 | 88,070,400 |
| Size | 457.9 MB | 84.0 MB |
| Events in quadrant A | 3,005,868 | 566,043 |
| Events in quadrant B | 3,094,656 | 577,930 |
| Events in quadrant C | 2,973,421 | 561,307 |
| Events in quadrant D | 5,032,891 | 516,974 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13232 | 3 |
| B | 0 | 13346 | 2 |
| C | 0 | 13126 | 2 |
| D | 0 | 19239 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6372 | 52 | 0.816070% |
| B | 6372 | 49 | 0.768989% |
| C | 6372 | 18 | 0.282486% |
| D | 6372 | 474 | 7.438795% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8762 | 6374 | 7 | 7 | 0.08% | 0.11% |  |
| B | 8762 | 6374 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8762 | 6374 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8762 | 6374 | 353 | 353 | 4.03% | 5.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 43829 | 275.87 | 766 | 751 | 156.2 |
| A | 13 | 251 | 11231 | 67.11 | 766 | 751 | 156.2 |
| A | 0 | 226 | 7763 | 44.9 | 766 | 751 | 156.2 |
| B | 12 | 111 | 13767 | 87.52 | 783 | 763 | 148.6 |
| B | 15 | 54 | 12437 | 78.57 | 783 | 763 | 148.6 |
| B | 0 | 219 | 12199 | 76.96 | 783 | 763 | 148.6 |
| C | 1 | 16 | 10881 | 57.73 | 756 | 762 | 175.3 |
| C | 13 | 61 | 6152 | 30.75 | 756 | 762 | 175.3 |
| C | 7 | 159 | 5087 | 24.67 | 756 | 762 | 175.3 |
| D | 11 | 145 | 1702500 | 9662.68 | 719 | 697 | 176.1 |
| D | 8 | 195 | 209475 | 1185.42 | 719 | 697 | 176.1 |
| D | 2 | 16 | 139746 | 789.51 | 719 | 697 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

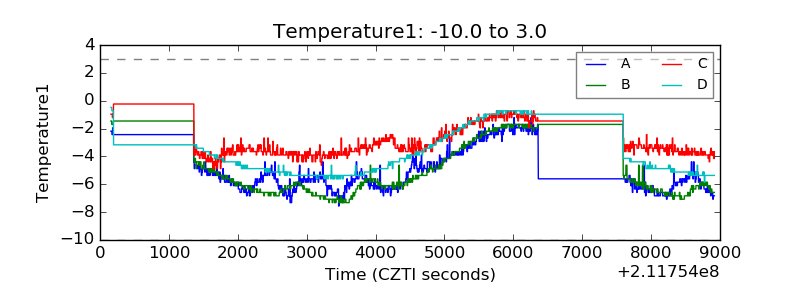

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

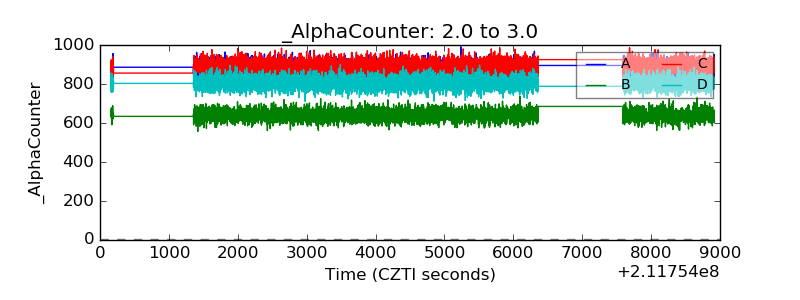

| Alpha Counter |  |

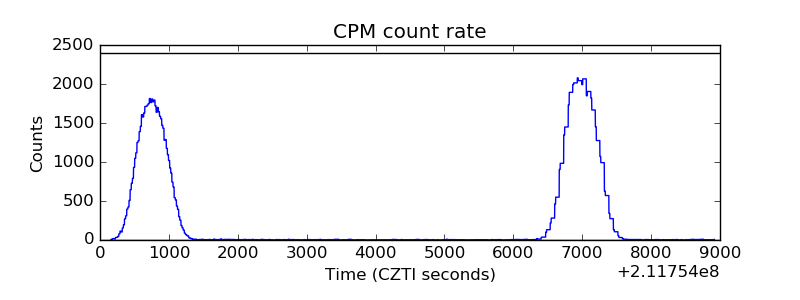

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
