| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05253cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05253cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,165,440 | 89,265,600 |
| Size | 470.3 MB | 85.1 MB |
| Events in quadrant A | 3,089,507 | 575,723 |
| Events in quadrant B | 3,186,739 | 584,868 |
| Events in quadrant C | 3,110,247 | 570,352 |
| Events in quadrant D | 5,101,024 | 511,967 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13589 | 3 |
| B | 0 | 13736 | 2 |
| C | 0 | 13546 | 2 |
| D | 0 | 19552 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6592 | 21 | 0.318568% |
| B | 6592 | 27 | 0.409587% |
| C | 6592 | 12 | 0.182039% |
| D | 6592 | 420 | 6.371359% |

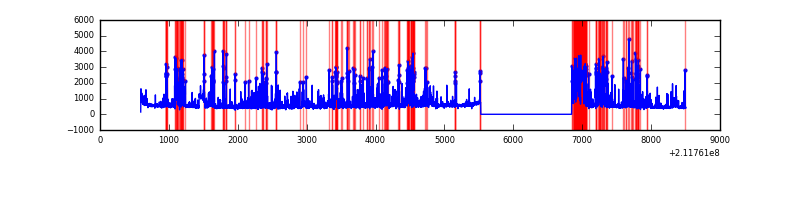

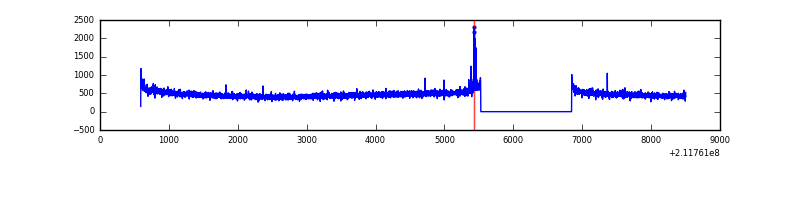

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7912 | 6593 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7912 | 6593 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7912 | 6593 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7912 | 6593 | 355 | 355 | 4.49% | 5.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 27178 | 163.72 | 794 | 778 | 161.3 |
| A | 0 | 226 | 7978 | 44.65 | 794 | 778 | 161.3 |
| A | 12 | 194 | 7819 | 43.66 | 794 | 778 | 161.3 |
| B | 15 | 204 | 15526 | 96.07 | 810 | 794 | 153.4 |
| B | 12 | 111 | 14049 | 86.44 | 810 | 794 | 153.4 |
| B | 0 | 219 | 12589 | 76.92 | 810 | 794 | 153.4 |
| C | 1 | 16 | 23810 | 126.17 | 785 | 790 | 182.4 |
| C | 13 | 61 | 6532 | 31.47 | 785 | 790 | 182.4 |
| C | 14 | 67 | 5596 | 26.34 | 785 | 790 | 182.4 |
| D | 11 | 145 | 1759567 | 9562.51 | 750 | 726 | 183.9 |
| D | 8 | 195 | 188952 | 1023.35 | 750 | 726 | 183.9 |
| D | 2 | 136 | 111713 | 603.42 | 750 | 726 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

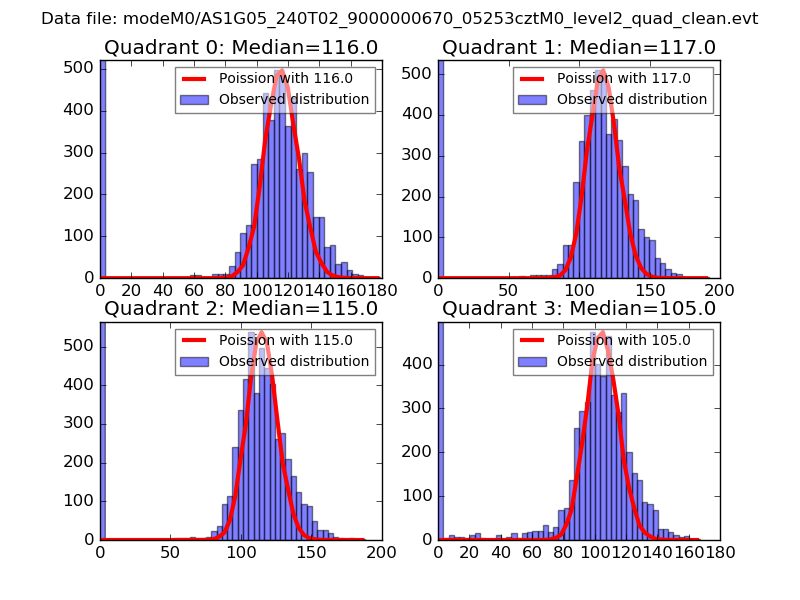

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

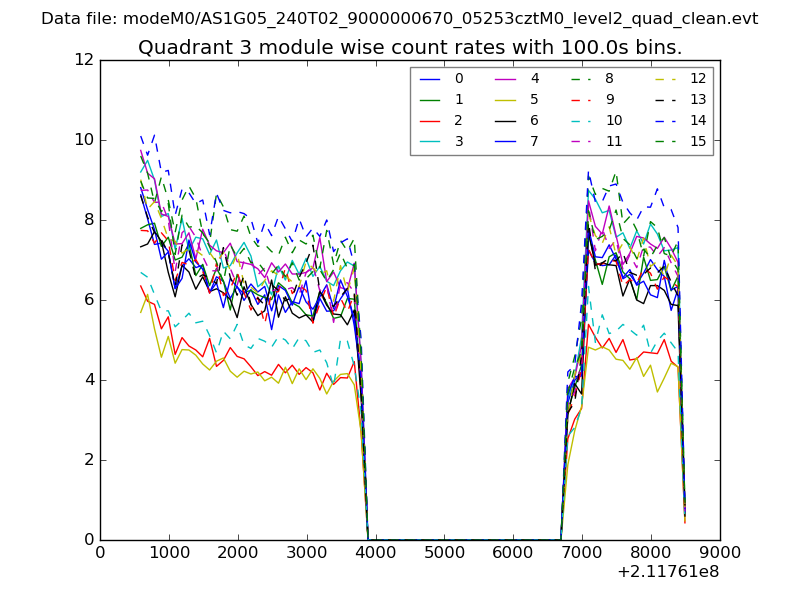

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

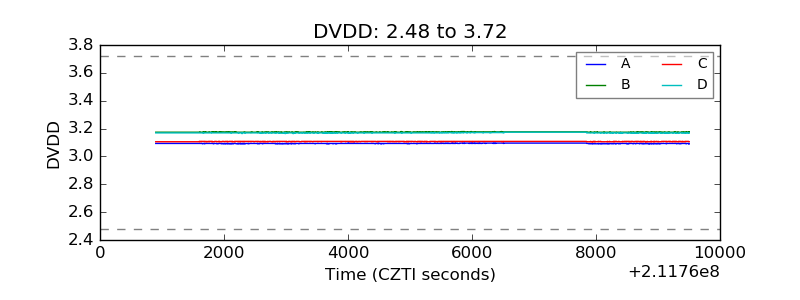

| D_VDD |  |

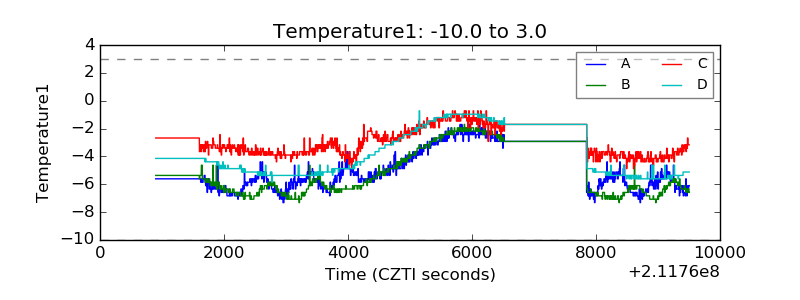

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

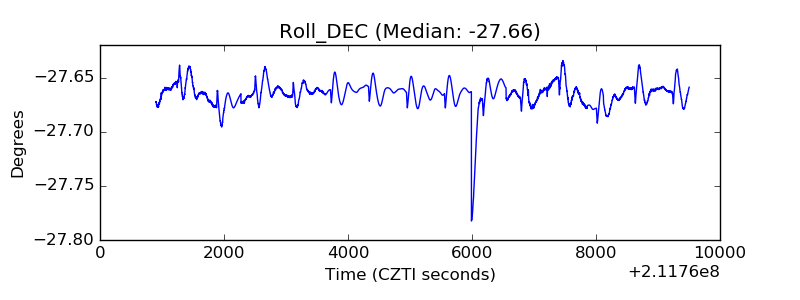

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
