| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05254cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05254cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,480,320 | 82,621,440 |
| Size | 525.0 MB | 78.8 MB |
| Events in quadrant A | 3,077,520 | 526,212 |
| Events in quadrant B | 3,182,333 | 535,080 |
| Events in quadrant C | 3,306,620 | 519,840 |
| Events in quadrant D | 6,657,752 | 461,028 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13523 | 3 |
| B | 0 | 13675 | 2 |
| C | 0 | 14028 | 2 |
| D | 0 | 24231 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6589 | 20 | 0.303536% |
| B | 6589 | 28 | 0.424951% |
| C | 6589 | 27 | 0.409774% |
| D | 6589 | 1134 | 17.210502% |

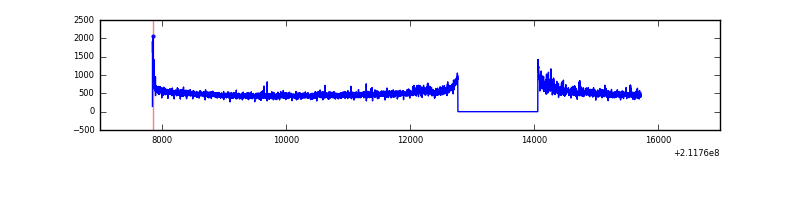

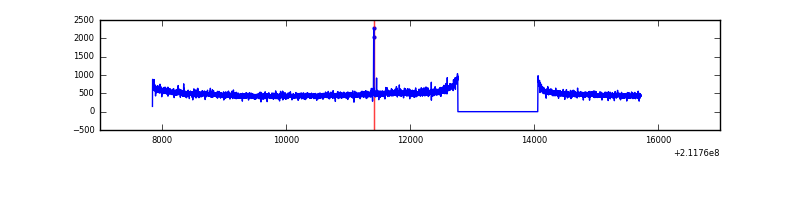

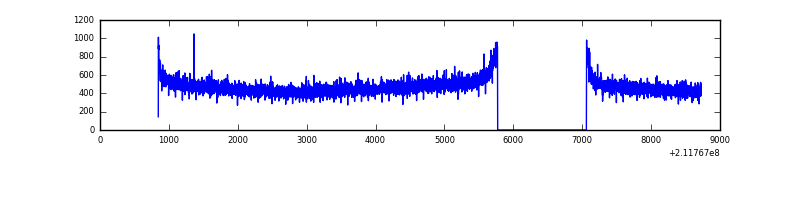

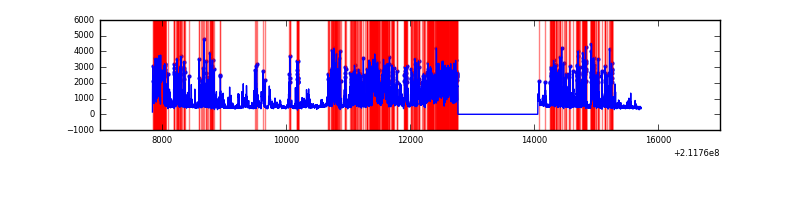

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7879 | 6590 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7879 | 6590 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7879 | 6590 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7879 | 6590 | 833 | 833 | 10.57% | 12.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 7825 | 43.42 | 798 | 780 | 162.3 |
| A | 0 | 226 | 7672 | 42.47 | 798 | 780 | 162.3 |
| A | 13 | 251 | 4817 | 24.88 | 798 | 780 | 162.3 |
| B | 15 | 204 | 24365 | 153.12 | 810 | 792 | 154.0 |
| B | 12 | 111 | 14447 | 88.7 | 810 | 792 | 154.0 |
| B | 15 | 54 | 12793 | 77.95 | 810 | 792 | 154.0 |
| C | 1 | 16 | 209567 | 1150.57 | 787 | 795 | 181.5 |
| C | 13 | 61 | 6473 | 31.29 | 787 | 795 | 181.5 |
| C | 14 | 67 | 5574 | 26.34 | 787 | 795 | 181.5 |
| D | 11 | 145 | 3438628 | 19585.6 | 716 | 694 | 175.5 |
| D | 8 | 195 | 201287 | 1142.76 | 716 | 694 | 175.5 |
| D | 2 | 136 | 111687 | 632.32 | 716 | 694 | 175.5 |

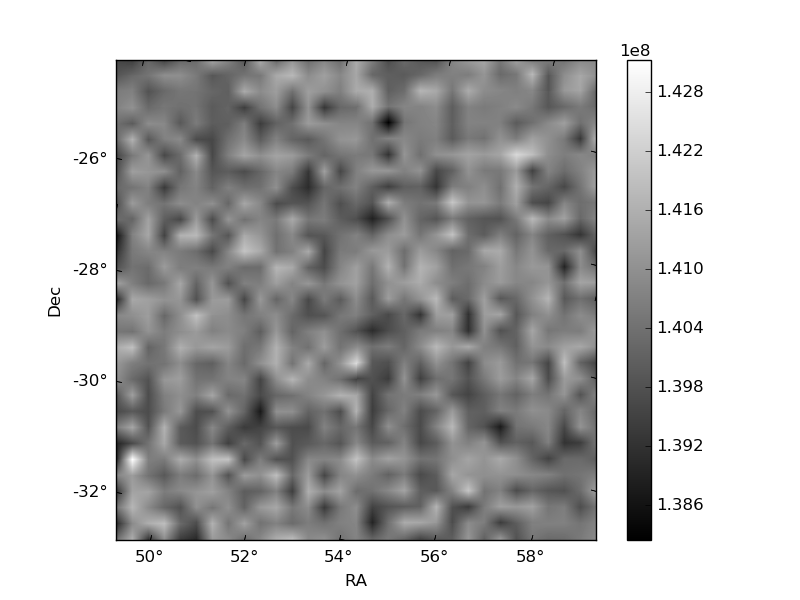

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

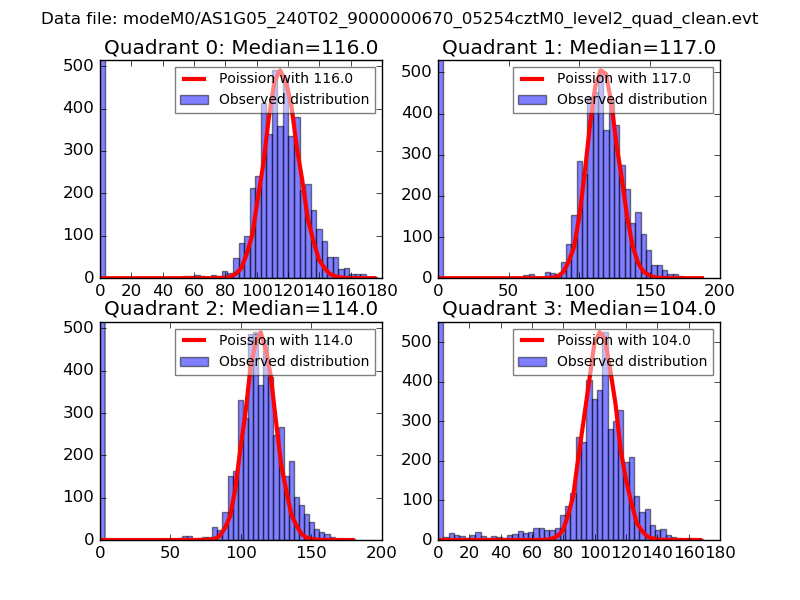

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

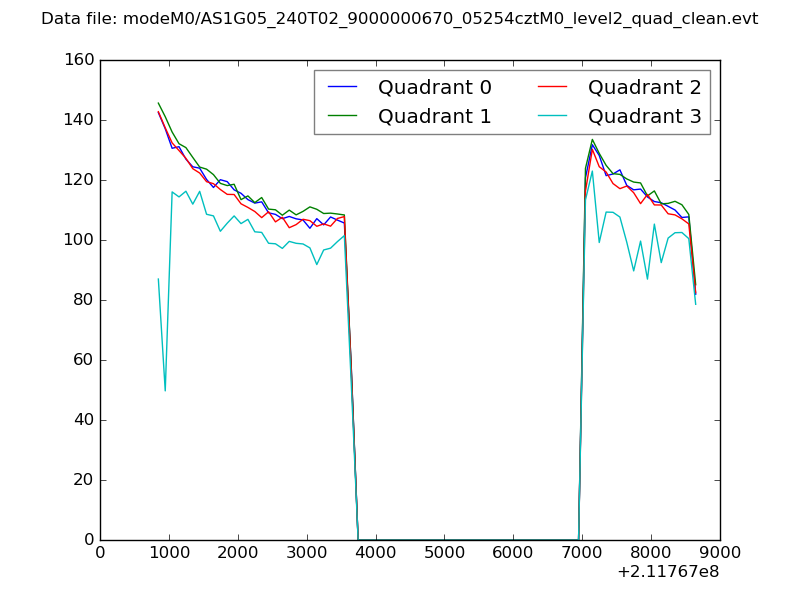

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

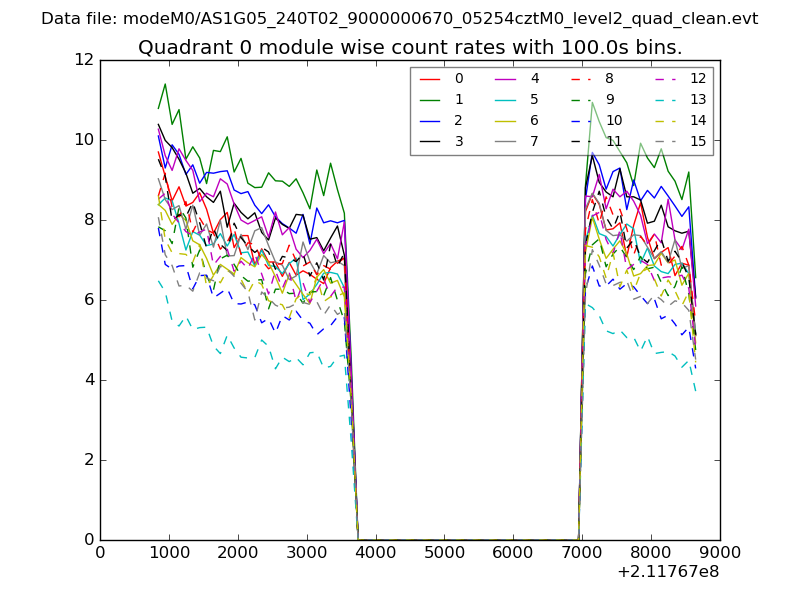

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

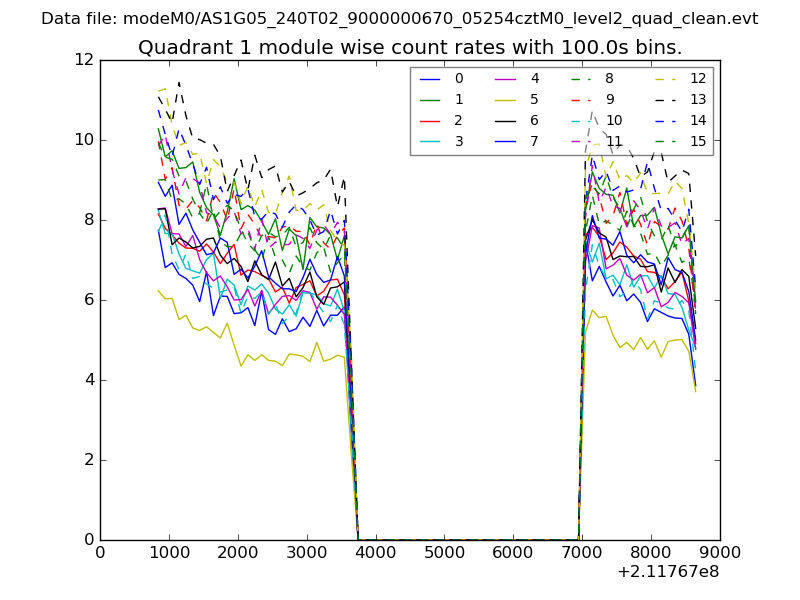

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

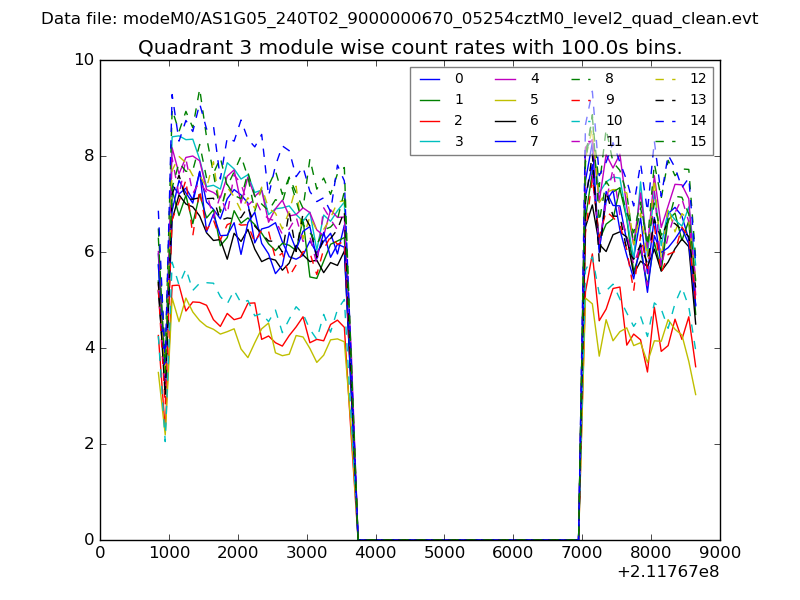

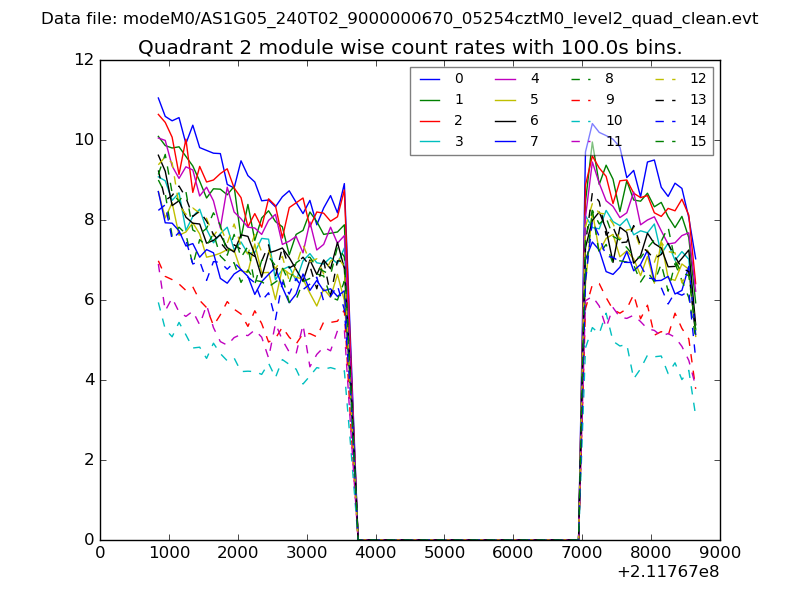

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

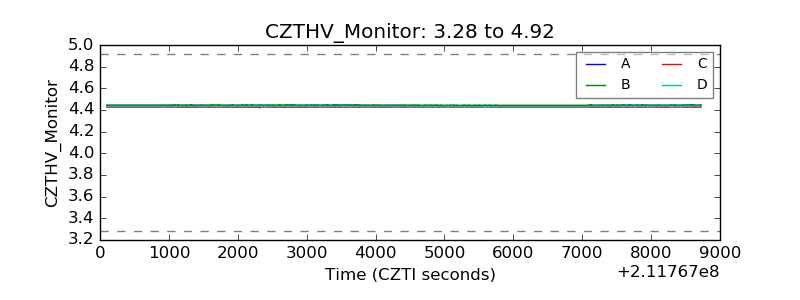

| CZT HV Monitor |  |

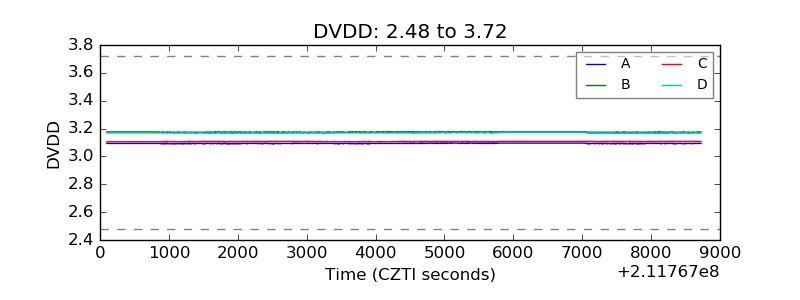

| D_VDD |  |

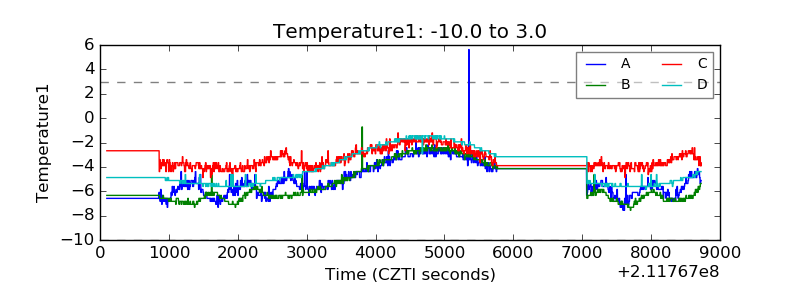

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

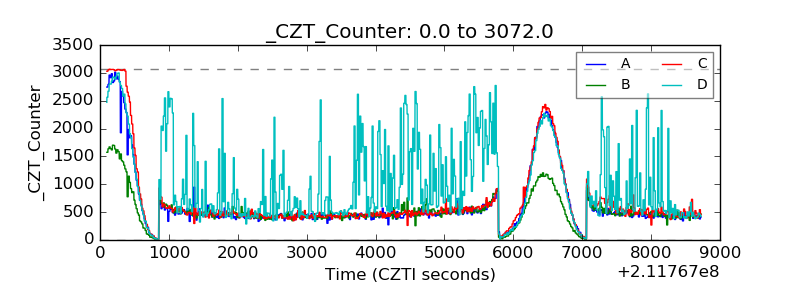

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

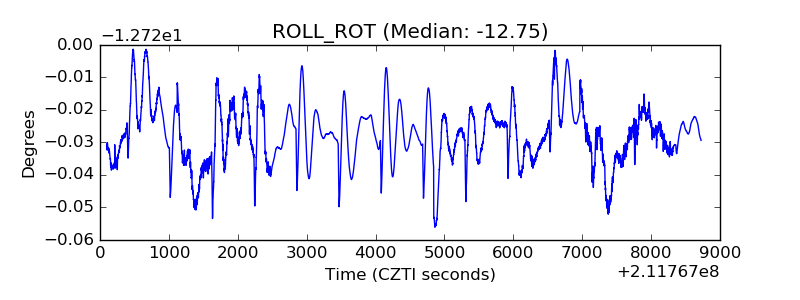

| _ROLL_ROT |  |

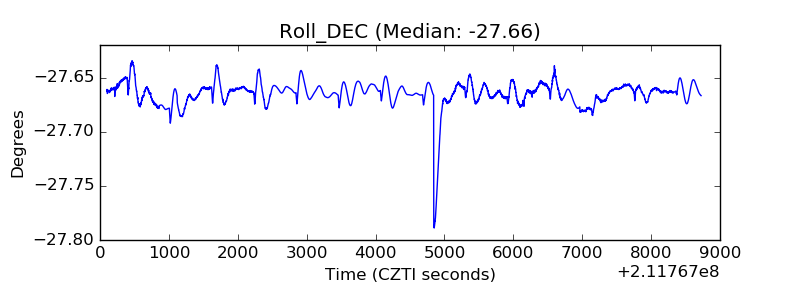

| _Roll_DEC |  |

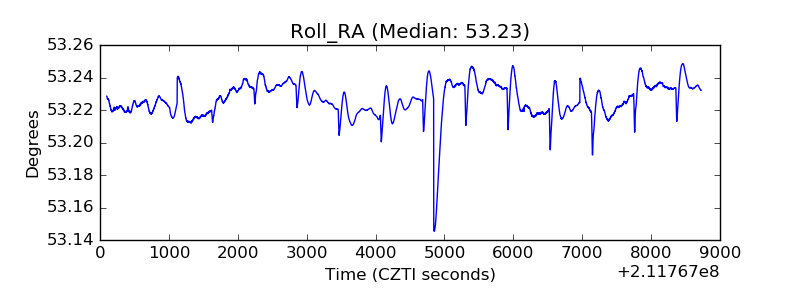

| _Roll_RA |  |

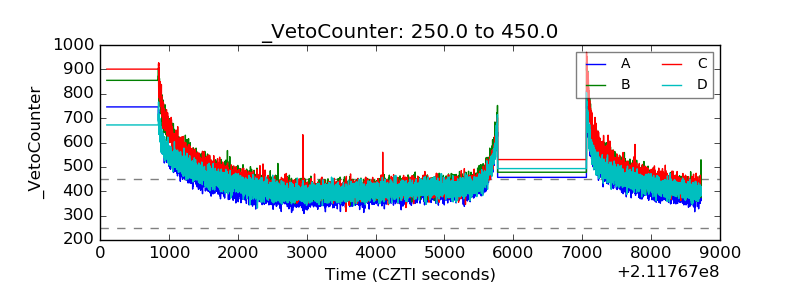

| Veto Counter |  |
