| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05258cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05258cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,178,880 | 63,547,200 |
| Size | 484.6 MB | 60.6 MB |
| Events in quadrant A | 2,750,438 | 393,259 |
| Events in quadrant B | 2,752,574 | 395,952 |
| Events in quadrant C | 2,753,734 | 390,192 |
| Events in quadrant D | 6,729,918 | 329,262 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 2 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12407 | 70 |
| B | 0 | 12291 | 60 |
| C | 0 | 12532 | 41 |
| D | 0 | 24291 | 263 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5939 | 162 | 2.727732% |
| B | 5939 | 140 | 2.357299% |
| C | 5949 | 125 | 2.101193% |
| D | 5911 | 1435 | 24.276772% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6014 | 5970 | 5 | 5 | 0.08% | 0.08% |  |
| B | 6014 | 5971 | 1 | 1 | 0.02% | 0.02% |  |
| C | 6014 | 5971 | 9 | 9 | 0.15% | 0.15% |  |
| D | 6014 | 5965 | 1075 | 1075 | 17.87% | 18.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 59076 | 408.47 | 686 | 668 | 143.0 |
| A | 0 | 50 | 35600 | 244.29 | 686 | 668 | 143.0 |
| A | 0 | 247 | 13875 | 92.36 | 686 | 668 | 143.0 |
| B | 15 | 54 | 20977 | 150.17 | 695 | 675 | 135.2 |
| B | 12 | 111 | 12943 | 90.74 | 695 | 675 | 135.2 |
| B | 15 | 204 | 11979 | 83.61 | 695 | 675 | 135.2 |
| C | 1 | 16 | 81128 | 509.25 | 675 | 678 | 158.0 |
| C | 1 | 3 | 31173 | 193.03 | 675 | 678 | 158.0 |
| C | 13 | 61 | 5470 | 30.33 | 675 | 678 | 158.0 |
| D | 11 | 145 | 3989814 | 26836.33 | 601 | 581 | 148.7 |
| D | 8 | 195 | 194689 | 1305.8 | 601 | 581 | 148.7 |
| D | 2 | 136 | 162308 | 1087.97 | 601 | 581 | 148.7 |

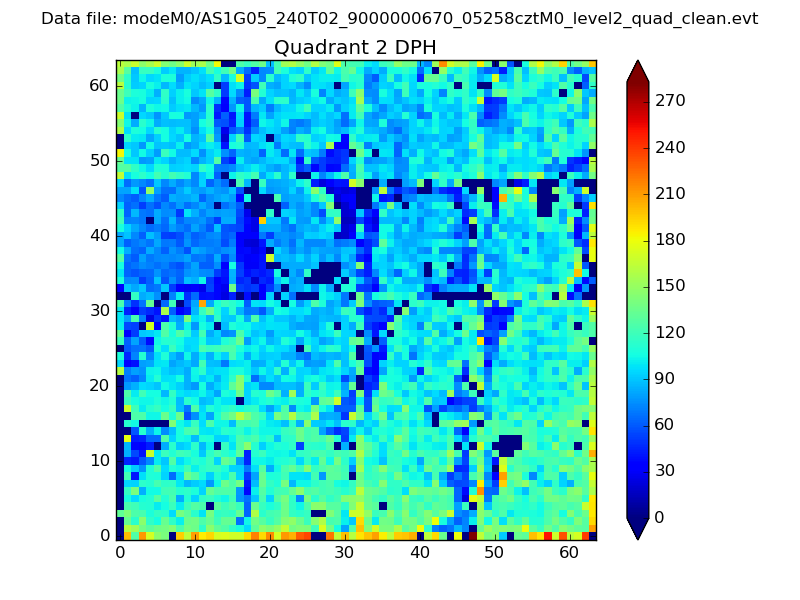

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

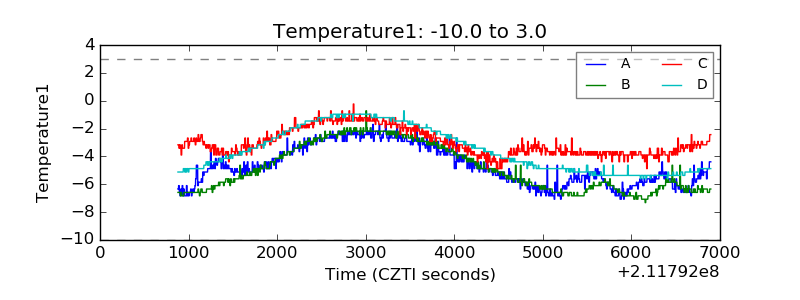

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

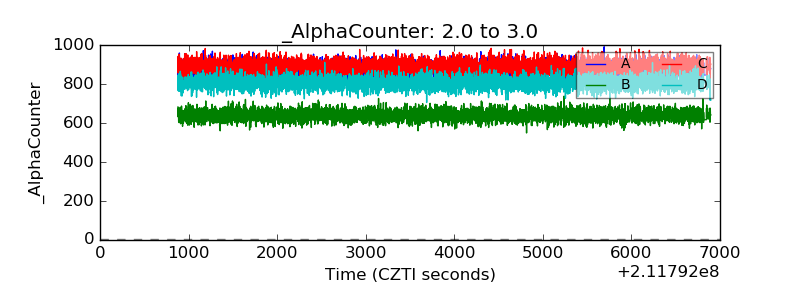

| Alpha Counter |  |

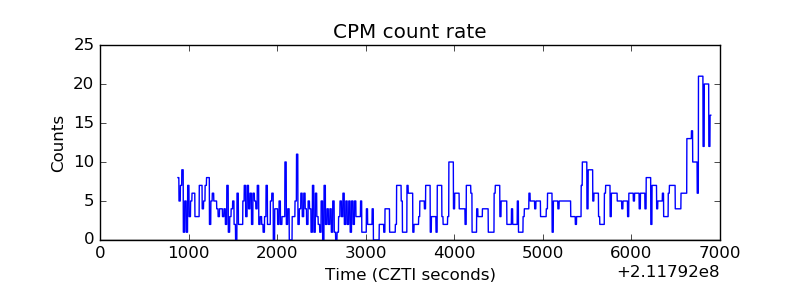

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

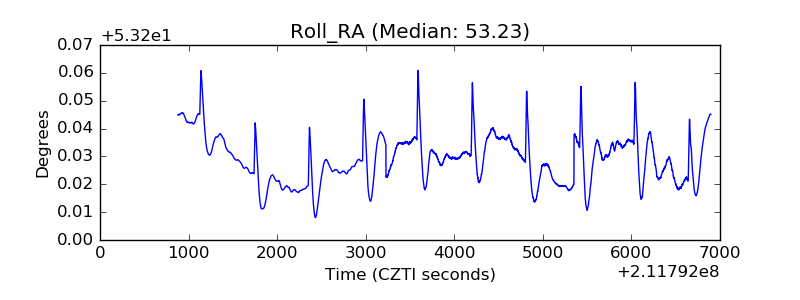

| _Roll_RA |  |

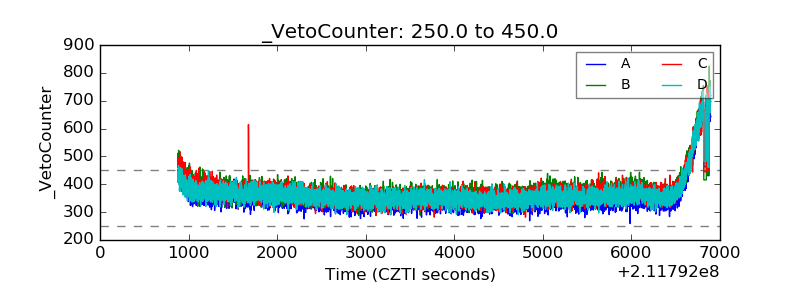

| Veto Counter |  |
