| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05265cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05265cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,392,000 | 78,010,560 |
| Size | 562.1 MB | 74.4 MB |
| Events in quadrant A | 3,675,180 | 498,991 |
| Events in quadrant B | 3,139,853 | 502,583 |
| Events in quadrant C | 2,952,212 | 491,591 |
| Events in quadrant D | 7,636,009 | 409,480 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15465 | 2 |
| B | 0 | 13772 | 1 |
| C | 0 | 13377 | 1 |
| D | 0 | 27316 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6584 | 65 | 0.987242% |
| B | 6584 | 23 | 0.349332% |
| C | 6584 | 5 | 0.075942% |
| D | 6584 | 1689 | 25.653098% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7709 | 6585 | 37 | 37 | 0.48% | 0.56% |  |
| B | 7709 | 6585 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7709 | 6585 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7709 | 6585 | 1362 | 1362 | 17.67% | 20.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 676359 | 4309.18 | 766 | 749 | 156.8 |
| A | 0 | 50 | 51195 | 321.75 | 766 | 749 | 156.8 |
| A | 0 | 226 | 7672 | 44.16 | 766 | 749 | 156.8 |
| B | 10 | 16 | 37184 | 241.4 | 782 | 765 | 150.9 |
| B | 15 | 204 | 19713 | 125.6 | 782 | 765 | 150.9 |
| B | 4 | 48 | 16035 | 101.22 | 782 | 765 | 150.9 |
| C | 1 | 16 | 18960 | 105.22 | 748 | 754 | 173.0 |
| C | 13 | 61 | 6096 | 30.87 | 748 | 754 | 173.0 |
| C | 1 | 3 | 5794 | 29.13 | 748 | 754 | 173.0 |
| D | 11 | 145 | 4497271 | 27583.35 | 652 | 630 | 163.0 |
| D | 2 | 136 | 306820 | 1878.23 | 652 | 630 | 163.0 |
| D | 1 | 31 | 194390 | 1188.56 | 652 | 630 | 163.0 |

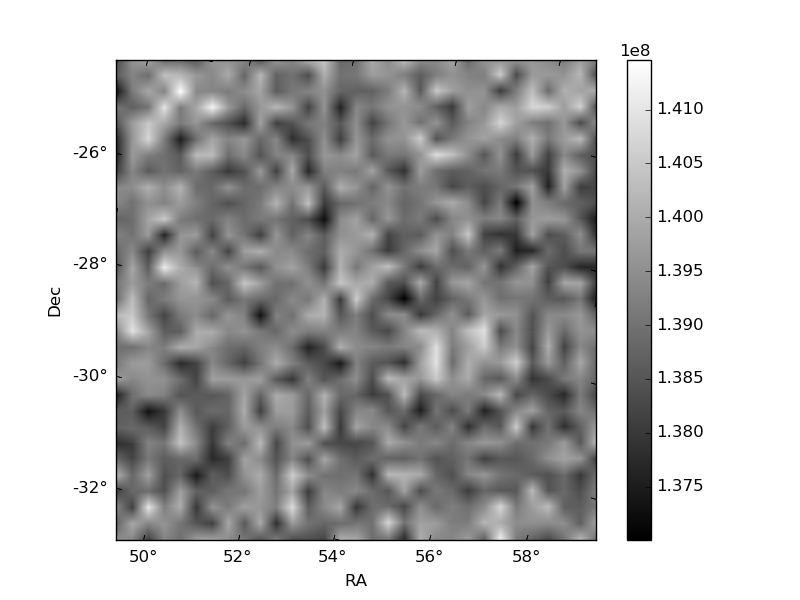

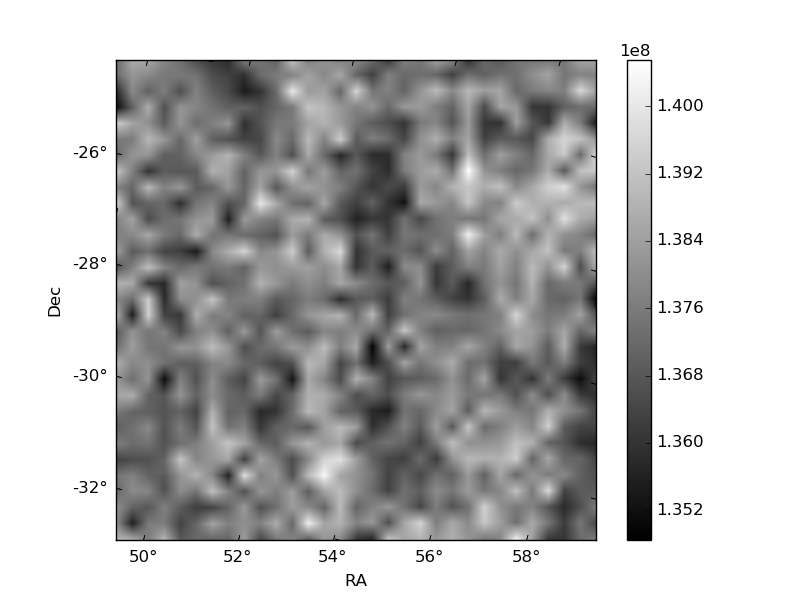

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

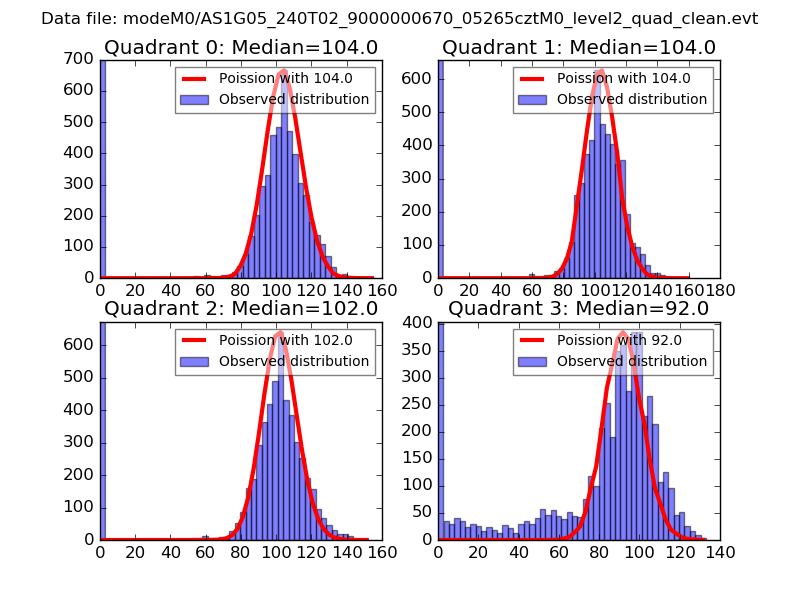

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

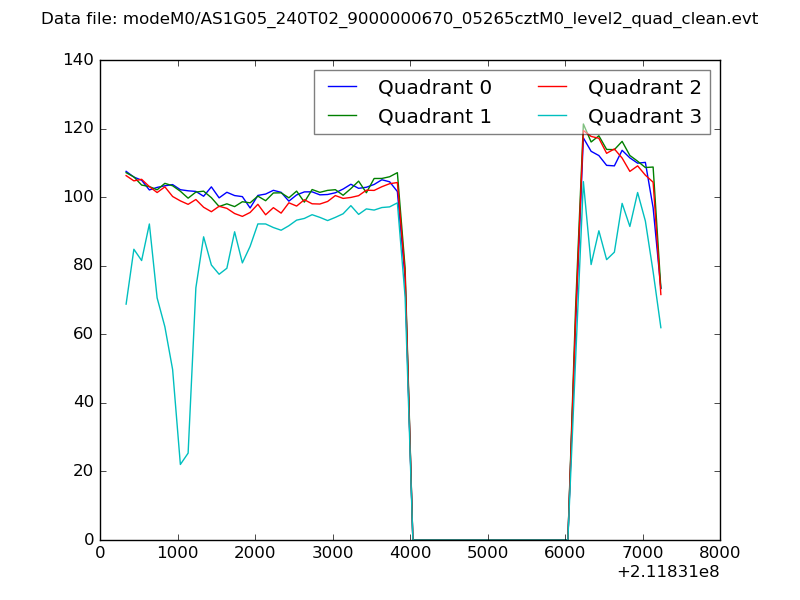

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

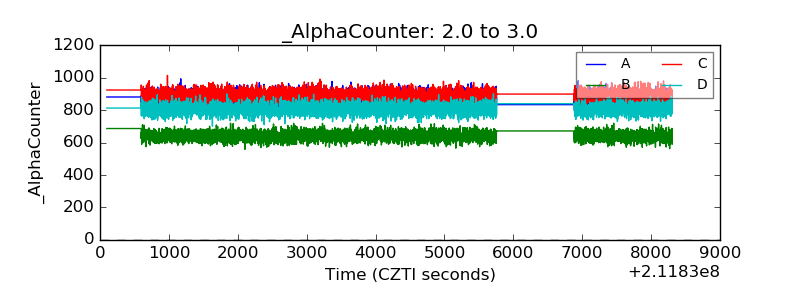

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

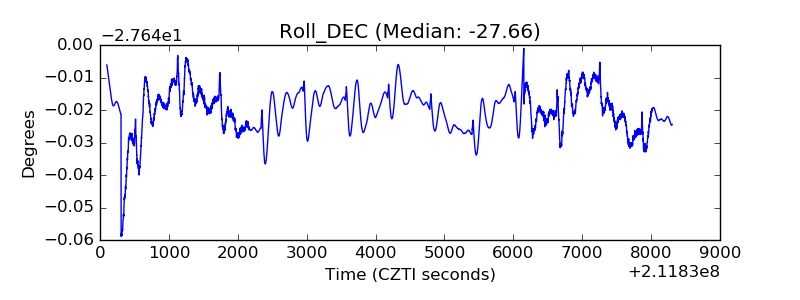

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
