| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05266cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05266cztM0_level2_quad_clean.evt |
| Size (bytes) | 574,528,320 | 85,593,600 |
| Size | 547.9 MB | 81.6 MB |
| Events in quadrant A | 4,375,106 | 547,997 |
| Events in quadrant B | 3,112,207 | 566,840 |
| Events in quadrant C | 2,964,139 | 550,734 |
| Events in quadrant D | 6,511,422 | 476,700 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17347 | 3 |
| B | 0 | 13501 | 2 |
| C | 0 | 13213 | 2 |
| D | 0 | 23937 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6436 | 170 | 2.641392% |
| B | 6436 | 46 | 0.714730% |
| C | 6436 | 15 | 0.233064% |
| D | 6436 | 1292 | 20.074580% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 6437 | 102 | 102 | 1.33% | 1.58% |  |
| B | 7646 | 6437 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7646 | 6437 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7646 | 6436 | 984 | 984 | 12.87% | 15.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1343353 | 8605.36 | 758 | 742 | 156.0 |
| A | 0 | 50 | 118686 | 755.95 | 758 | 742 | 156.0 |
| A | 12 | 194 | 7481 | 43.19 | 758 | 742 | 156.0 |
| B | 15 | 204 | 17158 | 109.41 | 780 | 762 | 149.9 |
| B | 0 | 219 | 16791 | 106.97 | 780 | 762 | 149.9 |
| B | 4 | 80 | 16580 | 105.56 | 780 | 762 | 149.9 |
| C | 1 | 16 | 21664 | 120.52 | 750 | 755 | 173.5 |
| C | 7 | 159 | 8719 | 45.91 | 750 | 755 | 173.5 |
| C | 13 | 61 | 6192 | 31.34 | 750 | 755 | 173.5 |
| D | 11 | 145 | 3462319 | 20978.7 | 669 | 648 | 165.0 |
| D | 2 | 136 | 202183 | 1221.36 | 669 | 648 | 165.0 |
| D | 1 | 31 | 126872 | 764.95 | 669 | 648 | 165.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

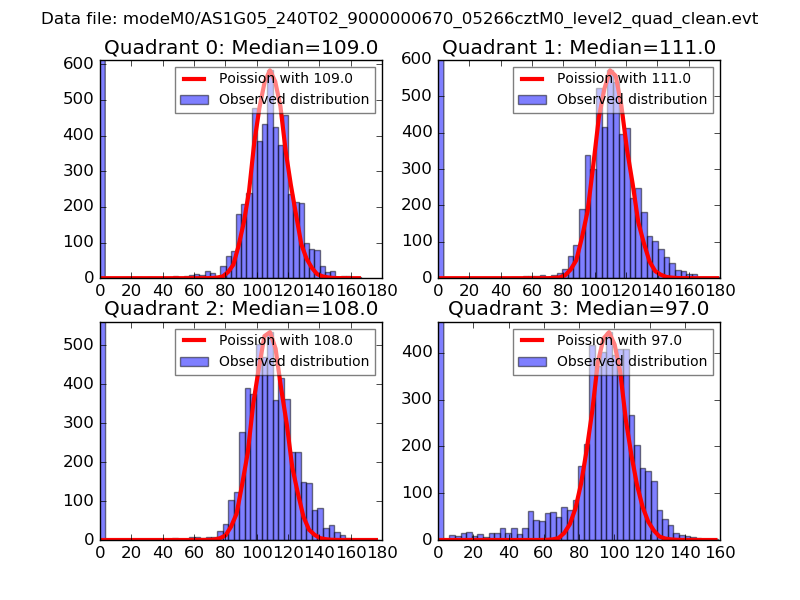

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

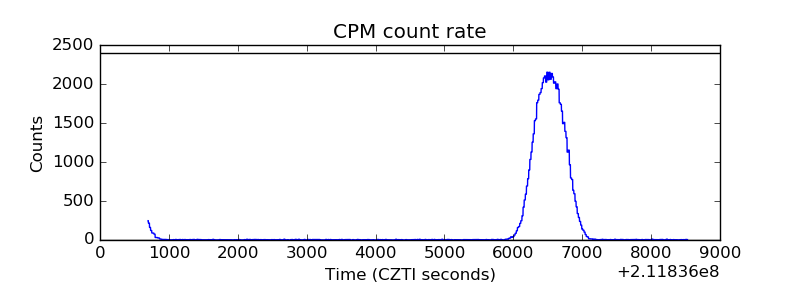

| _CPM_Rate |  |

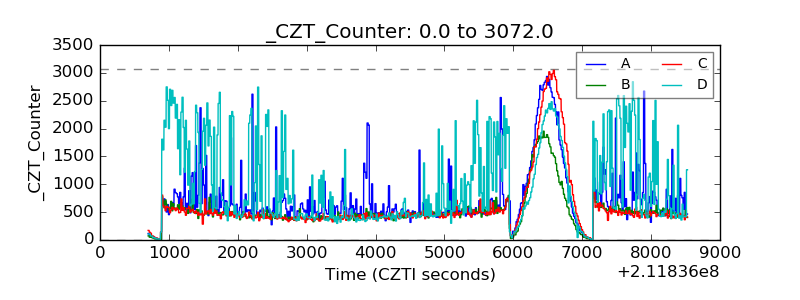

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

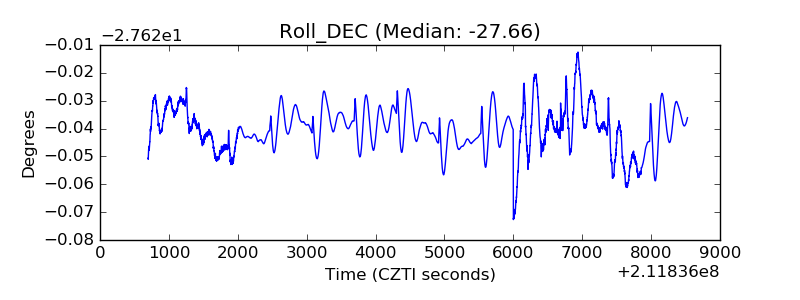

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
