| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T02_9000000670_05269cztM0_level2.evt | modeM0/AS1G05_240T02_9000000670_05269cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,229,486,400 | 183,101,760 |
| Size | 1.1 GB | 174.6 MB |
| Events in quadrant A | 9,591,806 | 1,132,865 |
| Events in quadrant B | 7,350,990 | 1,167,672 |
| Events in quadrant C | 7,199,302 | 1,134,058 |
| Events in quadrant D | 12,045,890 | 1,041,158 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 314 | 0 |
| B | 0 | 314 | 0 |
| C | 0 | 314 | 0 |
| D | 0 | 314 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38977 | 4 |
| B | 0 | 32105 | 3 |
| C | 0 | 31878 | 5 |
| D | 0 | 46785 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15510 | 310 | 1.998711% |
| B | 15510 | 96 | 0.618956% |
| C | 15509 | 34 | 0.219228% |
| D | 15509 | 1400 | 9.027017% |

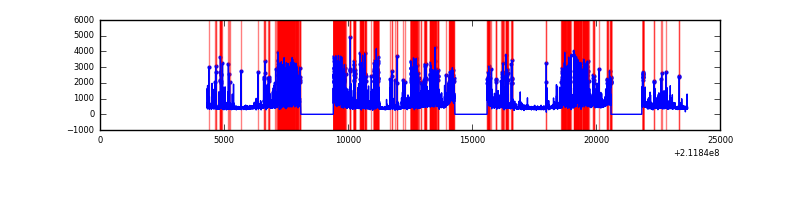

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

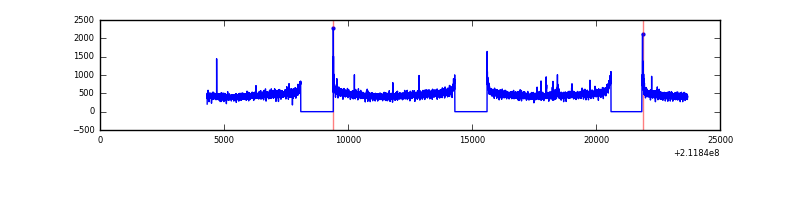

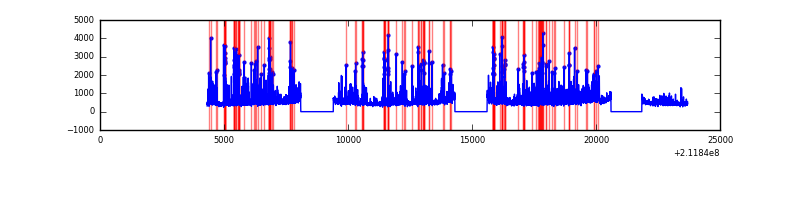

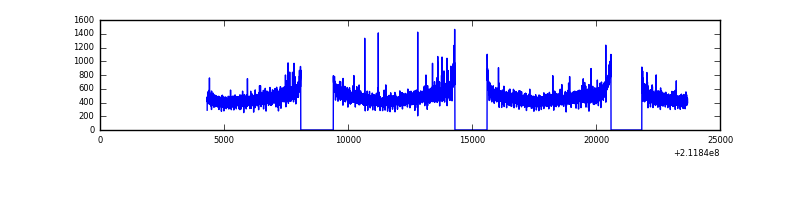

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19370 | 15513 | 163 | 163 | 0.84% | 1.05% |  |
| B | 19370 | 15513 | 0 | 0 | 0.00% | 0.00% |  |
| C | 19370 | 15513 | 2 | 2 | 0.01% | 0.01% |  |
| D | 19370 | 15513 | 1030 | 1030 | 5.32% | 6.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 2533135 | 6903.02 | 1828 | 1786 | 366.7 |
| A | 0 | 50 | 20967 | 52.31 | 1828 | 1786 | 366.7 |
| A | 12 | 194 | 17979 | 44.16 | 1828 | 1786 | 366.7 |
| B | 0 | 219 | 34763 | 94.25 | 1869 | 1825 | 349.5 |
| B | 12 | 111 | 32555 | 87.93 | 1869 | 1825 | 349.5 |
| B | 15 | 204 | 31704 | 85.49 | 1869 | 1825 | 349.5 |
| C | 1 | 16 | 51143 | 118.05 | 1819 | 1833 | 417.7 |
| C | 8 | 222 | 31599 | 71.26 | 1819 | 1833 | 417.7 |
| C | 12 | 4 | 18886 | 40.83 | 1819 | 1833 | 417.7 |
| D | 11 | 145 | 4883256 | 11624.39 | 1733 | 1687 | 419.9 |
| D | 2 | 136 | 247865 | 586.22 | 1733 | 1687 | 419.9 |
| D | 10 | 15 | 109610 | 257.0 | 1733 | 1687 | 419.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

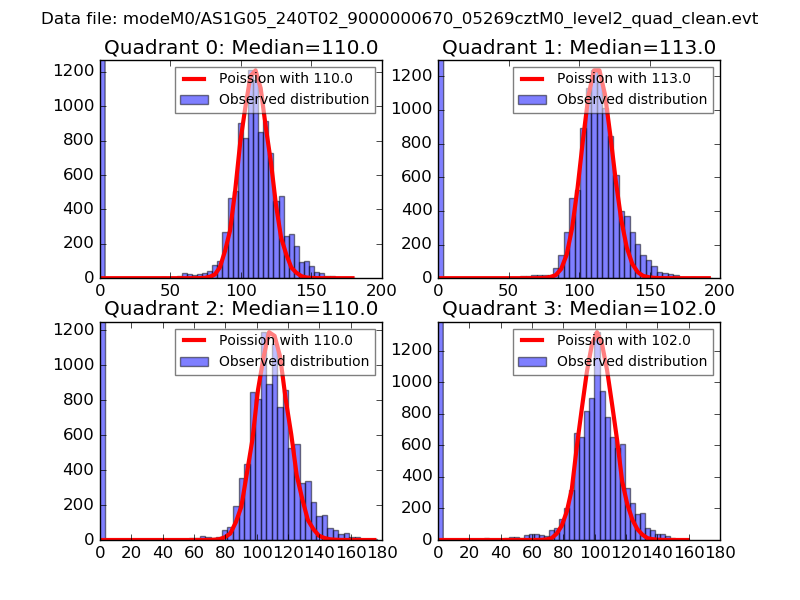

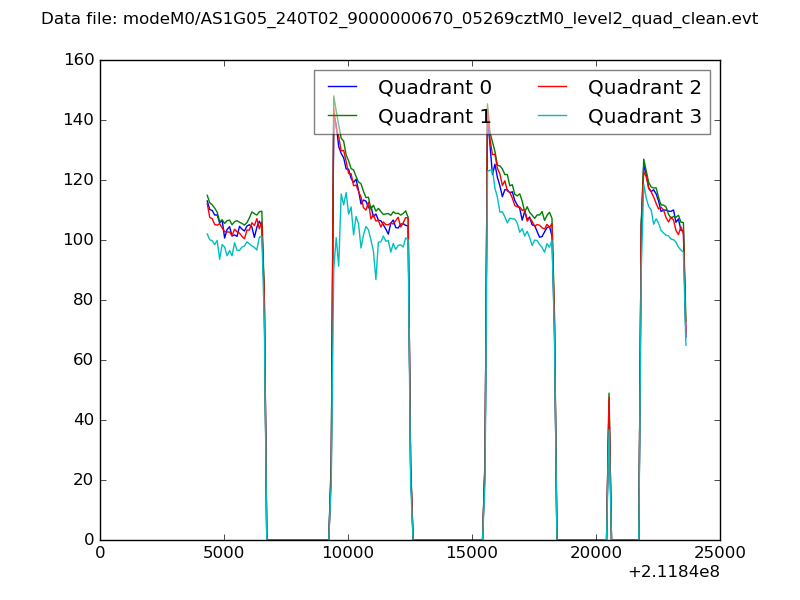

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

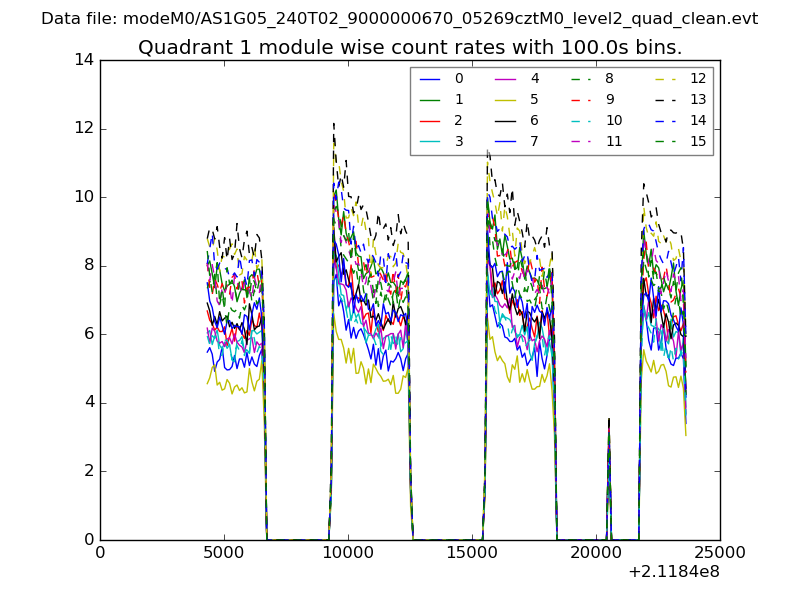

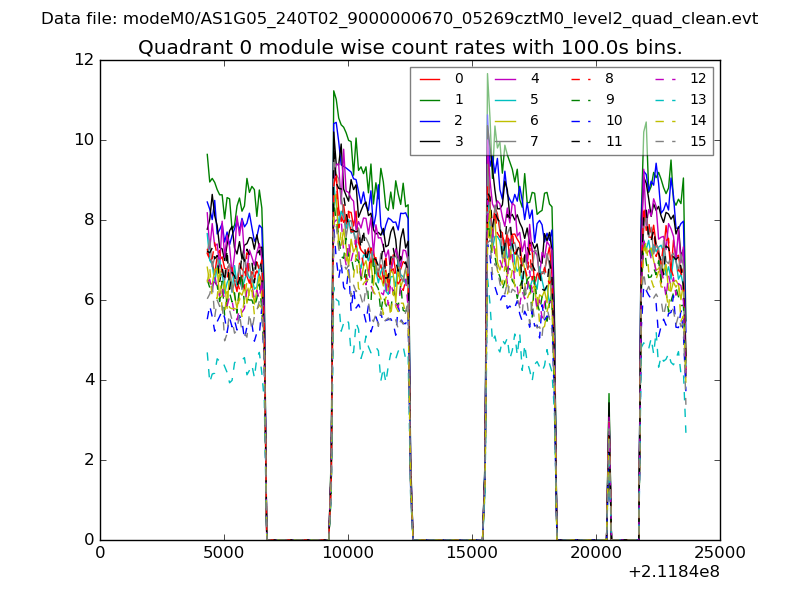

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

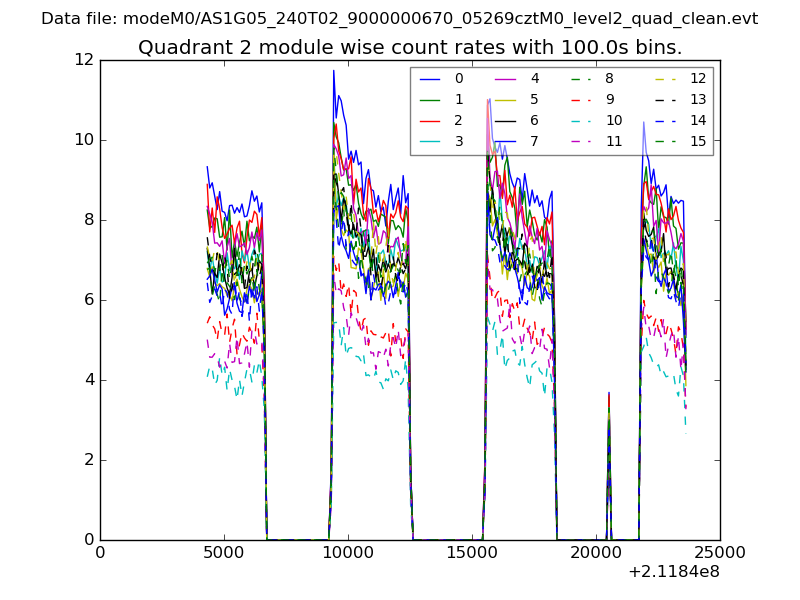

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

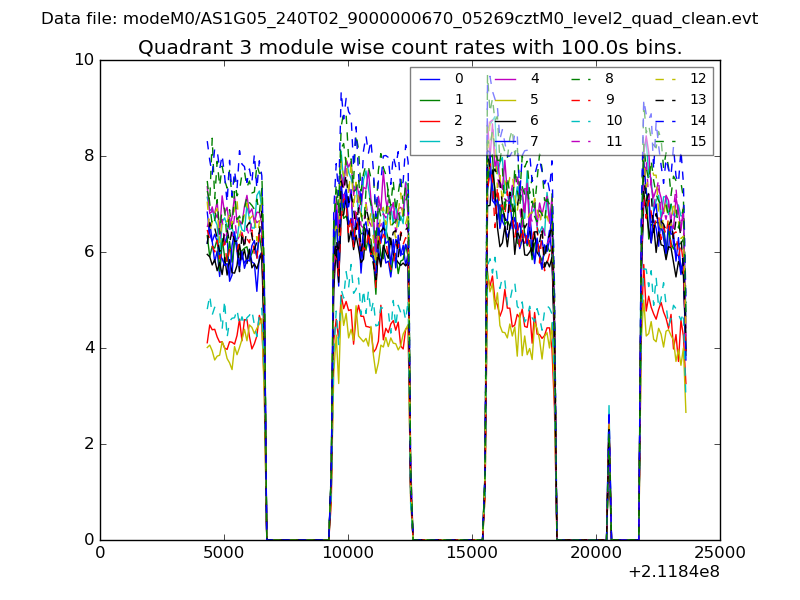

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

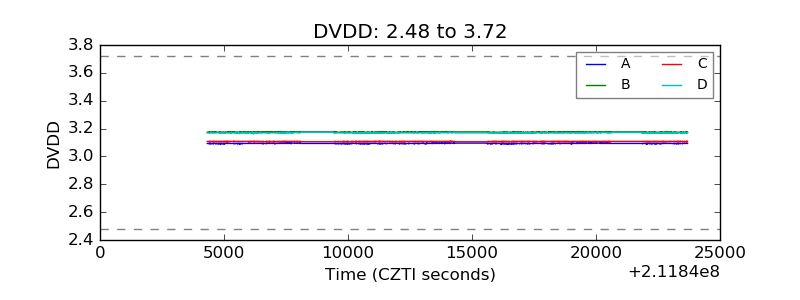

| D_VDD |  |

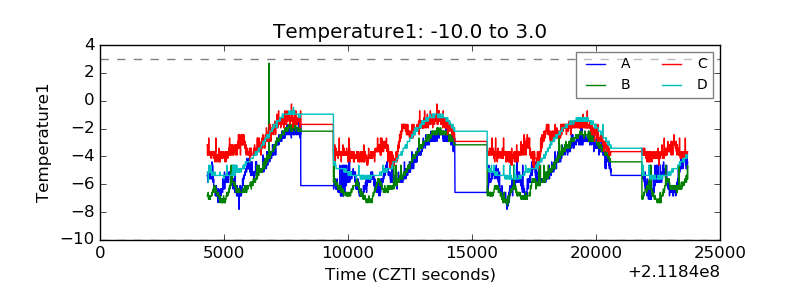

| Temperature 1 |  |
| Veto HV Monitor |  |

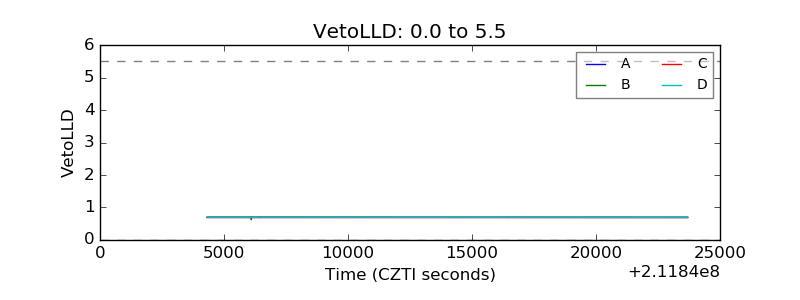

| Veto LLD |  |

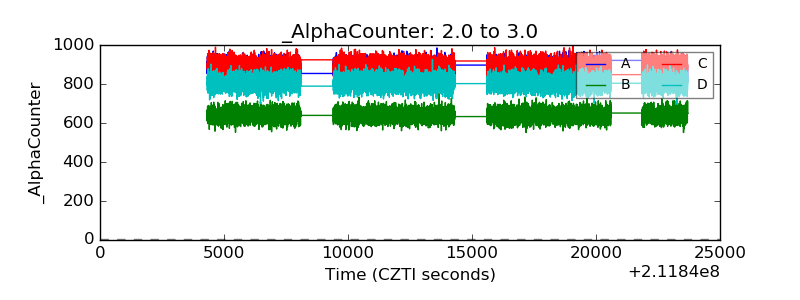

| Alpha Counter |  |

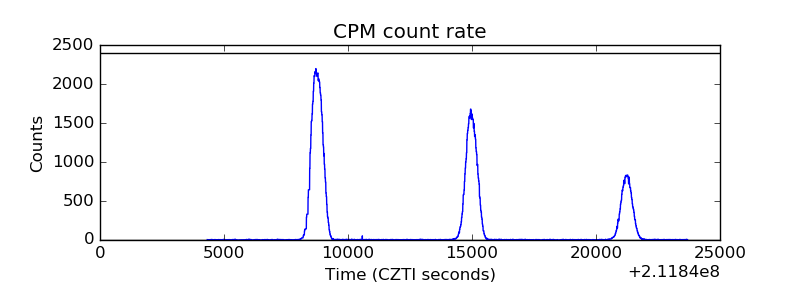

| _CPM_Rate |  |

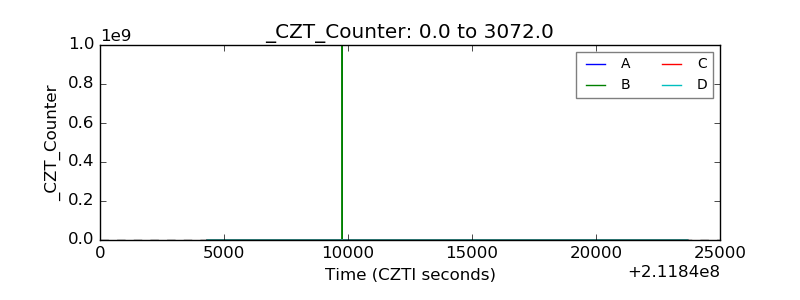

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

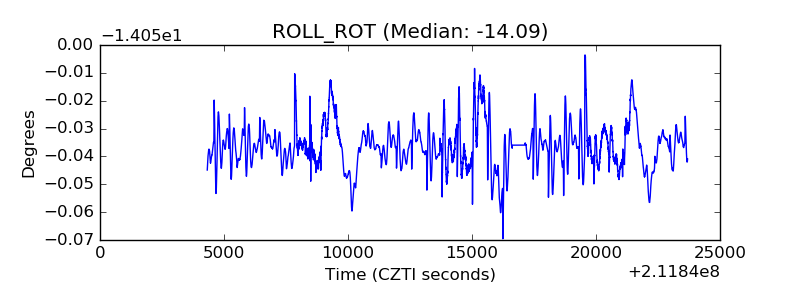

| _ROLL_ROT |  |

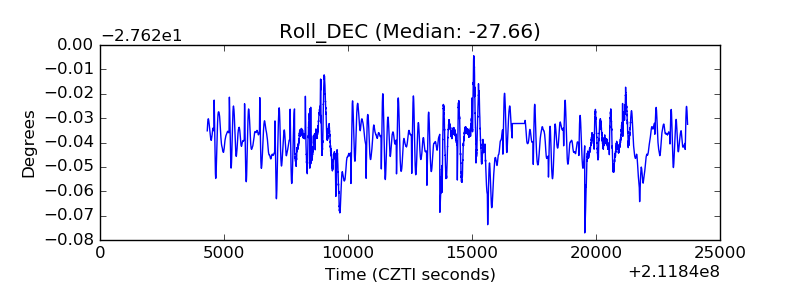

| _Roll_DEC |  |

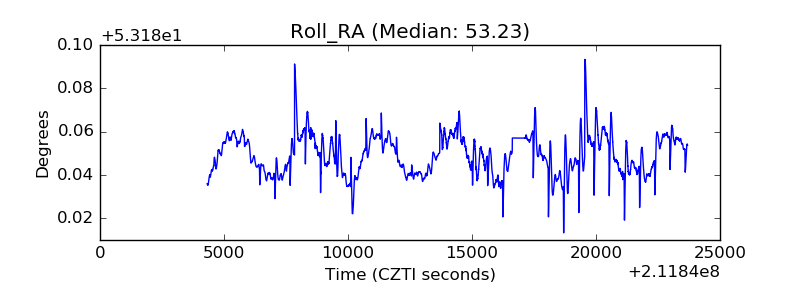

| _Roll_RA |  |

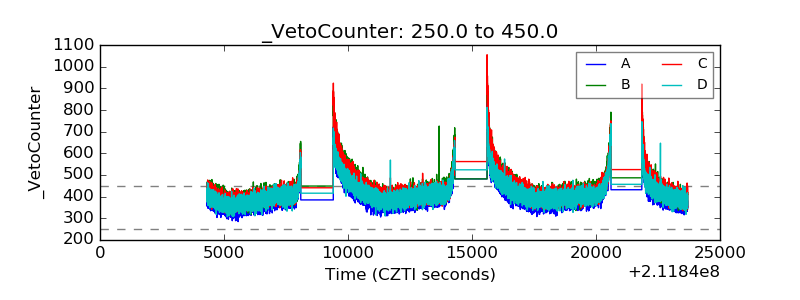

| Veto Counter |  |
