| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000674_05310cztM0_level2.evt | modeM0/AS1G05_240T01_9000000674_05310cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,590,080 | 87,114,240 |
| Size | 434.5 MB | 83.1 MB |
| Events in quadrant A | 3,171,648 | 549,582 |
| Events in quadrant B | 3,414,104 | 568,511 |
| Events in quadrant C | 3,335,039 | 545,412 |
| Events in quadrant D | 3,429,899 | 515,619 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13803 | 3 |
| B | 0 | 14565 | 2 |
| C | 0 | 14078 | 2 |
| D | 0 | 14693 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6585 | 42 | 0.637813% |
| B | 6585 | 62 | 0.941534% |
| C | 6585 | 20 | 0.303721% |
| D | 6585 | 37 | 0.561883% |

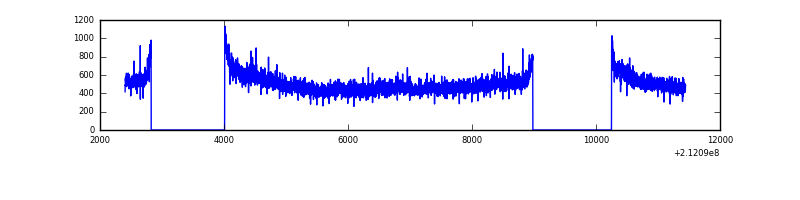

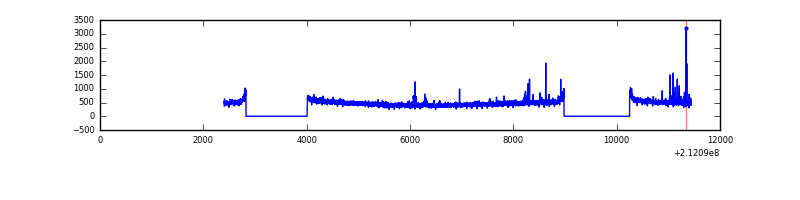

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

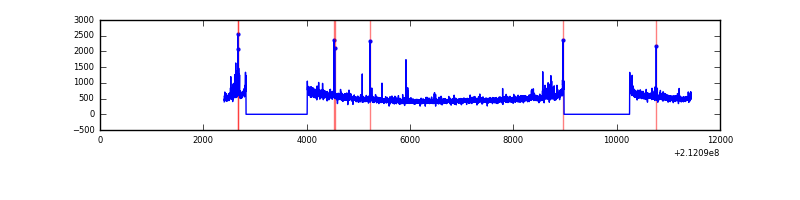

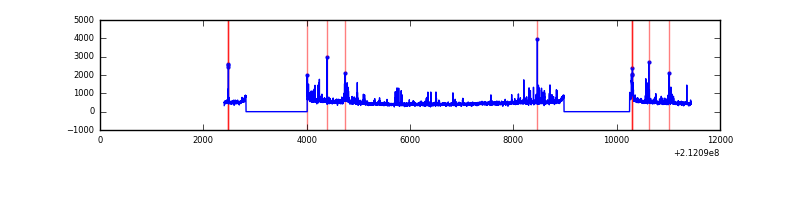

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9040 | 6587 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9040 | 6587 | 7 | 7 | 0.08% | 0.11% |  |
| C | 9040 | 6587 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9040 | 6587 | 12 | 12 | 0.13% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 61099 | 368.97 | 802 | 784 | 163.5 |
| A | 0 | 50 | 17785 | 104.0 | 802 | 784 | 163.5 |
| A | 12 | 194 | 8105 | 44.78 | 802 | 784 | 163.5 |
| B | 4 | 48 | 115168 | 728.03 | 819 | 800 | 157.1 |
| B | 15 | 204 | 66393 | 417.54 | 819 | 800 | 157.1 |
| B | 4 | 80 | 21345 | 130.78 | 819 | 800 | 157.1 |
| C | 1 | 16 | 274311 | 1507.48 | 784 | 790 | 181.4 |
| C | 13 | 61 | 6448 | 31.18 | 784 | 790 | 181.4 |
| C | 12 | 4 | 2051 | 6.95 | 784 | 790 | 181.4 |
| D | 2 | 234 | 133231 | 701.58 | 773 | 752 | 188.8 |
| D | 8 | 195 | 129996 | 684.45 | 773 | 752 | 188.8 |
| D | 2 | 33 | 46116 | 240.24 | 773 | 752 | 188.8 |

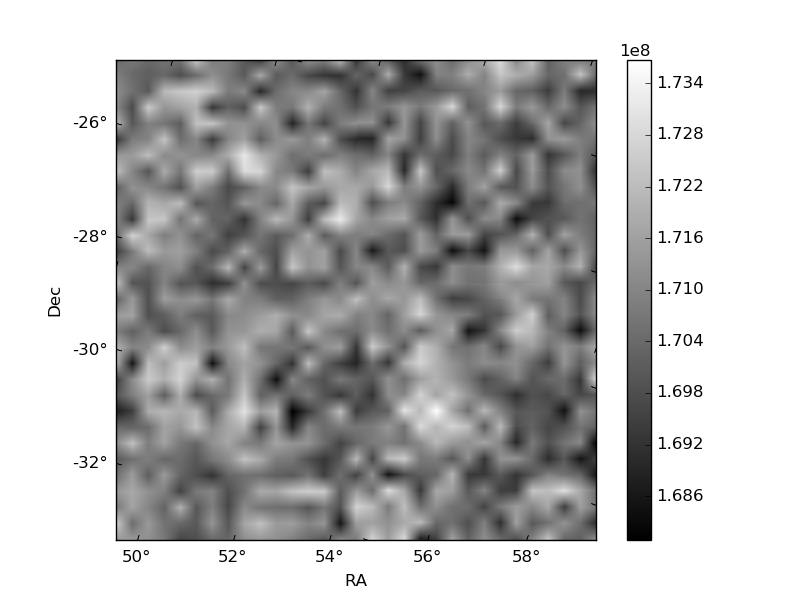

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

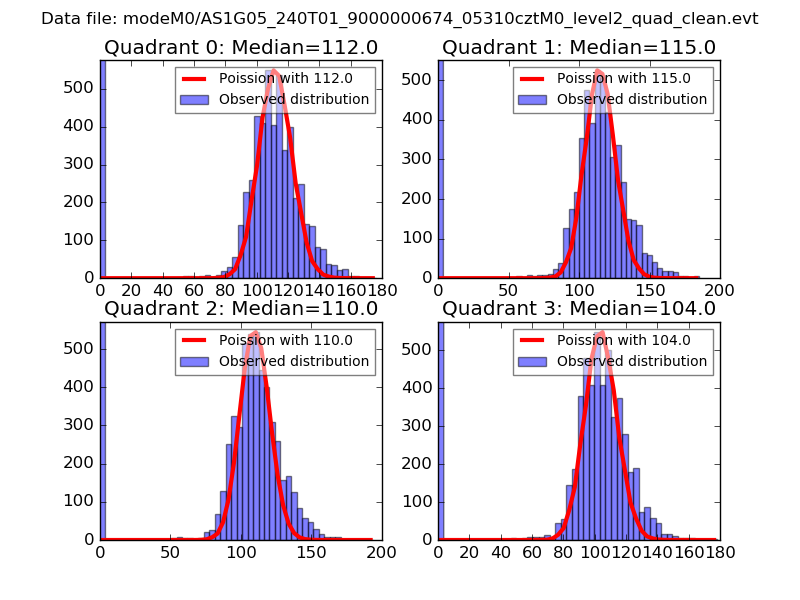

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

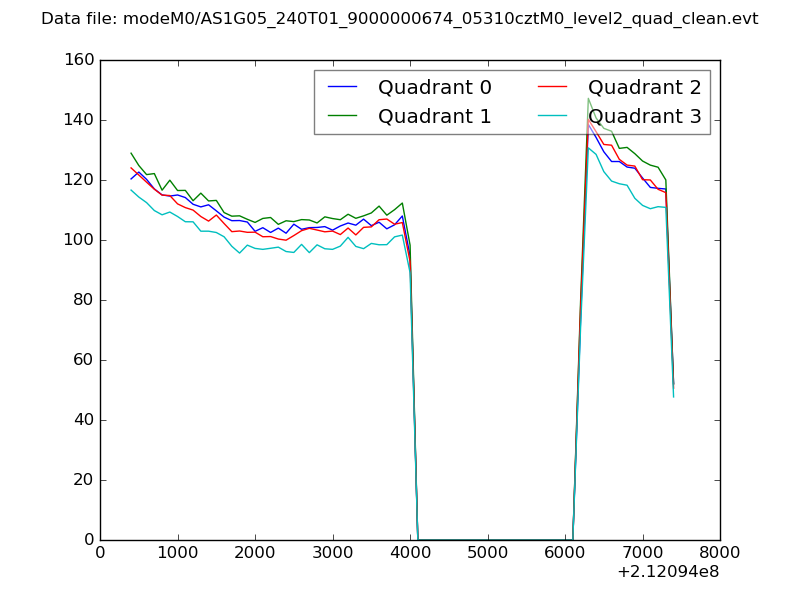

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

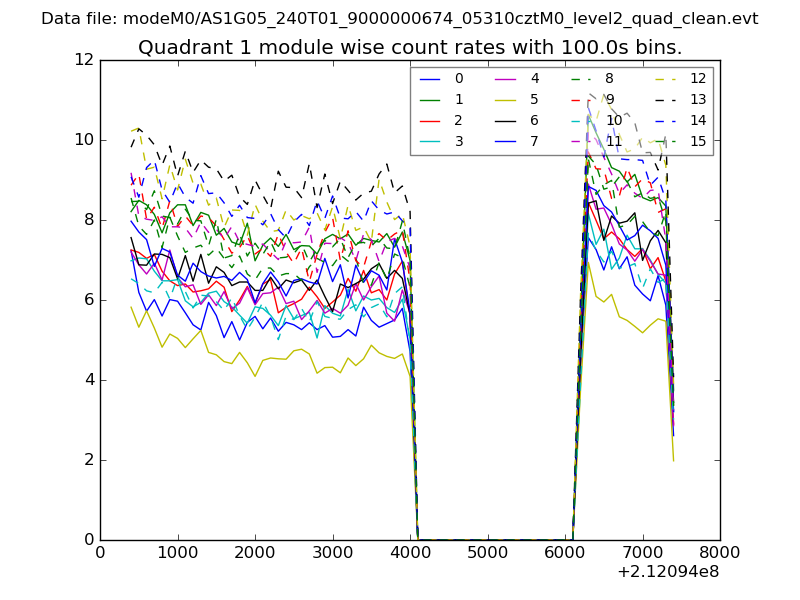

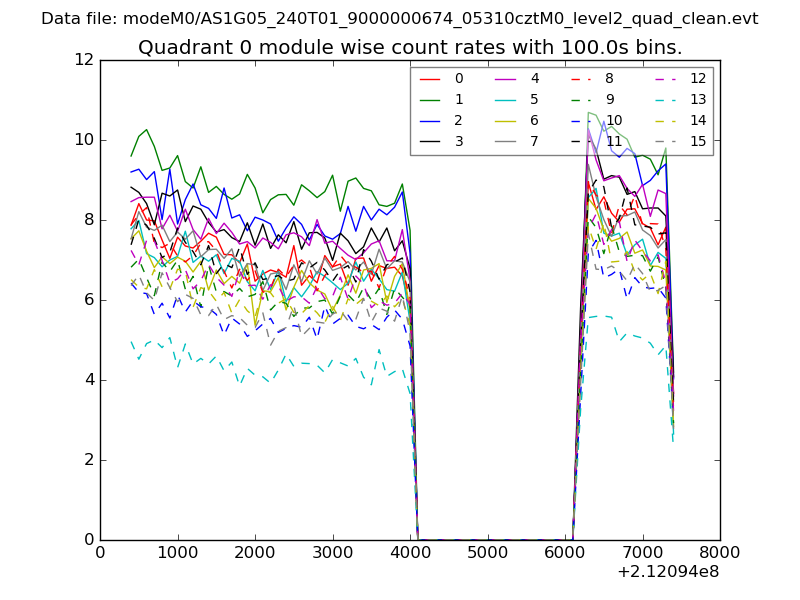

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

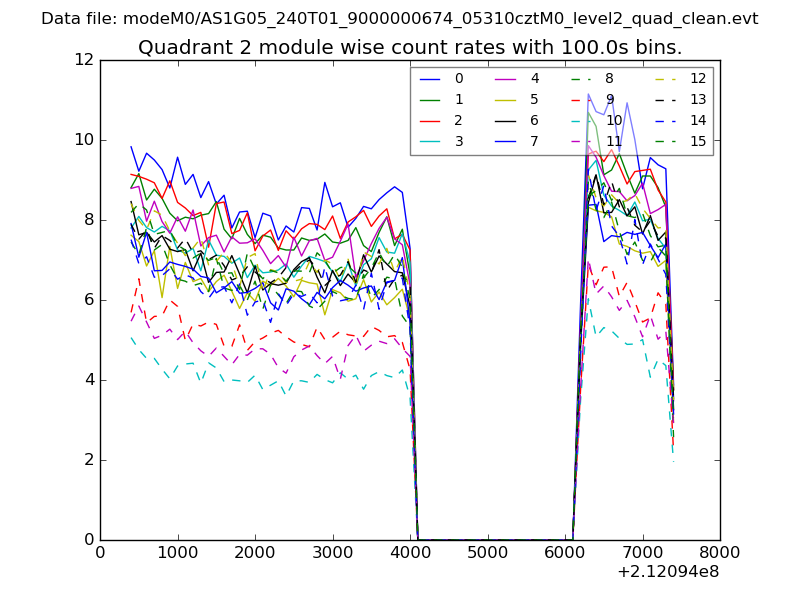

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

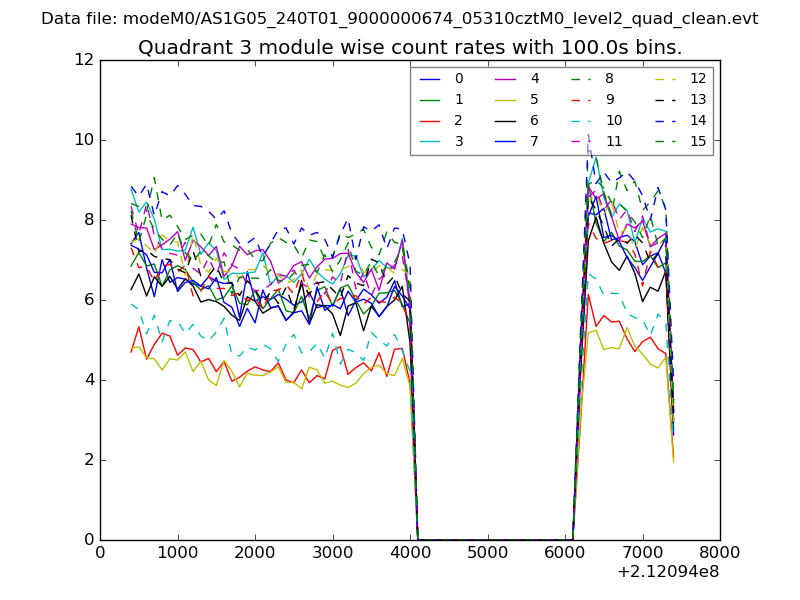

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

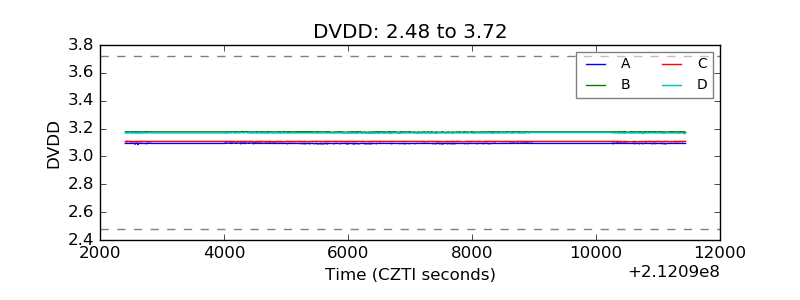

| D_VDD |  |

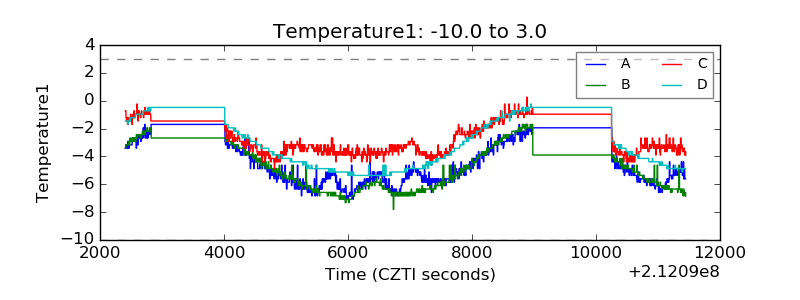

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

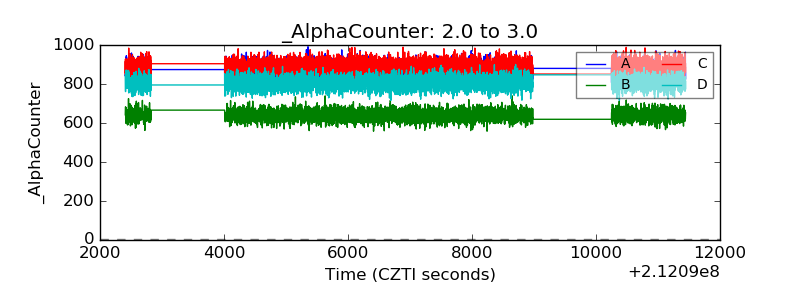

| Alpha Counter |  |

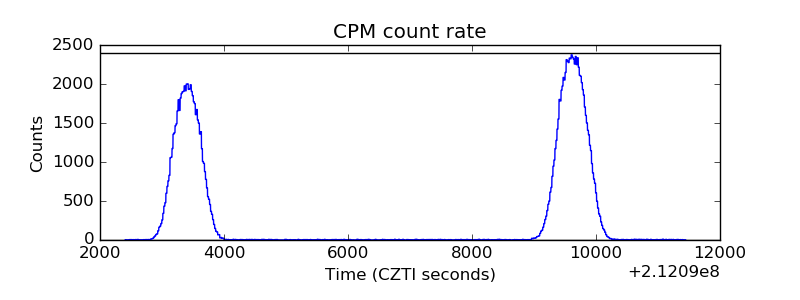

| _CPM_Rate |  |

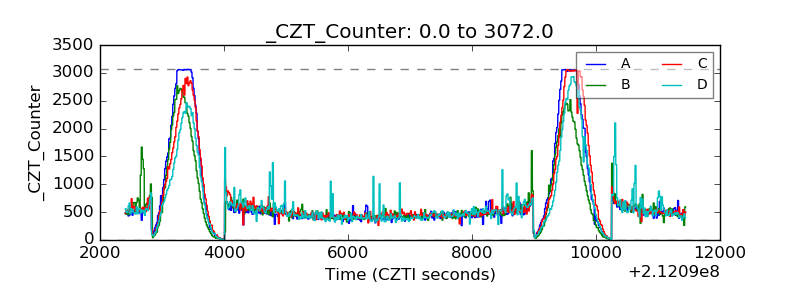

| CZT Counter |  |

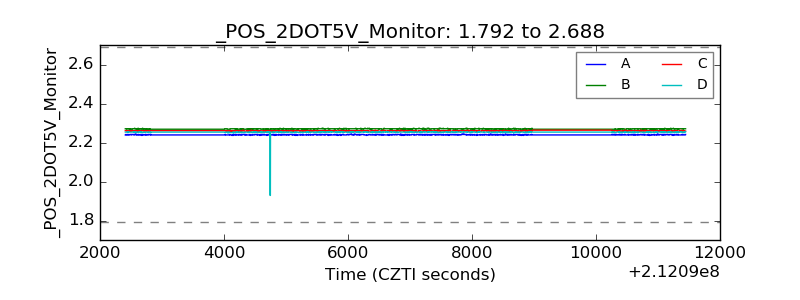

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

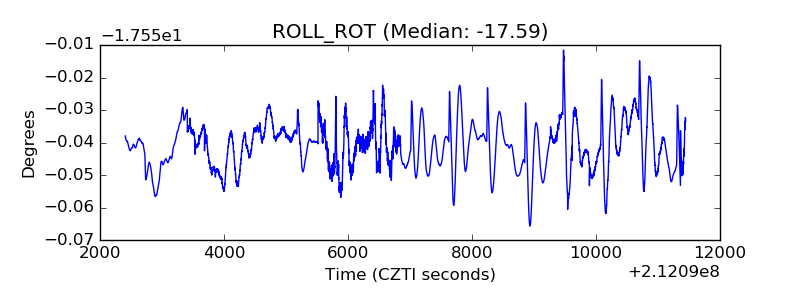

| _ROLL_ROT |  |

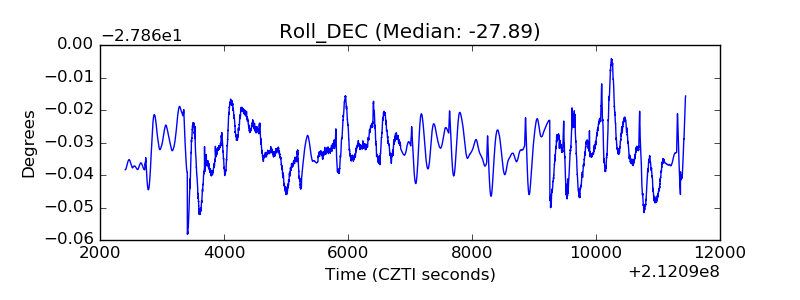

| _Roll_DEC |  |

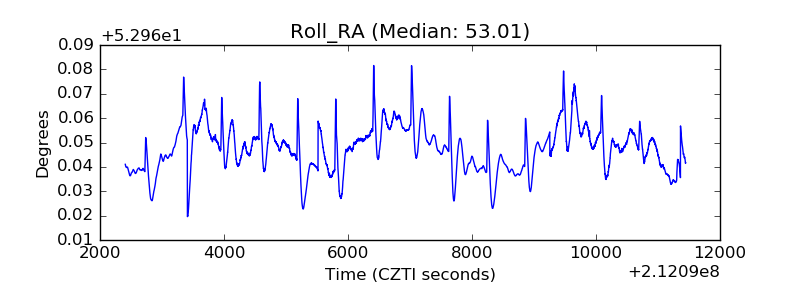

| _Roll_RA |  |

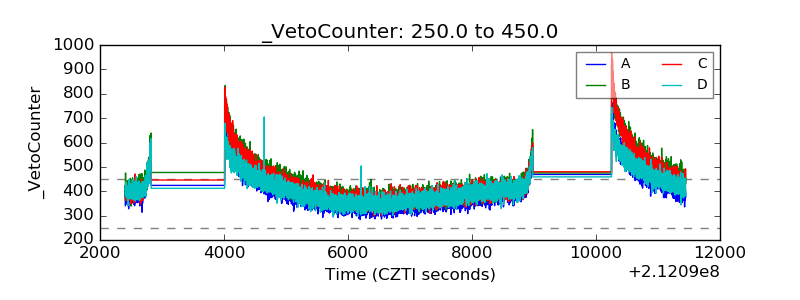

| Veto Counter |  |
