| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000674_05314cztM0_level2.evt | modeM0/AS1G05_240T01_9000000674_05314cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,939,200 | 79,833,600 |
| Size | 425.3 MB | 76.1 MB |
| Events in quadrant A | 3,066,895 | 491,396 |
| Events in quadrant B | 3,394,875 | 504,407 |
| Events in quadrant C | 3,133,956 | 488,780 |
| Events in quadrant D | 3,449,521 | 461,423 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13951 | 77 |
| B | 0 | 14678 | 66 |
| C | 0 | 14003 | 61 |
| D | 0 | 15256 | 124 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 2 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6764 | 48 | 0.709639% |
| B | 6769 | 97 | 1.433003% |
| C | 6772 | 61 | 0.900768% |
| D | 6752 | 117 | 1.732820% |

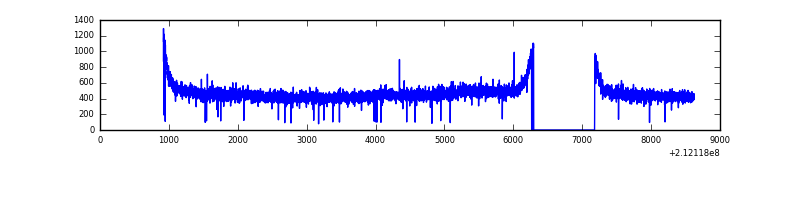

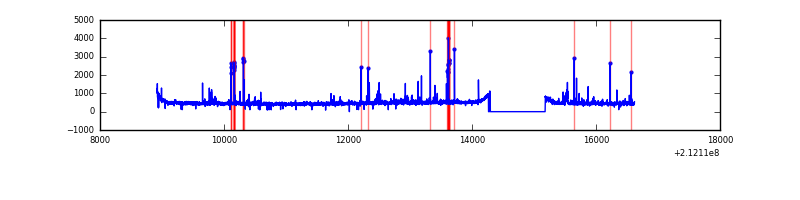

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7700 | 6800 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7700 | 6801 | 34 | 34 | 0.44% | 0.50% |  |
| C | 7700 | 6802 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7701 | 6802 | 68 | 68 | 0.88% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 18802 | 110.77 | 787 | 769 | 162.8 |
| A | 15 | 236 | 16784 | 98.37 | 787 | 769 | 162.8 |
| A | 0 | 226 | 7748 | 42.87 | 787 | 769 | 162.8 |
| B | 10 | 16 | 194452 | 1263.84 | 798 | 779 | 153.2 |
| B | 4 | 80 | 41067 | 262.9 | 798 | 779 | 153.2 |
| B | 4 | 48 | 38930 | 248.96 | 798 | 779 | 153.2 |
| C | 1 | 16 | 93251 | 511.01 | 779 | 782 | 181.0 |
| C | 13 | 61 | 6222 | 30.06 | 779 | 782 | 181.0 |
| C | 12 | 4 | 2463 | 9.29 | 779 | 782 | 181.0 |
| D | 2 | 14 | 233061 | 1229.91 | 769 | 747 | 188.9 |
| D | 2 | 136 | 148579 | 782.65 | 769 | 747 | 188.9 |
| D | 2 | 234 | 67921 | 355.63 | 769 | 747 | 188.9 |

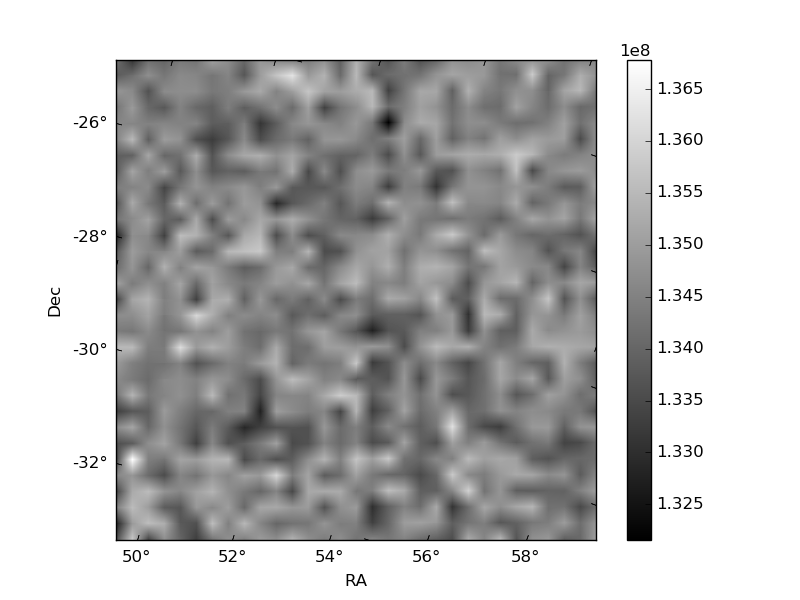

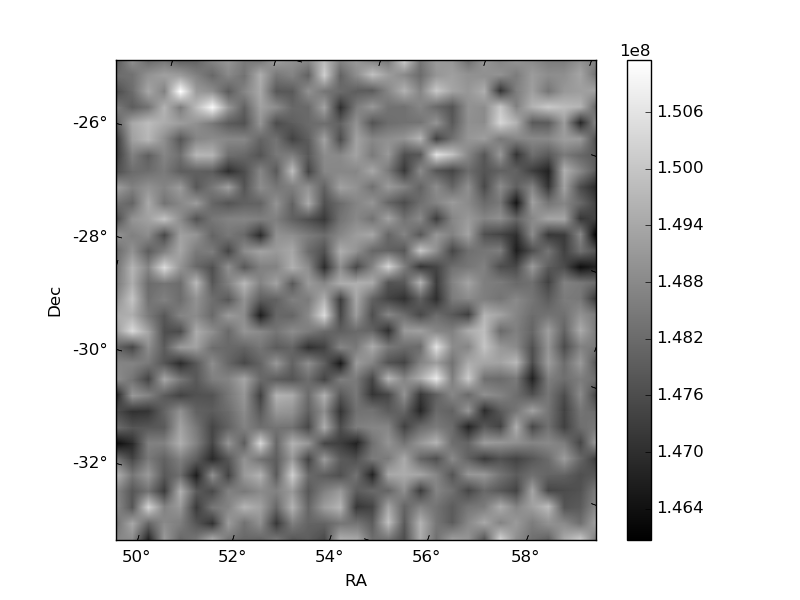

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

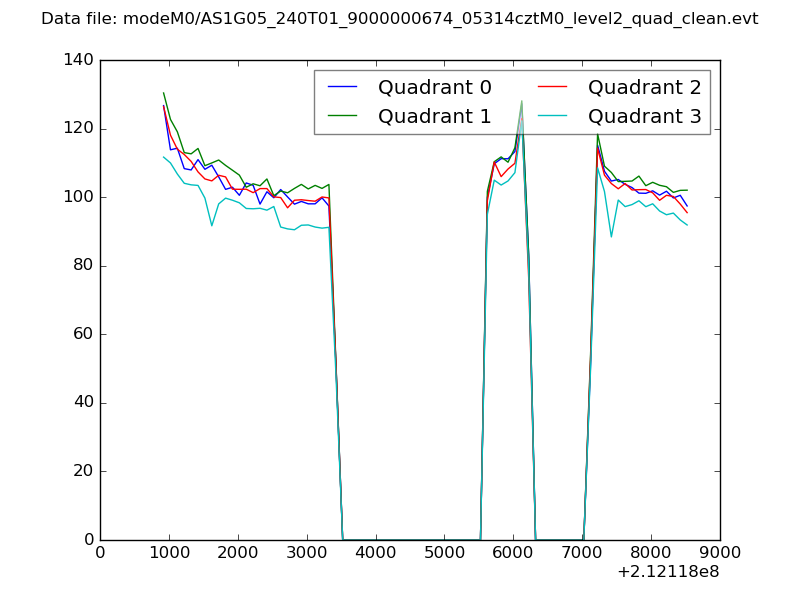

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

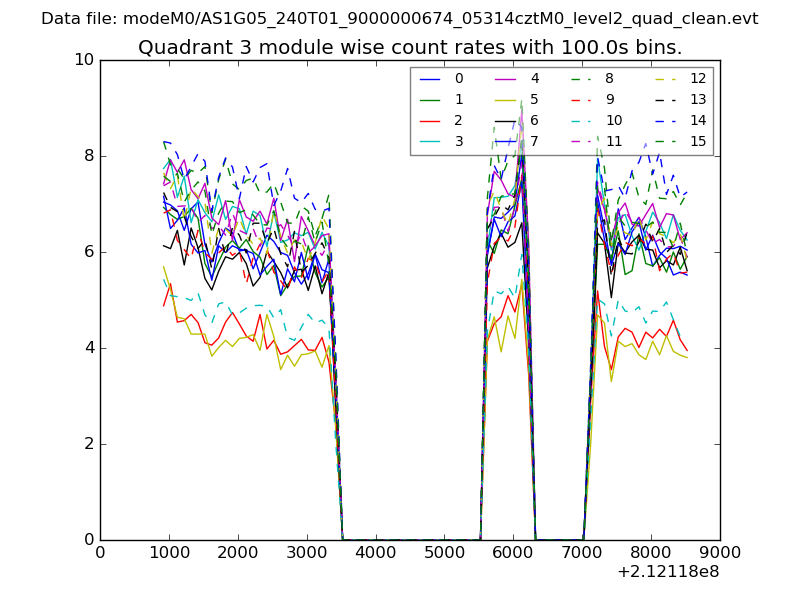

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

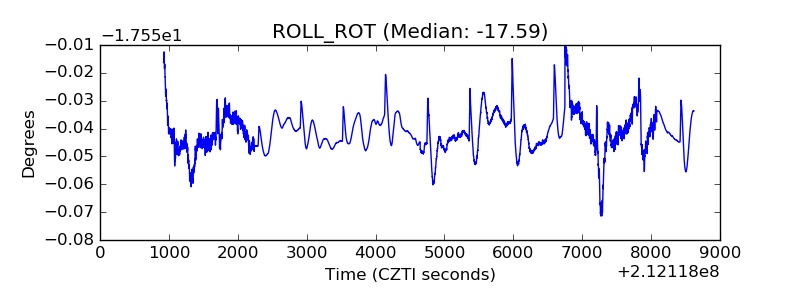

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

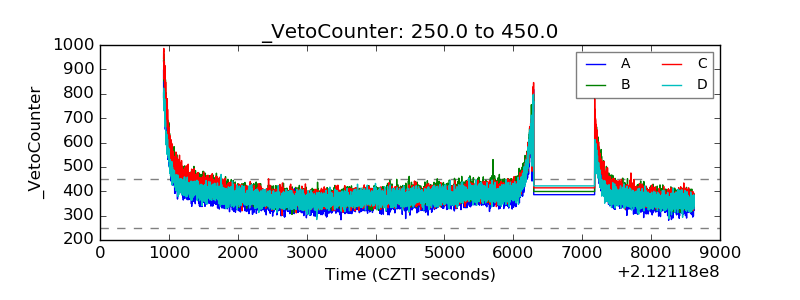

| Veto Counter |  |
