| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000674_05338cztM0_level2.evt | modeM0/AS1G05_240T01_9000000674_05338cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,683,520 | 72,973,440 |
| Size | 441.2 MB | 69.6 MB |
| Events in quadrant A | 3,119,358 | 449,491 |
| Events in quadrant B | 3,439,629 | 458,490 |
| Events in quadrant C | 4,051,862 | 438,675 |
| Events in quadrant D | 2,974,407 | 424,024 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13556 | 16 |
| B | 0 | 14558 | 47 |
| C | 0 | 16259 | 56 |
| D | 0 | 13423 | 16 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6293 | 100 | 1.589067% |
| B | 6285 | 173 | 2.752586% |
| C | 6281 | 79 | 1.257762% |
| D | 6292 | 59 | 0.937699% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7464 | 6299 | 45 | 45 | 0.60% | 0.71% |  |
| B | 7464 | 6298 | 70 | 70 | 0.94% | 1.11% |  |
| C | 7464 | 6298 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7464 | 6299 | 18 | 18 | 0.24% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 187185 | 1211.46 | 754 | 739 | 153.9 |
| A | 13 | 251 | 29089 | 184.21 | 754 | 739 | 153.9 |
| A | 12 | 194 | 7354 | 42.98 | 754 | 739 | 153.9 |
| B | 10 | 16 | 391911 | 2679.68 | 762 | 745 | 146.0 |
| B | 4 | 48 | 49441 | 333.59 | 762 | 745 | 146.0 |
| B | 15 | 204 | 15275 | 99.54 | 762 | 745 | 146.0 |
| C | 1 | 16 | 1181635 | 6979.79 | 728 | 734 | 169.2 |
| C | 15 | 1 | 12963 | 72.28 | 728 | 734 | 169.2 |
| C | 14 | 67 | 11025 | 60.83 | 728 | 734 | 169.2 |
| D | 4 | 95 | 126287 | 704.02 | 728 | 708 | 178.4 |
| D | 8 | 195 | 29046 | 158.87 | 728 | 708 | 178.4 |
| D | 2 | 63 | 27356 | 149.39 | 728 | 708 | 178.4 |

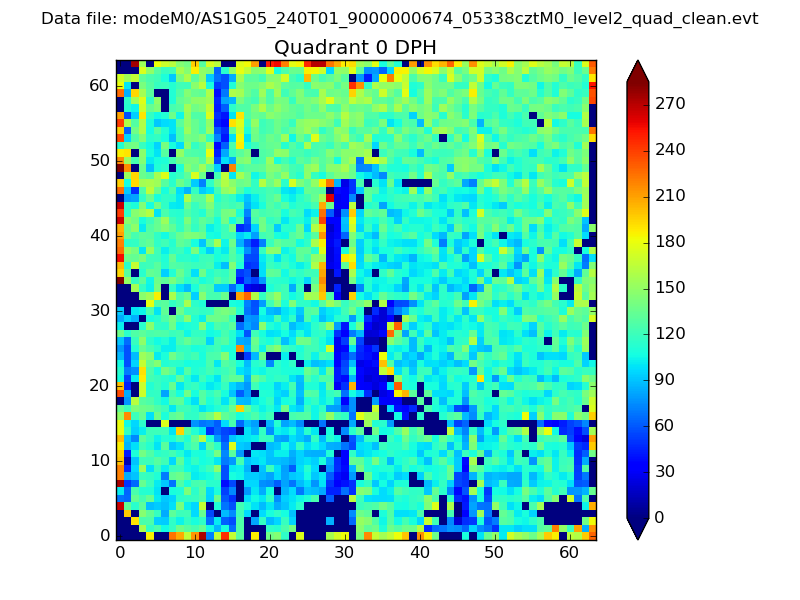

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

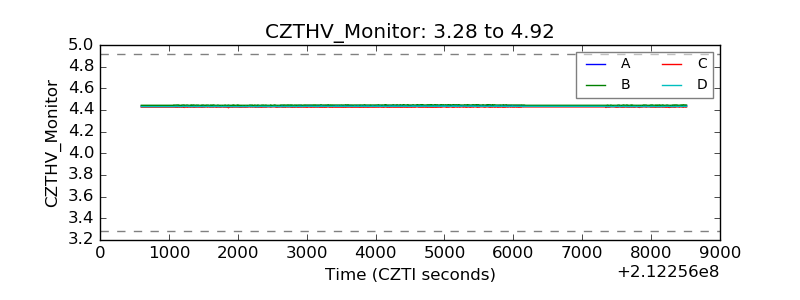

| CZT HV Monitor |  |
| D_VDD |  |

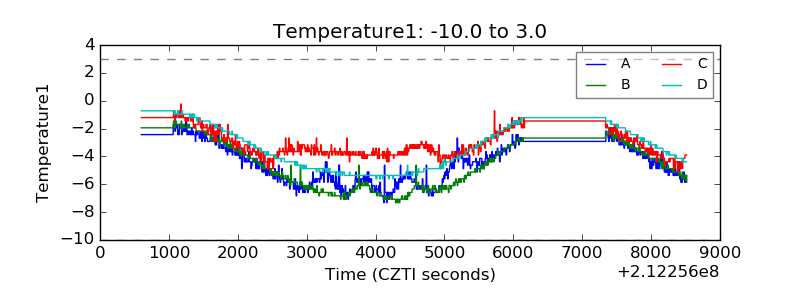

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
