| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_106T01_9000000678_05352cztM0_level2.evt | modeM0/AS1G05_106T01_9000000678_05352cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,161,920 | 69,563,520 |
| Size | 411.2 MB | 66.3 MB |
| Events in quadrant A | 2,820,873 | 431,881 |
| Events in quadrant B | 3,560,634 | 423,918 |
| Events in quadrant C | 2,739,446 | 426,363 |
| Events in quadrant D | 3,521,131 | 397,167 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12686 | 4 |
| B | 0 | 14756 | 4 |
| C | 0 | 12536 | 1 |
| D | 0 | 14521 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6107 | 27 | 0.442116% |
| B | 6107 | 112 | 1.833961% |
| C | 6108 | 6 | 0.098232% |
| D | 6107 | 167 | 2.734567% |

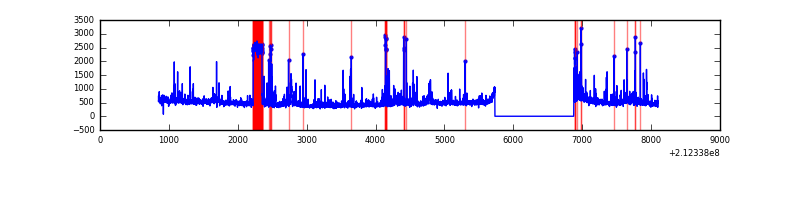

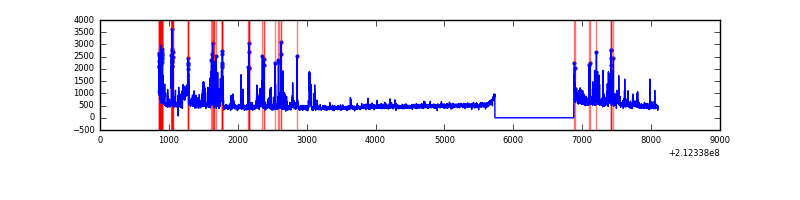

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

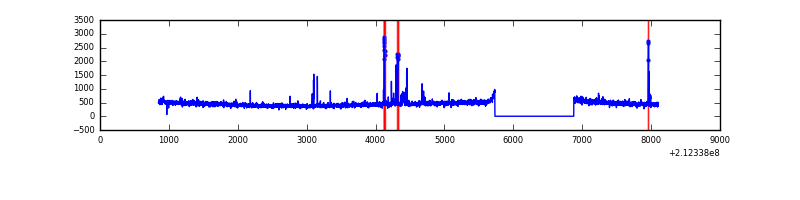

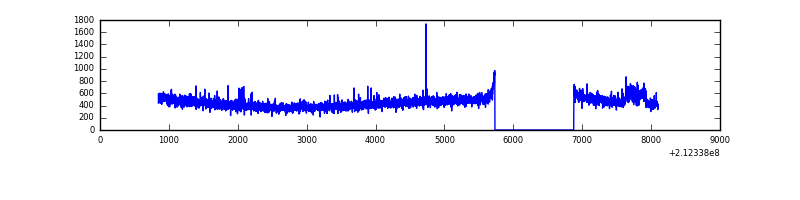

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7253 | 6109 | 18 | 18 | 0.25% | 0.29% |  |
| B | 7253 | 6108 | 76 | 76 | 1.05% | 1.24% |  |
| C | 7253 | 6109 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7253 | 6109 | 161 | 161 | 2.22% | 2.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 67962 | 463.32 | 702 | 685 | 145.2 |
| A | 0 | 50 | 48061 | 326.27 | 702 | 685 | 145.2 |
| A | 12 | 194 | 6959 | 43.21 | 702 | 685 | 145.2 |
| B | 14 | 167 | 333899 | 2439.32 | 707 | 689 | 136.6 |
| B | 10 | 16 | 213822 | 1560.28 | 707 | 689 | 136.6 |
| B | 0 | 199 | 76661 | 556.17 | 707 | 689 | 136.6 |
| C | 1 | 16 | 82230 | 514.85 | 677 | 682 | 158.4 |
| C | 15 | 1 | 10411 | 61.42 | 677 | 682 | 158.4 |
| C | 13 | 61 | 5523 | 30.56 | 677 | 682 | 158.4 |
| D | 2 | 16 | 502612 | 3011.34 | 666 | 645 | 166.7 |
| D | 2 | 63 | 198470 | 1186.77 | 666 | 645 | 166.7 |
| D | 4 | 95 | 100273 | 597.68 | 666 | 645 | 166.7 |

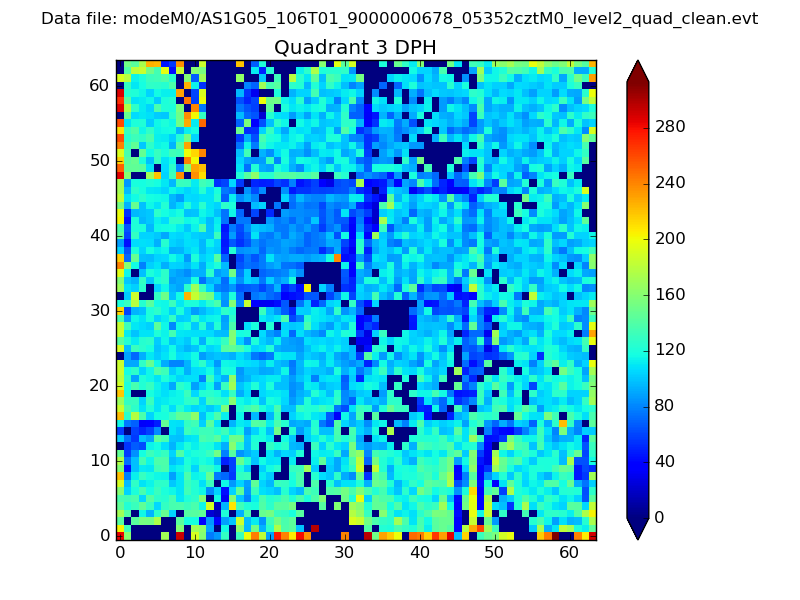

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

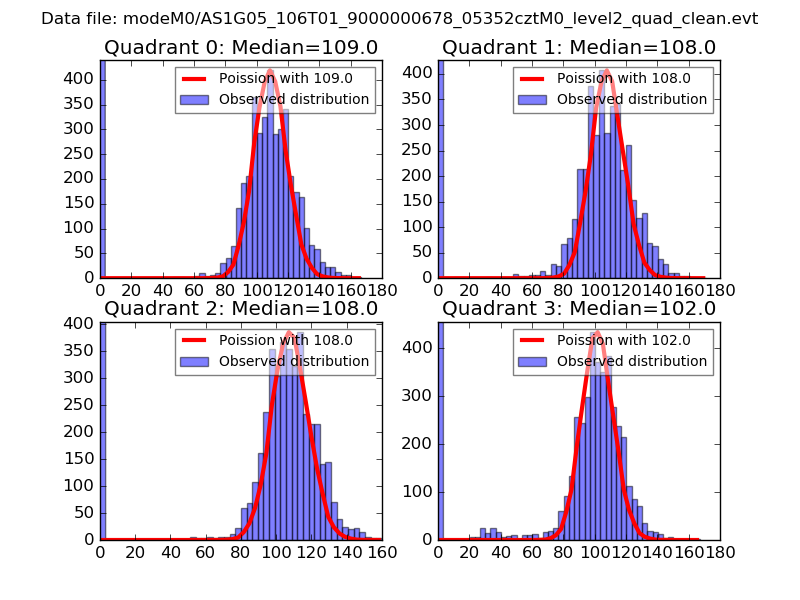

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

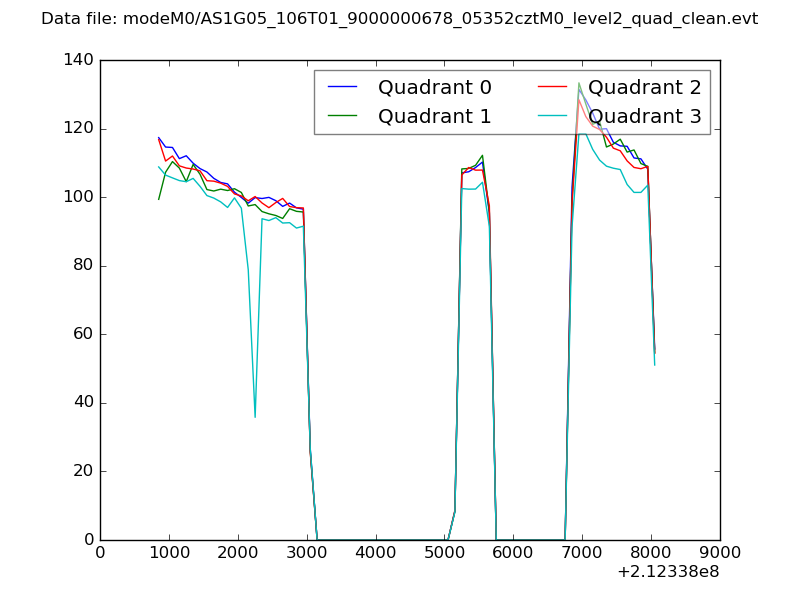

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

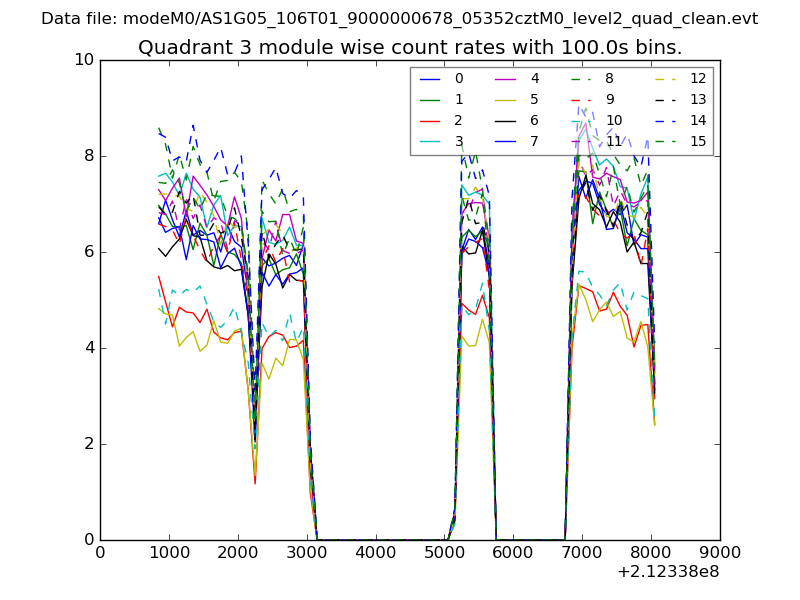

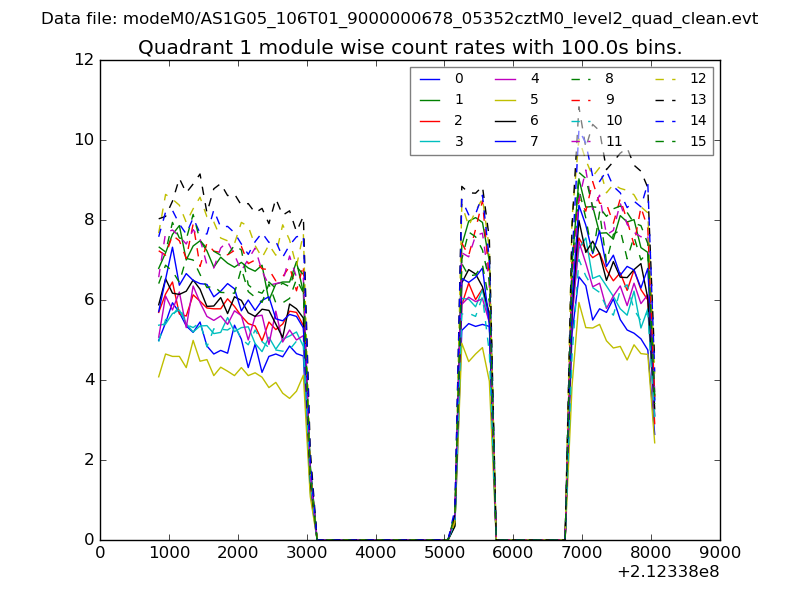

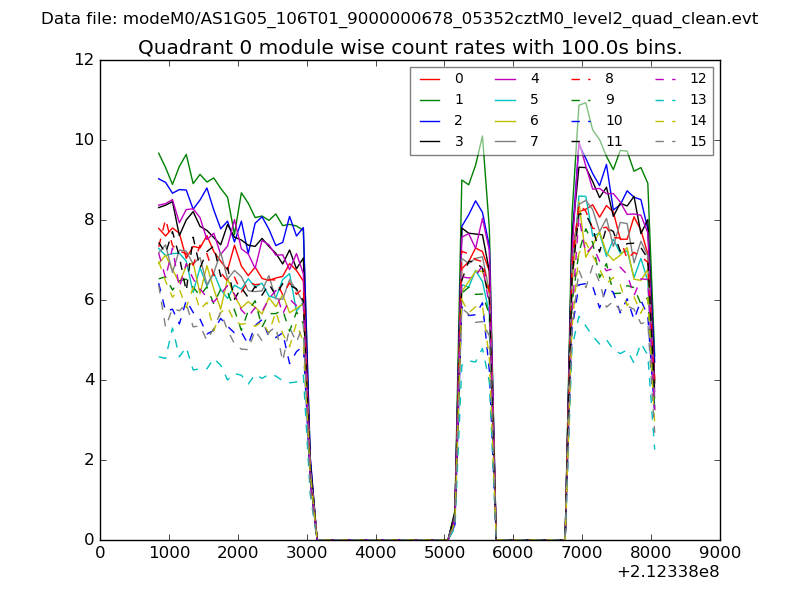

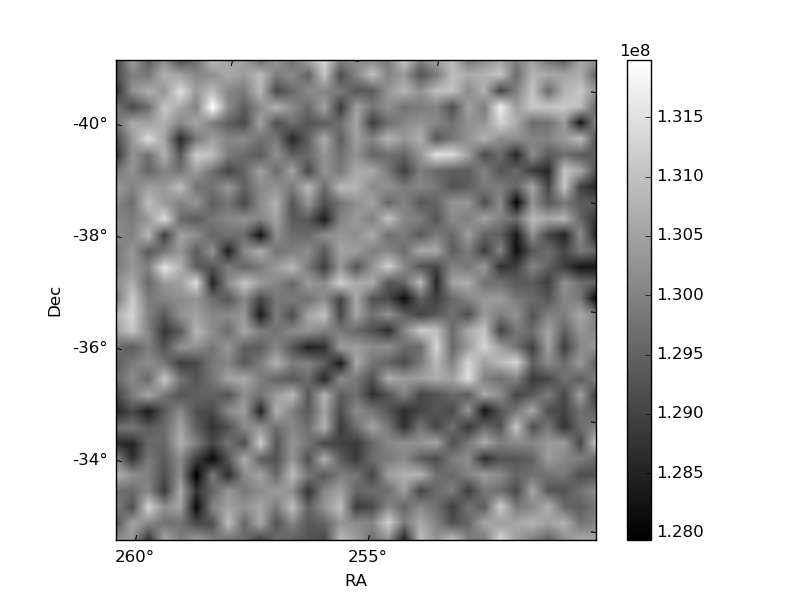

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

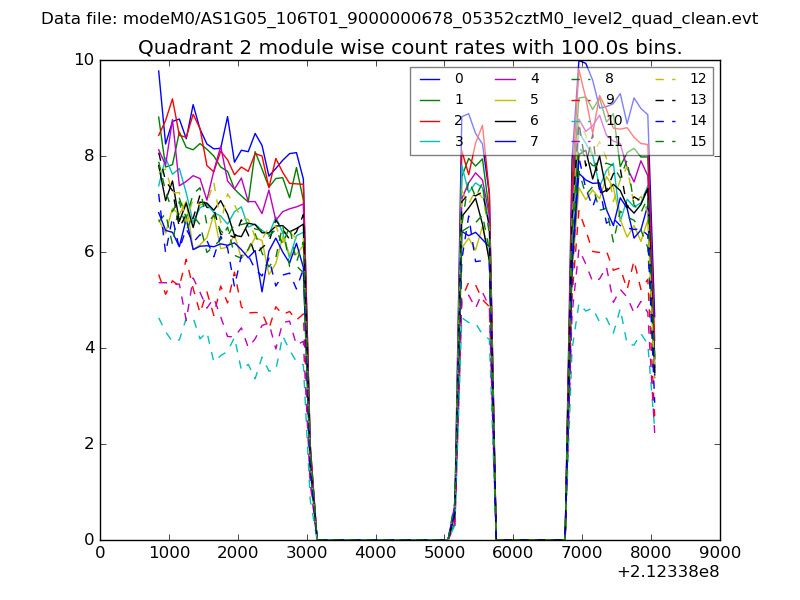

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

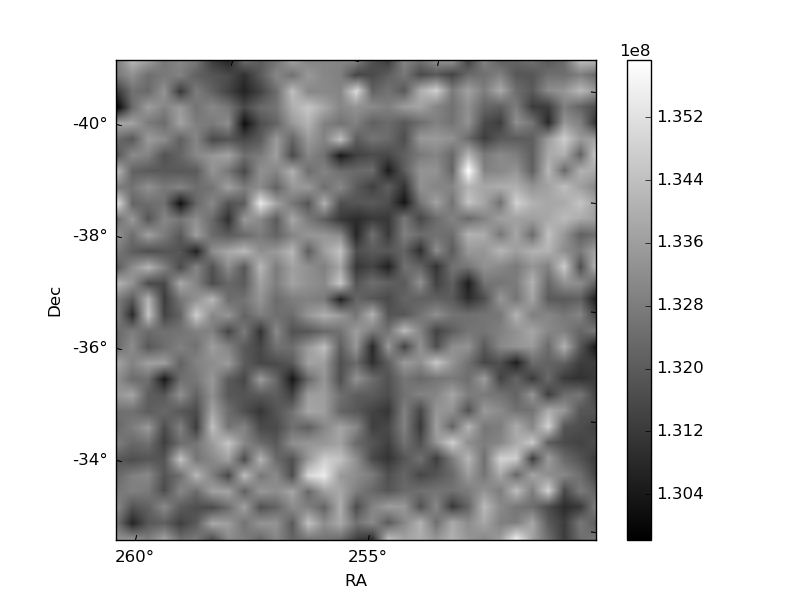

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

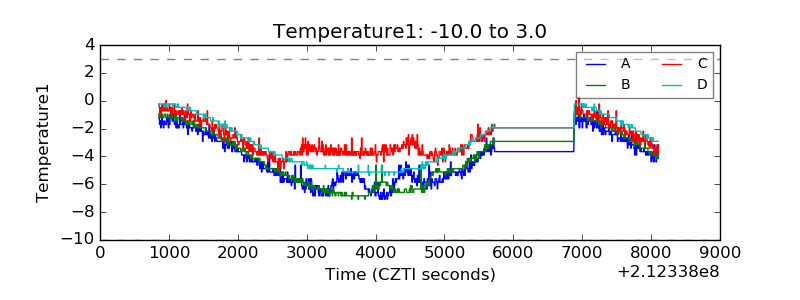

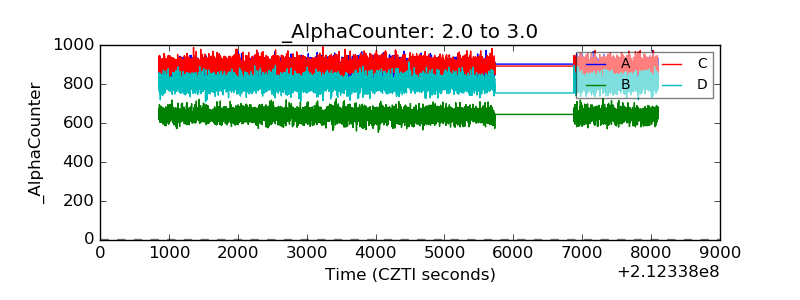

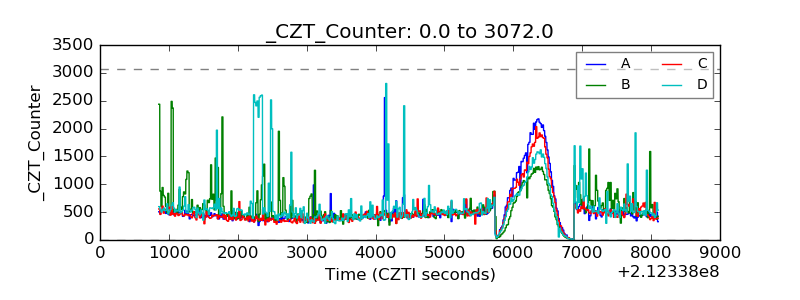

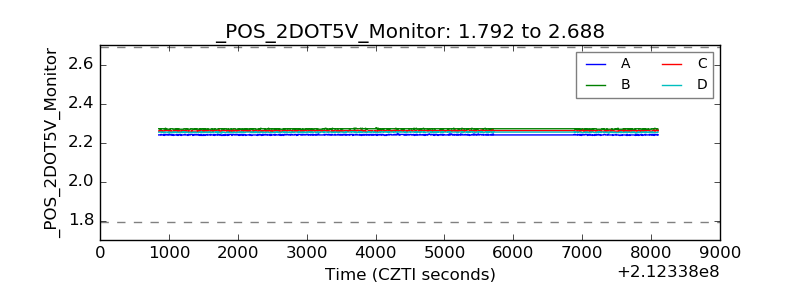

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

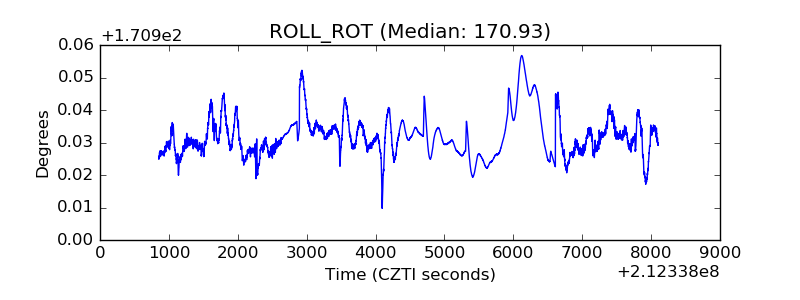

| _ROLL_ROT |  |

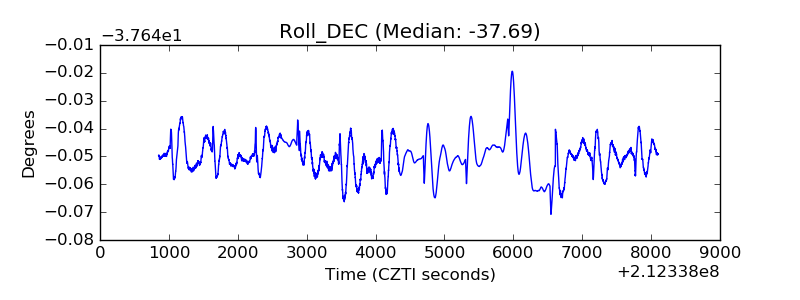

| _Roll_DEC |  |

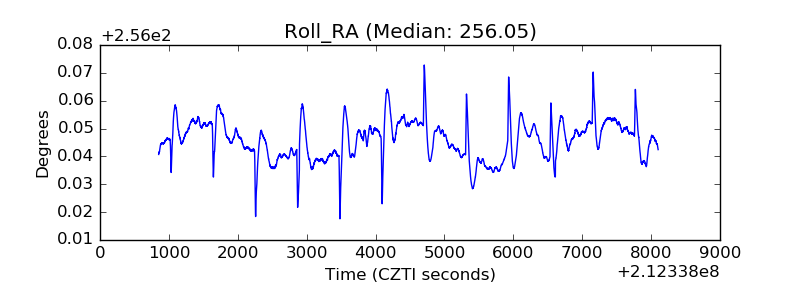

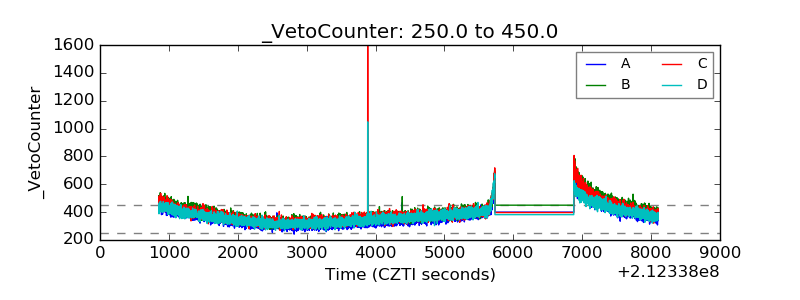

| _Roll_RA |  |
| Veto Counter |  |
