| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_106T01_9000000678_05354cztM0_level2.evt | modeM0/AS1G05_106T01_9000000678_05354cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,537,280 | 76,458,240 |
| Size | 448.7 MB | 72.9 MB |
| Events in quadrant A | 3,055,079 | 481,732 |
| Events in quadrant B | 3,507,719 | 489,785 |
| Events in quadrant C | 3,078,227 | 480,336 |
| Events in quadrant D | 4,185,426 | 427,763 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13230 | 3 |
| B | 0 | 14448 | 2 |
| C | 0 | 13249 | 2 |
| D | 0 | 16955 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6240 | 68 | 1.089744% |
| B | 6240 | 60 | 0.961538% |
| C | 6240 | 19 | 0.304487% |
| D | 6240 | 544 | 8.717949% |

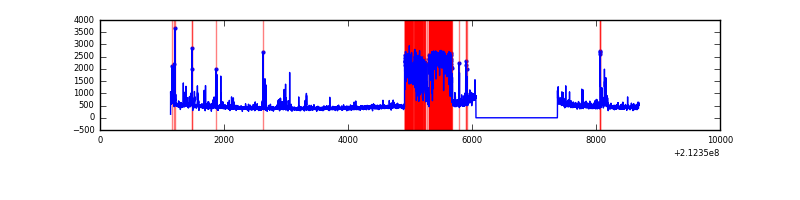

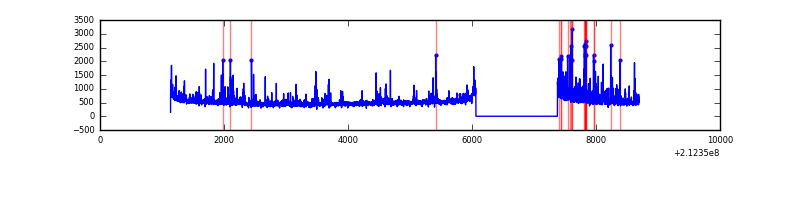

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7555 | 6241 | 21 | 21 | 0.28% | 0.34% |  |
| B | 7555 | 6240 | 24 | 24 | 0.32% | 0.38% |  |
| C | 7555 | 6241 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7555 | 6241 | 480 | 480 | 6.35% | 7.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 84224 | 547.5 | 751 | 736 | 152.5 |
| A | 0 | 50 | 81732 | 531.16 | 751 | 736 | 152.5 |
| A | 0 | 226 | 7606 | 45.05 | 751 | 736 | 152.5 |
| B | 10 | 16 | 211053 | 1439.33 | 768 | 752 | 146.1 |
| B | 4 | 81 | 95712 | 649.92 | 768 | 752 | 146.1 |
| B | 4 | 80 | 81895 | 555.35 | 768 | 752 | 146.1 |
| C | 1 | 16 | 210856 | 1243.47 | 730 | 734 | 169.0 |
| C | 14 | 67 | 19497 | 111.04 | 730 | 734 | 169.0 |
| C | 13 | 61 | 5991 | 31.11 | 730 | 734 | 169.0 |
| D | 2 | 16 | 1278231 | 7374.98 | 698 | 676 | 173.2 |
| D | 2 | 136 | 67540 | 385.99 | 698 | 676 | 173.2 |
| D | 4 | 95 | 59680 | 340.61 | 698 | 676 | 173.2 |

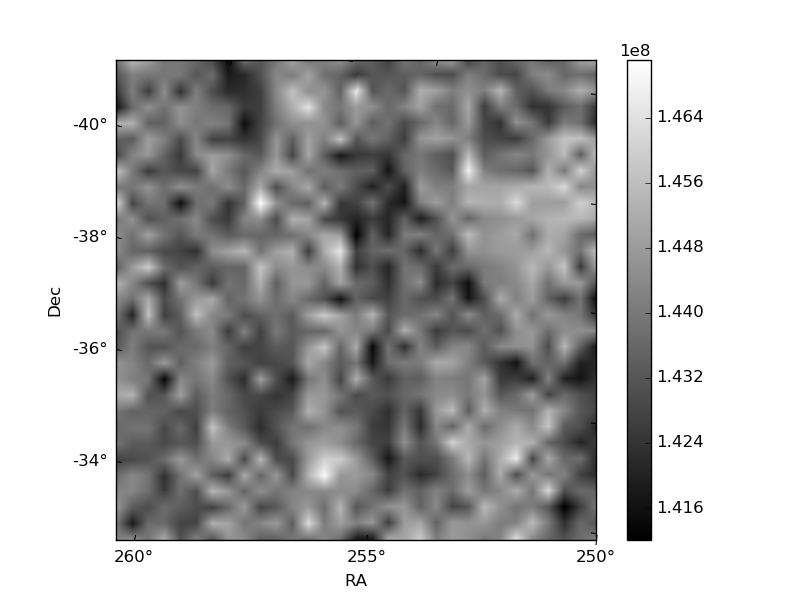

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

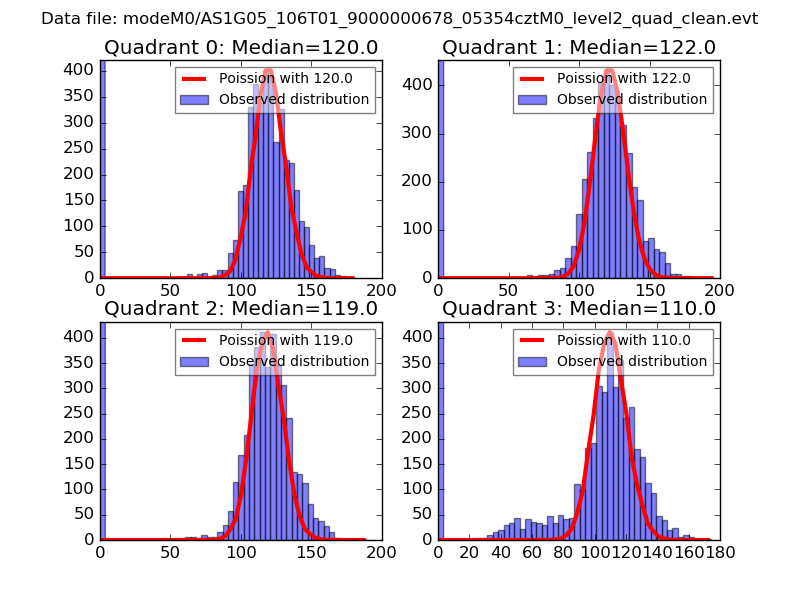

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

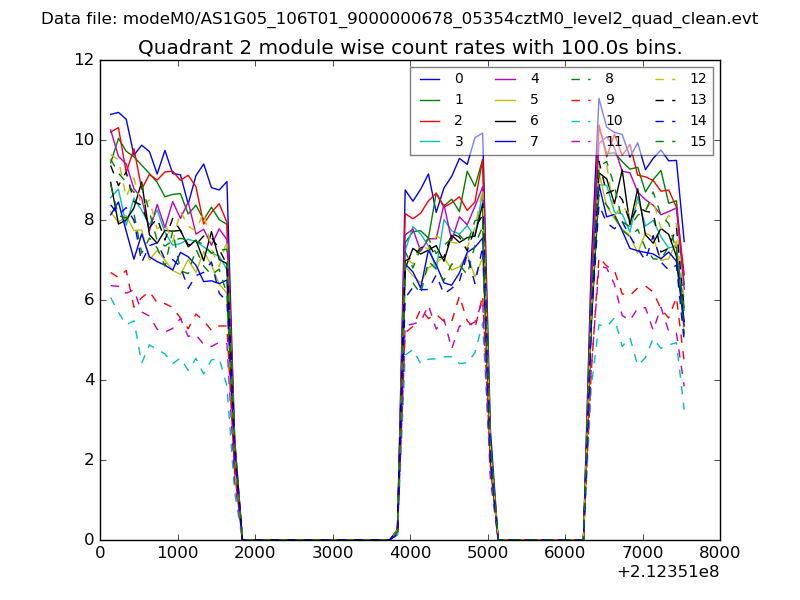

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

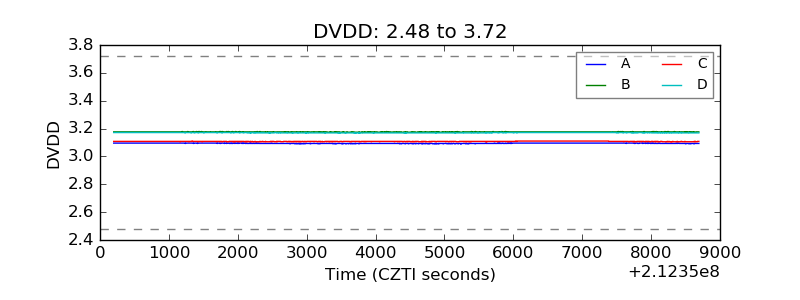

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

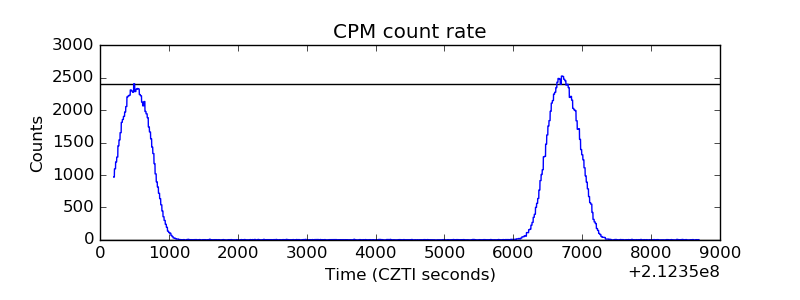

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

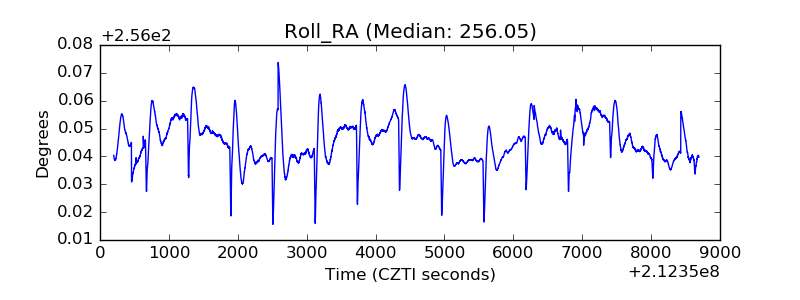

| _Roll_RA |  |
| Veto Counter |  |
