| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_106T01_9000000678_05363cztM0_level2.evt | modeM0/AS1G05_106T01_9000000678_05363cztM0_level2_quad_clean.evt |
| Size (bytes) | 828,910,080 | 145,342,080 |
| Size | 790.5 MB | 138.6 MB |
| Events in quadrant A | 6,044,471 | 899,540 |
| Events in quadrant B | 6,614,567 | 893,312 |
| Events in quadrant C | 5,461,568 | 901,062 |
| Events in quadrant D | 6,152,445 | 860,194 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 250 | 0 |
| B | 0 | 250 | 0 |
| C | 0 | 250 | 2 |
| D | 0 | 250 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26691 | 110 |
| B | 0 | 27708 | 72 |
| C | 0 | 25050 | 100 |
| D | 0 | 26540 | 84 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 1 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12251 | 232 | 1.893723% |
| B | 12269 | 229 | 1.866493% |
| C | 12256 | 82 | 0.669060% |
| D | 12263 | 139 | 1.133491% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13491 | 12285 | 111 | 111 | 0.82% | 0.90% |  |
| B | 13491 | 12291 | 102 | 102 | 0.76% | 0.83% |  |
| C | 13491 | 12292 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13491 | 12293 | 47 | 47 | 0.35% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 472383 | 1635.81 | 1405 | 1373 | 287.9 |
| A | 15 | 174 | 160853 | 553.87 | 1405 | 1373 | 287.9 |
| A | 12 | 194 | 13846 | 43.32 | 1405 | 1373 | 287.9 |
| B | 10 | 16 | 432326 | 1582.29 | 1419 | 1386 | 272.4 |
| B | 4 | 80 | 270194 | 986.98 | 1419 | 1386 | 272.4 |
| B | 15 | 204 | 127592 | 463.39 | 1419 | 1386 | 272.4 |
| C | 1 | 16 | 116437 | 365.77 | 1366 | 1372 | 314.6 |
| C | 13 | 61 | 11269 | 31.46 | 1366 | 1372 | 314.6 |
| C | 12 | 4 | 9635 | 26.27 | 1366 | 1372 | 314.6 |
| D | 8 | 195 | 299888 | 891.04 | 1367 | 1327 | 335.1 |
| D | 12 | 233 | 140295 | 414.74 | 1367 | 1327 | 335.1 |
| D | 4 | 95 | 115726 | 341.42 | 1367 | 1327 | 335.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

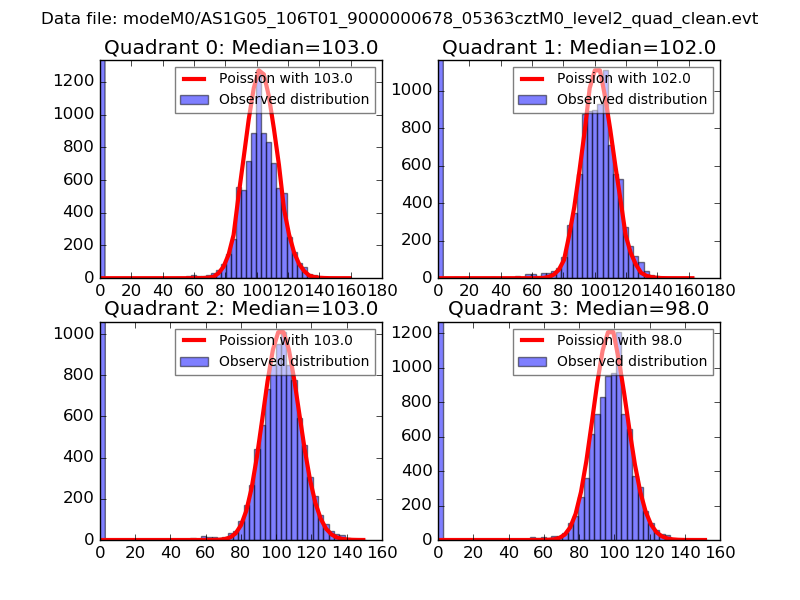

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

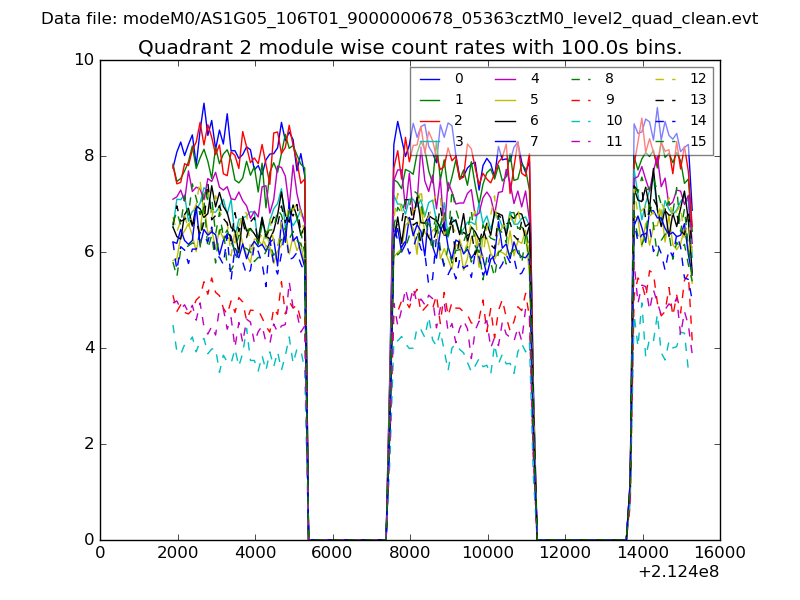

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

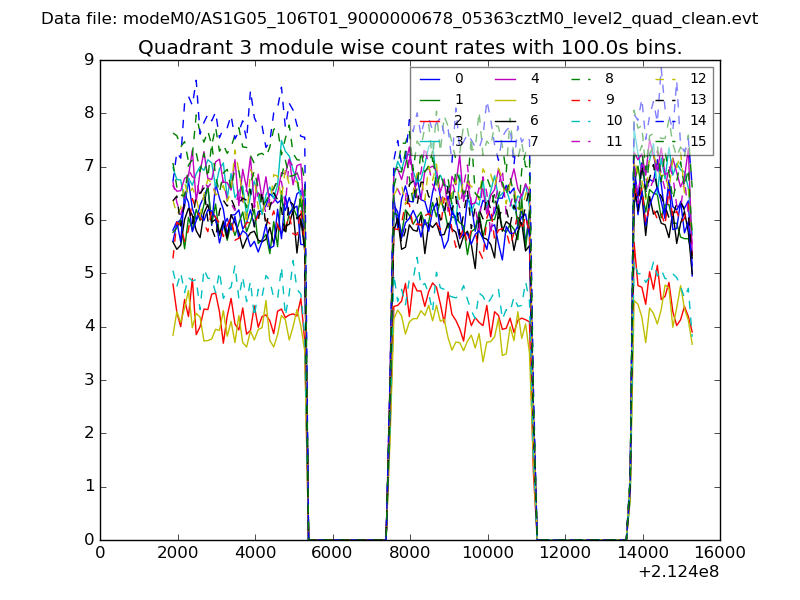

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

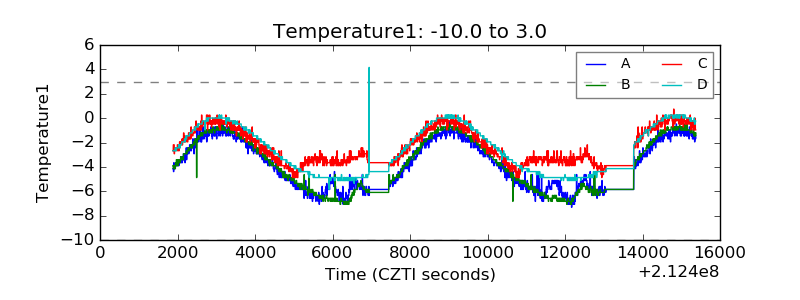

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

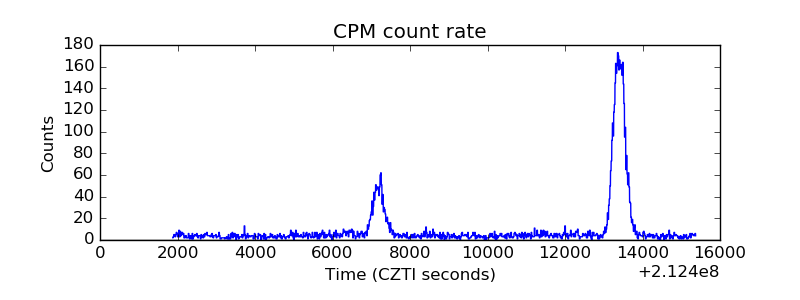

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
