| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_106T01_9000000678_05365cztM0_level2.evt | modeM0/AS1G05_106T01_9000000678_05365cztM0_level2_quad_clean.evt |
| Size (bytes) | 391,236,480 | 63,976,320 |
| Size | 373.1 MB | 61.0 MB |
| Events in quadrant A | 2,803,679 | 384,190 |
| Events in quadrant B | 3,035,691 | 387,023 |
| Events in quadrant C | 2,704,226 | 387,188 |
| Events in quadrant D | 2,909,466 | 372,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12437 | 8 |
| B | 0 | 12932 | 17 |
| C | 0 | 12148 | 7 |
| D | 0 | 12820 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5808 | 103 | 1.773416% |
| B | 5805 | 63 | 1.085271% |
| C | 5808 | 13 | 0.223829% |
| D | 5809 | 64 | 1.101739% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6866 | 5811 | 59 | 59 | 0.86% | 1.02% |  |
| B | 6866 | 5811 | 21 | 21 | 0.31% | 0.36% |  |
| C | 6866 | 5812 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6866 | 5812 | 42 | 42 | 0.61% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 241353 | 1762.26 | 659 | 644 | 136.6 |
| A | 14 | 111 | 24207 | 172.51 | 659 | 644 | 136.6 |
| A | 12 | 194 | 6532 | 43.11 | 659 | 644 | 136.6 |
| B | 11 | 51 | 164747 | 1268.17 | 671 | 658 | 129.4 |
| B | 4 | 80 | 63285 | 484.01 | 671 | 658 | 129.4 |
| B | 4 | 81 | 49236 | 375.44 | 671 | 658 | 129.4 |
| C | 1 | 16 | 180700 | 1207.22 | 640 | 643 | 149.2 |
| C | 8 | 128 | 9767 | 61.17 | 640 | 643 | 149.2 |
| C | 8 | 112 | 5633 | 33.46 | 640 | 643 | 149.2 |
| D | 8 | 195 | 102665 | 648.93 | 638 | 619 | 157.3 |
| D | 2 | 136 | 77989 | 492.01 | 638 | 619 | 157.3 |
| D | 12 | 233 | 77119 | 486.48 | 638 | 619 | 157.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

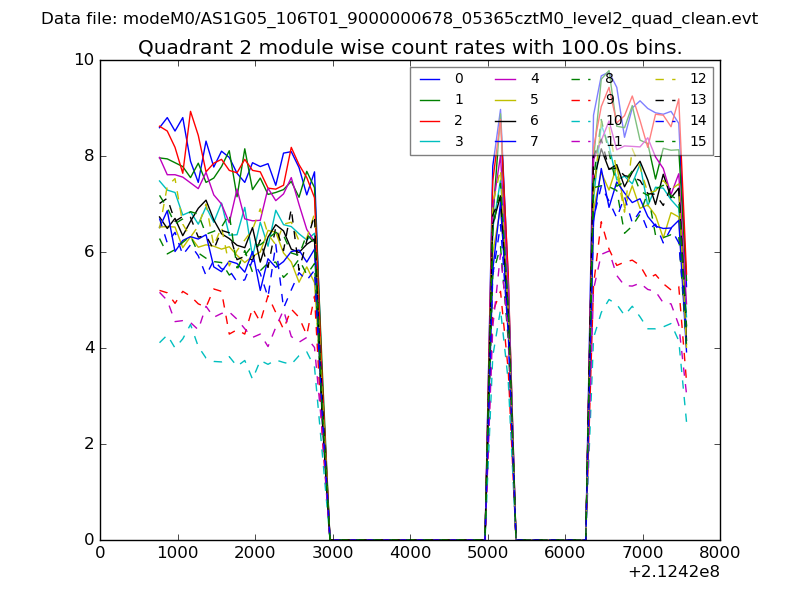

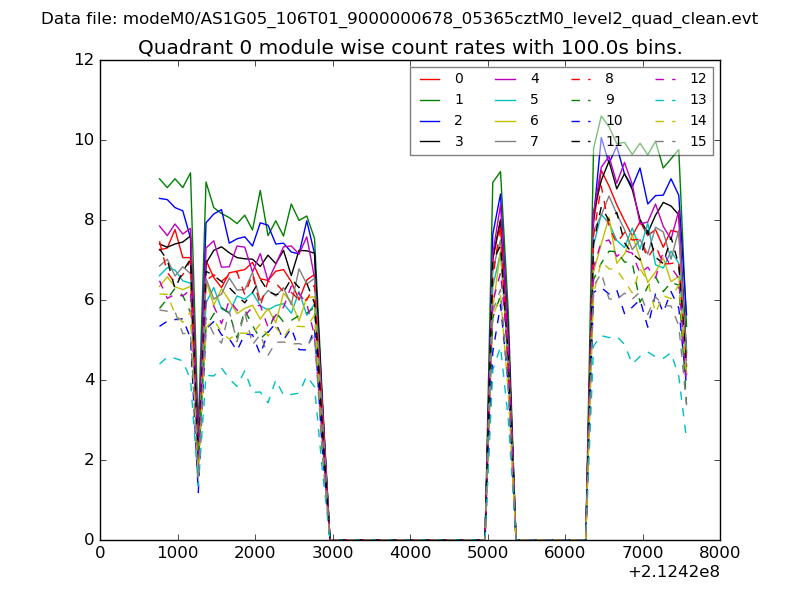

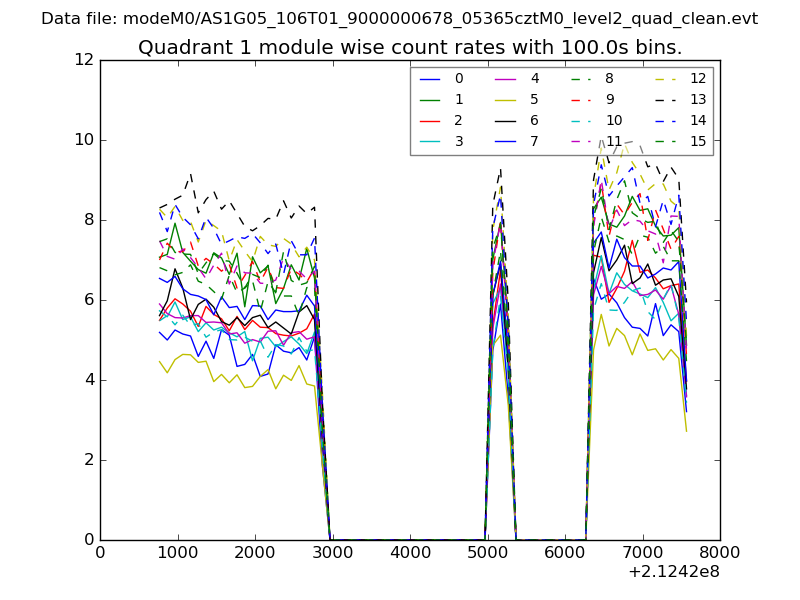

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

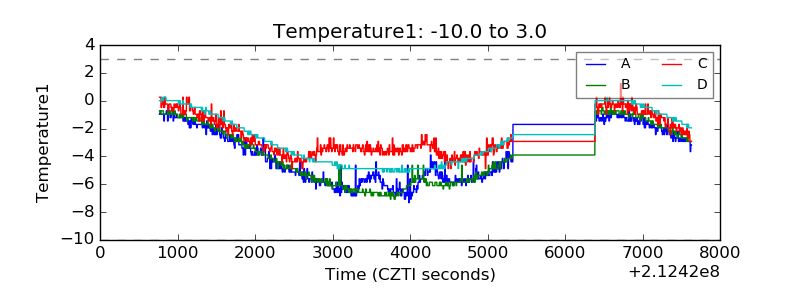

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

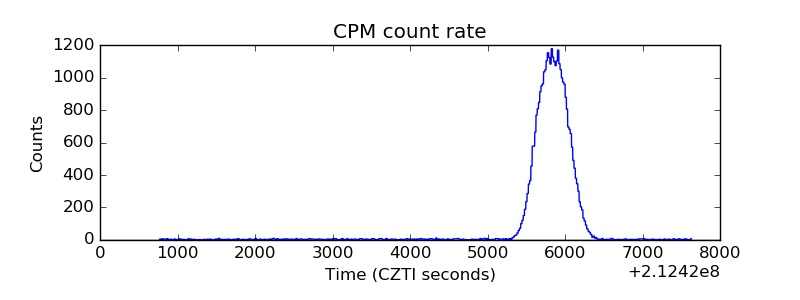

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

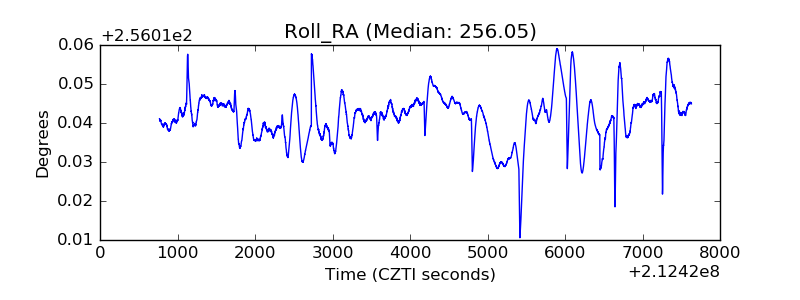

| _Roll_RA |  |

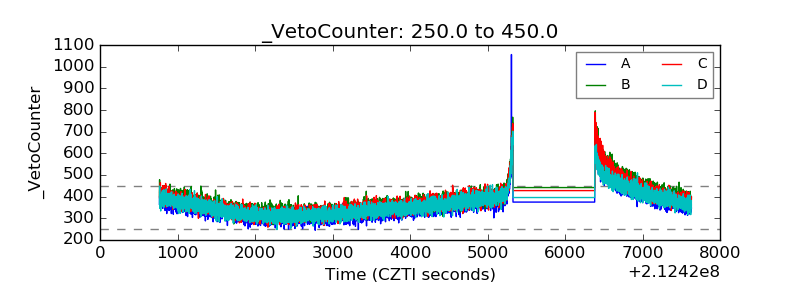

| Veto Counter |  |
