| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_021T02_9000000680_05367cztM0_level2.evt | modeM0/AS1G05_021T02_9000000680_05367cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,872,960 | 37,653,120 |
| Size | 270.7 MB | 35.9 MB |
| Events in quadrant A | 1,970,379 | 216,076 |
| Events in quadrant B | 2,041,264 | 222,296 |
| Events in quadrant C | 1,970,595 | 217,326 |
| Events in quadrant D | 2,340,403 | 200,406 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8572 | 2 |
| B | 0 | 8695 | 1 |
| C | 0 | 8559 | 1 |
| D | 0 | 9760 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4019 | 52 | 1.293854% |
| B | 4019 | 53 | 1.318736% |
| C | 4019 | 35 | 0.870863% |
| D | 4019 | 120 | 2.985817% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5189 | 4019 | 1 | 1 | 0.02% | 0.02% |  |
| B | 5189 | 4019 | 15 | 15 | 0.29% | 0.37% |  |
| C | 5189 | 4019 | 8 | 8 | 0.15% | 0.20% |  |
| D | 5189 | 4020 | 83 | 83 | 1.60% | 2.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 72420 | 716.96 | 483 | 473 | 100.4 |
| A | 14 | 111 | 20253 | 197.11 | 483 | 473 | 100.4 |
| A | 15 | 174 | 15880 | 153.53 | 483 | 473 | 100.4 |
| B | 4 | 48 | 49005 | 505.43 | 491 | 479 | 96.0 |
| B | 15 | 204 | 23741 | 242.29 | 491 | 479 | 96.0 |
| B | 0 | 219 | 22972 | 234.28 | 491 | 479 | 96.0 |
| C | 1 | 16 | 70058 | 634.61 | 468 | 471 | 109.7 |
| C | 9 | 247 | 69689 | 631.24 | 468 | 471 | 109.7 |
| C | 13 | 61 | 3861 | 30.92 | 468 | 471 | 109.7 |
| D | 2 | 16 | 172930 | 1514.2 | 459 | 445 | 113.9 |
| D | 2 | 136 | 158009 | 1383.22 | 459 | 445 | 113.9 |
| D | 4 | 95 | 157338 | 1377.33 | 459 | 445 | 113.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

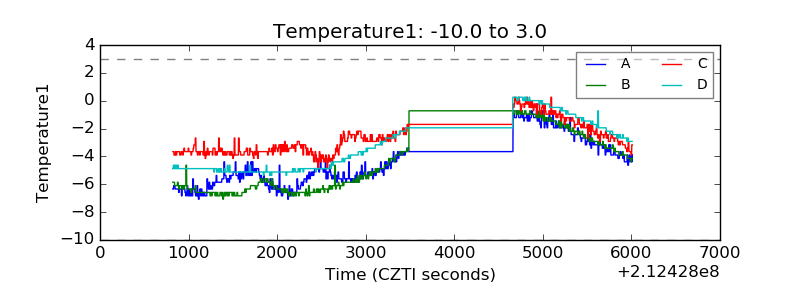

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

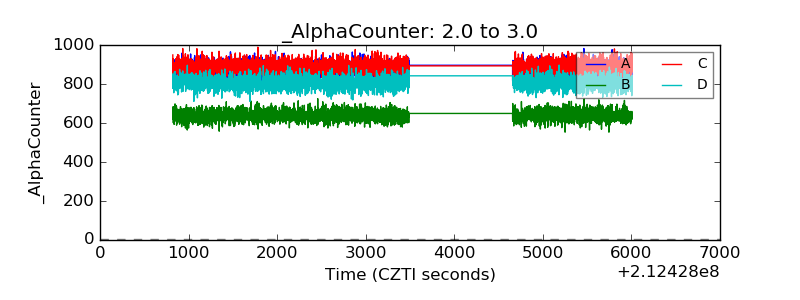

| Alpha Counter |  |

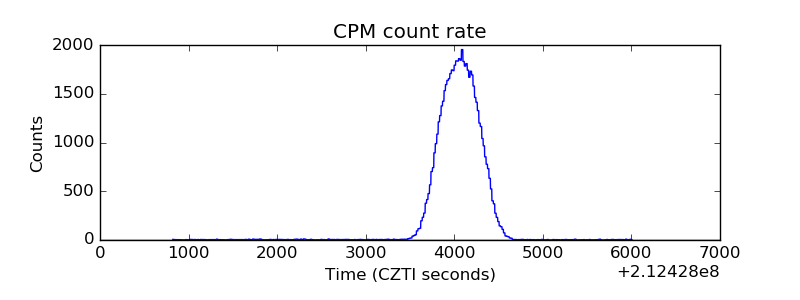

| _CPM_Rate |  |

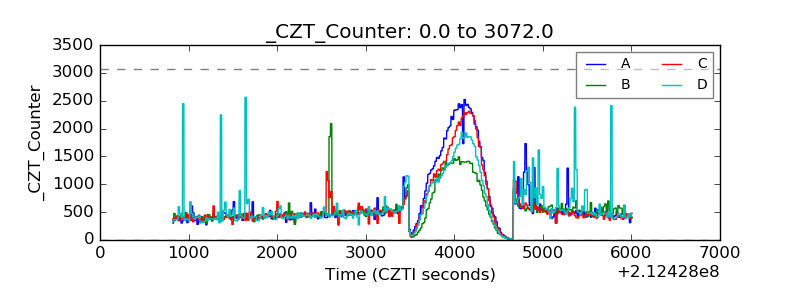

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
