| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000684_05382cztM0_level2.evt | modeM0/AS1G05_214T01_9000000684_05382cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,556,480 | 48,709,440 |
| Size | 514.6 MB | 46.5 MB |
| Events in quadrant A | 2,387,802 | 293,738 |
| Events in quadrant B | 2,459,184 | 298,133 |
| Events in quadrant C | 2,464,401 | 293,773 |
| Events in quadrant D | 8,704,021 | 250,777 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10446 | 2 |
| B | 0 | 10524 | 1 |
| C | 0 | 10621 | 1 |
| D | 0 | 29148 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4814 | 91 | 1.890320% |
| B | 4814 | 57 | 1.184047% |
| C | 4814 | 50 | 1.038637% |
| D | 4814 | 840 | 17.449107% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6014 | 4813 | 23 | 23 | 0.38% | 0.48% |  |
| B | 6014 | 4813 | 6 | 6 | 0.10% | 0.12% |  |
| C | 6014 | 4813 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6014 | 4813 | 1086 | 1086 | 18.06% | 22.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 129507 | 1101.15 | 572 | 559 | 117.1 |
| A | 15 | 174 | 25560 | 213.5 | 572 | 559 | 117.1 |
| A | 14 | 111 | 21499 | 178.82 | 572 | 559 | 117.1 |
| B | 4 | 80 | 61612 | 546.22 | 584 | 570 | 111.8 |
| B | 4 | 48 | 54180 | 479.72 | 584 | 570 | 111.8 |
| B | 15 | 204 | 30205 | 265.18 | 584 | 570 | 111.8 |
| C | 1 | 16 | 268004 | 2055.23 | 560 | 564 | 130.1 |
| C | 12 | 4 | 8388 | 60.13 | 560 | 564 | 130.1 |
| C | 13 | 61 | 4560 | 30.71 | 560 | 564 | 130.1 |
| D | 7 | 237 | 6179603 | 46484.11 | 536 | 521 | 132.9 |
| D | 2 | 234 | 154308 | 1156.91 | 536 | 521 | 132.9 |
| D | 11 | 18 | 136862 | 1025.67 | 536 | 521 | 132.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

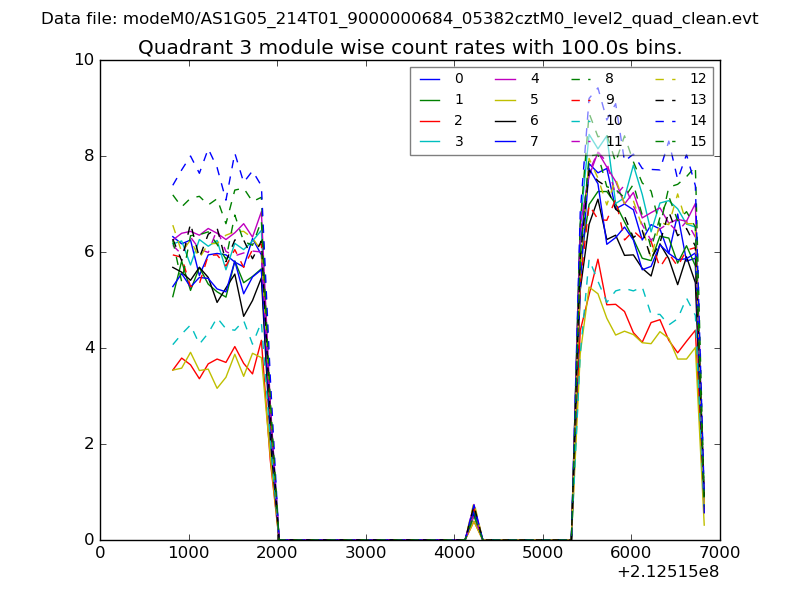

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

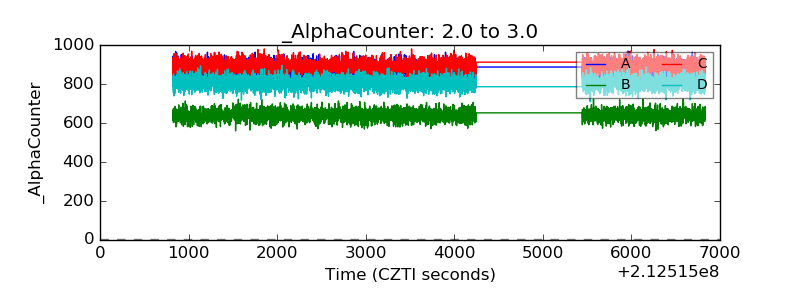

| Alpha Counter |  |
| _CPM_Rate |  |

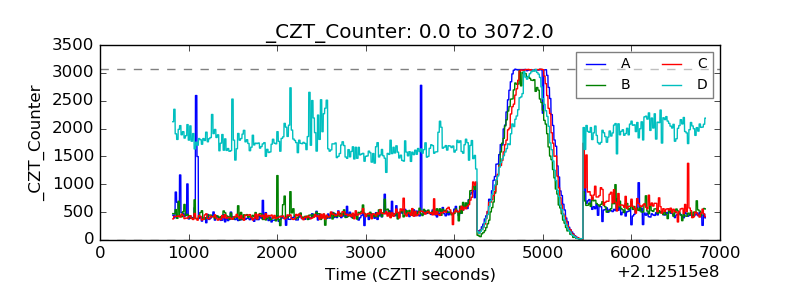

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

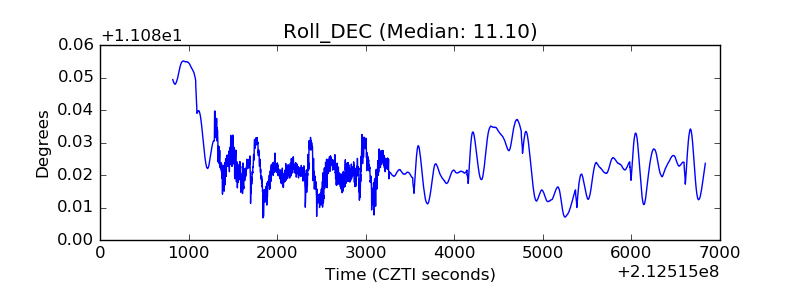

| _Roll_DEC |  |
| _Roll_RA |  |

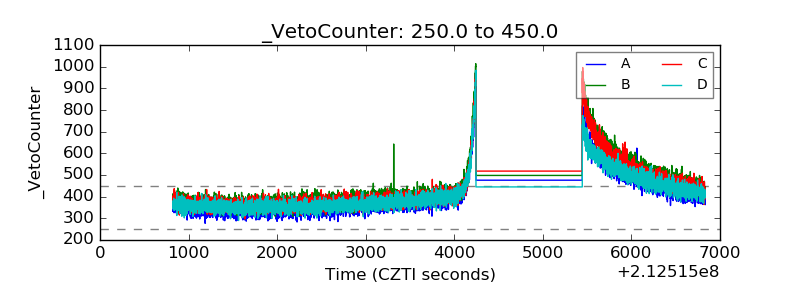

| Veto Counter |  |
