| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000684_05388cztM0_level2.evt | modeM0/AS1G05_214T01_9000000684_05388cztM0_level2_quad_clean.evt |
| Size (bytes) | 807,528,960 | 74,747,520 |
| Size | 770.1 MB | 71.3 MB |
| Events in quadrant A | 3,847,111 | 438,562 |
| Events in quadrant B | 3,914,443 | 441,320 |
| Events in quadrant C | 4,197,686 | 445,018 |
| Events in quadrant D | 11,956,767 | 380,764 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17114 | 3 |
| B | 0 | 16988 | 2 |
| C | 0 | 17533 | 2 |
| D | 0 | 41191 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8004 | 319 | 3.985507% |
| B | 8004 | 341 | 4.260370% |
| C | 8004 | 174 | 2.173913% |
| D | 8004 | 865 | 10.807096% |

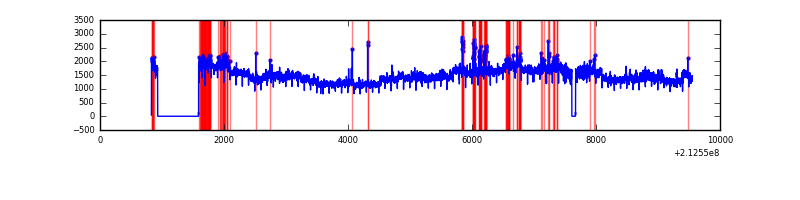

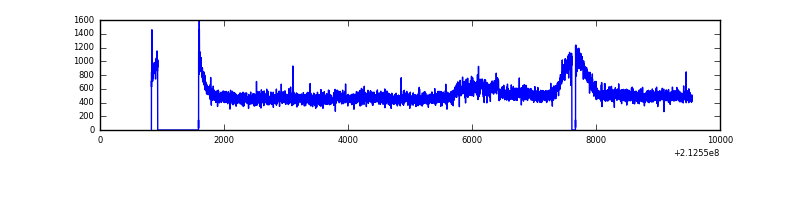

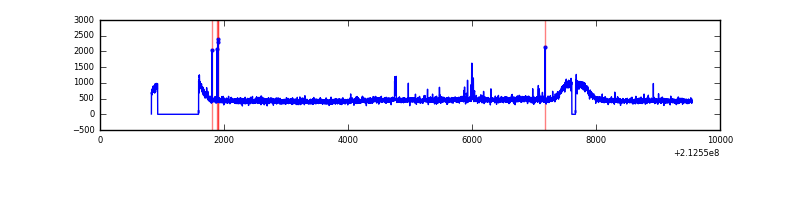

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8724 | 8006 | 5 | 5 | 0.06% | 0.06% |  |
| B | 8724 | 8006 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8724 | 8006 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8724 | 8006 | 203 | 203 | 2.33% | 2.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 35519 | 170.16 | 979 | 955 | 203.1 |
| A | 15 | 174 | 19325 | 90.43 | 979 | 955 | 203.1 |
| A | 13 | 6 | 17185 | 79.9 | 979 | 955 | 203.1 |
| B | 0 | 187 | 19052 | 92.57 | 993 | 967 | 195.4 |
| B | 12 | 111 | 18340 | 88.93 | 993 | 967 | 195.4 |
| B | 15 | 204 | 15164 | 72.67 | 993 | 967 | 195.4 |
| C | 1 | 16 | 442888 | 1953.68 | 958 | 967 | 226.2 |
| C | 13 | 61 | 7671 | 29.64 | 958 | 967 | 226.2 |
| C | 8 | 128 | 6909 | 26.27 | 958 | 967 | 226.2 |
| D | 7 | 237 | 8286039 | 36799.96 | 909 | 881 | 225.1 |
| D | 2 | 63 | 72406 | 317.69 | 909 | 881 | 225.1 |
| D | 2 | 16 | 69063 | 302.84 | 909 | 881 | 225.1 |

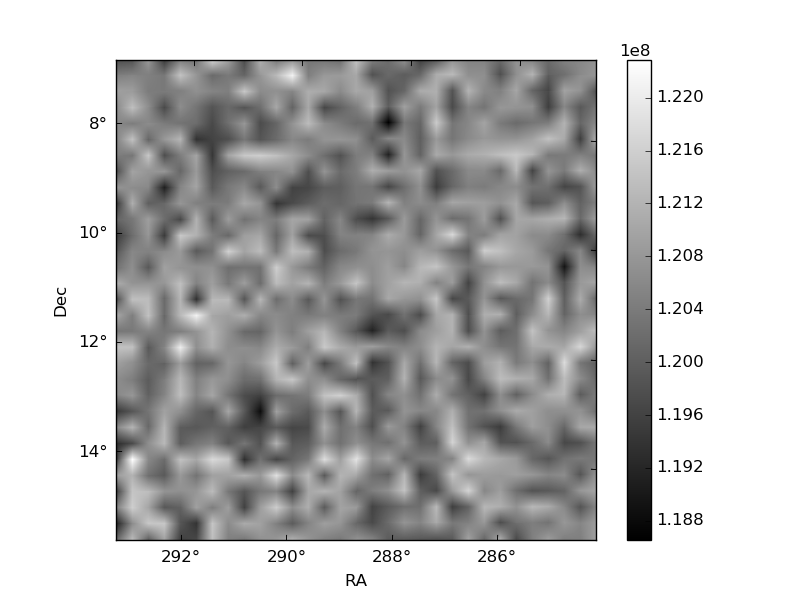

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

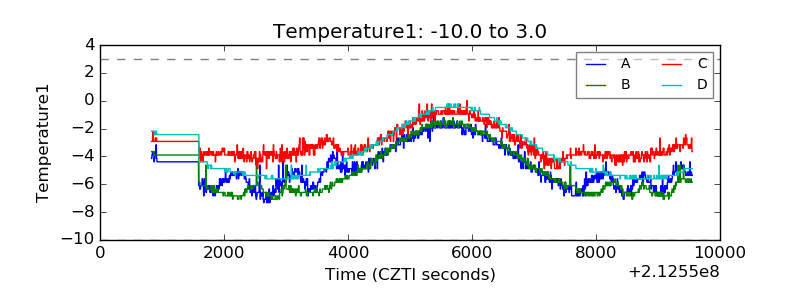

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

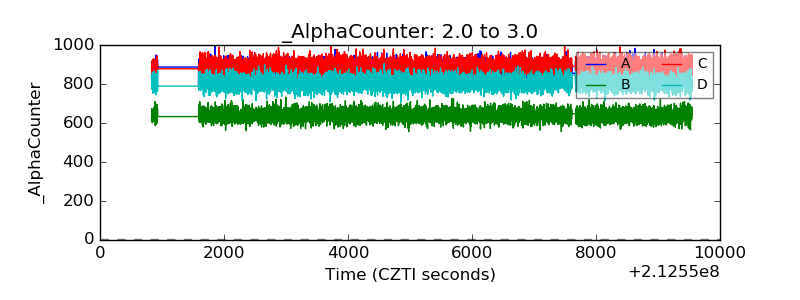

| Alpha Counter |  |

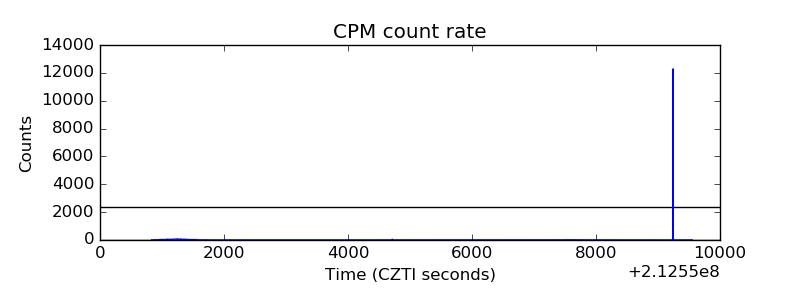

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

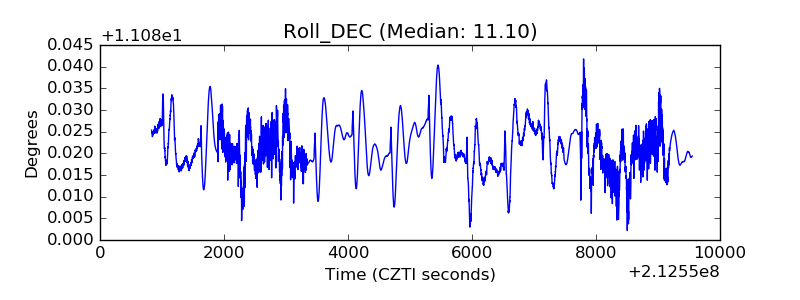

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
