| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000684_05393cztM0_level2.evt | modeM0/AS1G05_214T01_9000000684_05393cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,292,800 | 75,484,800 |
| Size | 418.0 MB | 72.0 MB |
| Events in quadrant A | 2,828,128 | 474,164 |
| Events in quadrant B | 3,085,678 | 470,312 |
| Events in quadrant C | 3,341,812 | 472,273 |
| Events in quadrant D | 3,610,870 | 450,213 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12588 | 2 |
| B | 0 | 12997 | 1 |
| C | 0 | 13730 | 1 |
| D | 0 | 14969 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6001 | 52 | 0.866522% |
| B | 6001 | 88 | 1.466422% |
| C | 6001 | 46 | 0.766539% |
| D | 5977 | 115 | 1.924042% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6876 | 6002 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6876 | 6002 | 46 | 46 | 0.67% | 0.77% |  |
| C | 6876 | 6002 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6876 | 5978 | 31 | 31 | 0.45% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 71587 | 491.88 | 697 | 681 | 144.2 |
| A | 0 | 50 | 40919 | 279.13 | 697 | 681 | 144.2 |
| A | 14 | 111 | 17010 | 113.27 | 697 | 681 | 144.2 |
| B | 4 | 48 | 99966 | 732.27 | 699 | 681 | 135.6 |
| B | 4 | 81 | 96398 | 705.96 | 699 | 681 | 135.6 |
| B | 15 | 204 | 87040 | 636.94 | 699 | 681 | 135.6 |
| C | 1 | 16 | 697913 | 4415.04 | 676 | 679 | 157.9 |
| C | 13 | 61 | 5509 | 30.58 | 676 | 679 | 157.9 |
| C | 9 | 247 | 3085 | 15.24 | 676 | 679 | 157.9 |
| D | 7 | 237 | 822057 | 4952.8 | 675 | 654 | 165.8 |
| D | 2 | 14 | 79628 | 476.19 | 675 | 654 | 165.8 |
| D | 2 | 33 | 71027 | 424.32 | 675 | 654 | 165.8 |

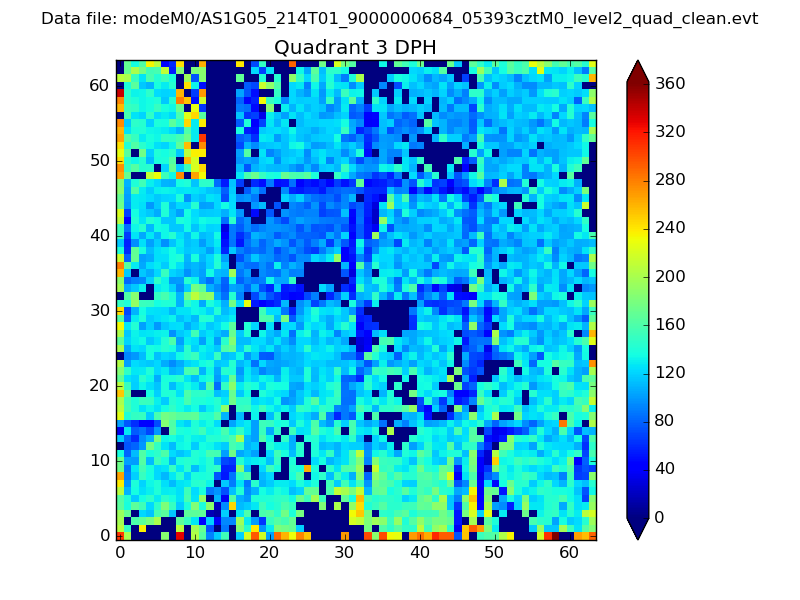

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

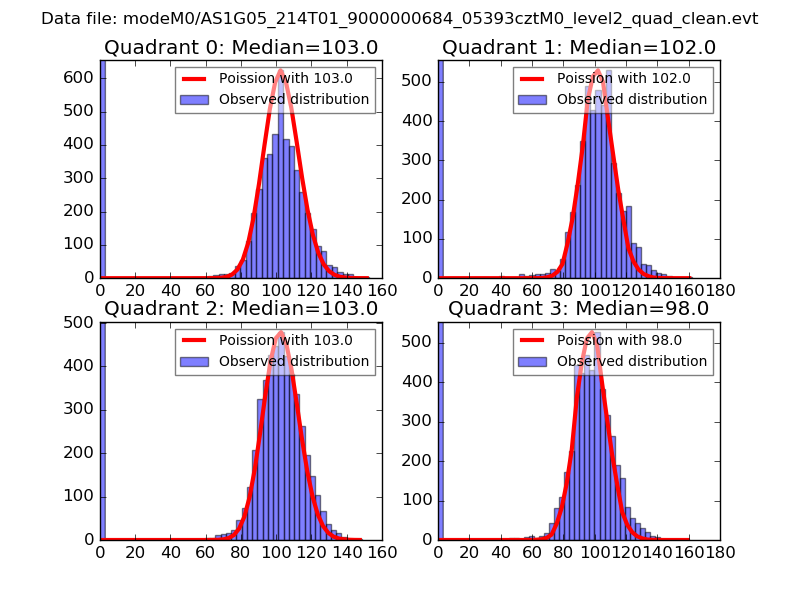

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

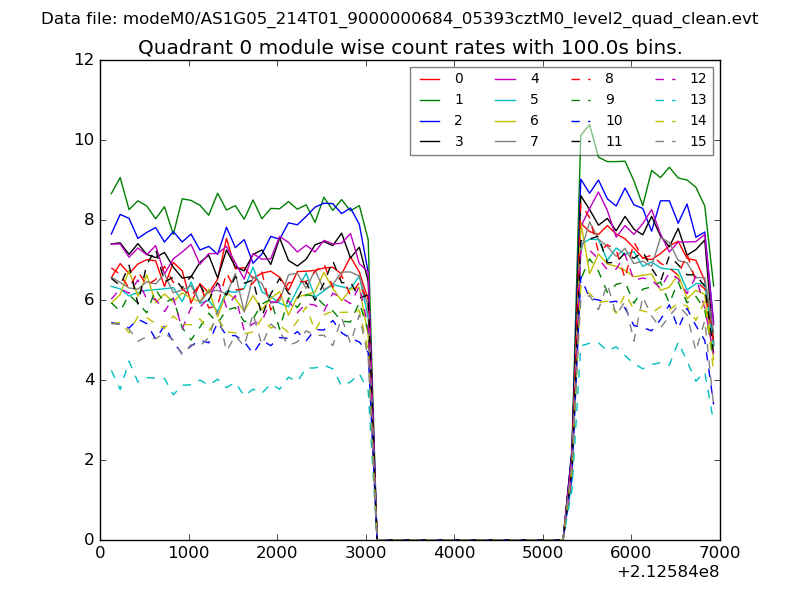

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

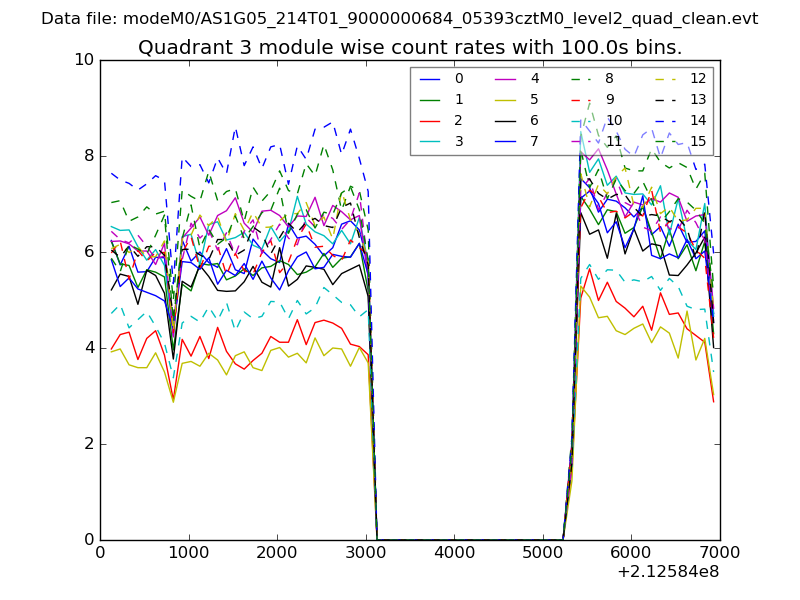

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

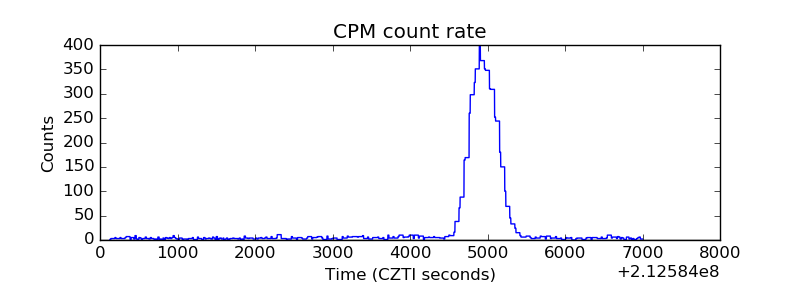

| _CPM_Rate |  |
| CZT Counter |  |

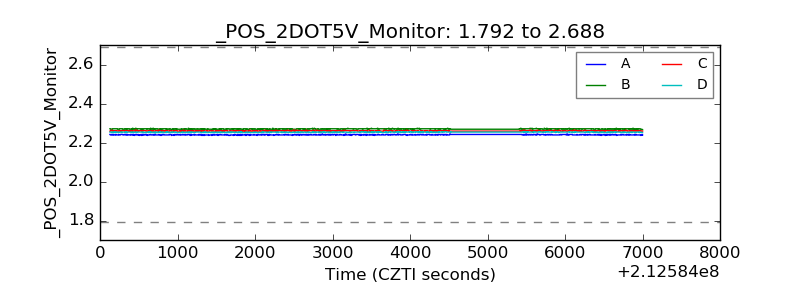

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

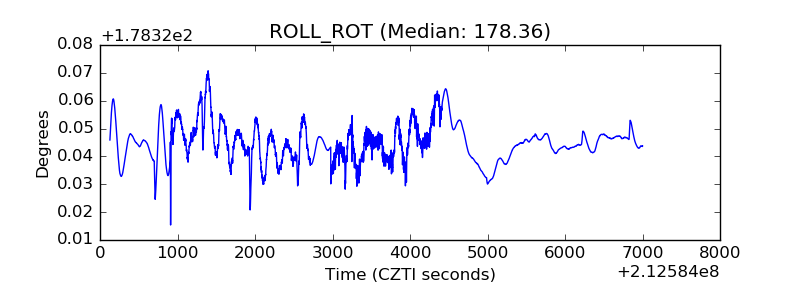

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
