| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000684_05394cztM0_level2.evt | modeM0/AS1G05_214T01_9000000684_05394cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,898,880 | 78,451,200 |
| Size | 416.7 MB | 74.8 MB |
| Events in quadrant A | 2,919,600 | 491,338 |
| Events in quadrant B | 3,201,358 | 488,013 |
| Events in quadrant C | 3,733,256 | 485,325 |
| Events in quadrant D | 2,948,615 | 470,757 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13078 | 2 |
| B | 0 | 13716 | 1 |
| C | 0 | 15250 | 1 |
| D | 0 | 13308 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6306 | 67 | 1.062480% |
| B | 6306 | 78 | 1.236917% |
| C | 6306 | 72 | 1.141770% |
| D | 6306 | 66 | 1.046622% |

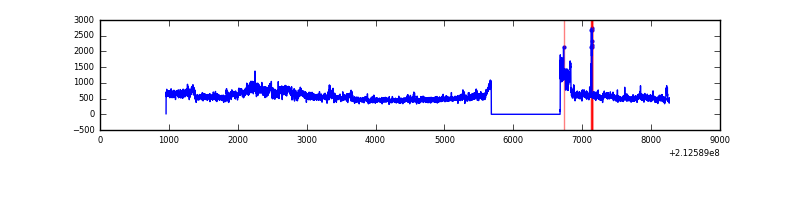

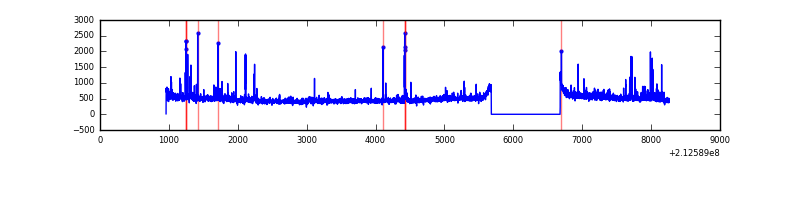

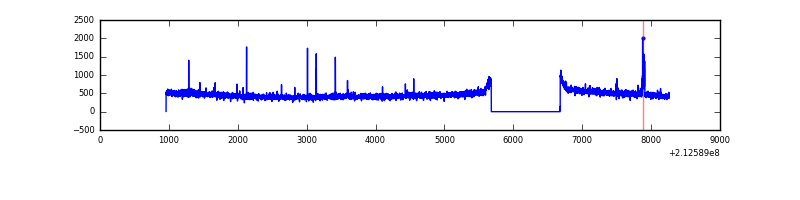

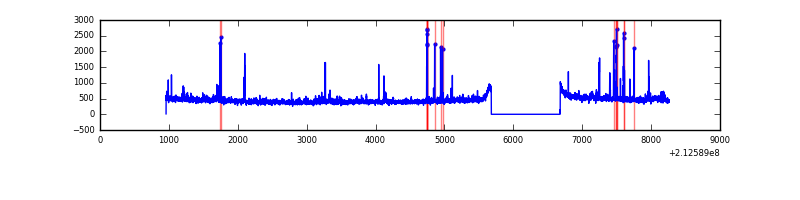

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7306 | 6307 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7306 | 6307 | 10 | 10 | 0.14% | 0.16% |  |
| C | 7306 | 6307 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7306 | 6307 | 18 | 18 | 0.25% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 44014 | 282.44 | 741 | 724 | 153.3 |
| A | 13 | 6 | 14078 | 87.13 | 741 | 724 | 153.3 |
| A | 12 | 194 | 7377 | 43.41 | 741 | 724 | 153.3 |
| B | 4 | 81 | 93064 | 646.66 | 744 | 728 | 142.8 |
| B | 15 | 204 | 59568 | 412.08 | 744 | 728 | 142.8 |
| B | 4 | 48 | 42356 | 291.53 | 744 | 728 | 142.8 |
| C | 1 | 16 | 902105 | 5380.52 | 717 | 721 | 167.5 |
| C | 9 | 247 | 25079 | 145.4 | 717 | 721 | 167.5 |
| C | 4 | 222 | 6541 | 34.74 | 717 | 721 | 167.5 |
| D | 2 | 14 | 71543 | 397.9 | 722 | 701 | 178.0 |
| D | 2 | 33 | 55237 | 306.32 | 722 | 701 | 178.0 |
| D | 2 | 63 | 27645 | 151.34 | 722 | 701 | 178.0 |

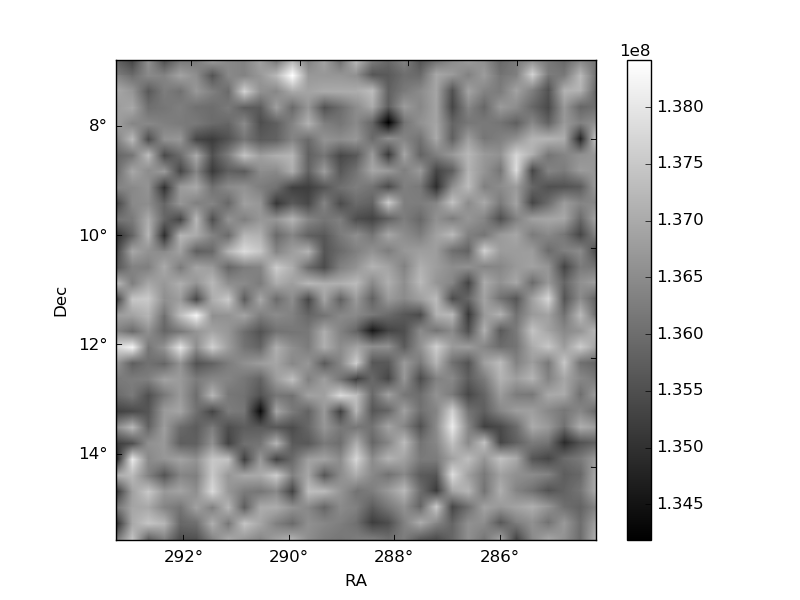

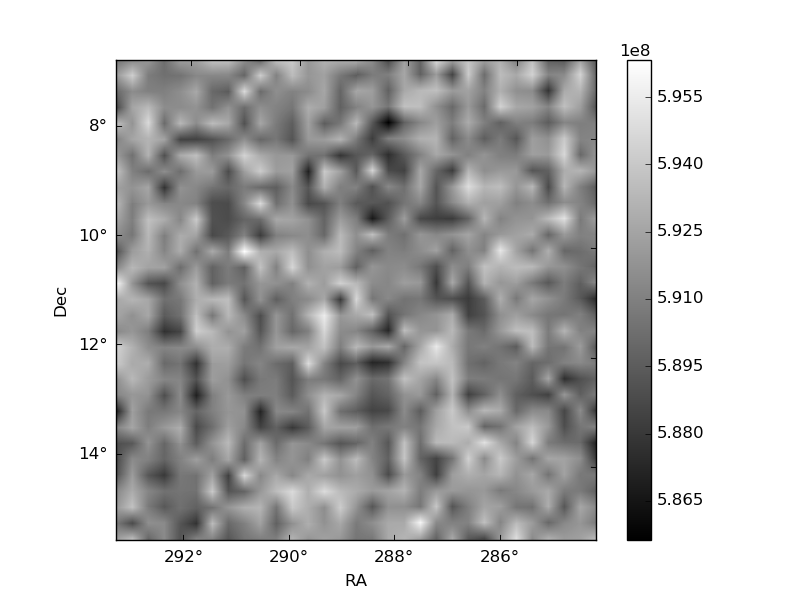

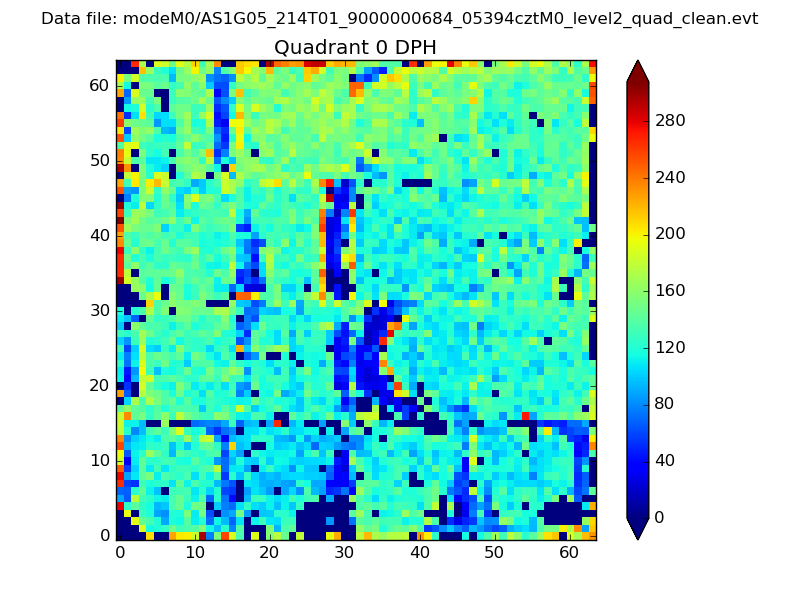

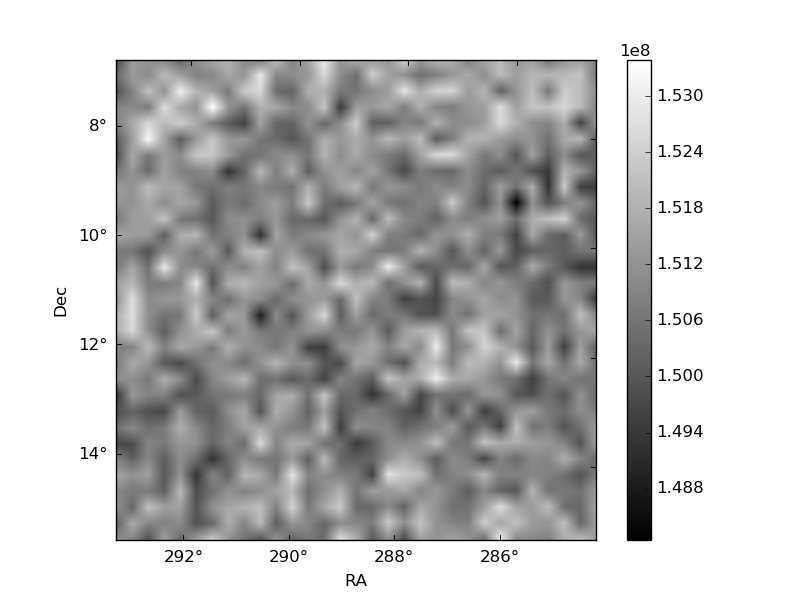

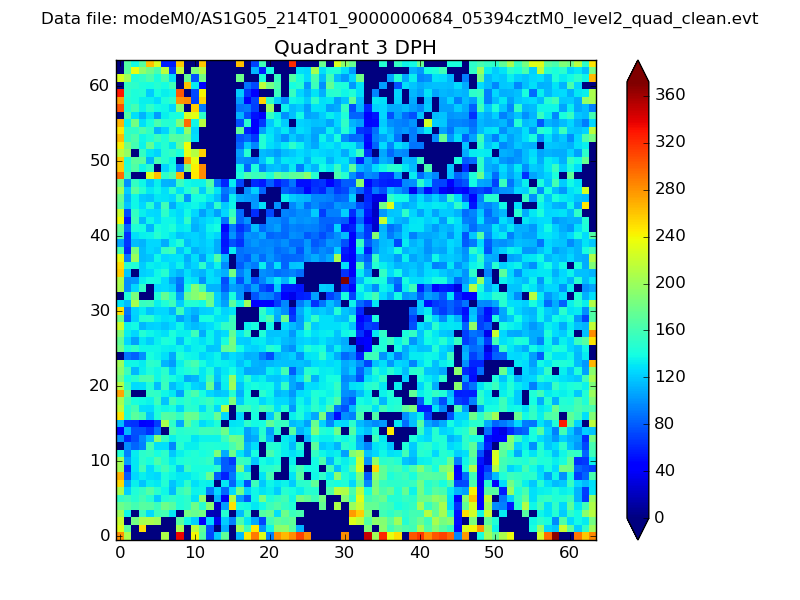

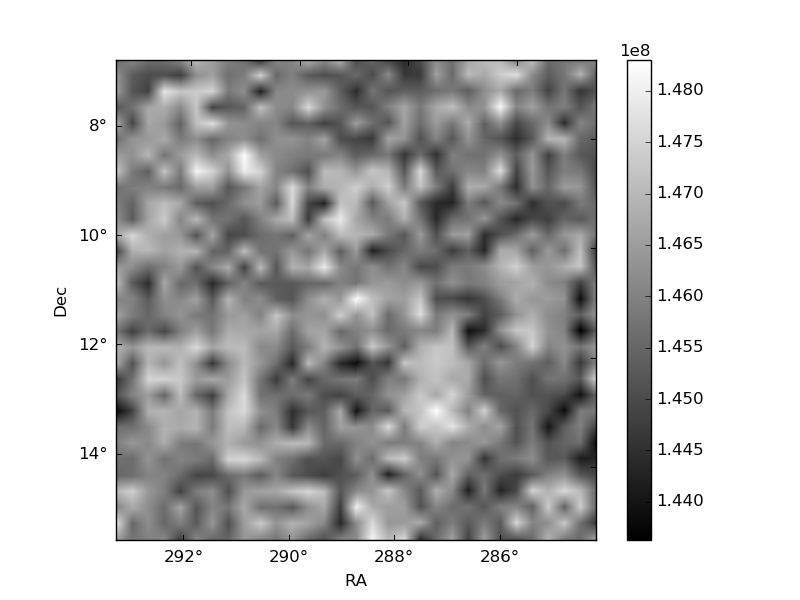

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

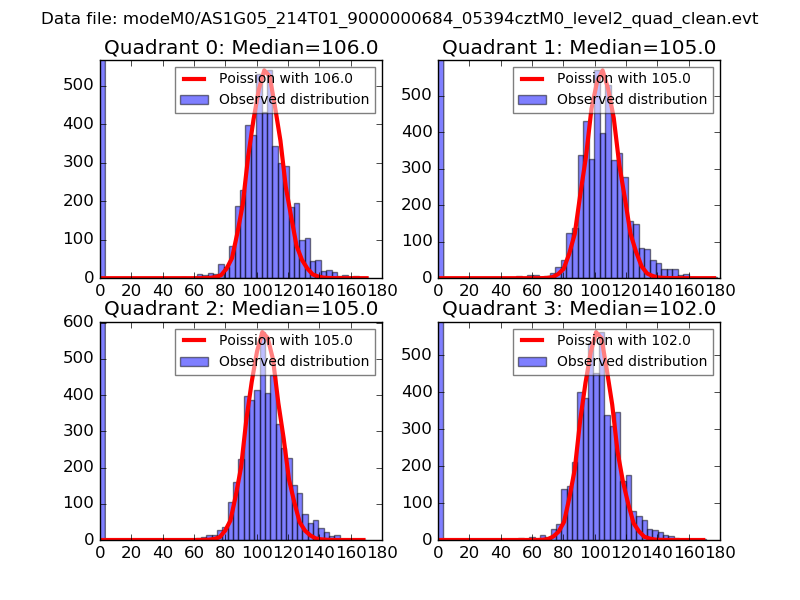

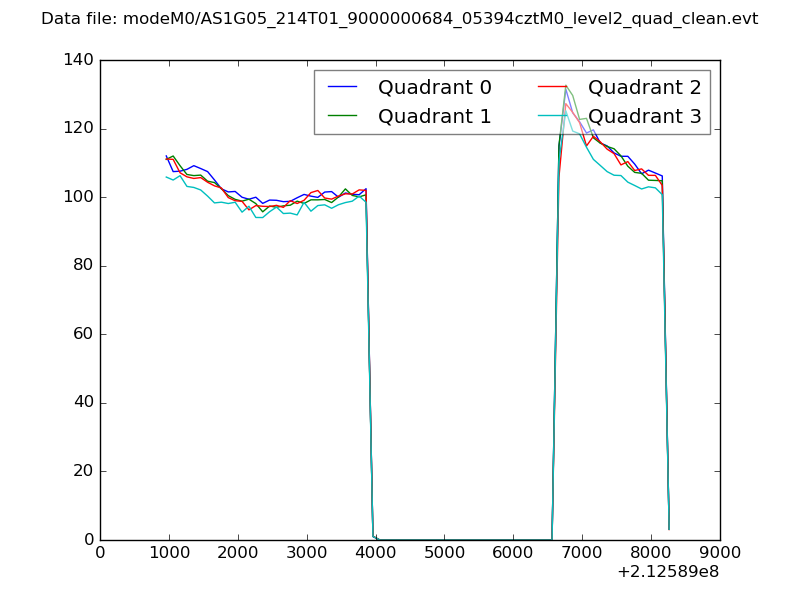

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

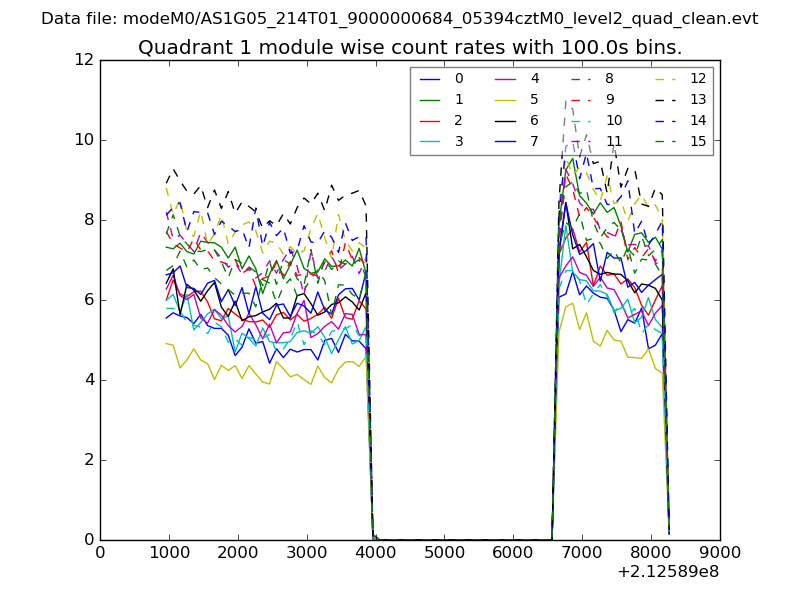

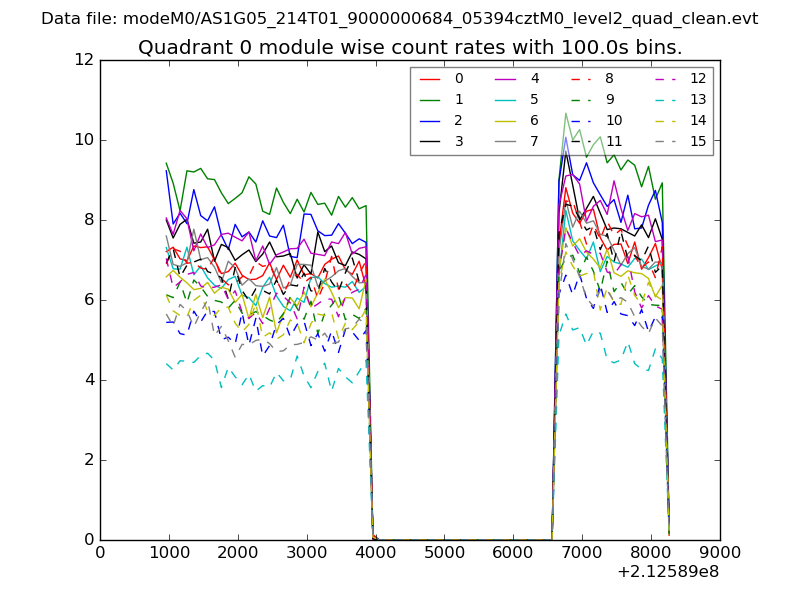

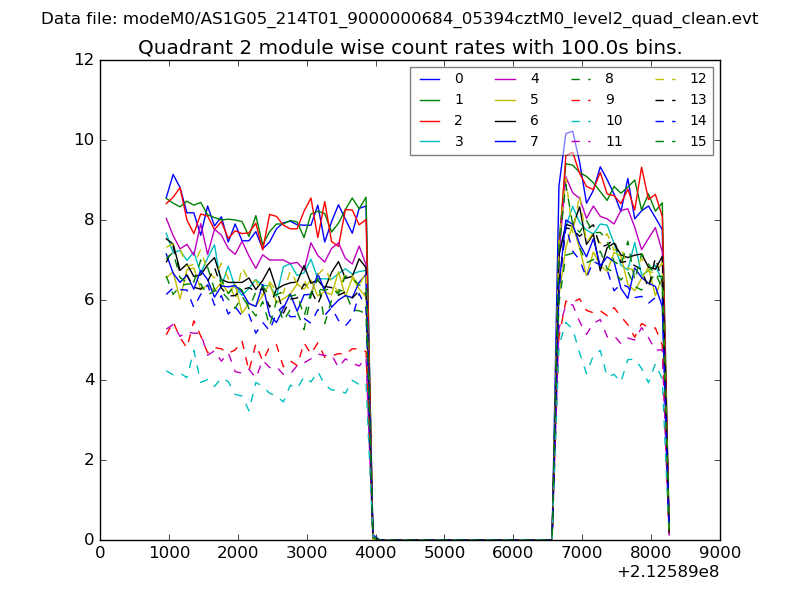

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

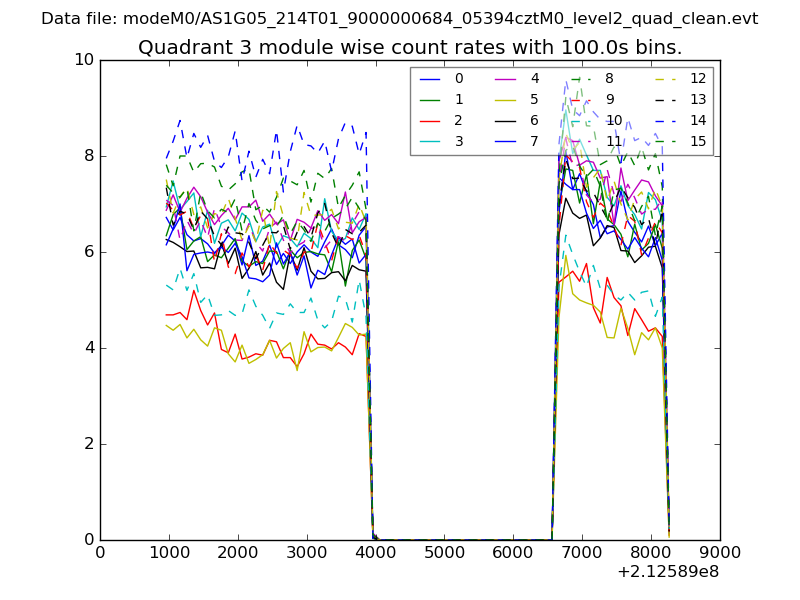

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

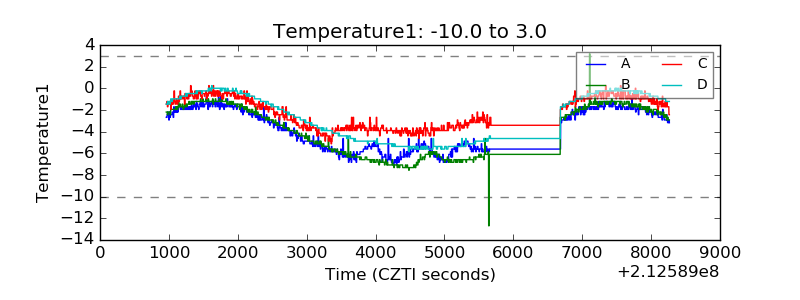

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

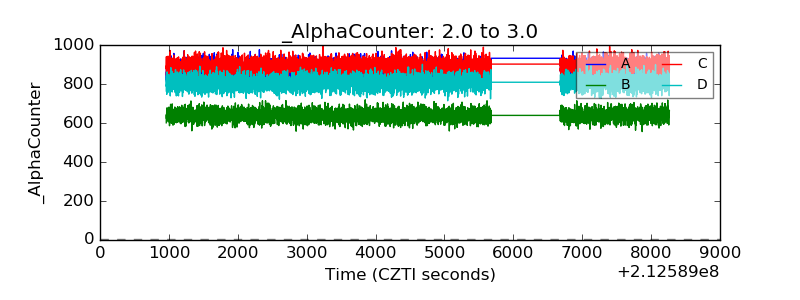

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

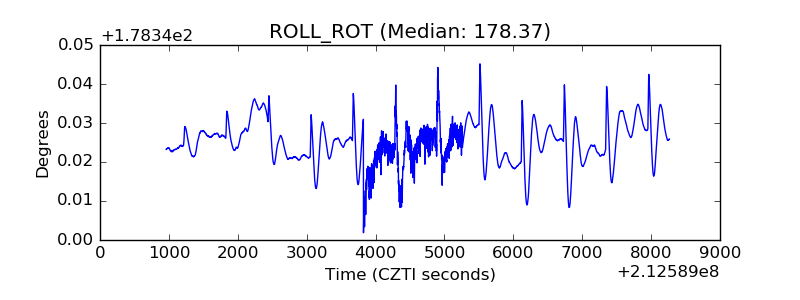

| _ROLL_ROT |  |

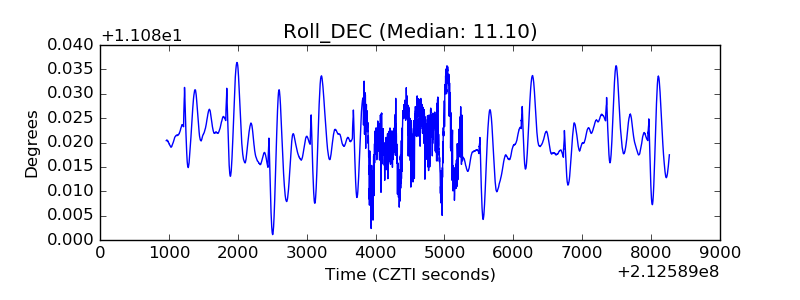

| _Roll_DEC |  |

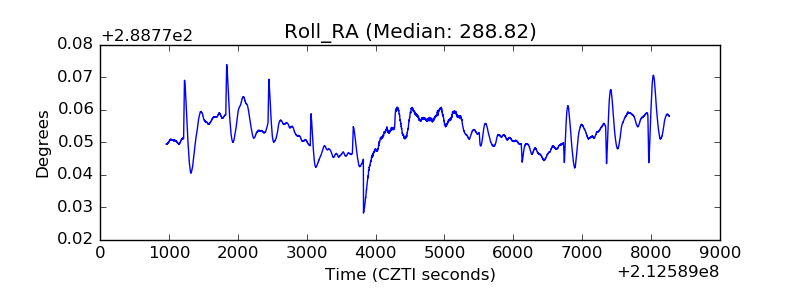

| _Roll_RA |  |

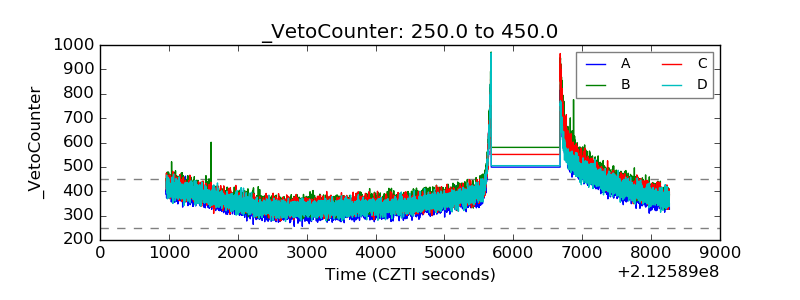

| Veto Counter |  |
