| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000684_05399cztM0_level2.evt | modeM0/AS1G05_214T01_9000000684_05399cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,537,600 | 69,572,160 |
| Size | 444.0 MB | 66.3 MB |
| Events in quadrant A | 2,800,369 | 430,350 |
| Events in quadrant B | 3,147,735 | 440,711 |
| Events in quadrant C | 2,831,867 | 434,662 |
| Events in quadrant D | 4,916,447 | 386,559 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12272 | 2 |
| B | 0 | 13150 | 1 |
| C | 0 | 12292 | 1 |
| D | 0 | 18606 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5928 | 30 | 0.506073% |
| B | 5928 | 59 | 0.995277% |
| C | 5928 | 25 | 0.421727% |
| D | 5928 | 436 | 7.354926% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7243 | 5929 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7243 | 5929 | 11 | 11 | 0.15% | 0.19% |  |
| C | 7243 | 5929 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7243 | 5929 | 410 | 410 | 5.66% | 6.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 17614 | 115.43 | 715 | 699 | 146.5 |
| A | 0 | 50 | 13426 | 86.85 | 715 | 699 | 146.5 |
| A | 4 | 2 | 8095 | 50.47 | 715 | 699 | 146.5 |
| B | 0 | 219 | 103158 | 730.32 | 732 | 716 | 140.3 |
| B | 0 | 187 | 100401 | 710.66 | 732 | 716 | 140.3 |
| B | 4 | 81 | 52866 | 371.78 | 732 | 716 | 140.3 |
| C | 1 | 16 | 79816 | 482.57 | 700 | 705 | 163.9 |
| C | 14 | 67 | 15332 | 89.22 | 700 | 705 | 163.9 |
| C | 13 | 61 | 5685 | 30.38 | 700 | 705 | 163.9 |
| D | 2 | 63 | 1898187 | 11438.97 | 674 | 655 | 165.9 |
| D | 2 | 33 | 335697 | 2019.75 | 674 | 655 | 165.9 |
| D | 2 | 14 | 43973 | 261.14 | 674 | 655 | 165.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

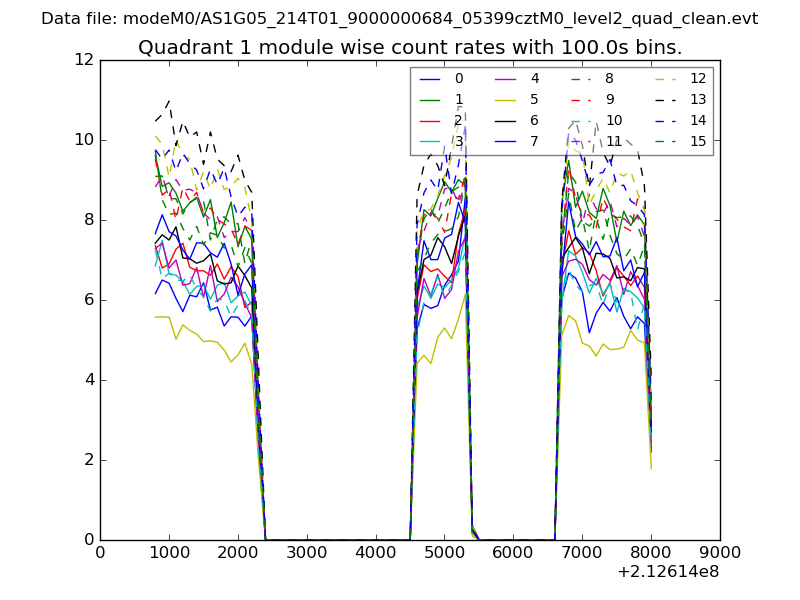

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

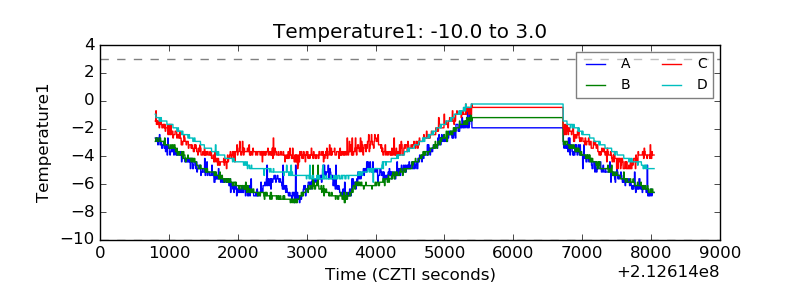

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

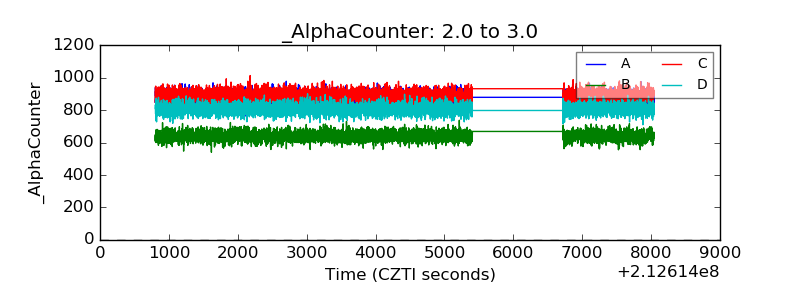

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

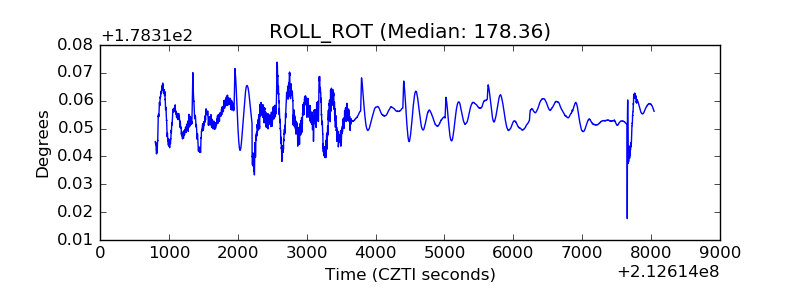

| _ROLL_ROT |  |

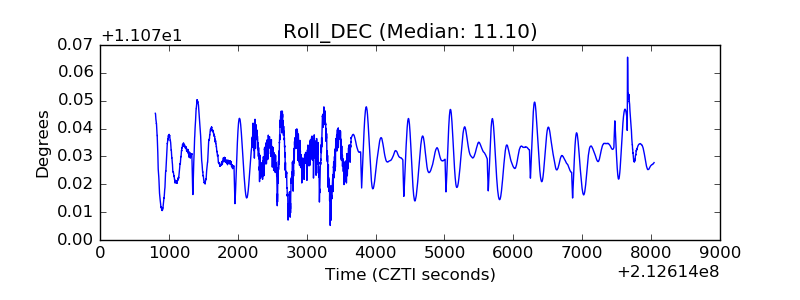

| _Roll_DEC |  |

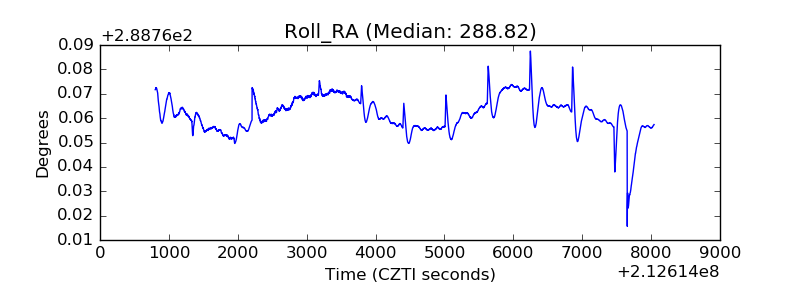

| _Roll_RA |  |

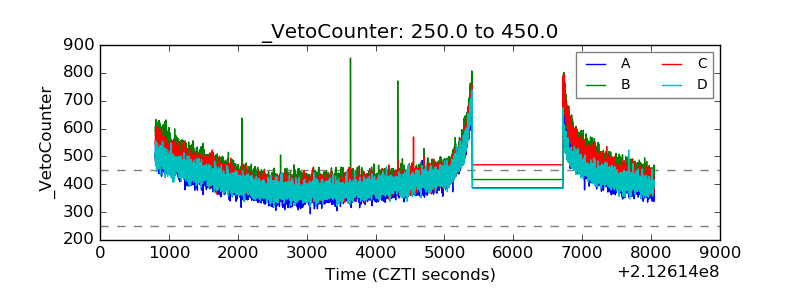

| Veto Counter |  |
