| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000684_05415cztM0_level2.evt | modeM0/AS1G05_214T01_9000000684_05415cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,999,360 | 72,095,040 |
| Size | 430.1 MB | 68.8 MB |
| Events in quadrant A | 3,043,292 | 437,672 |
| Events in quadrant B | 3,562,743 | 437,740 |
| Events in quadrant C | 2,970,989 | 439,344 |
| Events in quadrant D | 3,635,296 | 410,381 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13589 | 5 |
| B | 0 | 15077 | 2 |
| C | 0 | 13471 | 2 |
| D | 0 | 15538 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6569 | 35 | 0.532806% |
| B | 6570 | 103 | 1.567732% |
| C | 6570 | 23 | 0.350076% |
| D | 6570 | 110 | 1.674277% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

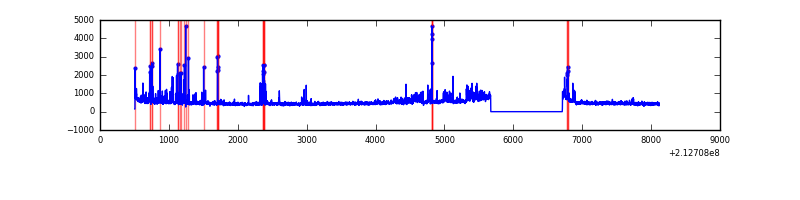

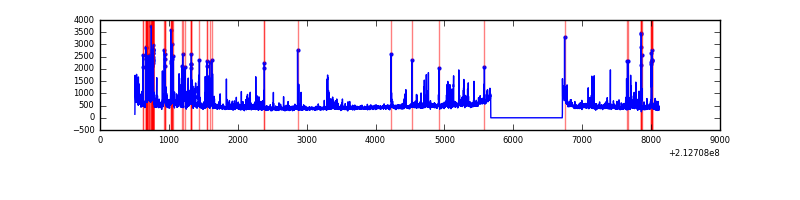

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7610 | 6571 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7610 | 6571 | 33 | 33 | 0.43% | 0.50% |  |
| C | 7610 | 6571 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7610 | 6571 | 85 | 85 | 1.12% | 1.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 28351 | 173.39 | 770 | 753 | 159.2 |
| A | 13 | 6 | 19779 | 119.53 | 770 | 753 | 159.2 |
| A | 15 | 174 | 15793 | 94.49 | 770 | 753 | 159.2 |
| B | 10 | 16 | 199534 | 1324.07 | 783 | 764 | 150.1 |
| B | 15 | 204 | 194730 | 1292.07 | 783 | 764 | 150.1 |
| B | 4 | 48 | 55585 | 365.18 | 783 | 764 | 150.1 |
| C | 9 | 247 | 13278 | 71.08 | 754 | 760 | 176.1 |
| C | 13 | 61 | 6021 | 29.87 | 754 | 760 | 176.1 |
| C | 14 | 67 | 5867 | 29.0 | 754 | 760 | 176.1 |
| D | 2 | 33 | 284328 | 1550.88 | 741 | 717 | 182.9 |
| D | 2 | 63 | 192274 | 1047.5 | 741 | 717 | 182.9 |
| D | 2 | 152 | 155824 | 848.18 | 741 | 717 | 182.9 |

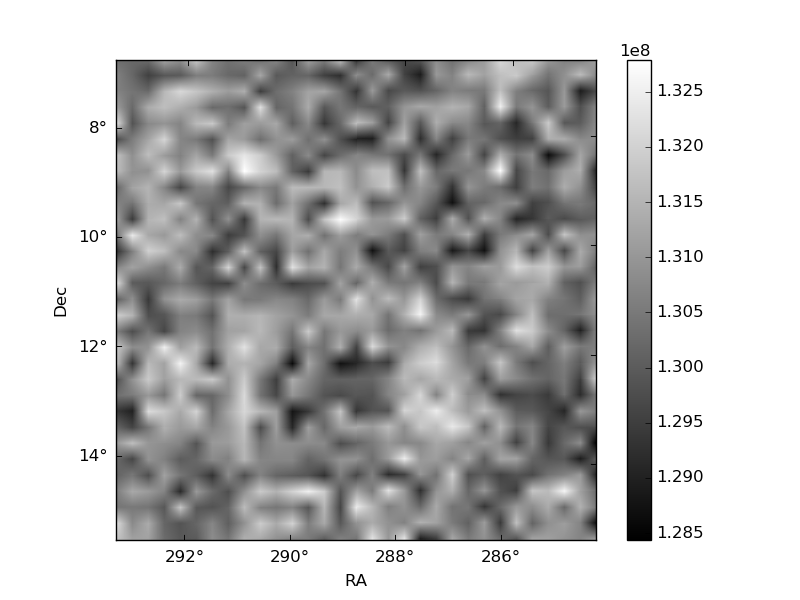

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

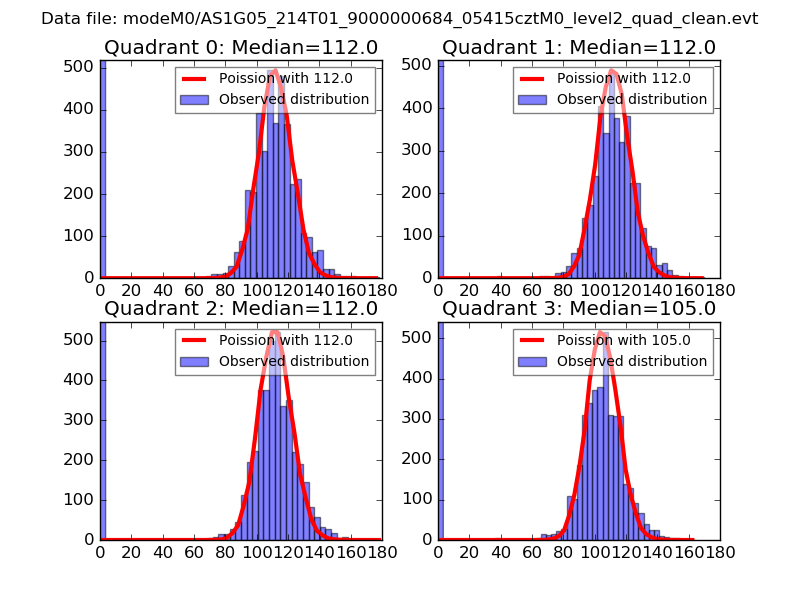

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

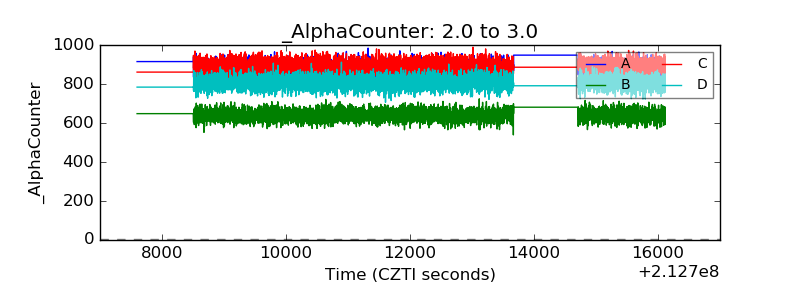

| Alpha Counter |  |

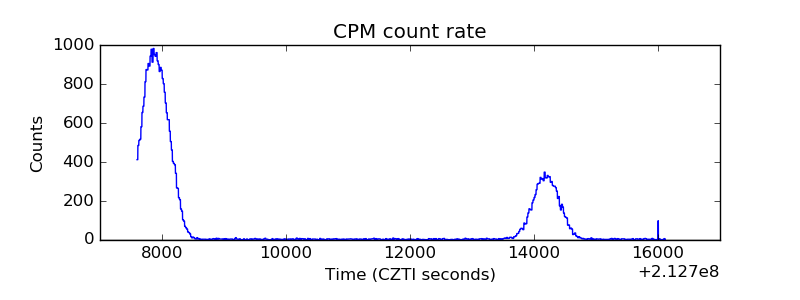

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

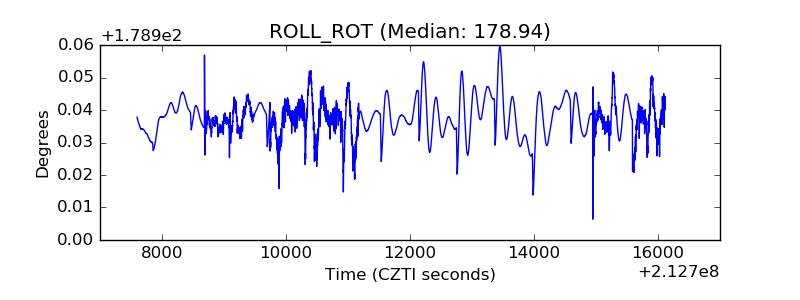

| _ROLL_ROT |  |

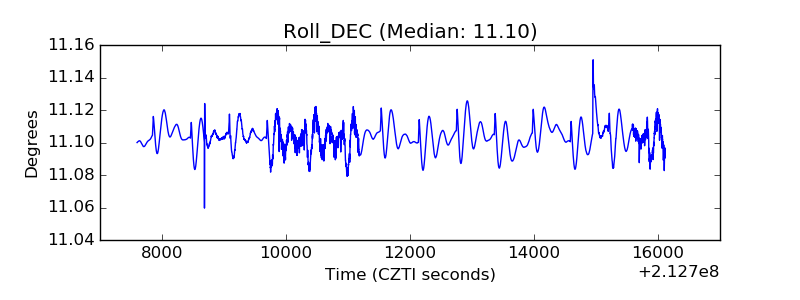

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
